Toyota RAV4 Engine Mounting — Figure 1107

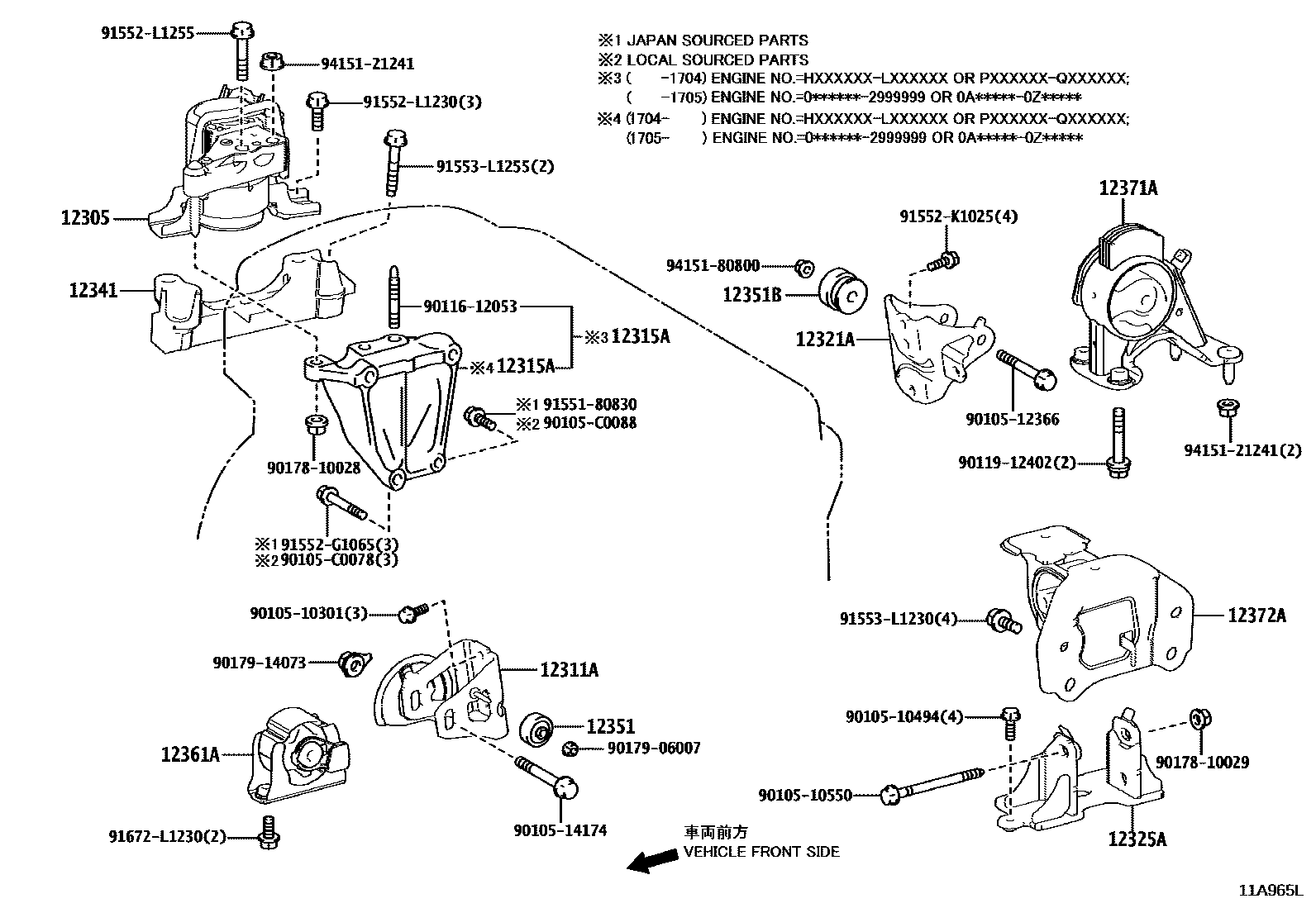

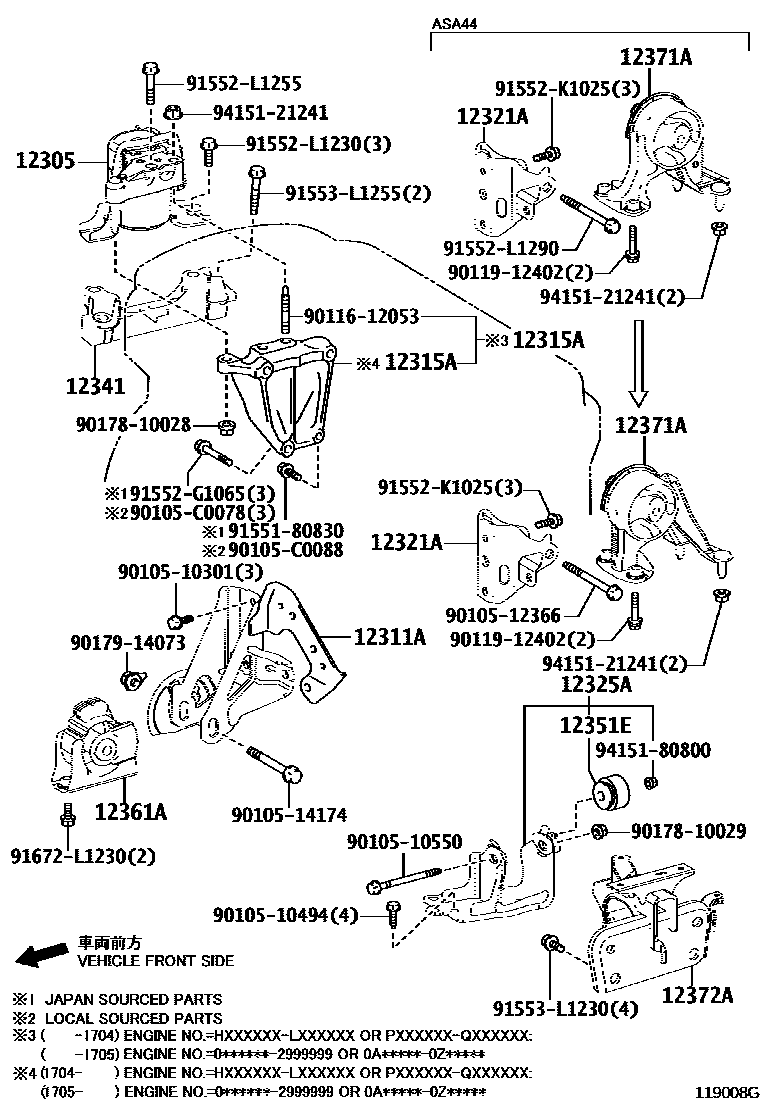

Toyota RAV4 EPC diagram 1107, Engine Mounting, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-36040 · 12305-36090 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-36090 · 12311-36091 · 12311-36110 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0V030 · 12315-0V031 · 12315-36010 · 12315-36011 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-36070 · 12321-36080 · 12321-36090 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12304-36040 · 12304-36041 · 12304-36060 · 12304-36061 · 12325-36070 |
| 12341 | engine mounting spacer | 12341-26011 |
| 12351 | engine mount shock absorber | 12351-28110 |
| 12351B | engine mount shock absorber | 12351-23040 |
| 12351E | AMORTISSEUR, BATI-MOTEUR | 12351-33020 · 12351-37020 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-36130 · 12361-36150 |
| 12371A | Engine rear mount vibration isolation pad | 12371-36090 · 12371-36100 · 12371-36190 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-36060 · 12372-36070 |
