Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

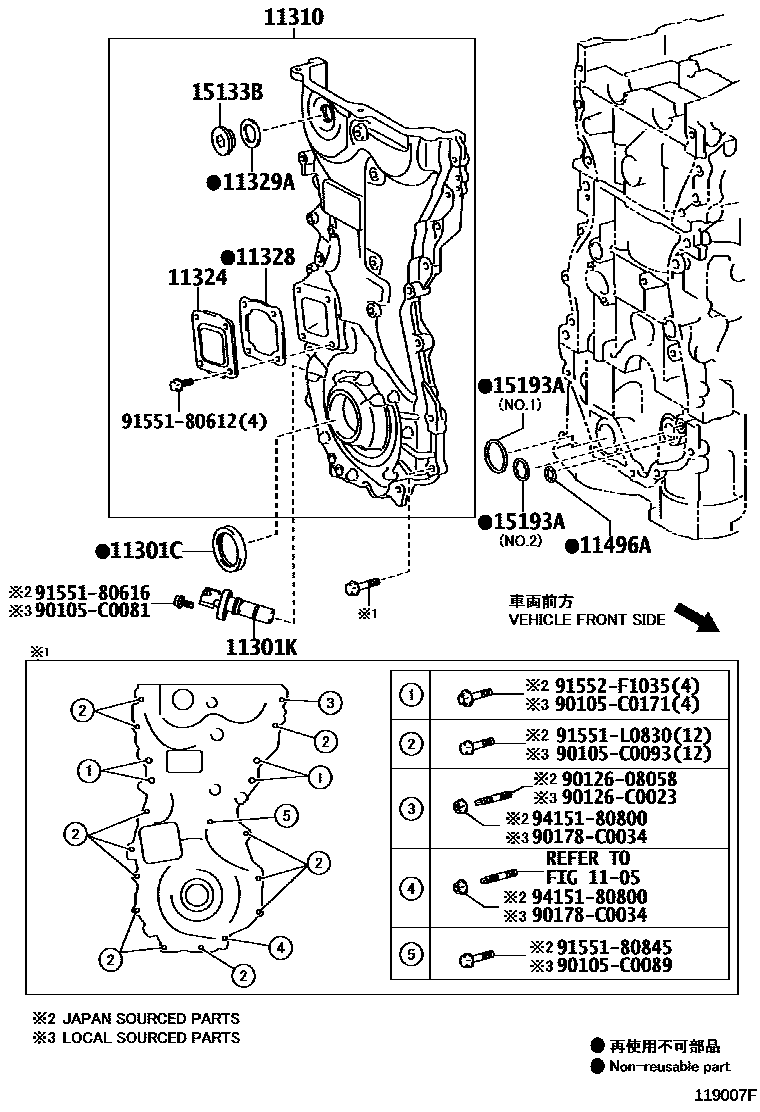

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 9 PNC and OE references.

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 119007F
Timing Gear Cover & Rear End Plate — 119007F (201212 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-40042 · 90311-42043 · 90311-42051 · 90311-C0036
11301Kcrankshaft position sensor90919-05070
11310ENSEMBLE COUVERCLE, CHAINE DE DISTRIBUTION11310-0V030 · 11310-36020
11324Timing chain cover11324-36010
11328GASKET, TIMING GEAR OR CHAIN COVER11328-36020
11329ANo. 2 timing belt or chain cover gasket11329-36010 · 11329-36020
11496AOil hole cover gasket11496-0V010 · 11496-36010
15133BPLUG, OIL PUMP RELIEF VALVE15133-36020
15193Aoil pump gasket15193-0V010 · 15193-36010 · 15197-0V010 · 15197-36010
