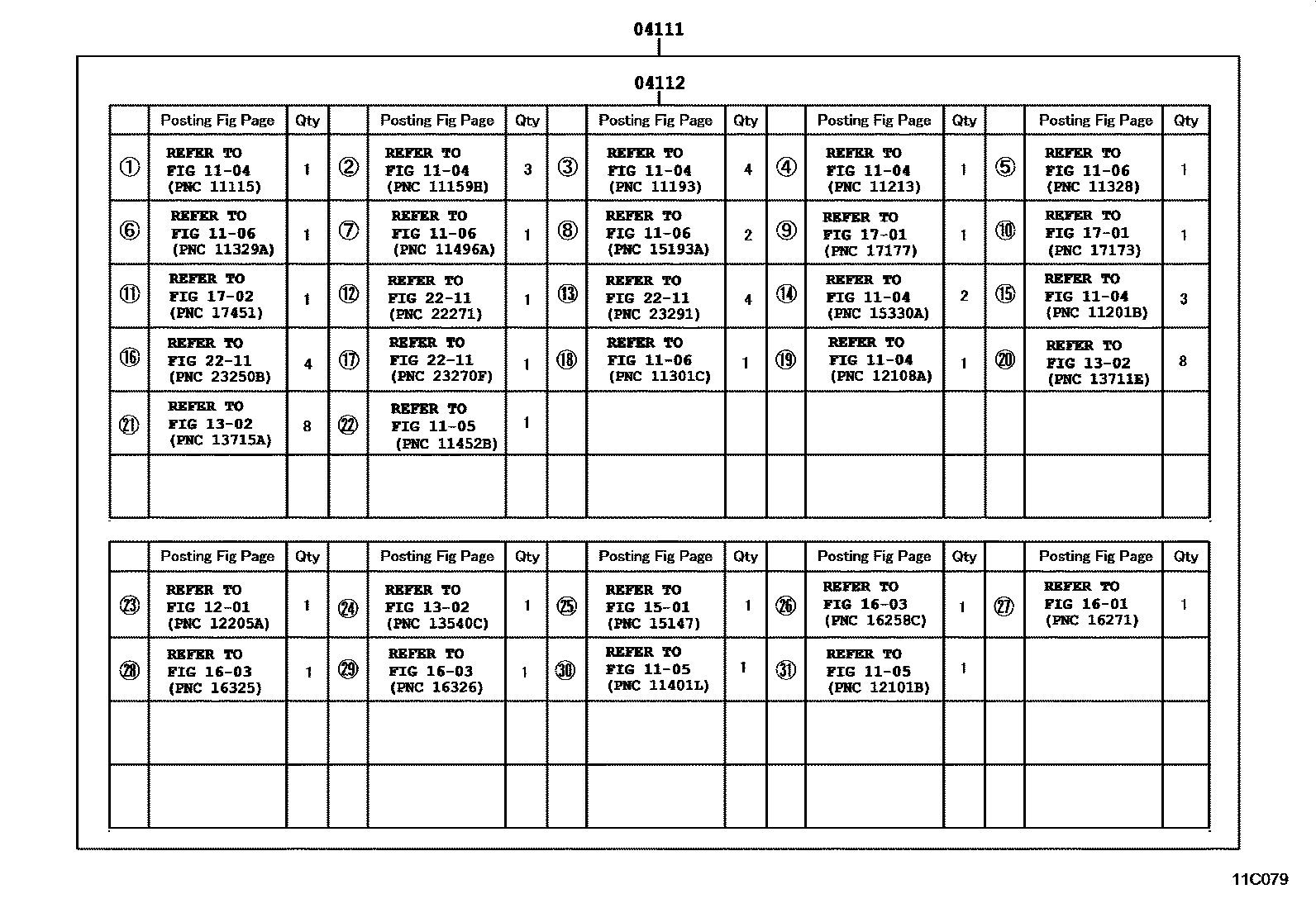

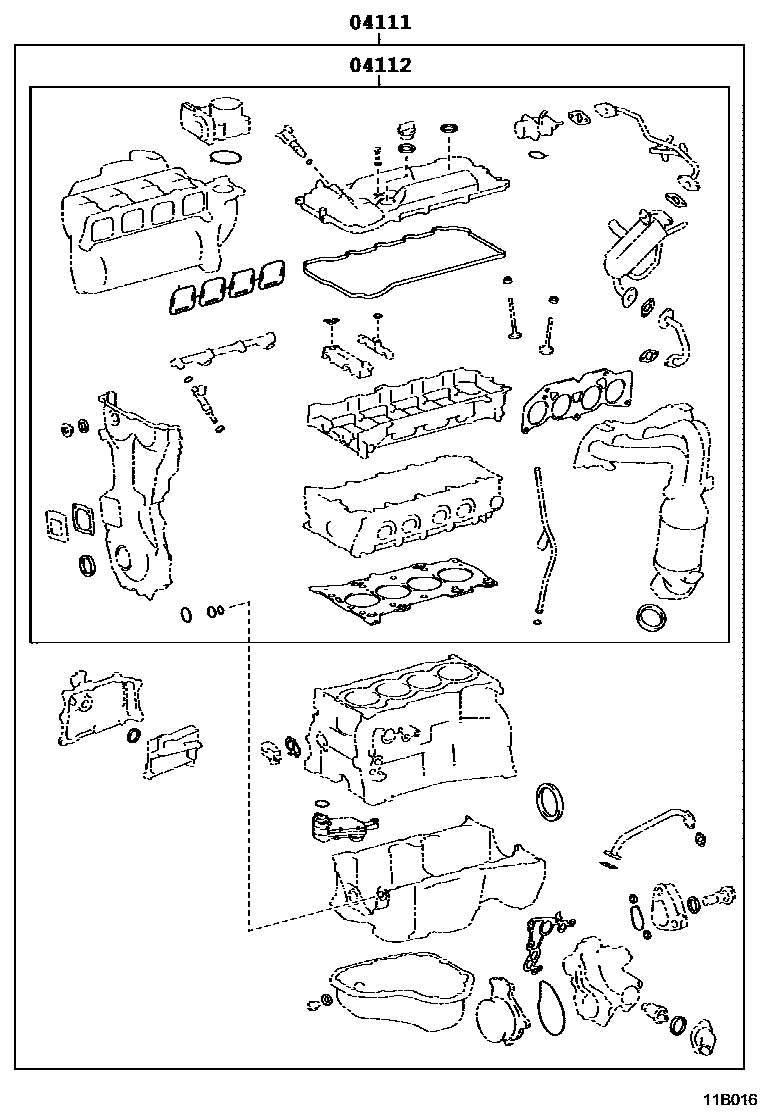

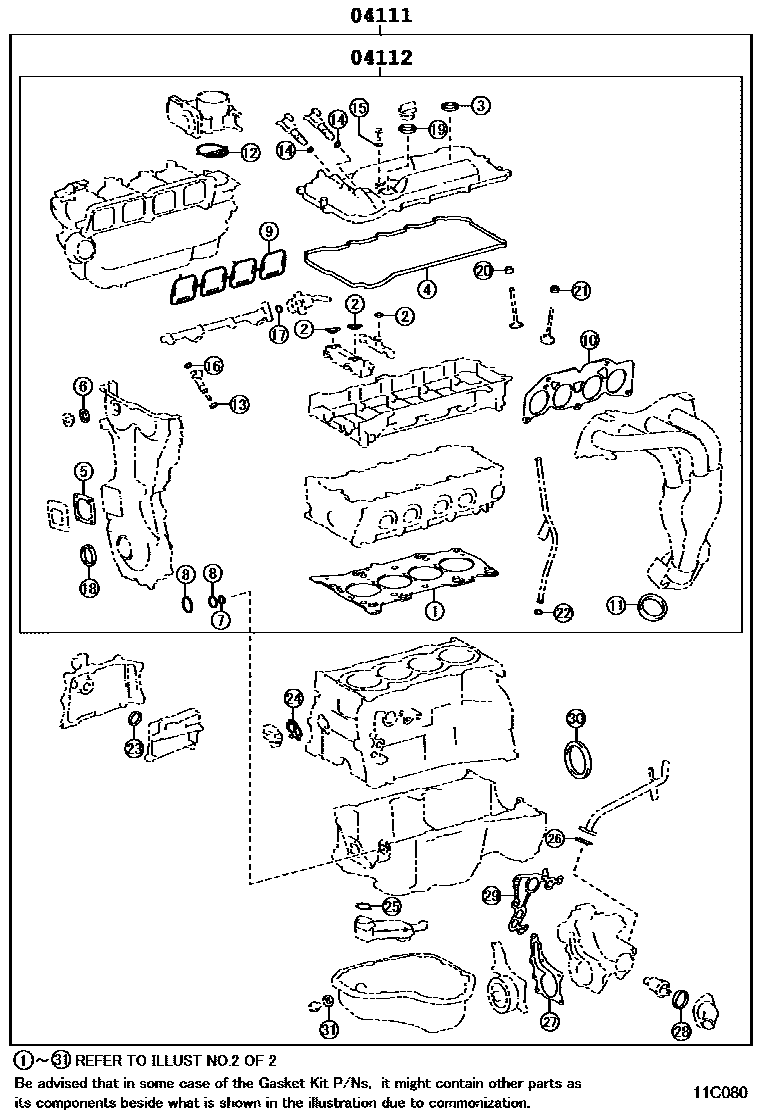

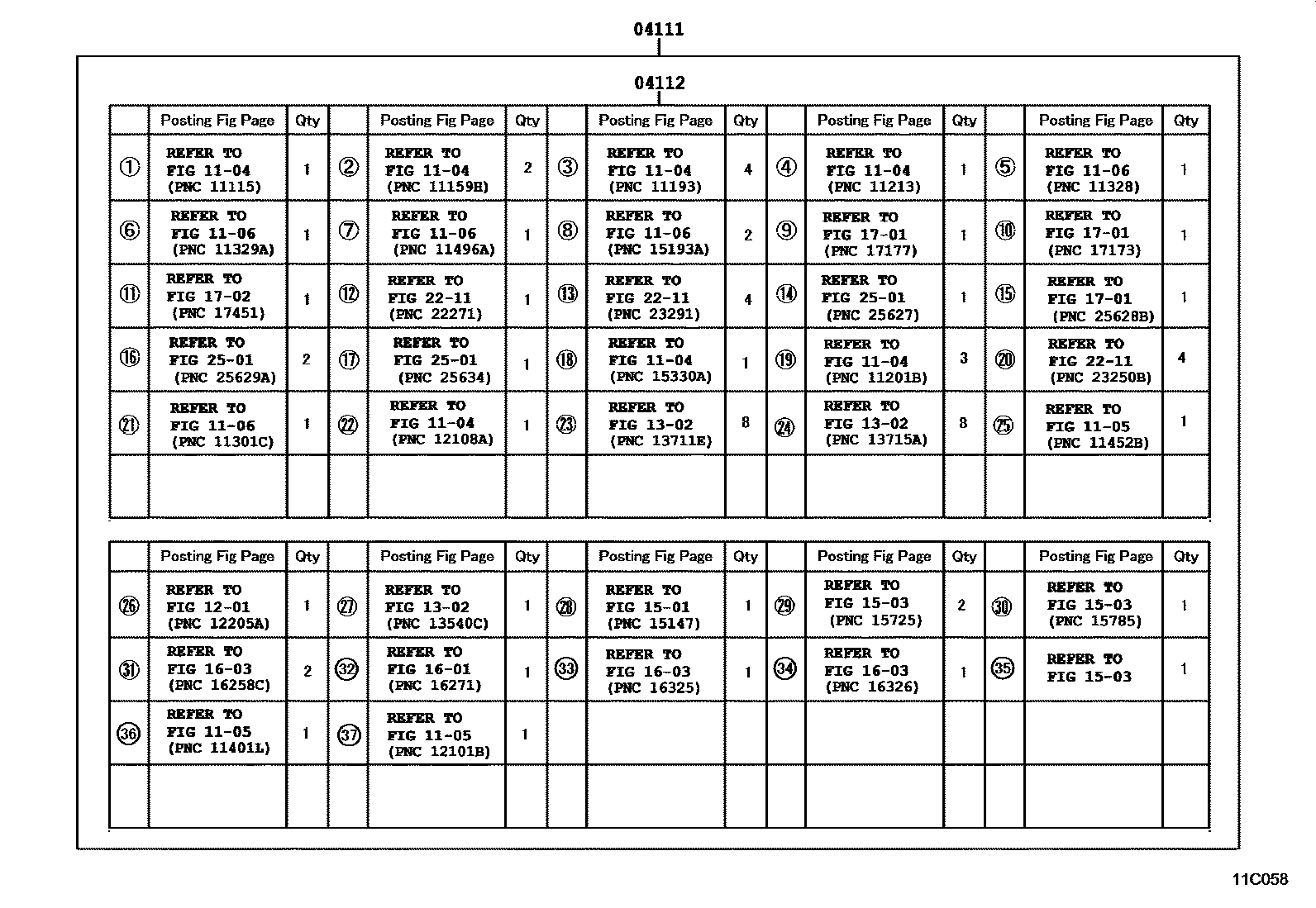

Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103
Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-0V100 · 04111-0V101 · 04111-0V102 · 04111-0V130 · 04111-36062 · 04111-36063 · 04111-36064 · 04111-36065 · 04111-36066 · 04111-36067 · 04111-36201 |
| 04112 | Engine valve grinding pad assembly | 04112-0V090 · 04112-0V091 · 04112-0V092 · 04112-0V120 · 04112-36051 · 04112-36052 · 04112-36053 · 04112-36054 · 04112-36055 · 04112-36093 |
