Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718

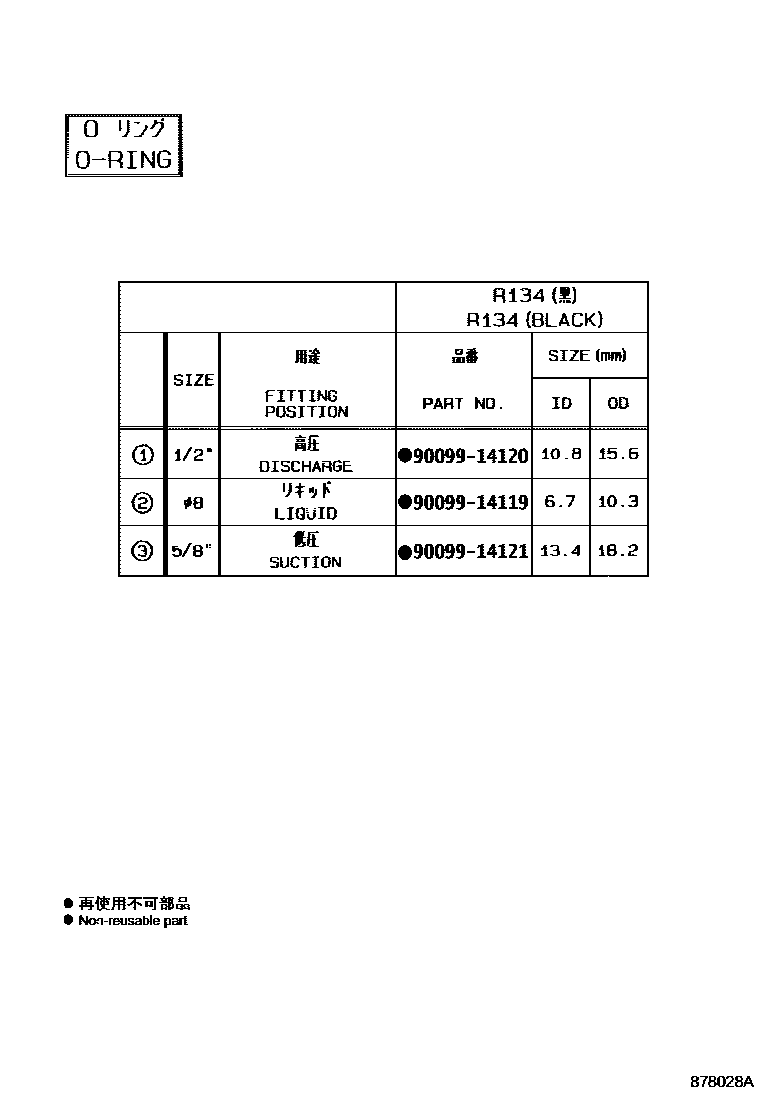

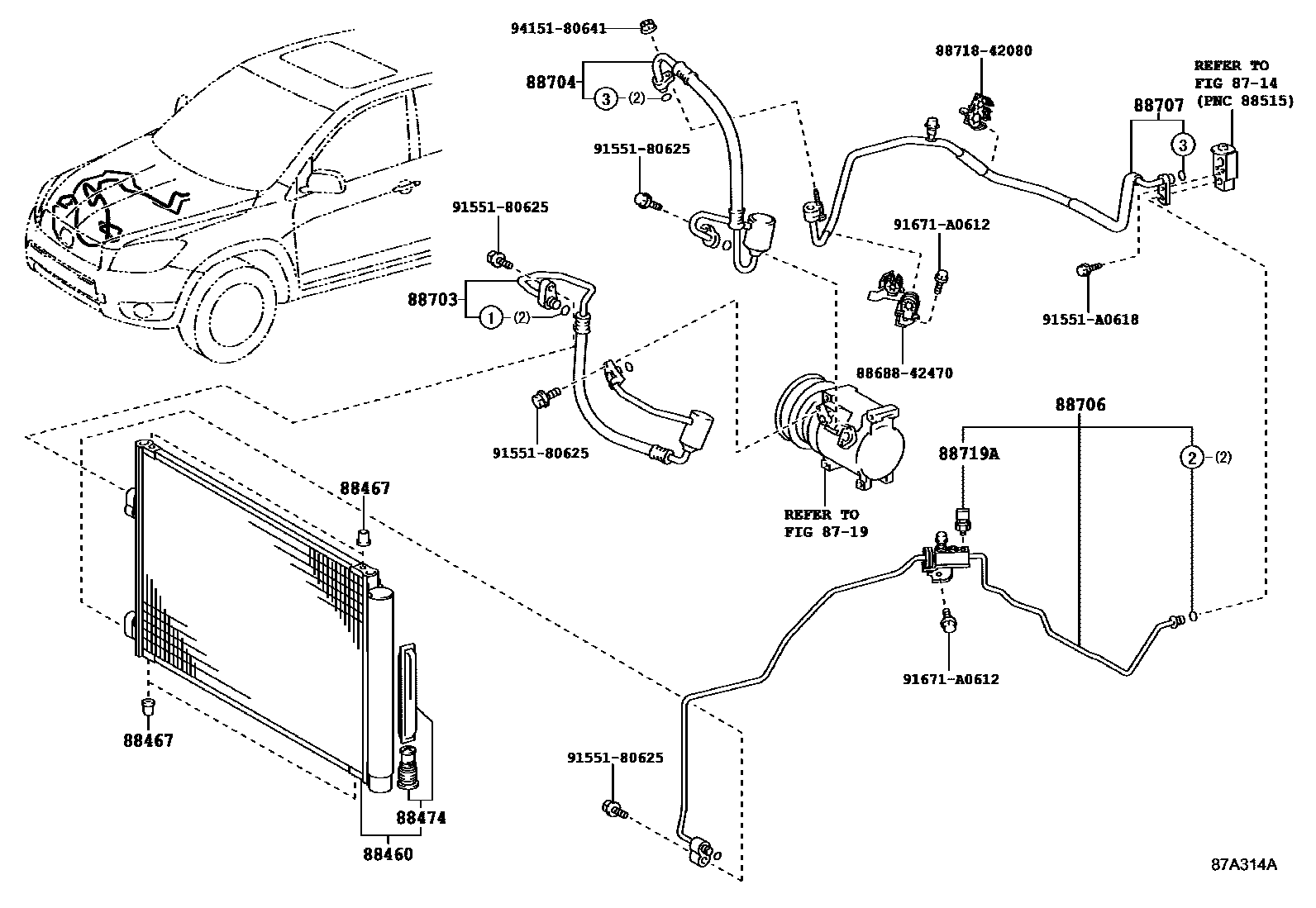

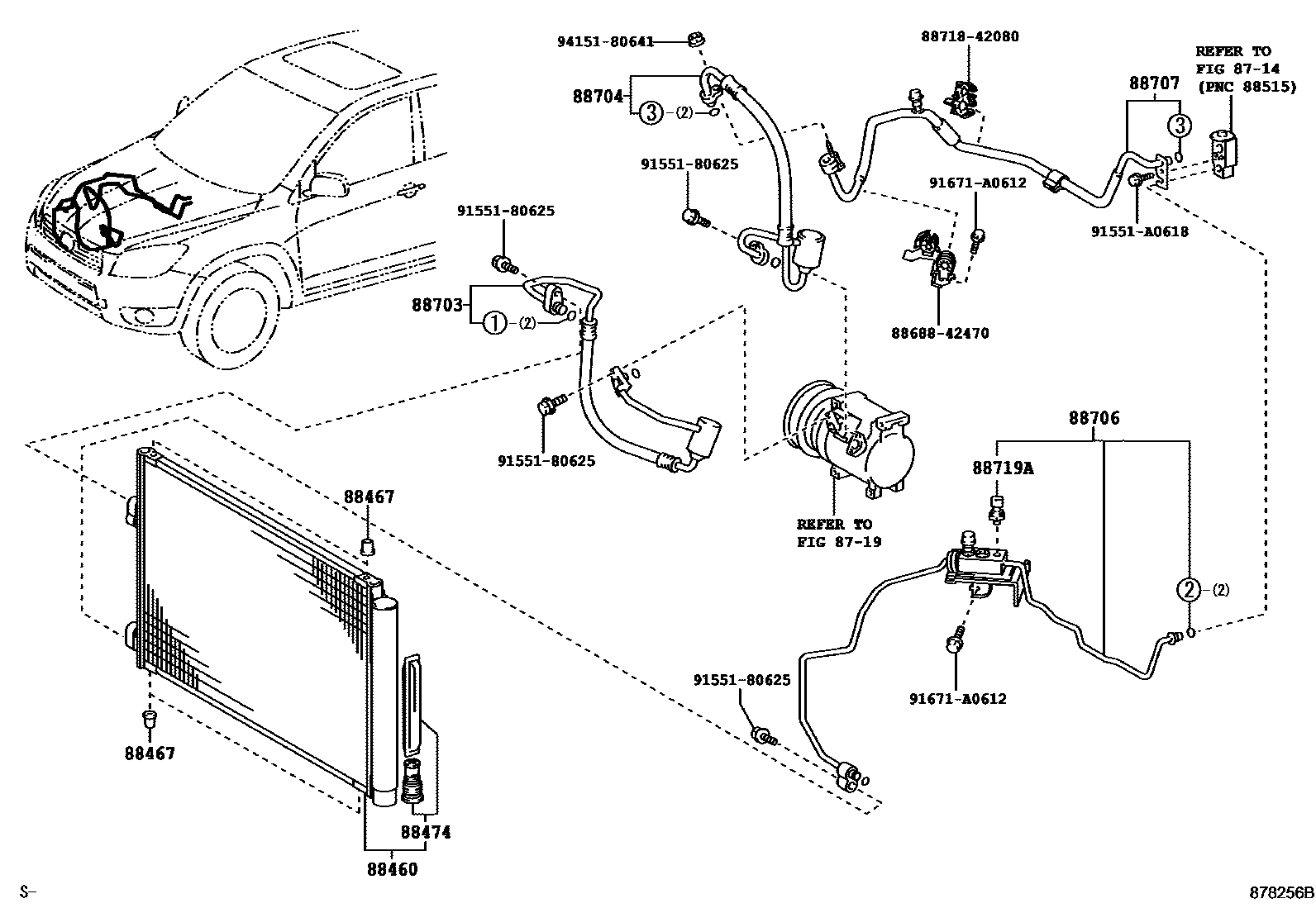

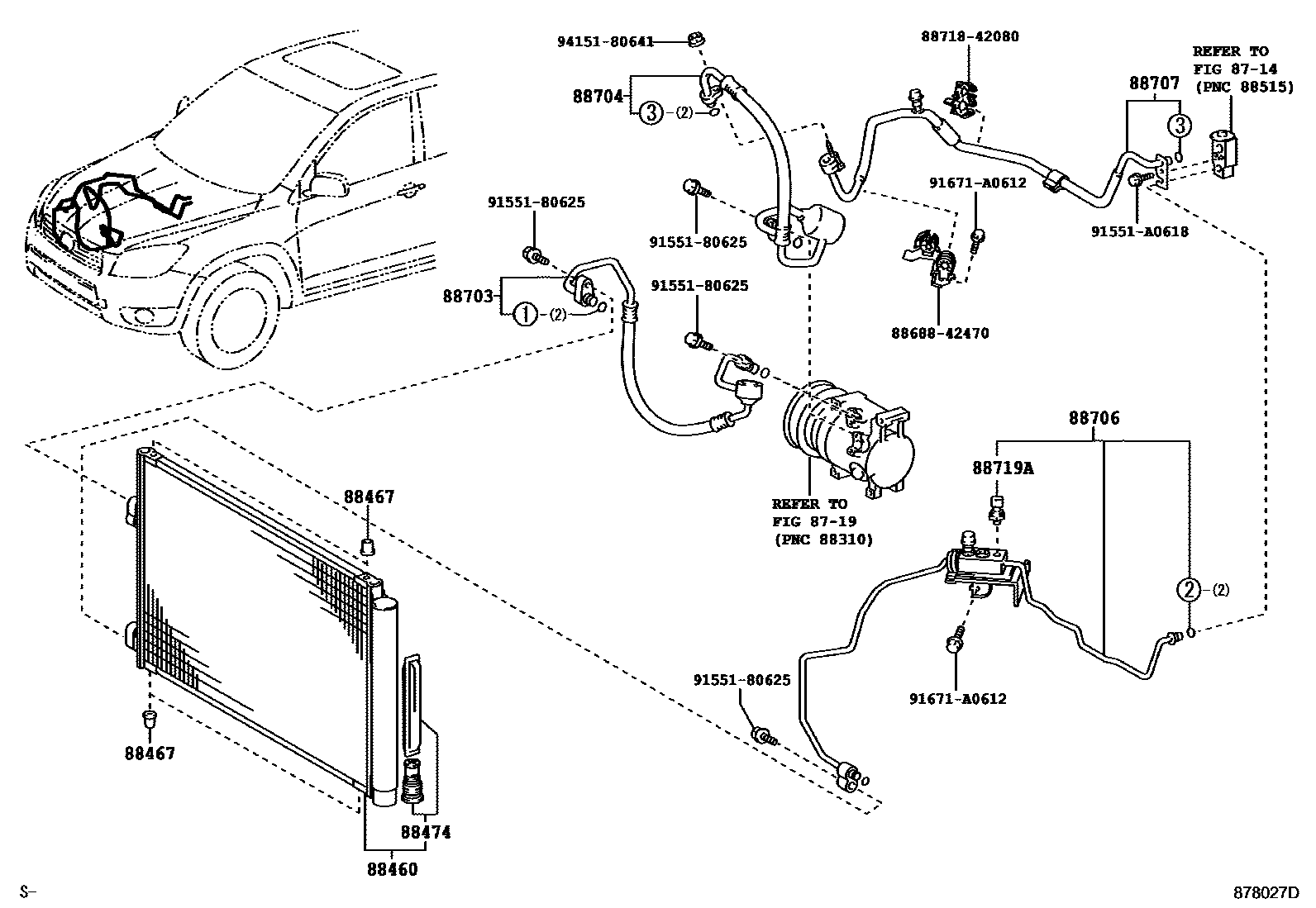

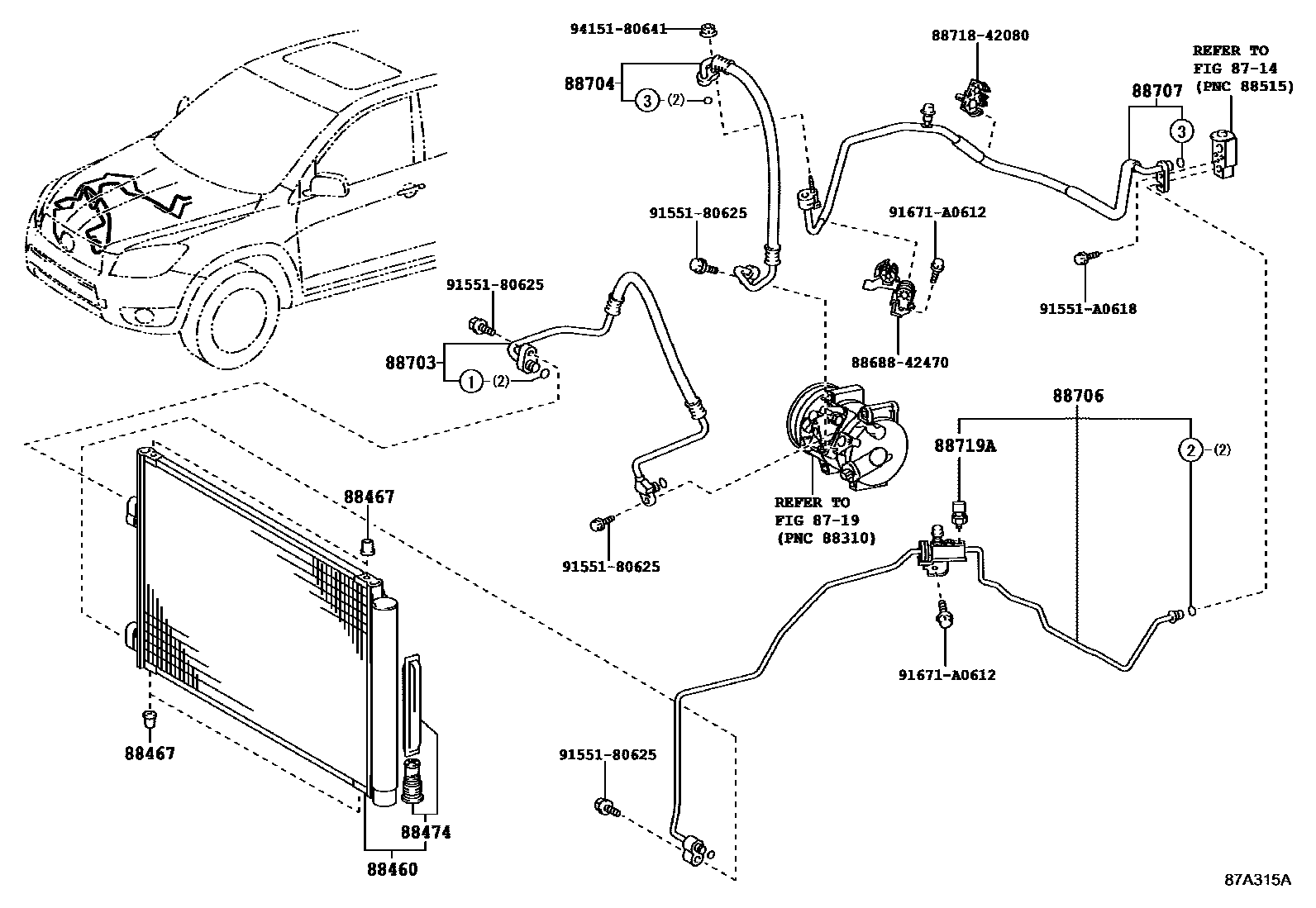

Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88460-42100 · 88460-42120 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-12030 · 88474-17010 |
| 88703 | Discharge hose sub-assembly | 88703-42090 · 88703-42110 · 88703-42160 |
| 88704 | Oil suction hose sub-assembly | 88704-42190 · 88704-42191 · 88704-42201 · 88704-42250 |
| 88706 | Liquid pipe sub-assembly | 88706-42370 · 88706-42390 · 88706-42400 · 88706-42410 · 88706-42411 · 88706-42420 |
| 88707 | Suction pipe sub-assembly | 88707-42090 · 88707-42100 · 88707-42101 |
| 88719A | Air conditioning pressure sensor | 88719-33020 · 88719-40020 |
