Toyota RAV4 暖风和空调系统 - 水管 — Figure 8716

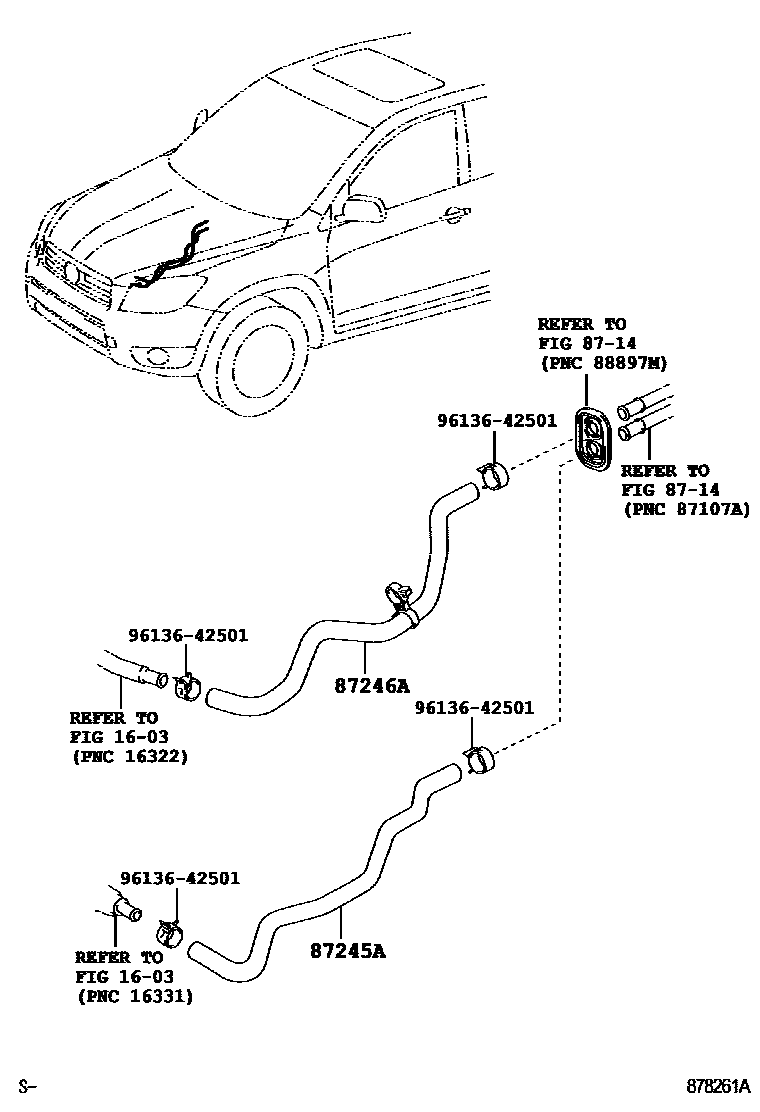

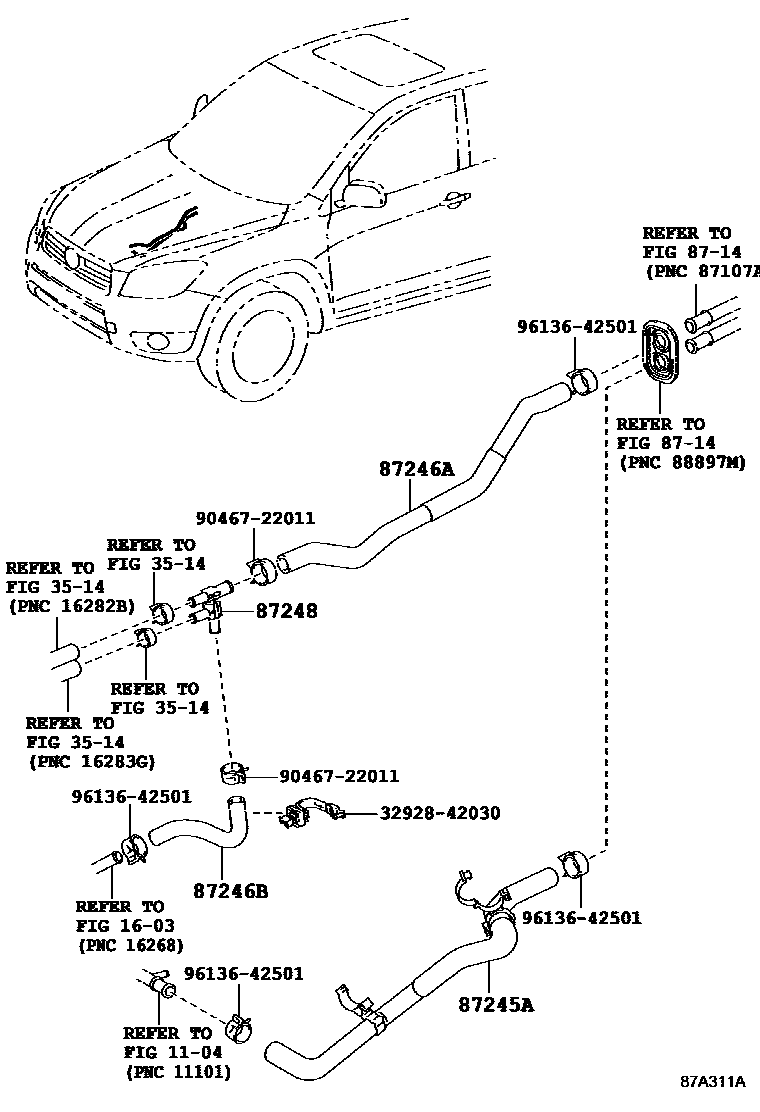

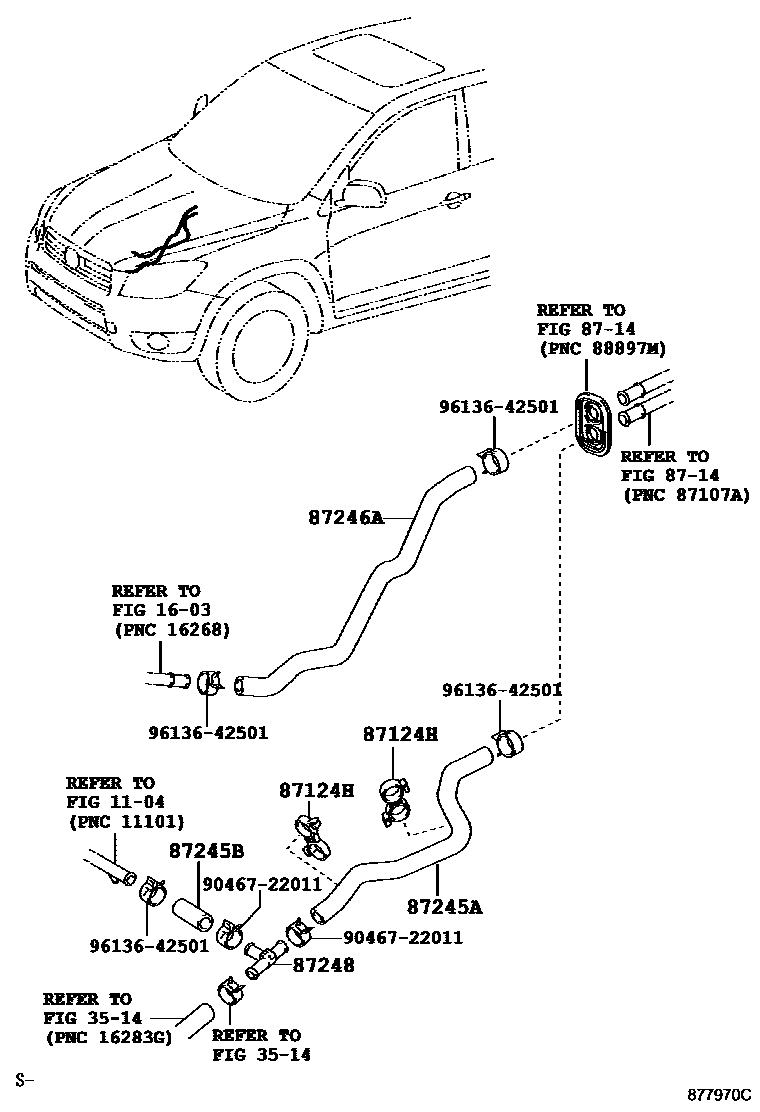

Toyota RAV4 EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124H | No. 3 heater hose clamp | 87124-42030 |
| 87245A | Heater water inlet hose A | 87209-42110 · 87245-42380 · 87245-42400 |
| 87245B | Heater water inlet hose B | 87245-42390 |
| 87246A | Heater outlet hose A | 87209-42070 · 87245-42350 · 87245-42410 |
| 87246B | Heater outlet hose B | 87245-42420 |
| 87248 | Water pipe sub-assembly | 87248-20380 · 87248-33020 · 87248-42020 |
