Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714

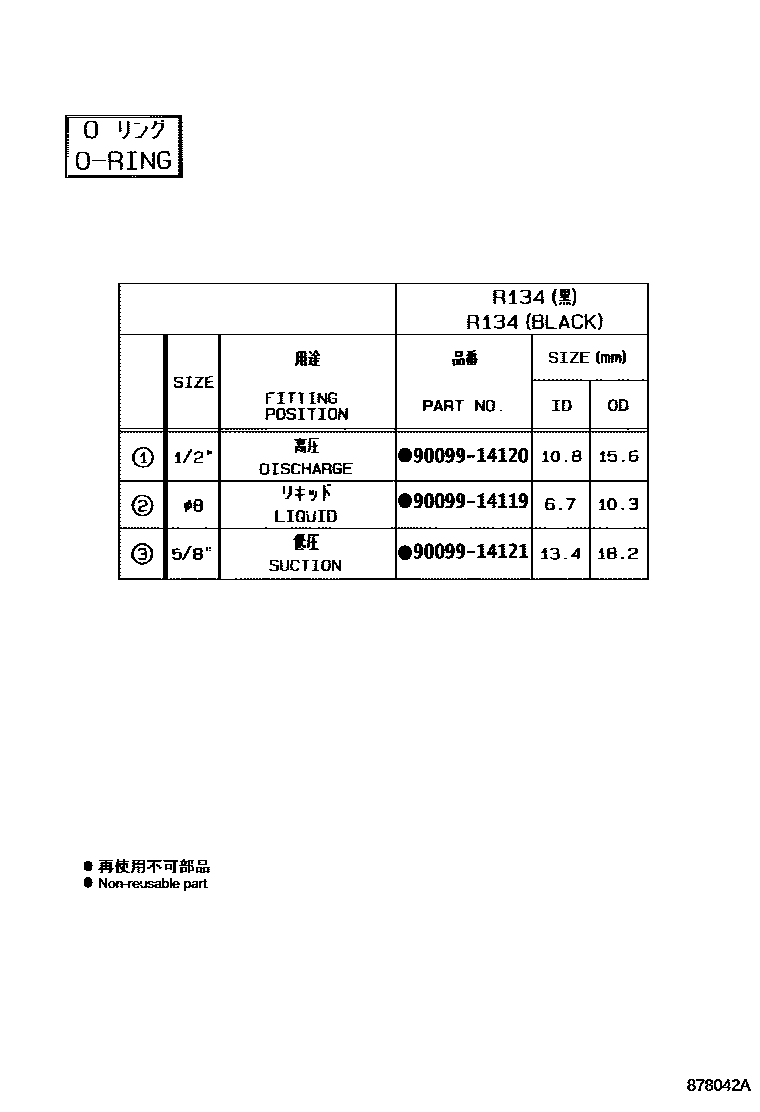

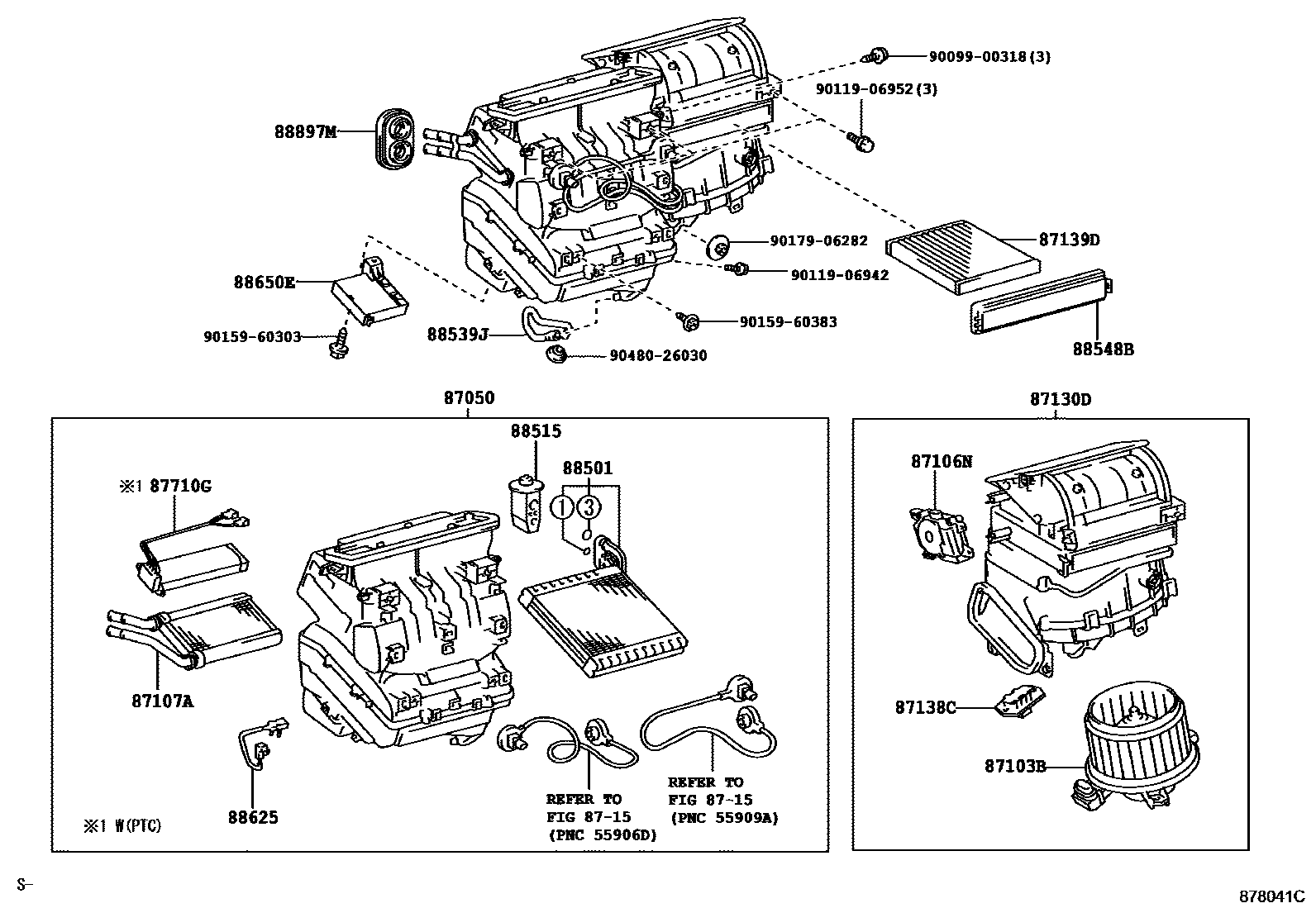

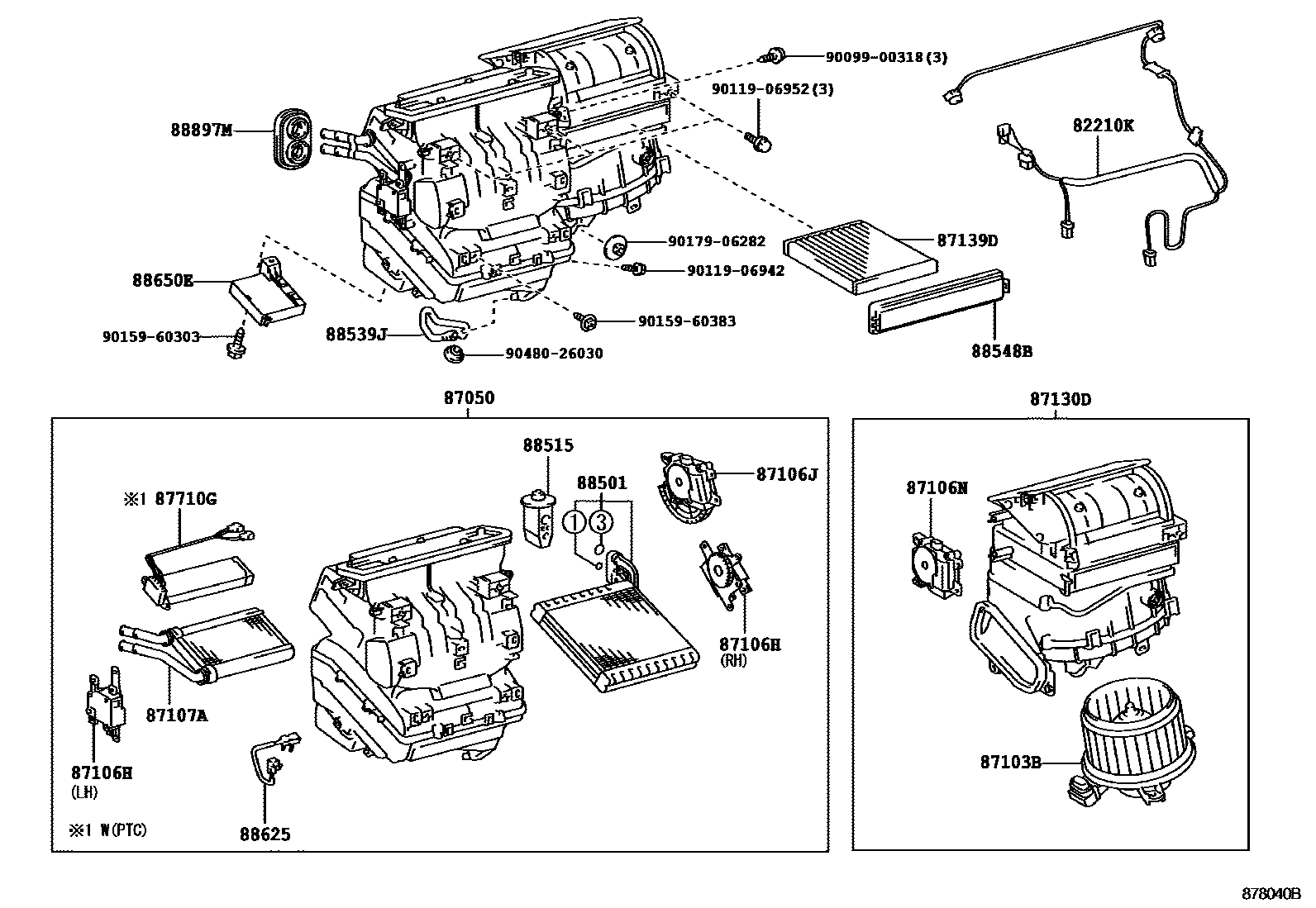

Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-12030 · 82212-42010 |
| 87050 | Air conditioning radiator assembly | 87050-12390 · 87050-12391 · 87050-12410 · 87050-42360 · 87050-42371 · 87050-42380 · 87050-42391 |
| 87103B | Blower motor sub-assembly with fan | 87103-42090 · 87103-42100 · 87103-42101 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-12170 · 87106-42080 · 87106-42090 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-42100 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-42130 · 87106-42140 · 87106-47130 |
| 87107A | Heater radiator device sub-assembly | 87107-42170 |
| 87130D | Blower assembly | 87130-12550 · 87130-12551 · 87130-12561 · 87130-12570 · 87130-12571 · 87130-12581 · 87130-42220 · 87130-42240 |
| 87138C | Blower resistor | 87138-26160 |
| 87139D | Air fine filter element | 87139-50060 · 87139-50100 · 87139-52020 |
| 87710G | Rapid heater assembly | 87710-42040 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-26210 · 88501-26211 · 88501-72020 |
| 88515 | Cooler expansion valve | 88515-12100 · 88515-26070 · 88515-42090 · 88515-68010 |
| 88539J | Cooler drain hose | 88539-42060 · 88539-42061 |
| 88548B | air filter housing | 88548-42020 |
| 88625 | Cooler No. 1 Thermistor | 88625-26090 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-42180 · 88650-42190 · 88650-42191 · 88650-42220 · 88650-42240 · 88650-42270 · 88650-42271 · 88650-42280 · 88650-42320 · 88650-42321 · 88650-42330 · 88650-42500 · 88650-42510 |
| 88897M | Seals (for heater tubes) | 87128-42010 |
