Toyota RAV4 后视镜 — Figure 8701

Toyota RAV4 EPC diagram 8701, 后视镜, with 2 images and 10 PNC and OE references.

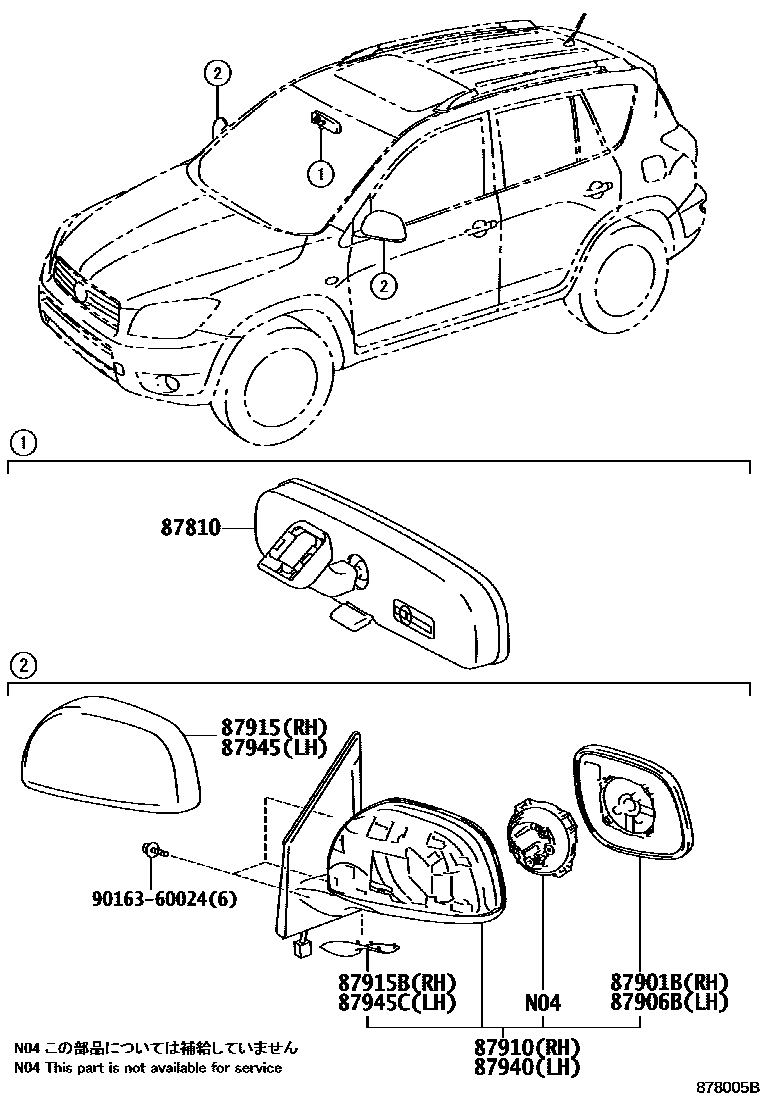

Toyota RAV4 后视镜 EPC diagram — 878005B
后视镜 — 878005B (200511 – 200808)

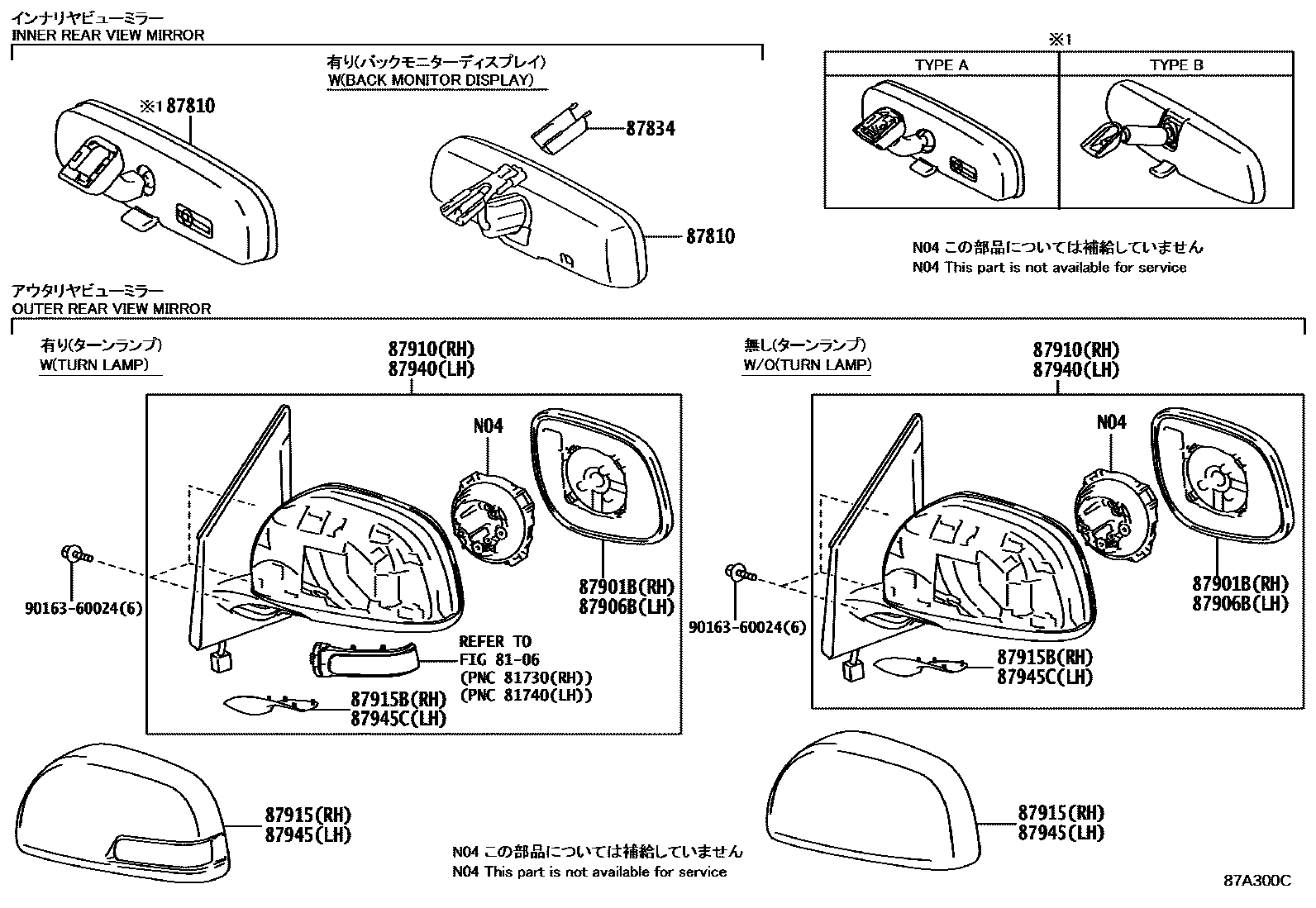

Toyota RAV4 后视镜 EPC diagram — 87A300C
后视镜 — 87A300C (200808 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-04030 · 87810-0W700 · 87810-52040 · 87810-52041 · 87810-AA011
87834Interior rearview mirror stay fixing cover87818-04010 · 87818-42020
87901BRight exterior rearview mirror sub-assembly87931-42870 · 87931-42880 · 87931-42B00 · 87931-42B40
87906BLeft exterior rearview mirror sub-assembly87961-42810 · 87961-42820
87910Right exterior rearview mirror assembly87910-42870 · 87910-42880 · 87910-42B00 · 87910-42B40 · 87910-42B50
87915Right exterior rearview mirror cover87915-42041 · 87915-42070
87915BRight exterior rearview mirror lower cover87915-42090
87940Left exterior rearview mirror assembly87940-42810 · 87940-42820 · 87940-42A70 · 87940-42B10 · 87940-42B20
87945Left exterior rearview mirror cap87945-42041 · 87945-42070
87945CLeft exterior rearview mirror lower cover87945-42090
