Toyota RAV4 倒车影像和摄像头 — Figure 8606
Toyota RAV4 EPC diagram 8606, 倒车影像和摄像头, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

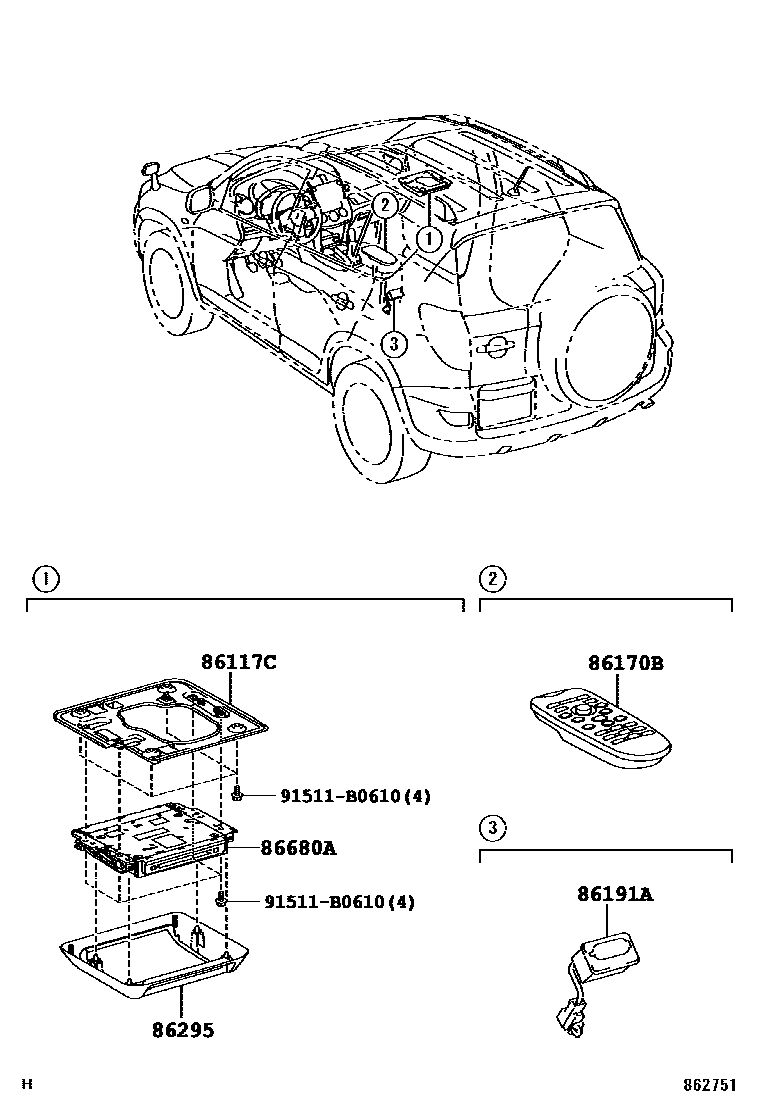

| 86117C | No. 2 multifunctional display controller bracket | 86117-42010 · 86117-42020 |
| 86170B | Monitor and volume control switch assembly | 86170-45020 |

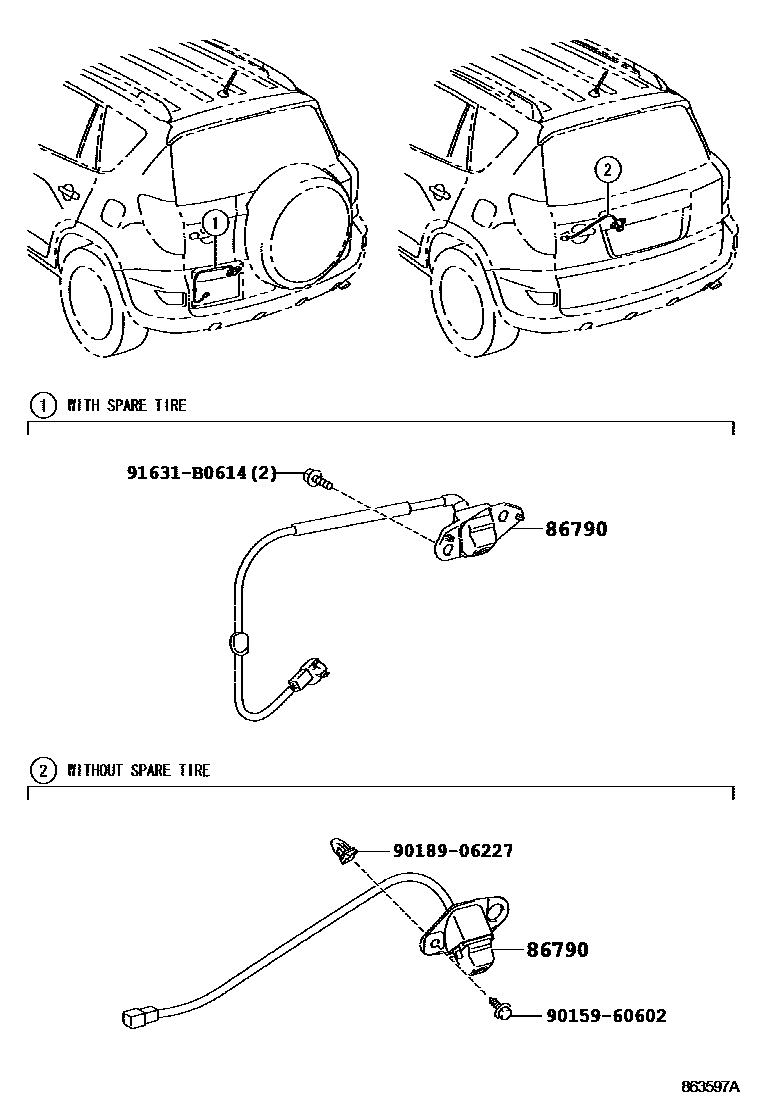

| 86790 | Reversing image camera assembly | 86790-42010 · 86790-42011 · 86790-42020 · 86790-42021 · 86790-42040 · 86790-42050 |
