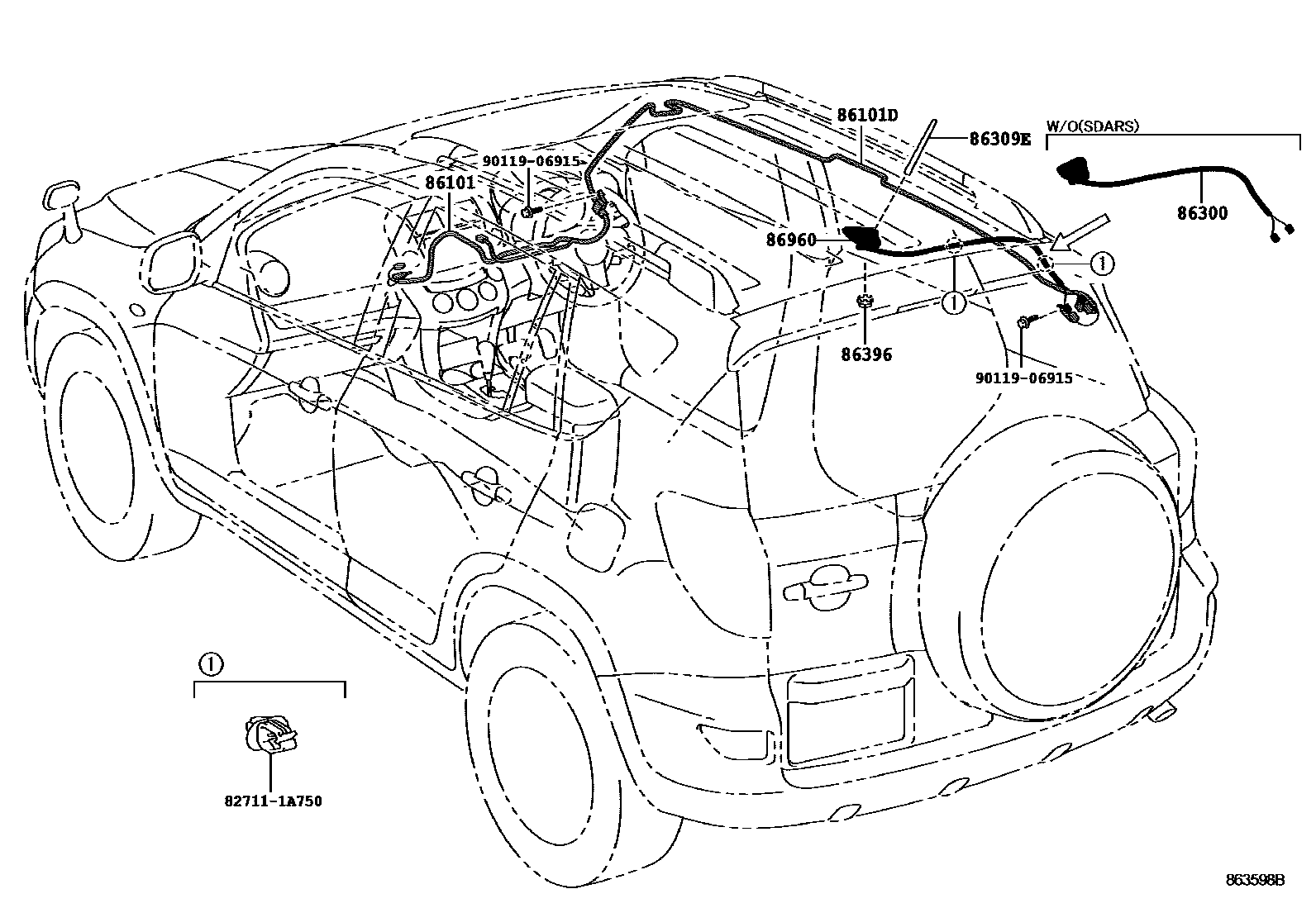

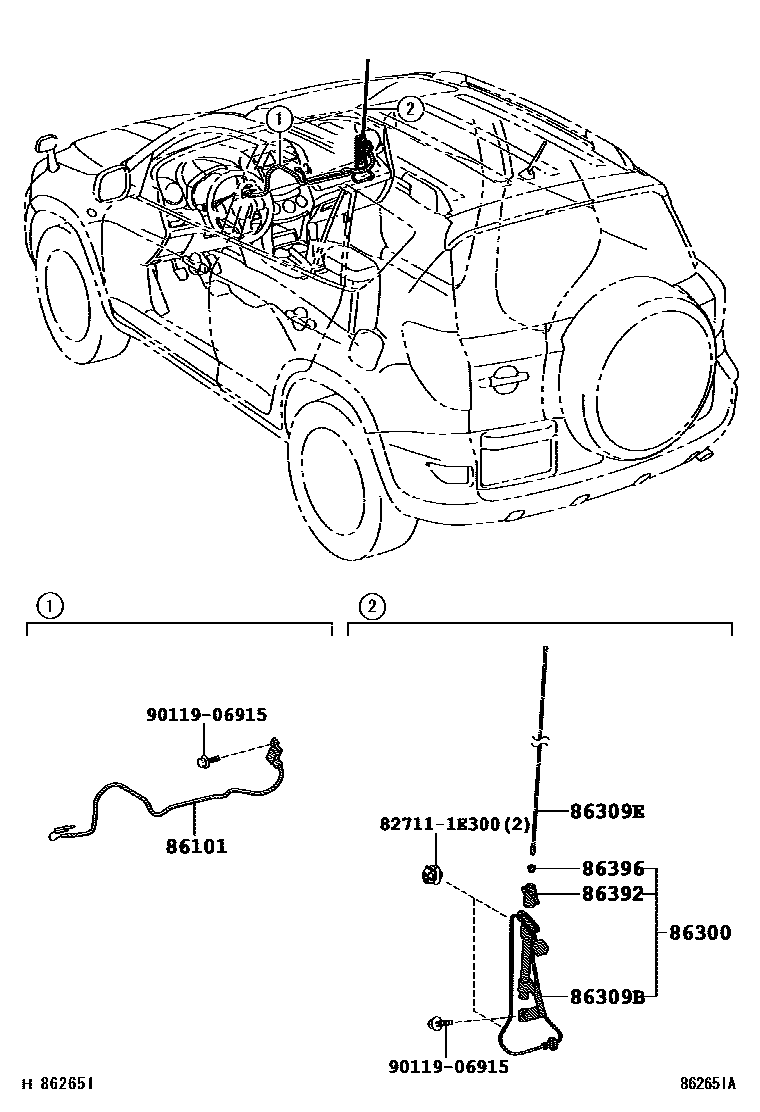

Toyota RAV4 antenna — Figure 8604
Toyota RAV4 EPC diagram 8604, antenna, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-42270 · 86101-42310 · 86101-42311 · 86101-42450 · 86101-42471 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-42480 · 86101-42490 · 86101-42491 |
| 86300 | Antenna assembly with fixing parts | 86300-42130 · 86300-42180 · 86300-42230 |
| 86309B | Tensile roof antenna sub-assembly | 86309-42050 |
| 86309E | Roof antenna sub-assembly | 86309-42060 · 86309-42080 |
| 86392 | Antenna decorative parts | 86392-42020 |
| 86396 | Antenna nut | 86396-30050 · 86396-42010 · 86396-47010 |
| 86960 | Satellite radio antenna assembly | 86960-42010 |
