Toyota RAV4 后清洗器 — Figure 8504

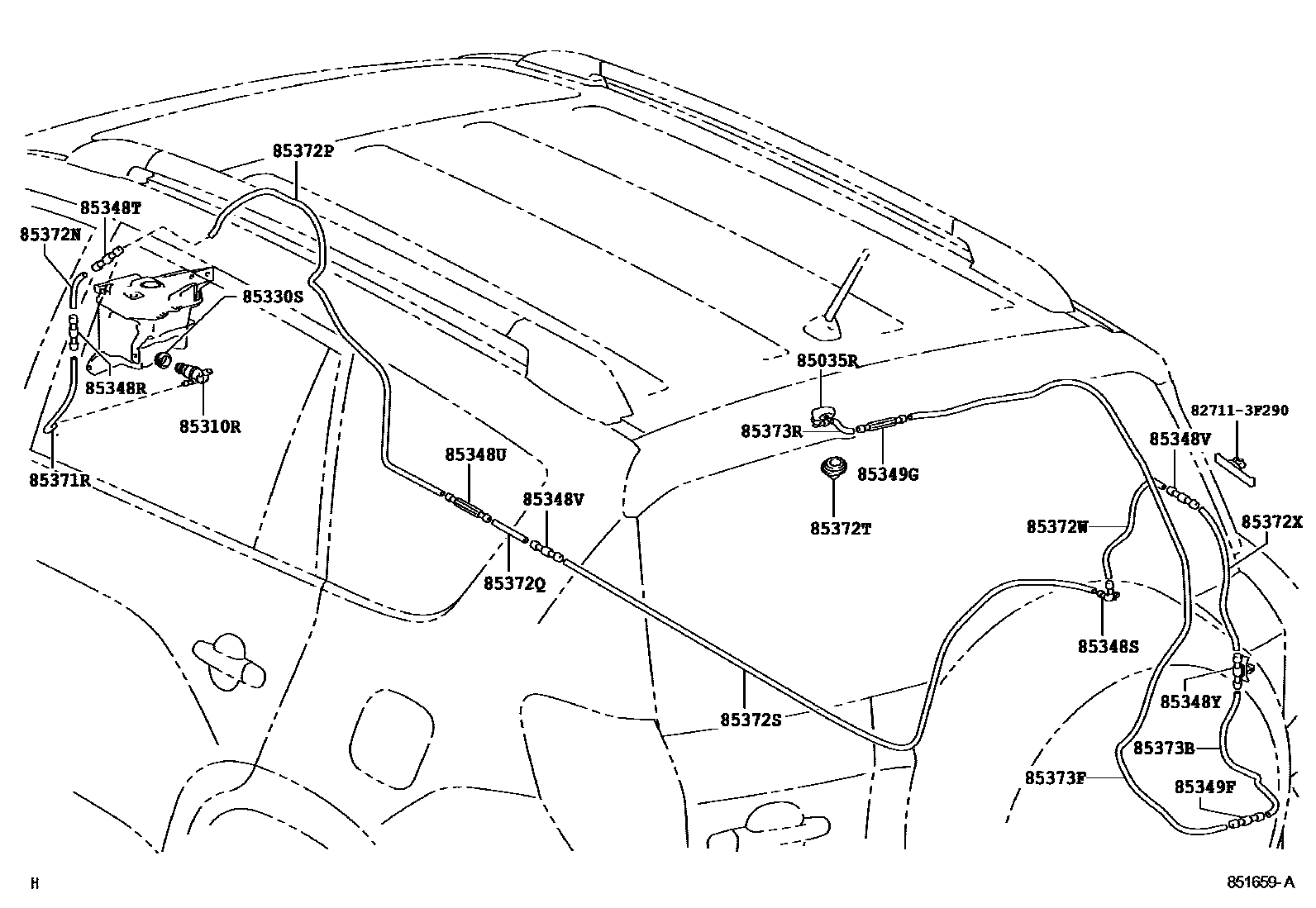

Toyota RAV4 EPC diagram 8504, 后清洗器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-42010 |
| 85310R | Rear washer motor assembly | 85330-42040 |
| 85330S | Rear washer fluid tank bushing | 85336-60300 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85375-42110 · 85375-60290 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85348U | No. 3 rear washer hose connector | 85349-32150 |
| 85348V | No. 4 rear washer hose connector | 85349-89122 |
| 85348Y | No. 5 rear washer hose connector | 85375-20800 |
| 85349F | No. 1 rear washer hose connector | 85349-89122 |
| 85349G | No. 2 rear washer hose connector | 85349-32150 |
| 85372T | Cleaner seal | 85372-20020 |
| 85373B | No. 7 rear washer hose (from connector to connector) | 90099-33916 |
| 85373F | No. 8 rear washer hose (from connector to connector) | 90446-07001 |
