Toyota RAV4 轮胎压力警告系统 — Figure 8435

Toyota RAV4 EPC diagram 8435, 轮胎压力警告系统, with 1 images and 2 PNC and OE references.

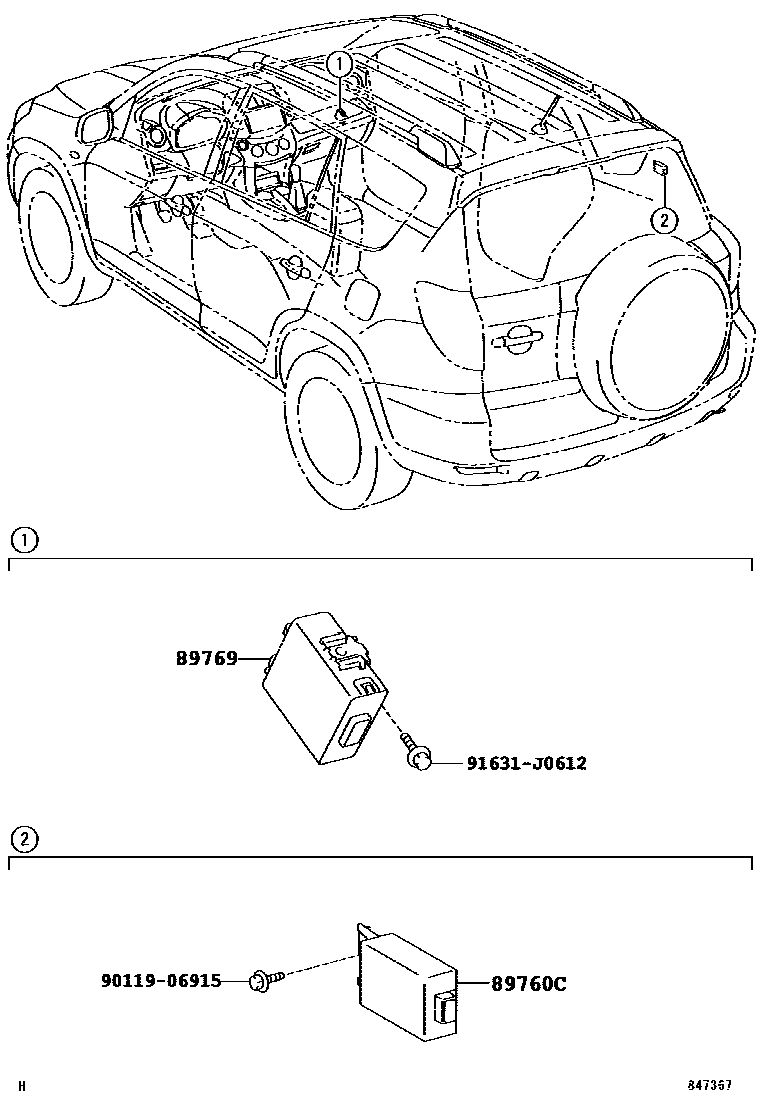

Toyota RAV4 轮胎压力警告系统 EPC diagram — 847367
轮胎压力警告系统 — 847367 (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
89760CTire pressure monitoring receiver assembly89760-42020 · 89760-42021 · 89760-42022
89769Tire pressure monitoring ECU89769-42010 · 89769-42020 · 89769-42030 · 89769-42040 · 89769-42050 · 89769-42060
