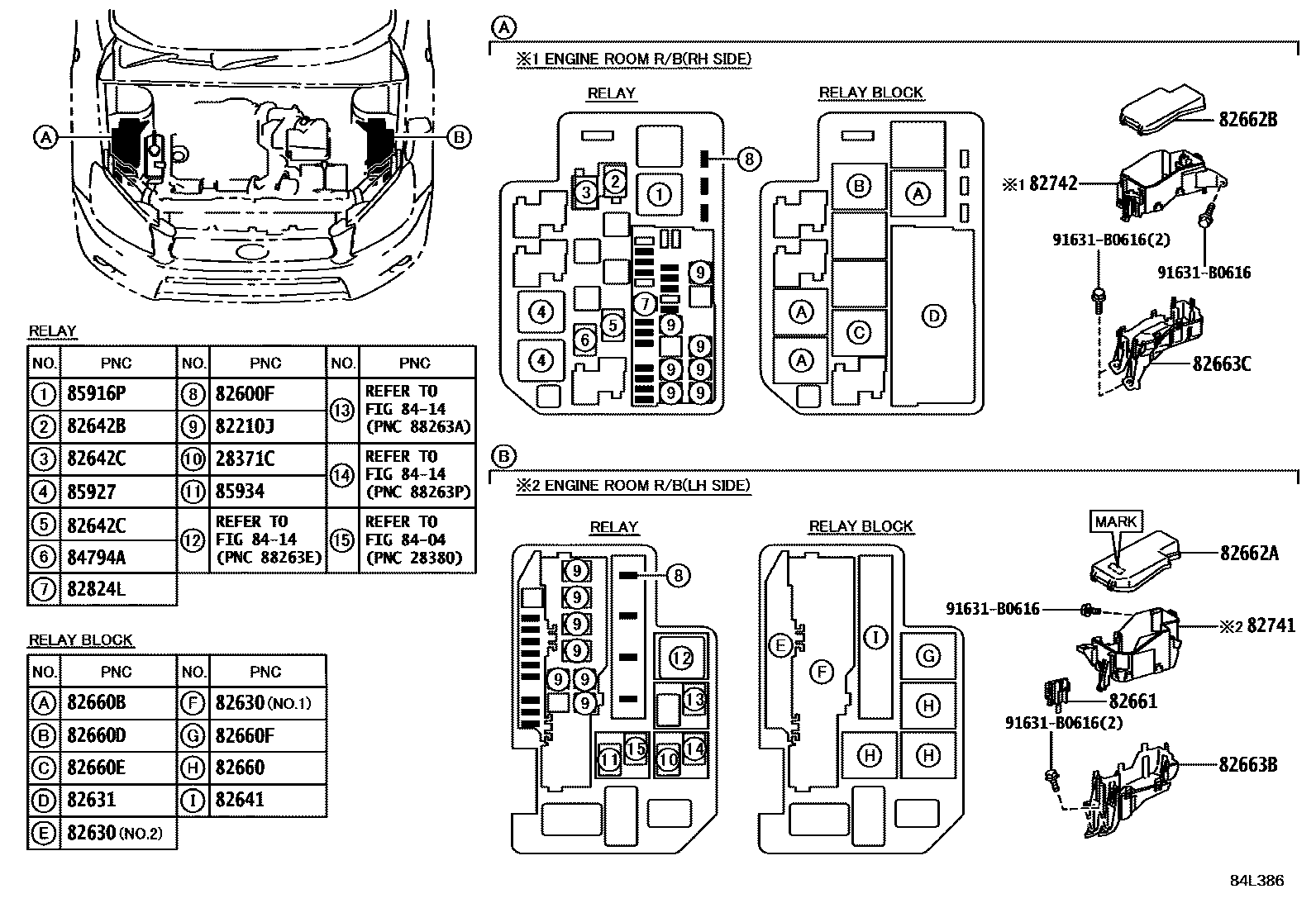

Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 13 images and 100 PNC and OE references.
PNC and OE references

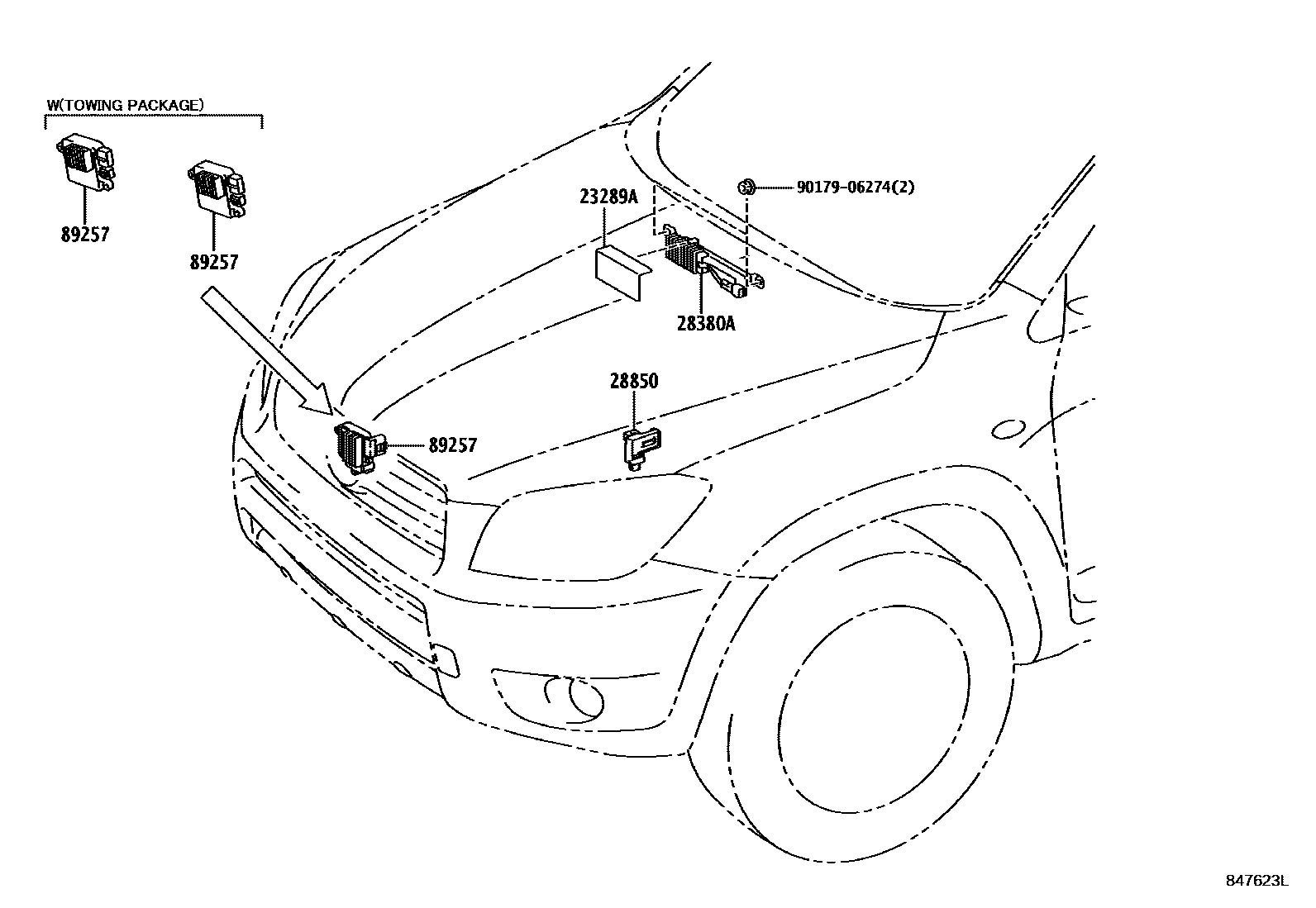

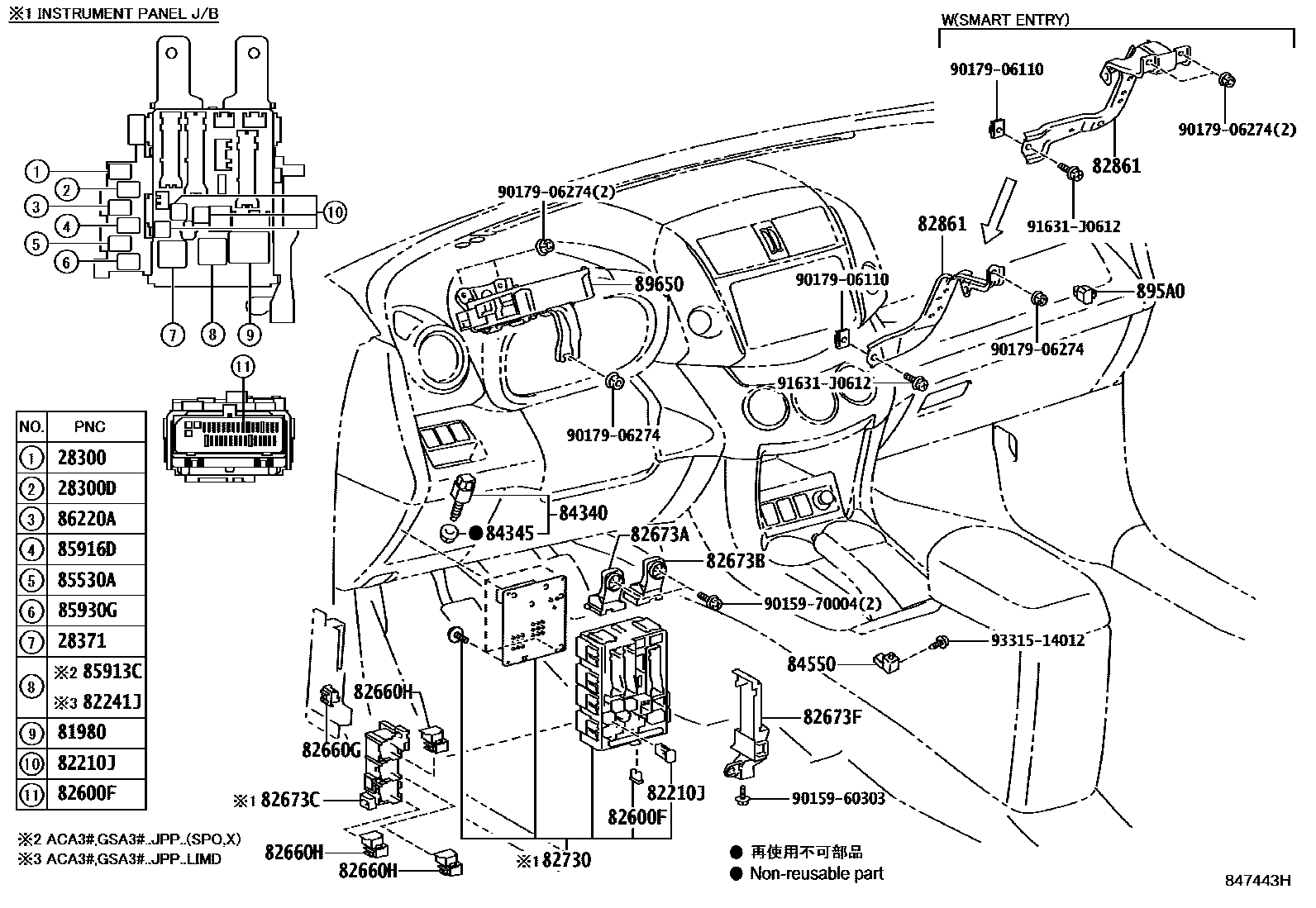

| PNC | Part name | OE numbers |
|---|---|---|
| 23289A | fuel pump resistor cover | 23289-50020 |
| 28300 | Starter relay assembly | 28300-28010 |
| 28300D | starter cutoff relay | 90987-02027 |
| 28371 | No. 1 ignition relay | 90987-02025 · 90987-02030 |
| 28371C | No. 2 ignition relay | 90987-02027 |
| 28380A | fuel pump resistor | 23080-31050 · 23080-31051 |

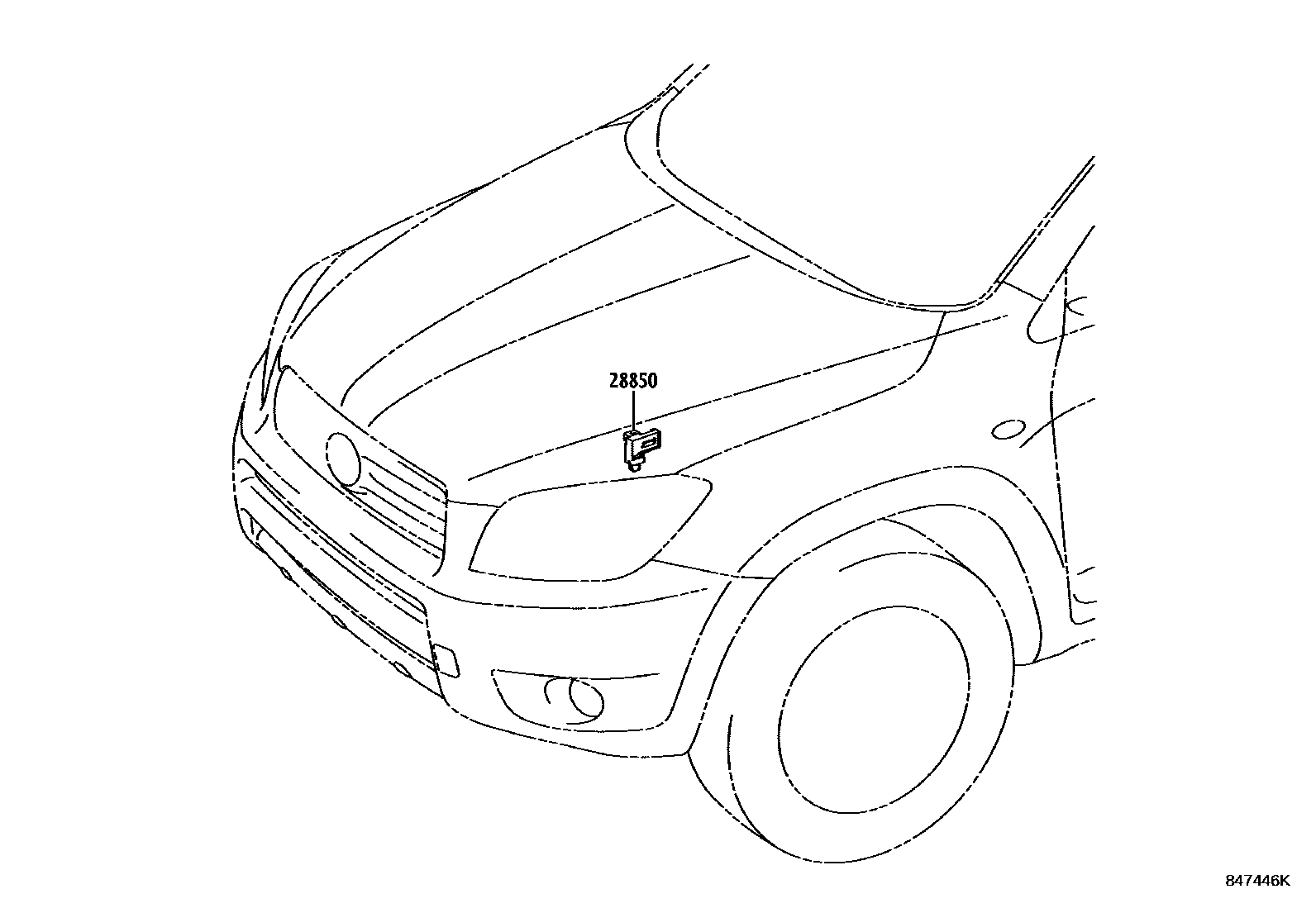

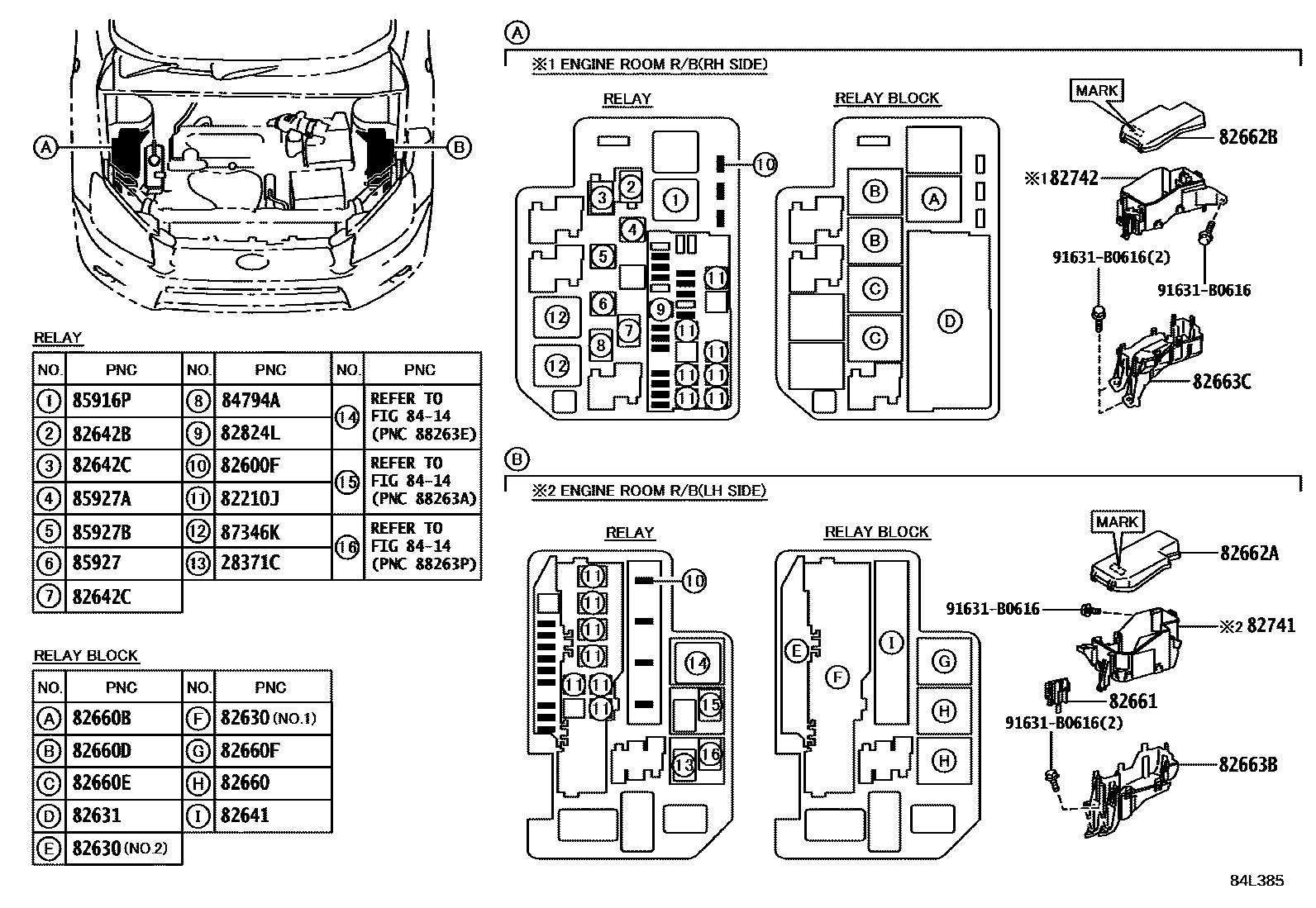

| 28850 | Battery current sensor assembly | 28850-28040 |
| 81980 | Turn signal flasher relay assembly | 81980-46010 |
| 82210J | fuse | 90982-08202 · 90982-08203 · 90982-08274 · 90982-08286 · 90982-08295 · 90982-08296 |
| 82241J | Shorting pin | 82241-42010 |
| 82291D | Wiring harness (to solenoid valve) | 82291-42010 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82630 | Fuse holder assembly | 82631-42010 · 82631-42020 |
| 82631 | fuse holder | 82631-42030 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82642B | No. 1 daytime running light relay | 90987-04004 |
| 82642C | No. 2 daytime running light relay | 90987-02027 |
| 82660 | Engine room relay box assembly | 82660-42030 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660D | Relay assembly | 82660-42030 |
| 82660E | Relay assembly | 82660-52010 |
| 82660F | Relay assembly | 82660-0H070 |
| 82660G | Relay assembly | 82660-20340 |
| 82660H | Relay assembly | 82660-52010 |
| 82661 | No. 1 relay box cover | 82661-42030 |
| 82662A | No. 1 relay box upper cover | 82662-42170 · 82662-42171 · 82662-42180 · 82662-42250 · 82662-42270 |
| 82662B | No. 2 relay box upper cover | 82662-42190 · 82662-42191 · 82662-42210 · 82662-42280 · 82662-42291 · 82662-42300 |
| 82663B | No. 3 relay box lower cover | 82663-42080 |
| 82663C | No. 4 relay box lower cover | 82663-42090 |
| 82673A | Junction box bracket | 82673-42090 |
| 82673B | Junction box bracket | 82673-42100 |
| 82673C | Junction box bracket | 82673-42110 |
| 82673F | Junction box bracket | 82673-42120 |
| 82730 | Instrument panel junction box assembly | 82730-42200 · 82730-42210 · 82730-42220 · 82730-42540 · 82730-42541 · 82730-42550 · 82730-42551 · 82730-42560 · 82730-42561 · 82730-42660 · 82730-42661 · 82730-42662 · 82730-42663 · 82730-42670 · 82730-42671 · 82730-42672 · 82730-42673 · 82730-42680 · 82730-42681 · 82730-42682 · 82730-42683 · 82730-42711 · 82730-42712 |
| 82741 | Engine room relay box | 82741-42010 |
| 82742 | Engine room No. 2 relay box | 82742-42030 |
| 82824L | Shorting pin | 82824-20140 |
| 82861 | No. 1 ECU integrated bracket | 82861-42010 · 82861-42020 |

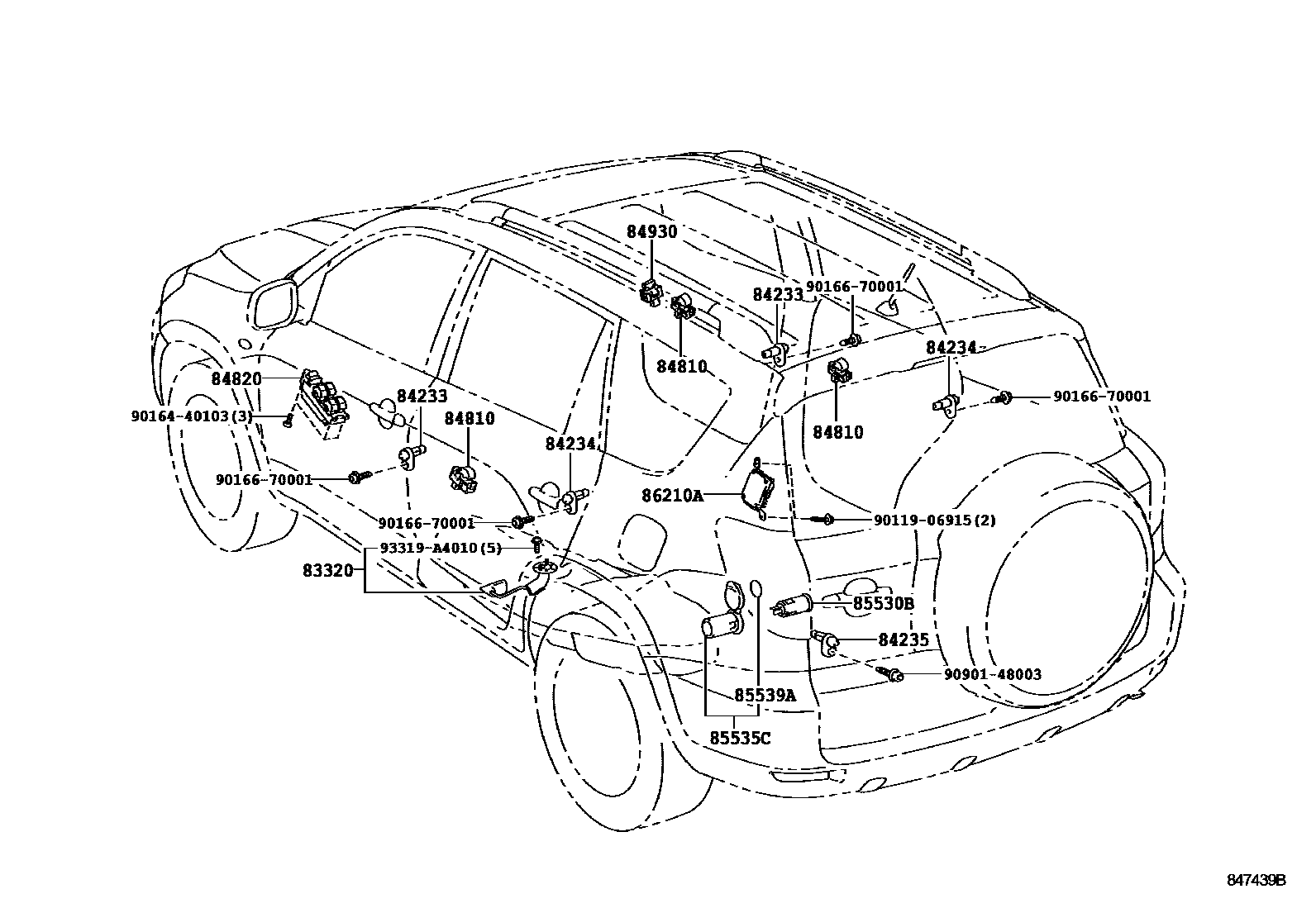

| 83320 | Fuel gauge sensor assembly | 83320-49205 |

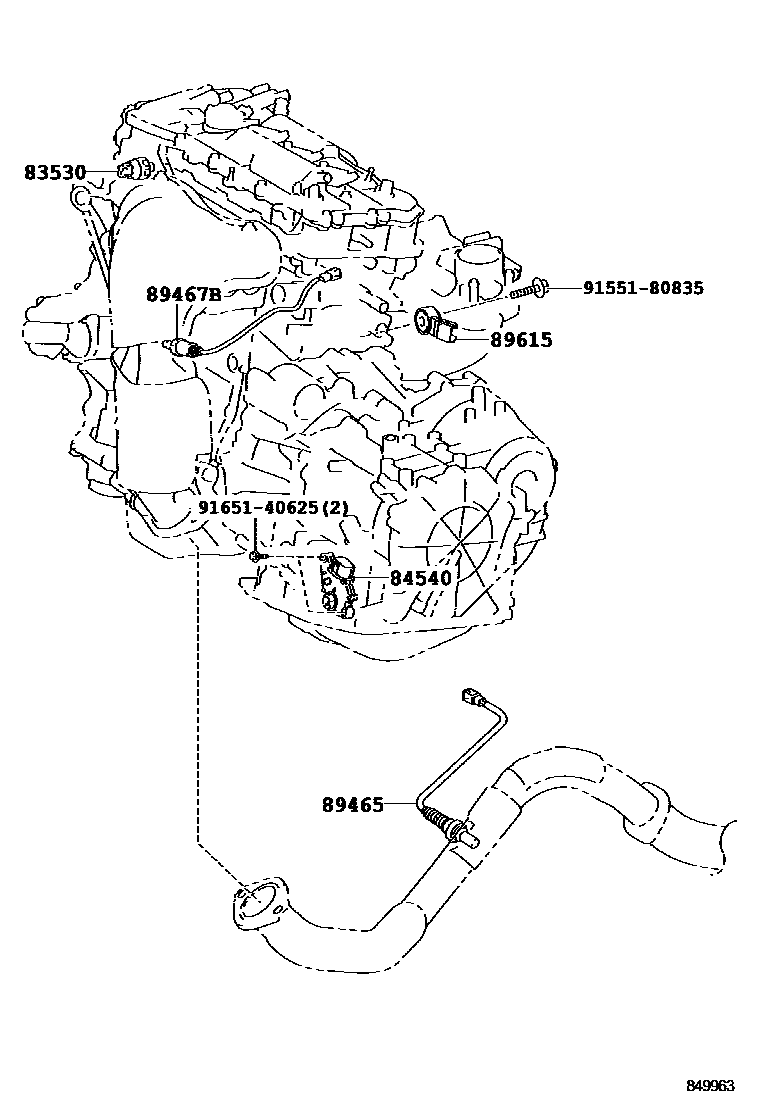

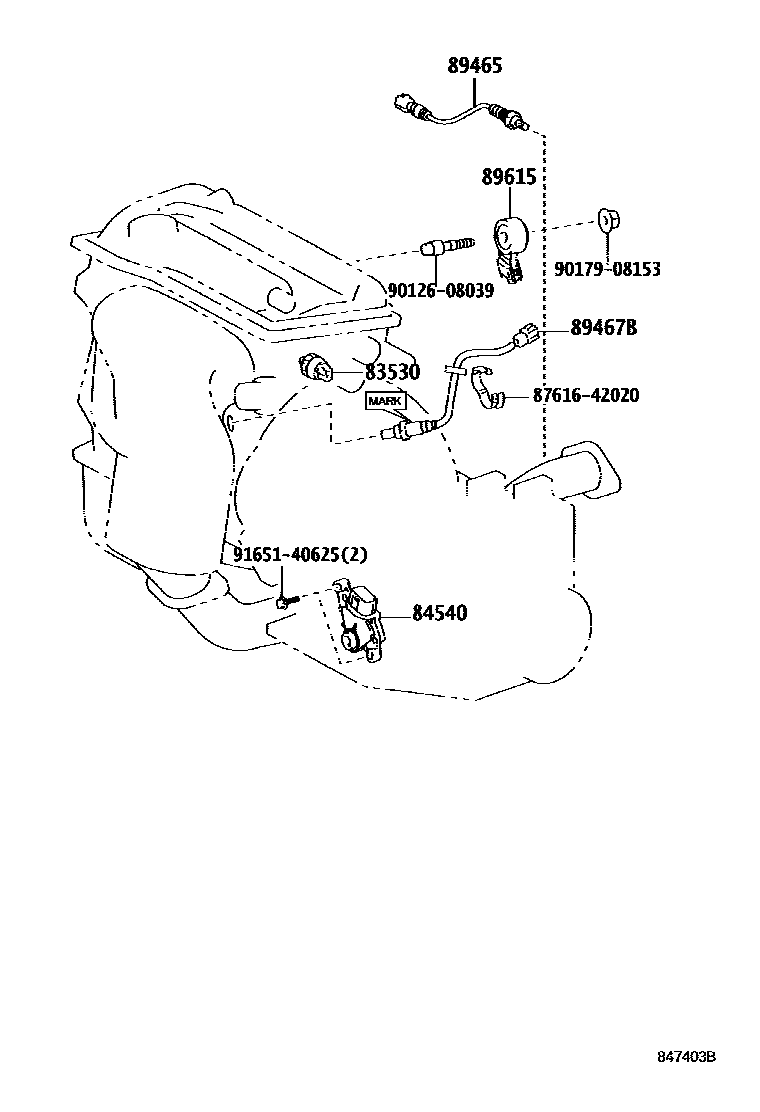

| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 |
| 84052 | Unlock warning switch assembly | 84052-71010 |

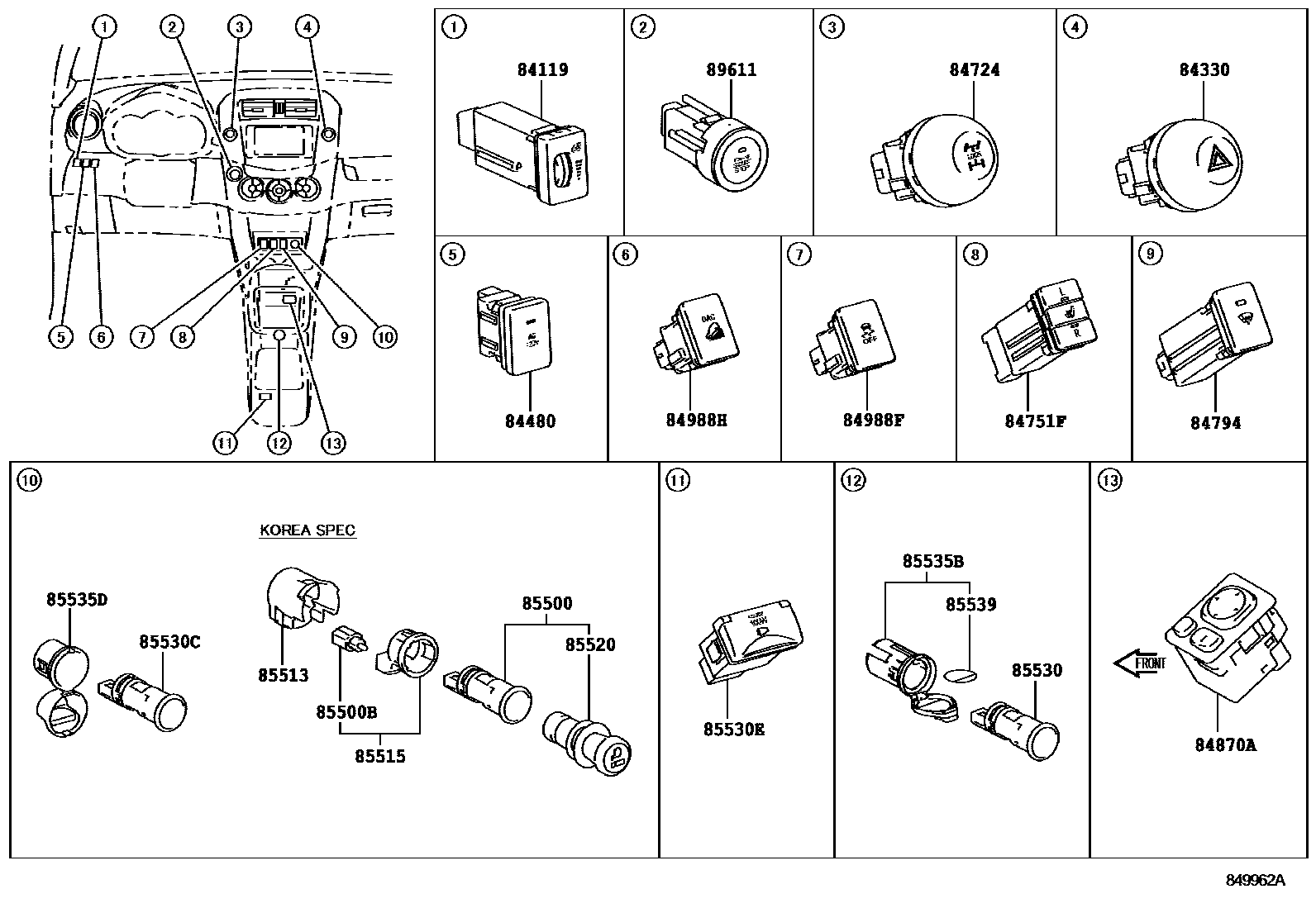

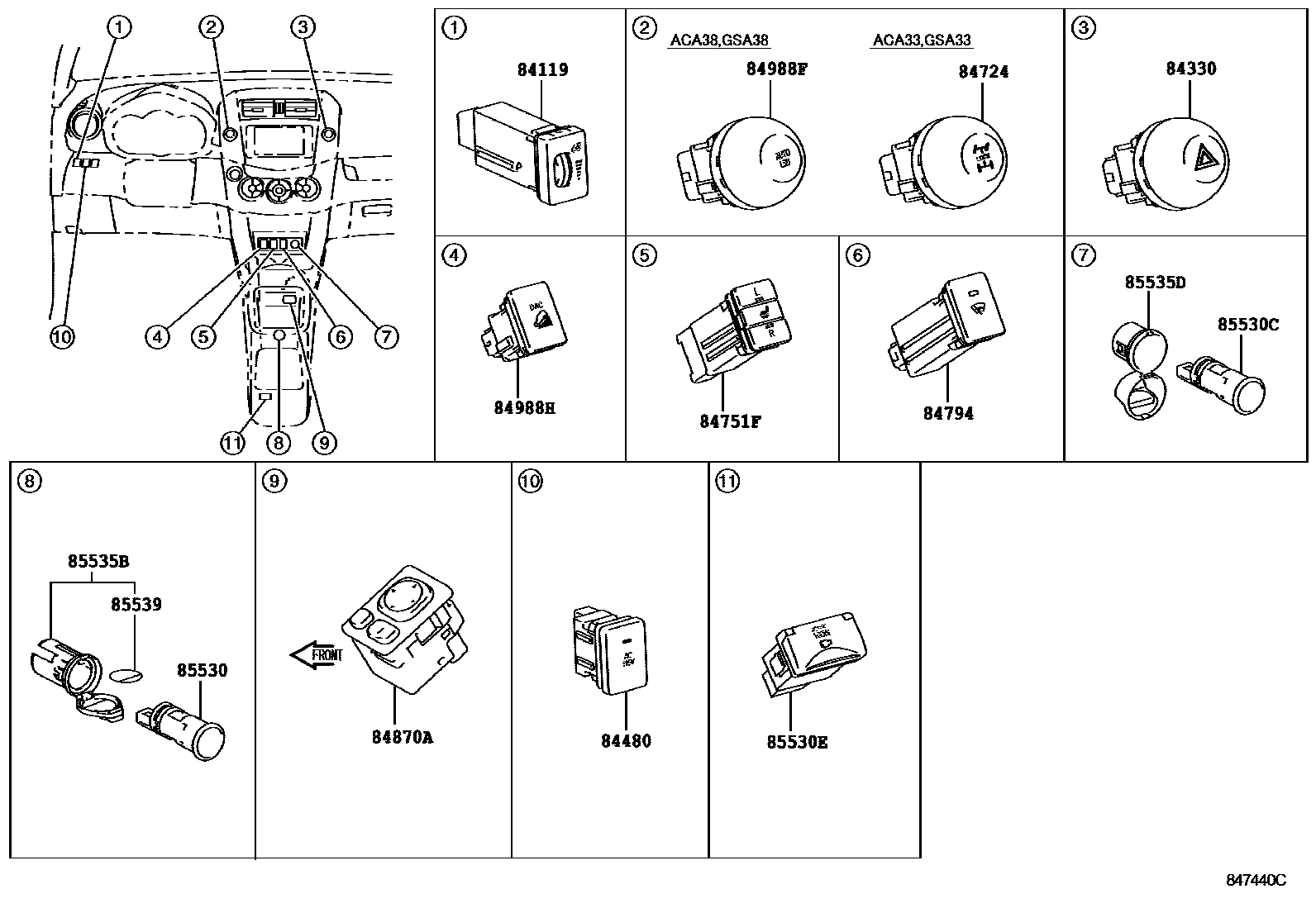

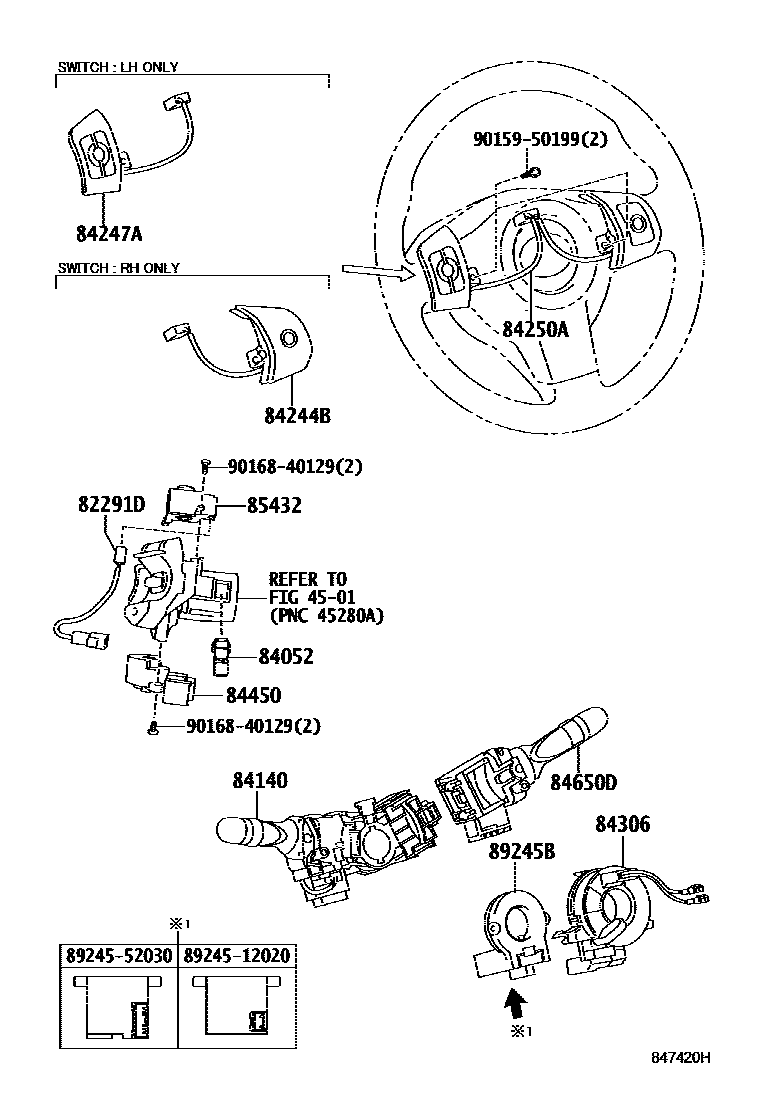

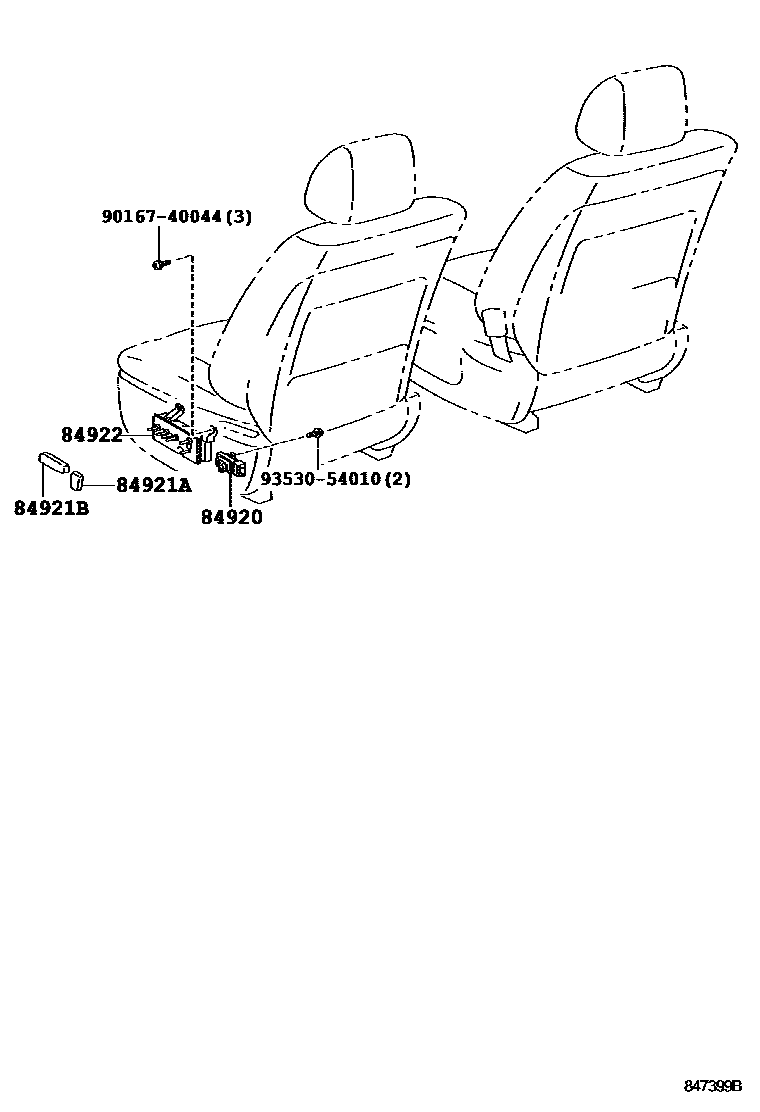

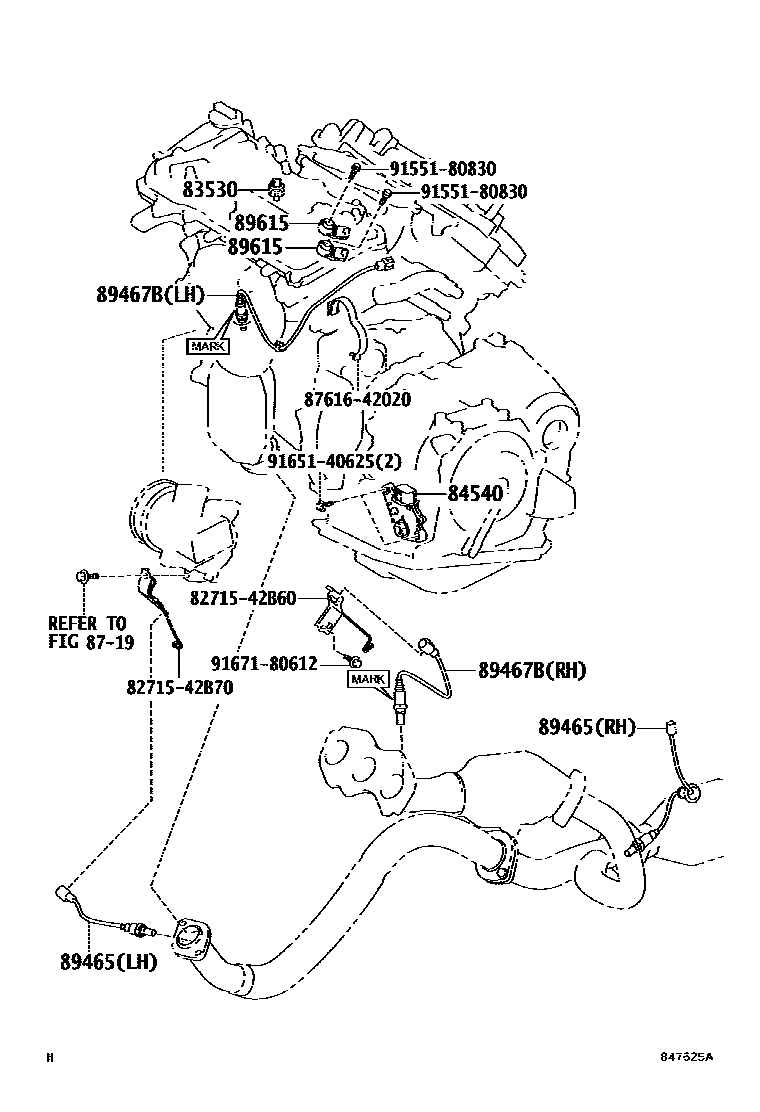

| 84119 | Light control rheostat | 84119-42020 |
| 84140 | Headlight dimmer switch assembly | 84140-47061 · 84140-47081 · 84140-47130 · 84140-47140 · 84140-48200 · 84140-52220 · 84140-52230 · 84140-76020 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84235 | Door control light switch assembly (for back door) | 84231-60070 |
| 84247A | Steering wheel decorative cover left switch | 00000-00000 · 84247-42030 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-42010 |
| 84306 | Spiral cable sub-assembly | 84306-22010 · 84306-48030 |
| 84330 | Hazard warning signal switch assembly | 84332-42020 |
| 84340 | brake light switch assembly | 84340-69025 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84480 | Main switch assembly | 84480-42010 · 84480-42030 |
| 84540 | Neutral start switch assembly | 84540-42010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-48060 · 84652-48180 · 84652-76010 |
| 84724 | four wheel drive control switch | 84724-42020 |
| 84751F | Seat heater switch | 84751-42040 |
| 84794 | Front wiper de-icer switch | 84794-52020 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84810 | Electric window lift switch assembly | 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84820-12520 · 84820-42190 |
| 84870A | Exterior rearview mirror switch assembly | 84870-34010 |
| 84922 | Front electric seat switch | 84922-60120 |
| 84930 | Door control switch assembly | 84930-12250 · 84930-42030 |
| 84988F | traction control switch | 84988-42030 · 84988-42040 |
| 84988H | Downhill assist control switch | 84988-42020 |
| 85432 | Key interlock solenoid valve | 85432-71010 |
| 85500 | Cigarette lighter assembly | 85500-28080 |
| 85500B | Cigarette lighter bulb | 90010-01030 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-22040 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530A | power outlet relay | 90987-02027 |
| 85530B | No. 1 rear power socket assembly | 85530-42010 |
| 85530C | Central power socket assembly | 85530-42010 |
| 85535D | Central power socket cover | 85535-42040 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85539A | Note label on rear power outlet | 85539-60020 |
| 85913C | Heater relay No. 1 | 90987-04010 |
| 85916D | fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85927 | cooling fan relay | 90987-02025 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85930G | ACC relay | 90987-02027 |
| 85934 | Electromagnetic clutch relay | 90987-02027 · 90987-02028 |
| 86210A | Voltage inverter assembly | 86210-42010 · 86210-42020 |
| 86220A | Inverter relay | 90987-02024 |
| 87346K | PTC heater relay | 90987-02025 |
| 89245B | steering sensor | 89245-12020 · 89245-52030 |
| 89257 | Cooling fan ECU | 89257-26020 · 89257-30080 |
| 89465 | oxygen sensor | 89465-42150 · 89465-42160 · 89465-42170 · 89465-42200 |
| 89467B | air fuel ratio sensor | 89467-28010 · 89467-42050 · 89467-42060 · 89467-42080 · 89467-42090 · 89467-42120 |
| 895A0 | Brake light control relay assembly | 895A0-46010 · 895A0-46020 |
| 89611 | push button start switch | 89611-52021 · 89611-52022 · 89611-52023 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-42040 · 89650-42070 · 89650-42080 |
