Toyota RAV4 仪表 — Figure 8301
Toyota RAV4 EPC diagram 8301, 仪表, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

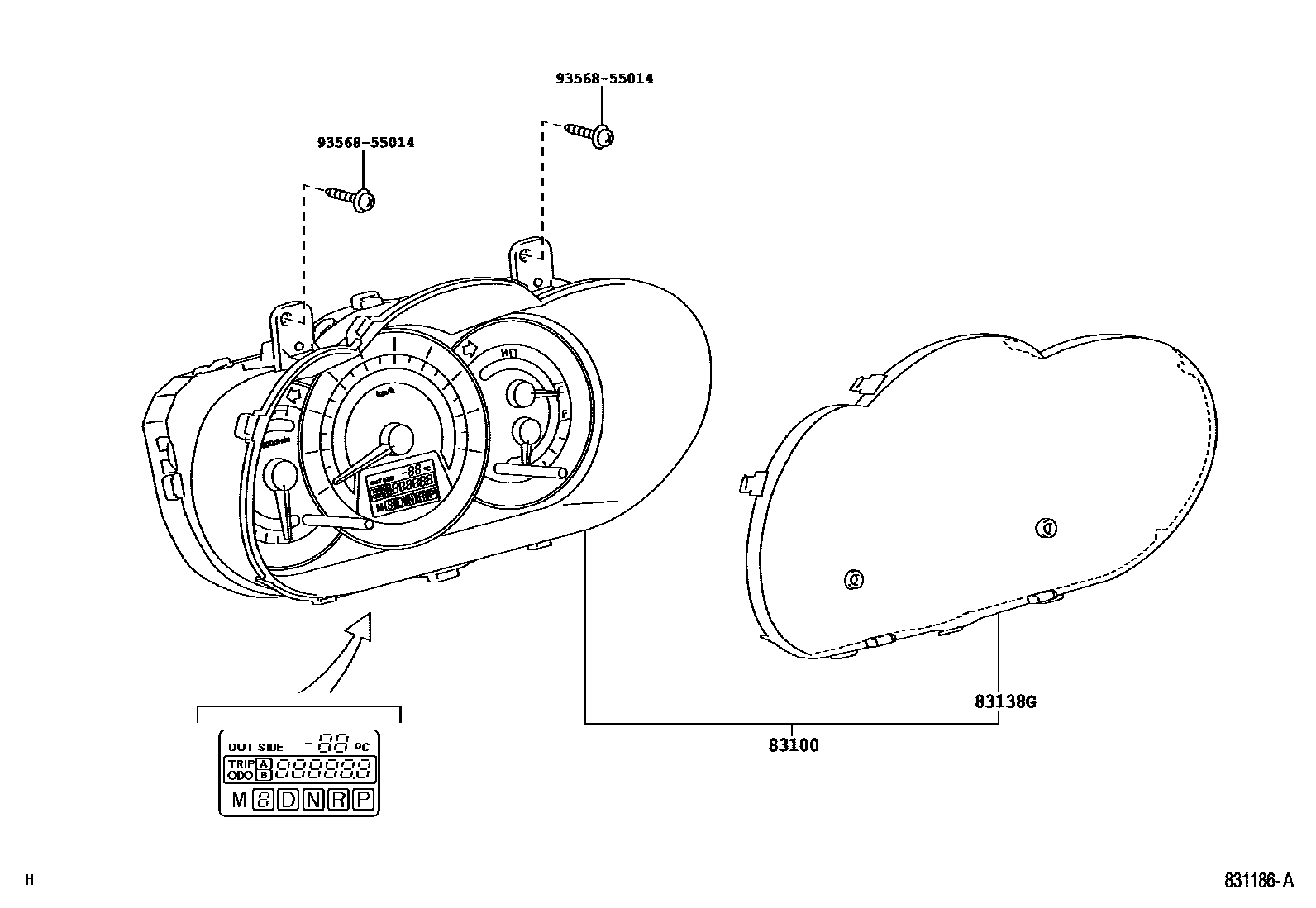

| 83100 | Combined instrument assembly | 83800-42C30 · 83800-42C31 · 83800-42C40 · 83800-42C41 · 83800-42C50 · 83800-42C60 · 83800-42E10 · 83800-42G30 · 83800-42G31 · 83800-42G40 · 83800-42G41 · 83800-42G50 · 83800-42G51 · 83800-42G60 · 83800-42G61 · 83800-42G70 · 83800-42G71 |
| 83138G | Instrument cluster glass | 83852-42C20 |

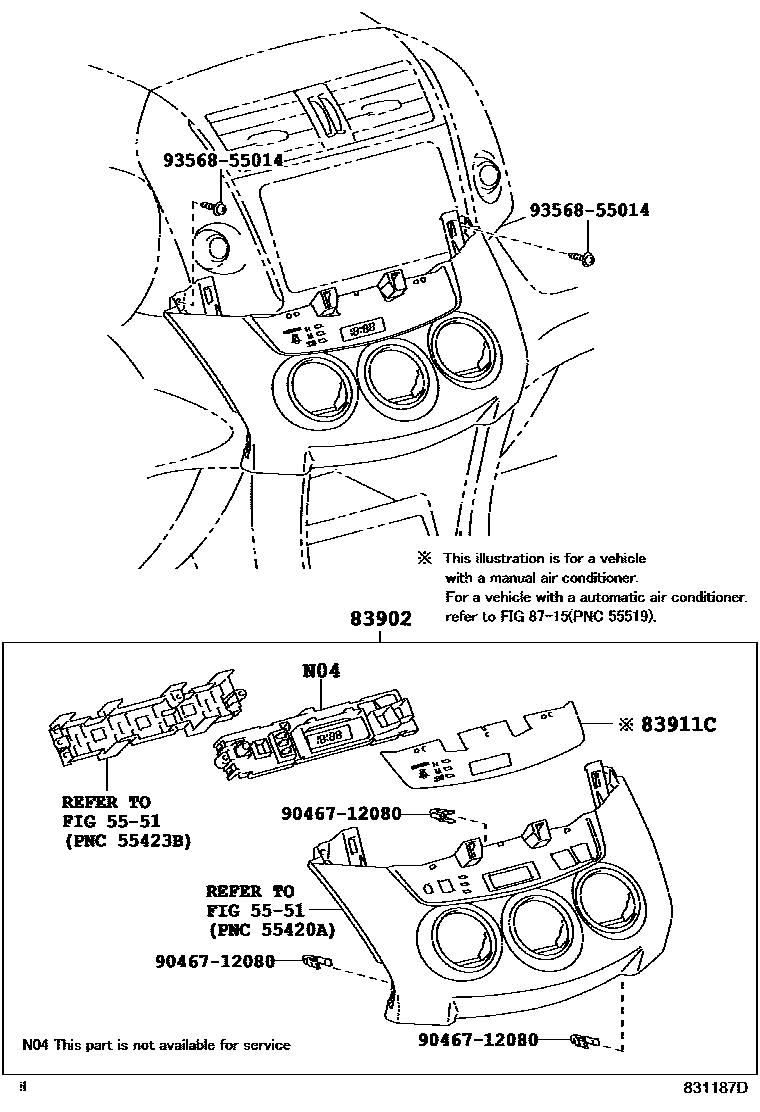

| 83911C | clock decoration | 83911-42050 · 83911-42070 |
