Toyota RAV4 蓄电池和蓄电池电缆 — Figure 8201

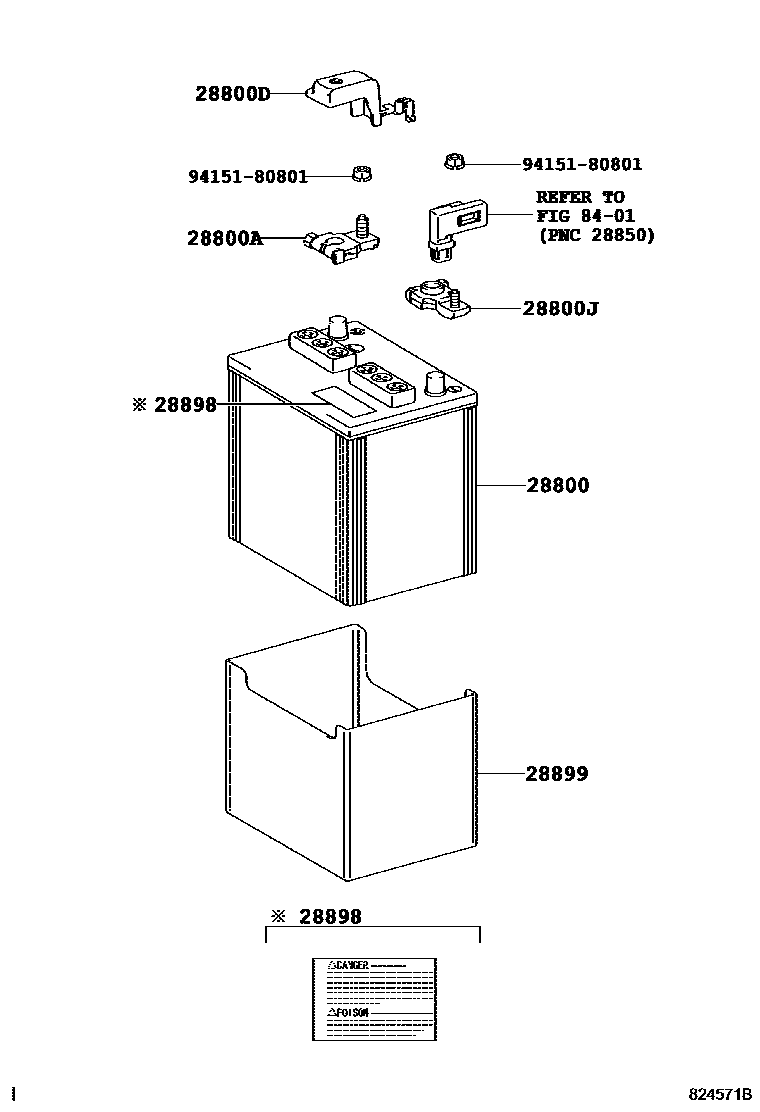

Toyota RAV4 EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-17121 · 28800-28080 · 28800-28210 · 28800-54020 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-48020 |
| 28800J | battery negative terminal | 90982-06070 |
| 28898 | battery plates | 28897-46020 |
| 28899 | Battery insulation cover | 28899-28030 · 28899-31040 |
