Toyota RAV4 reflector — Figure 8115

Toyota RAV4 EPC diagram 8115, reflector, with 1 images and 2 PNC and OE references.

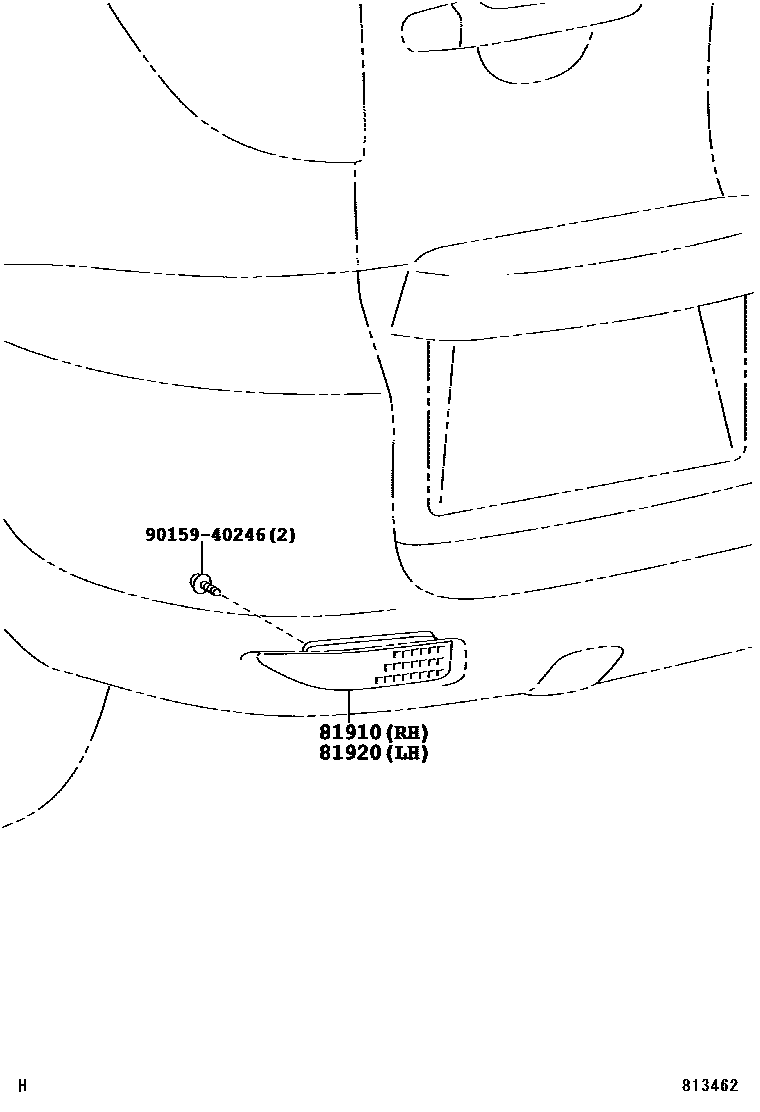

Toyota RAV4 reflector EPC diagram — 813462
reflector — 813462 (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
81910Right reflector assembly81910-13020 · 81910-13021 · 81910-13022
81920Left reflector assembly81920-13020 · 81920-13021 · 81920-13022
