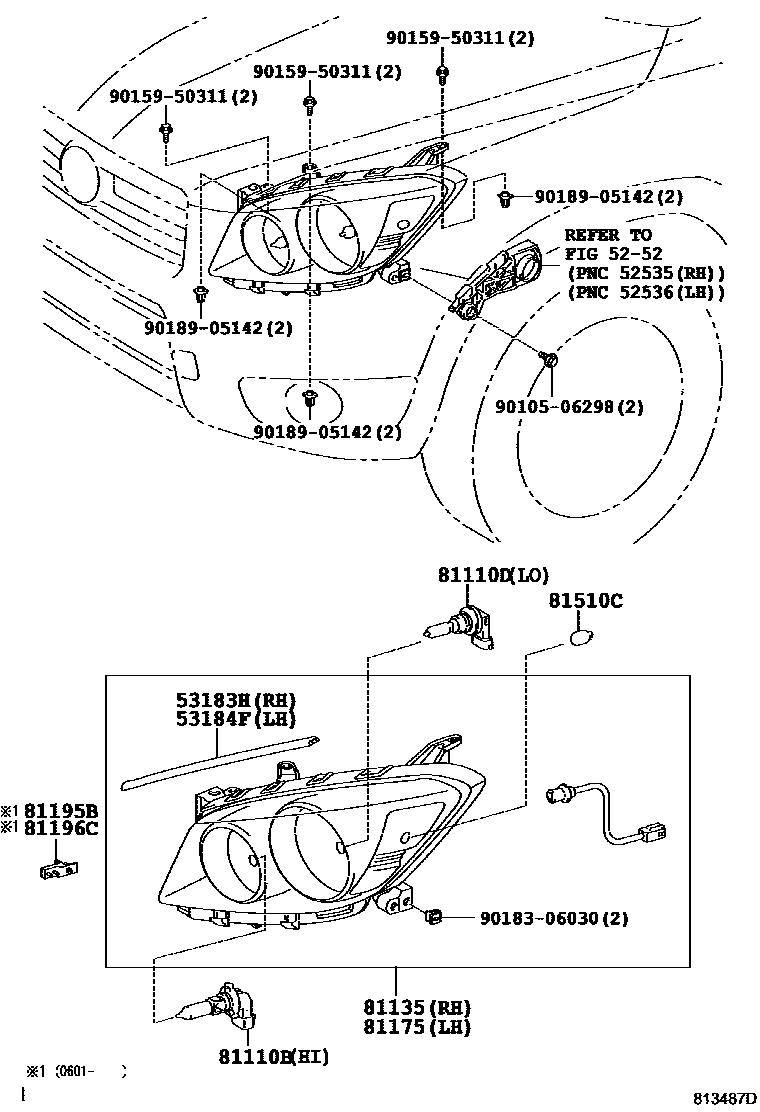

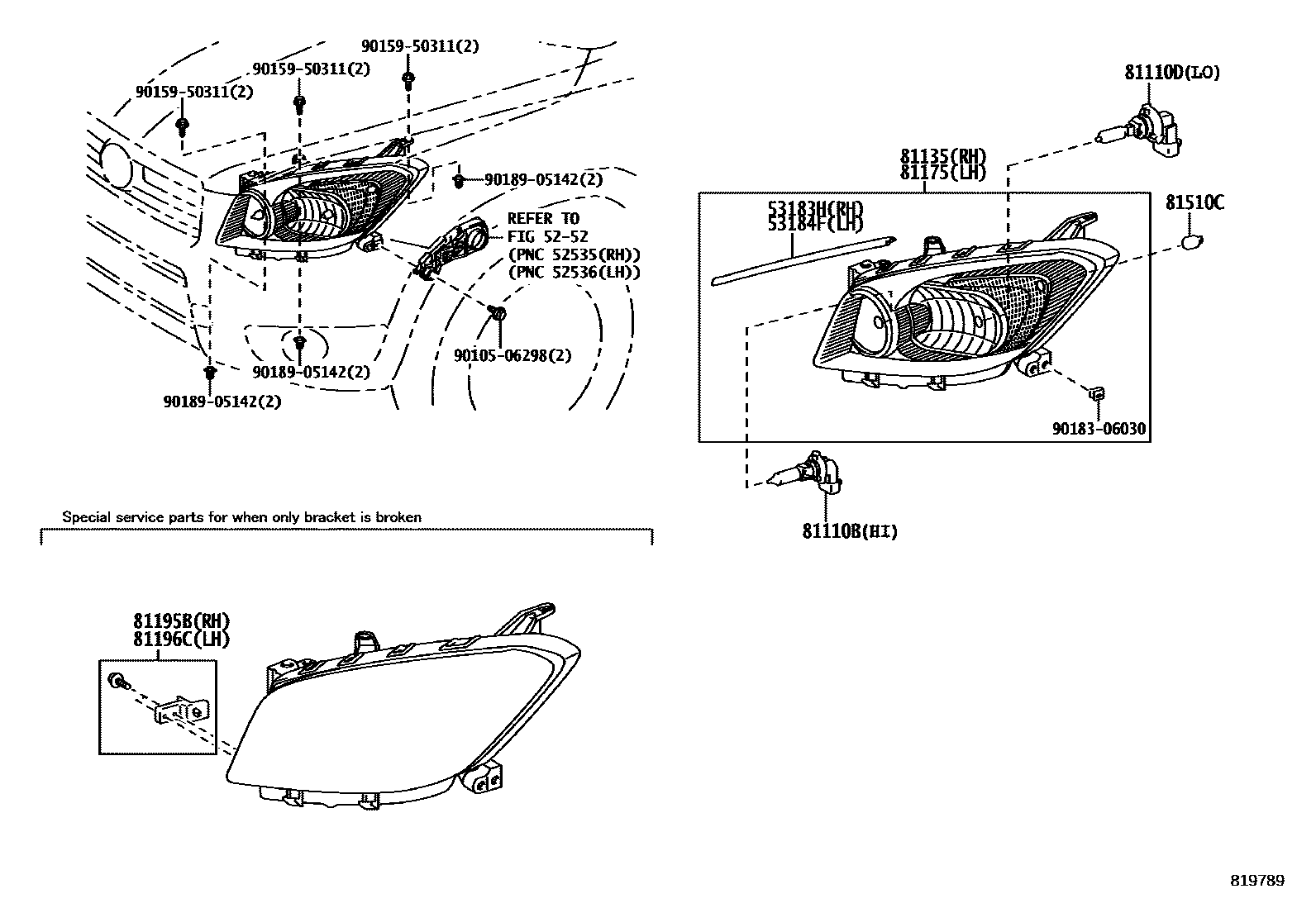

Toyota RAV4 Headlamp — Figure 8101
Toyota RAV4 EPC diagram 8101, Headlamp, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183H | Right headlight cover seal | 53183-42030 |
| 53184F | Left headlight cover seal | 53184-42030 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13047 |
| 81135 | Right headlight assembly | 81130-42330 · 81130-42331 · 81130-42370 · 81130-42371 · 81130-42470 · 81130-42480 |
| 81175 | Left headlight assembly | 81170-42330 · 81170-42331 · 81170-42370 · 81170-42371 · 81170-42470 · 81170-42480 |
| 81195B | Right headlight lower right protection piece | 81195-42020 |
| 81196C | Left headlight lower left protection piece | 81196-42020 |
| 81510C | Bulb (for front turn signal lamp) | 90981-11048 · 90981-13044 |
