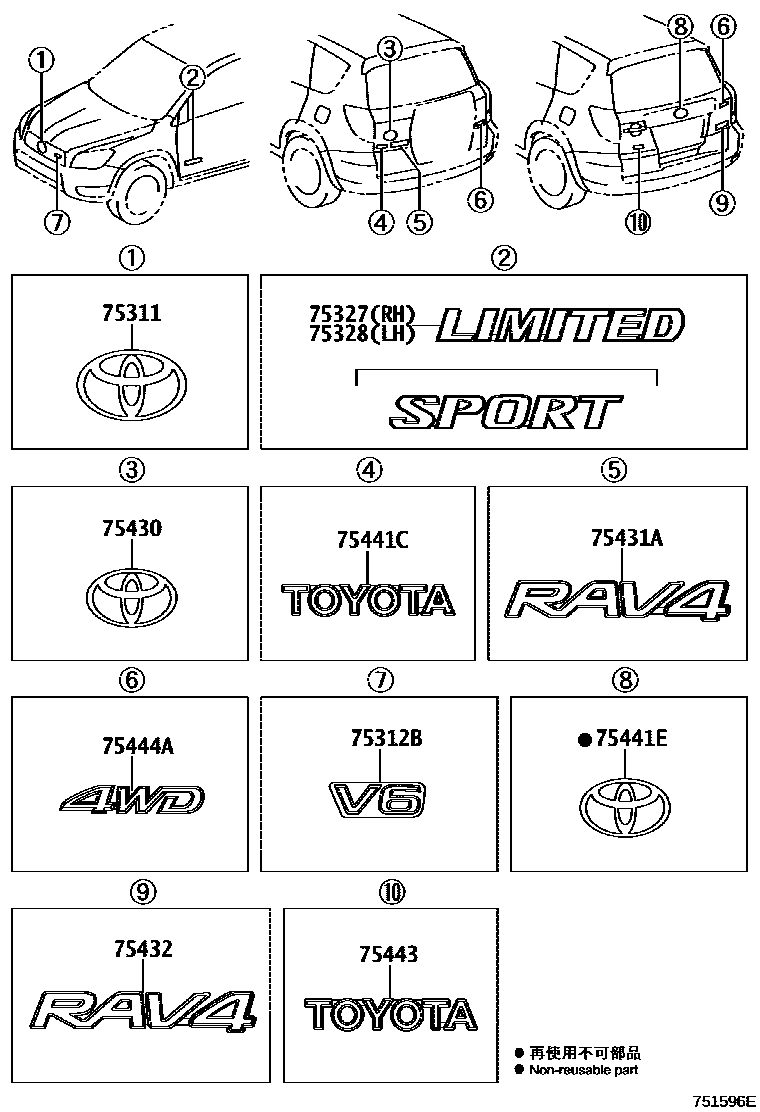

Toyota RAV4 徽标和铭牌 — Figure 7551
Toyota RAV4 EPC diagram 7551, 徽标和铭牌, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-42010 · 90975-02100 |
| 75312B | Radiator grille number 2 plate | 75312-42010 · 75312-42020 · 75312-42030 · 75312-42060 |
| 75327 | Right front door mark | 75327-42010 · 75327-42020 |
| 75328 | Left front door mark | 75328-42010 · 75328-42020 |
| 75430 | Rear door No. 1 sign assembly | 75430-42010 · 75471-42050 |
| 75431A | No. 1 sign on back door | 75431-42030 |
| 75432 | No. 2 sign on back door | 75431-42080 |
| 75441C | Back door nameplate | 75441-42050 |
| 75441E | Back door No. 1 nameplate | 90975-02072 |
| 75443 | No. 3 nameplate on back door | 75441-42040 |
| 75444A | No. 4 nameplate on back door | 75444-42010 · 75444-42040 |
