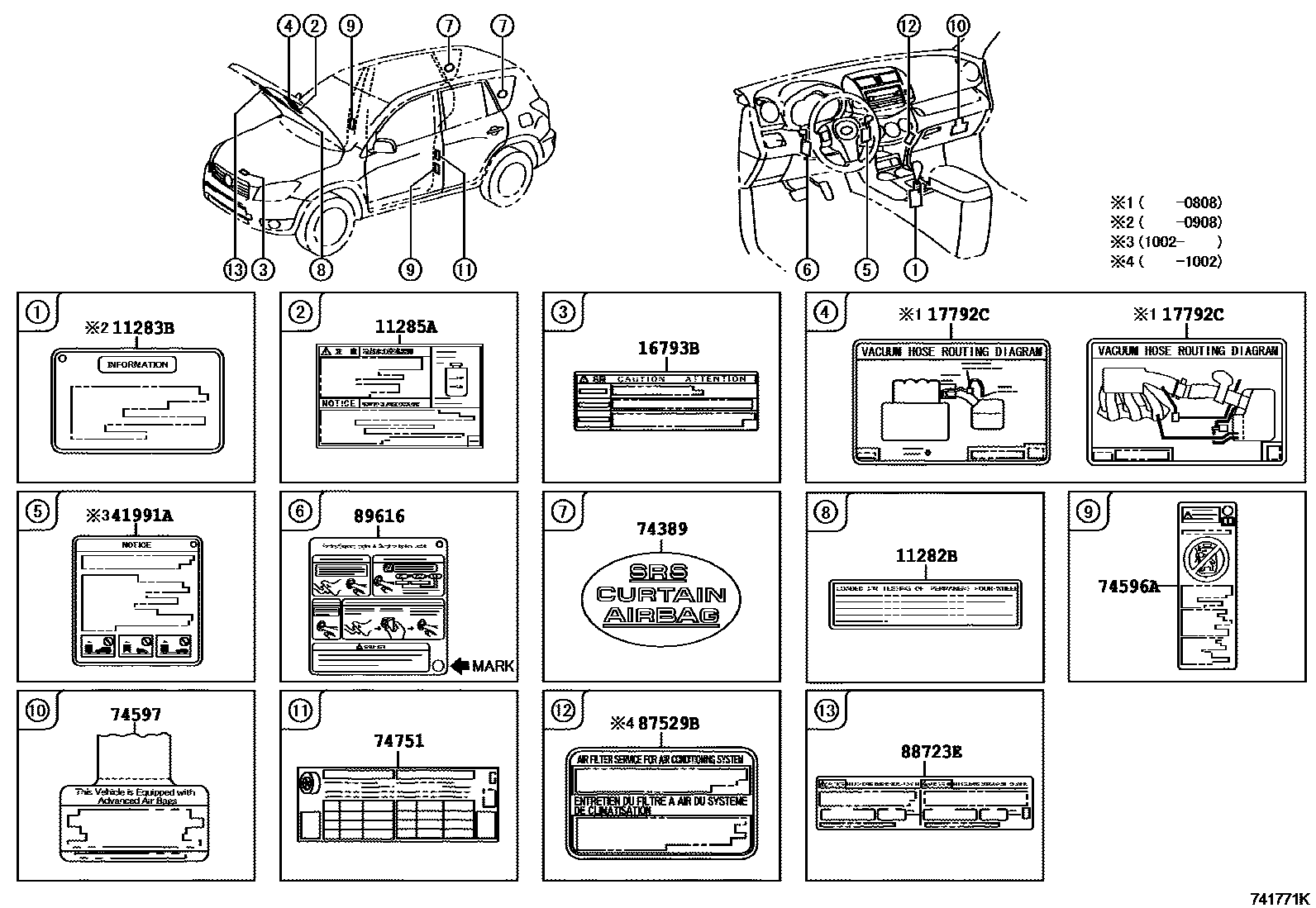

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11282B | Load testing warning labels | 11282-74010 |
| 11283B | Leak Detection Pump Information Label | 11294-28010 |
| 11285A | Coolant System Caution Labels | 11285-28010 · 11285-28050 |
| 11296D | Engine maintenance information label | 11296-27020 |
| 11298B | Emission Control Information Label | 11298-28461 · 11298-28471 · 11298-28550 · 11298-28560 · 11298-28610 · 11298-28620 · 11298-31140 · 11298-31350 · 11298-31440 · 11298-31740 · 11298-31880 · 11298-31B40 · 11298-31C80 · 11298-36030 · 11298-36031 · 11298-36032 · 11298-36040 · 11298-36041 · 11298-36042 · 11298-36300 |
| 16793B | Cooling fan information label | 16793-28020 |
| 17792C | Engine vacuum hose information label | 17792-28210 · 17792-31210 |
| 41991A | warning nameplate | 41992-42030 |
| 41992 | Differential attention label | 41992-48020 |
| 69339A | Child Restraint Lock Warning Nameplate | 69339-12010 · 69339-33040 · 69339-48010 |
| 74541C | Out of air tire warning plate | 42666-24010 |
| 74559A | Fuel warning plate | 74559-14050 |
| 74596A | Side air bag warning label | 74596-30030 · 74596-53010 · 74596-53011 |
| 74597 | Driver and Passenger Air Bag Warning Labels | 74599-48020 |
| 74751 | tire pressure information label | 42661-42280 · 42661-42281 · 42661-42310 · 42661-42311 · 42661-42340 · 42661-42341 · 42661-42390 · 42661-42391 · 42661-42510 · 42661-42511 |
| 84639A | cruise control switch information label | 84639-64010 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-12160 |
| 89616 | Button start information label | 89616-30031 · 89616-60010 |
