Toyota RAV4 seat belt — Figure 7152

Toyota RAV4 EPC diagram 7152, seat belt, with 3 images and 5 PNC and OE references.

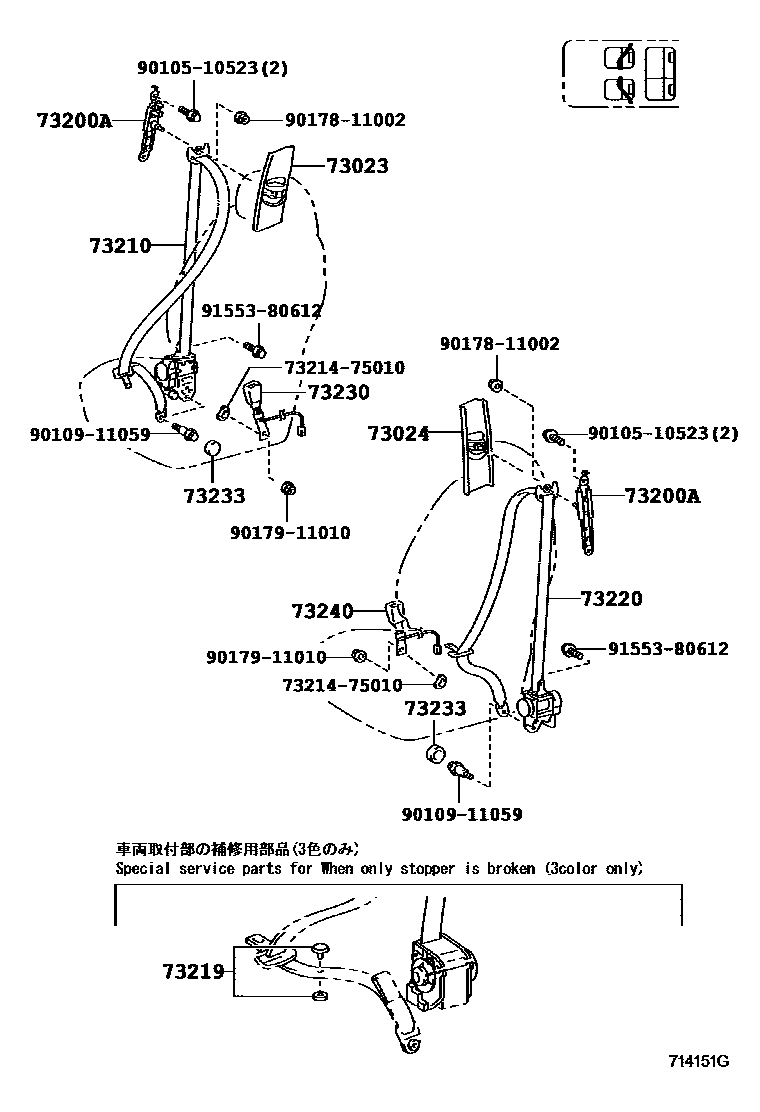

Toyota RAV4 seat belt EPC diagram — 714151G
seat belt — 714151G (200511 – 999999)

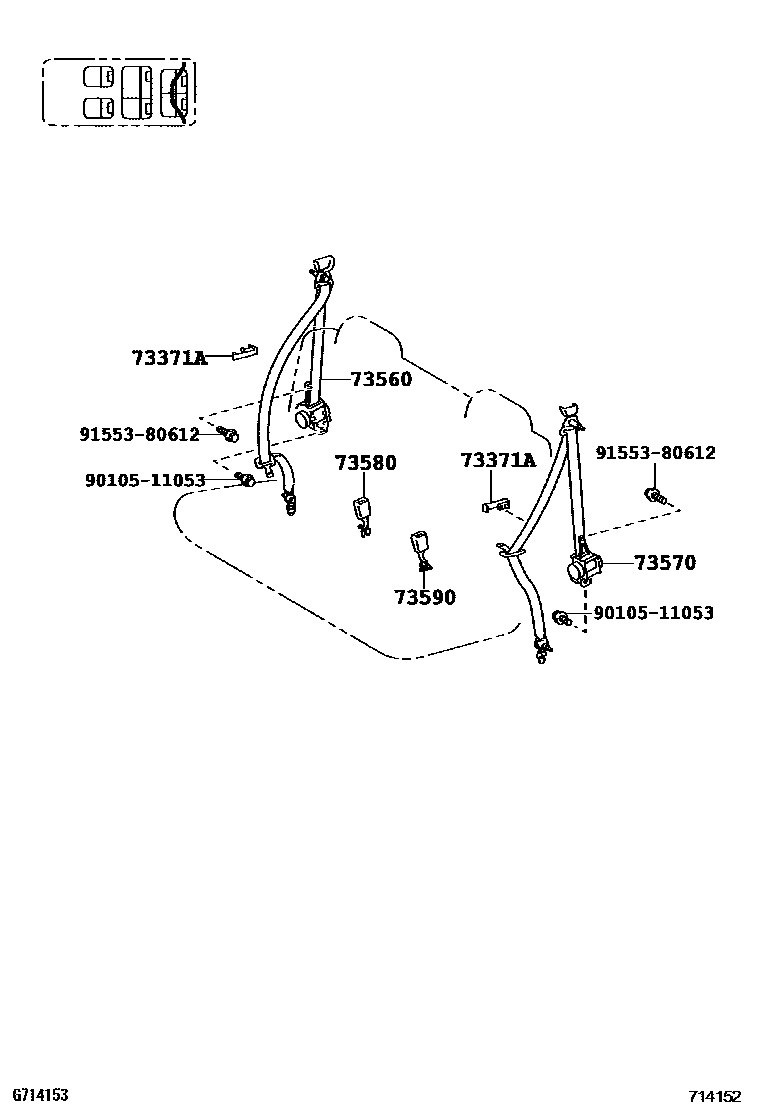

Toyota RAV4 seat belt EPC diagram — 714152
seat belt — 714152 (200511 – 999999)

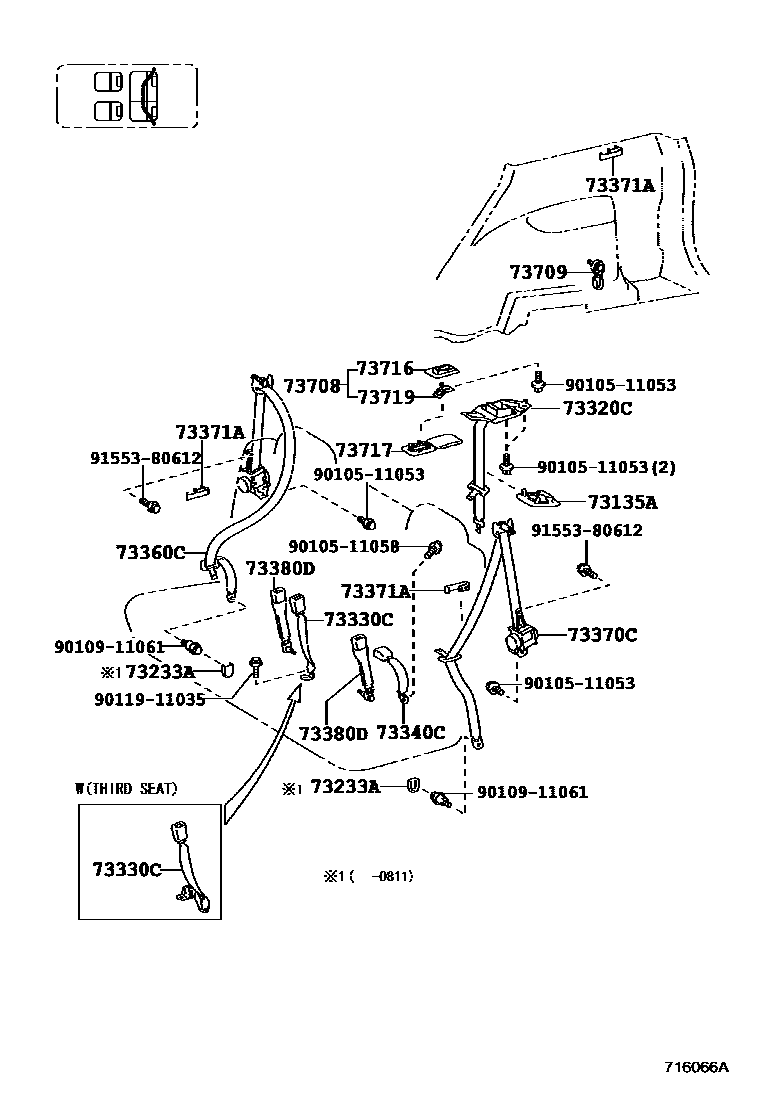

Toyota RAV4 seat belt EPC diagram — 716066A
seat belt — 716066A (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
73200AFront shoulder seat belt anchor adjuster assembly73200-53010
73219Tongue plate stop73219-02010 · 73219-02020 · 73219-02030
73233Lap belt outer anchor cover73233-42030
73233ARear seat No. 1 lap belt outer anchor cover73233-42030
73719Child restraint seat tether anchor bracket73719-42010
