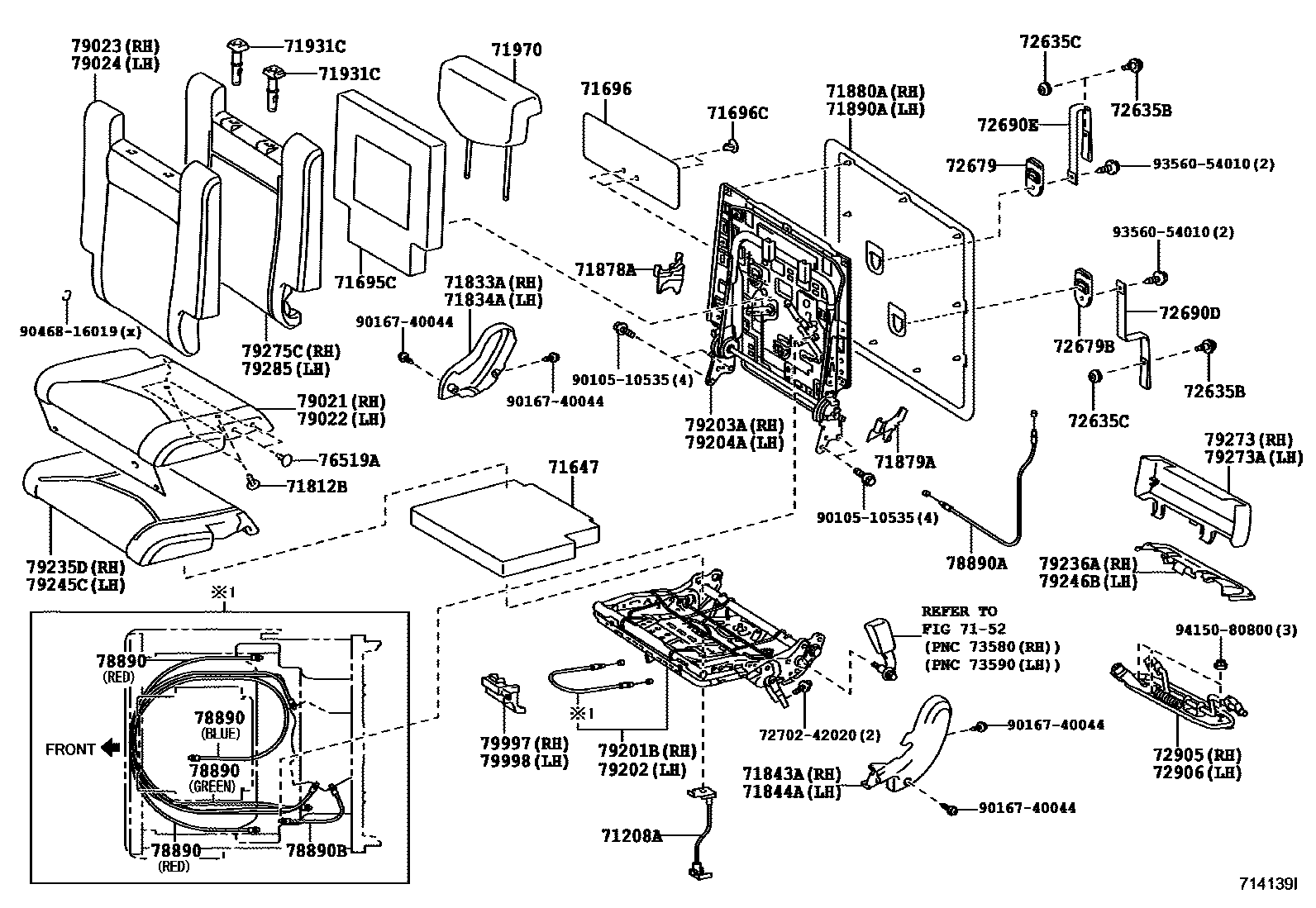

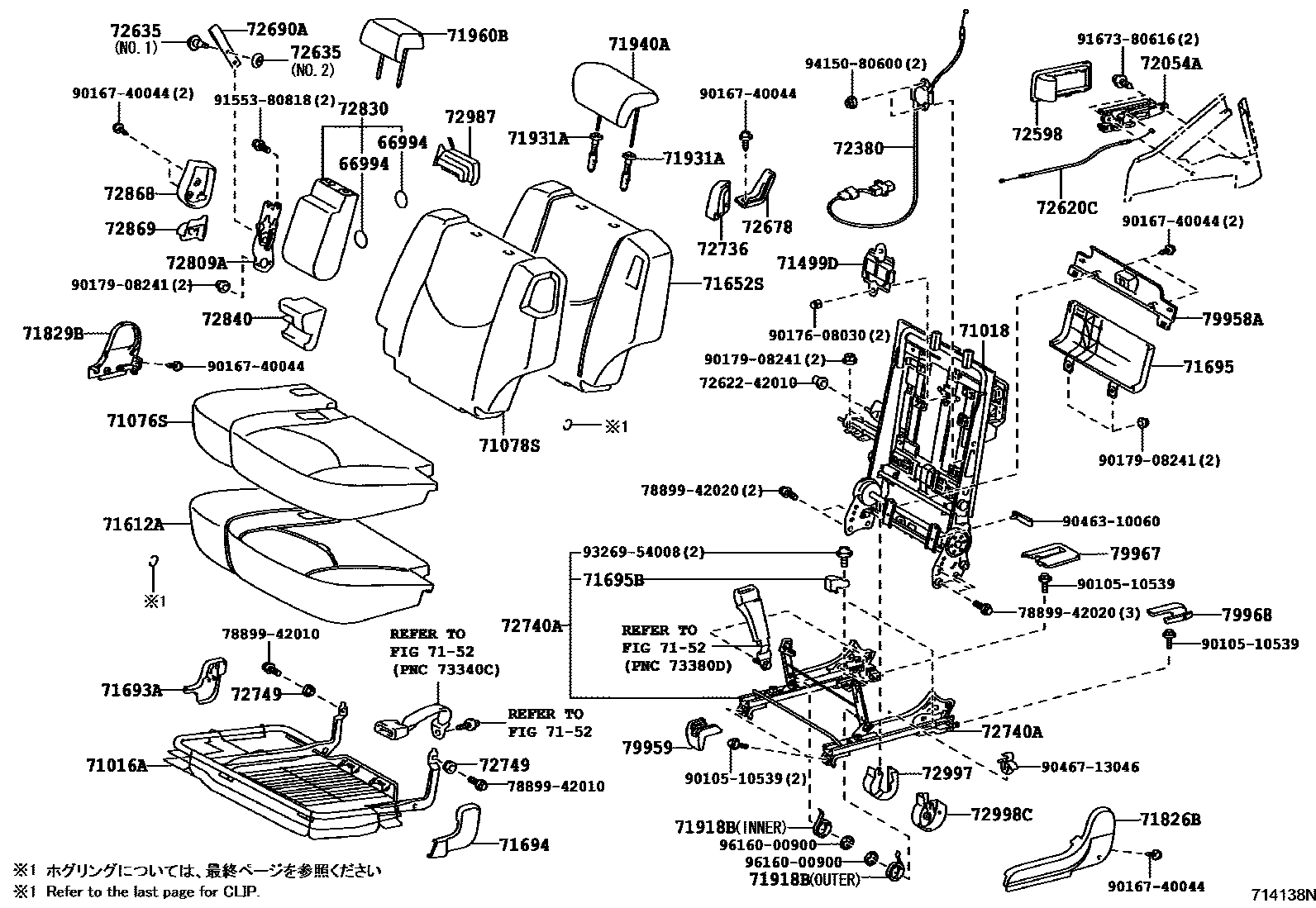

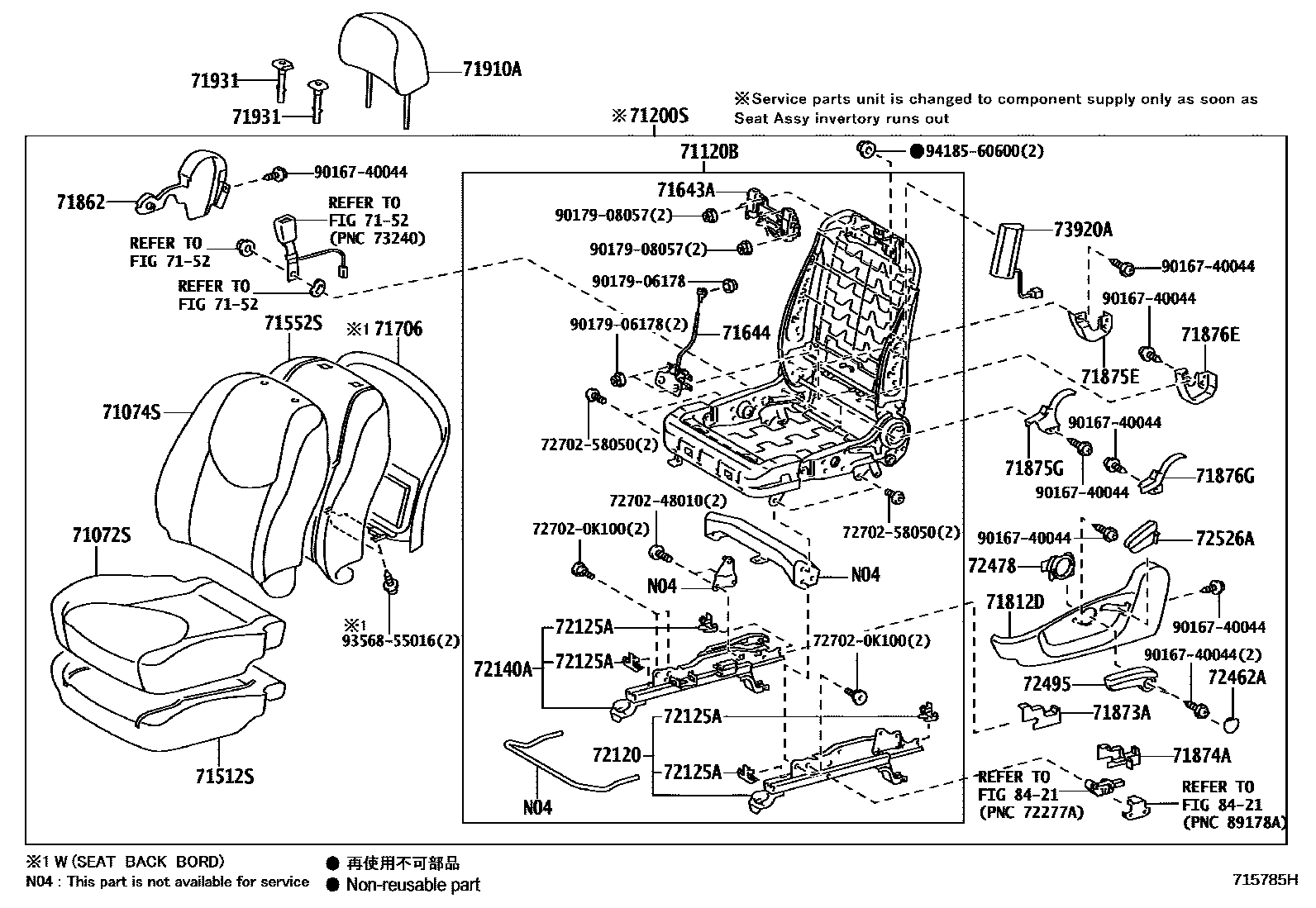

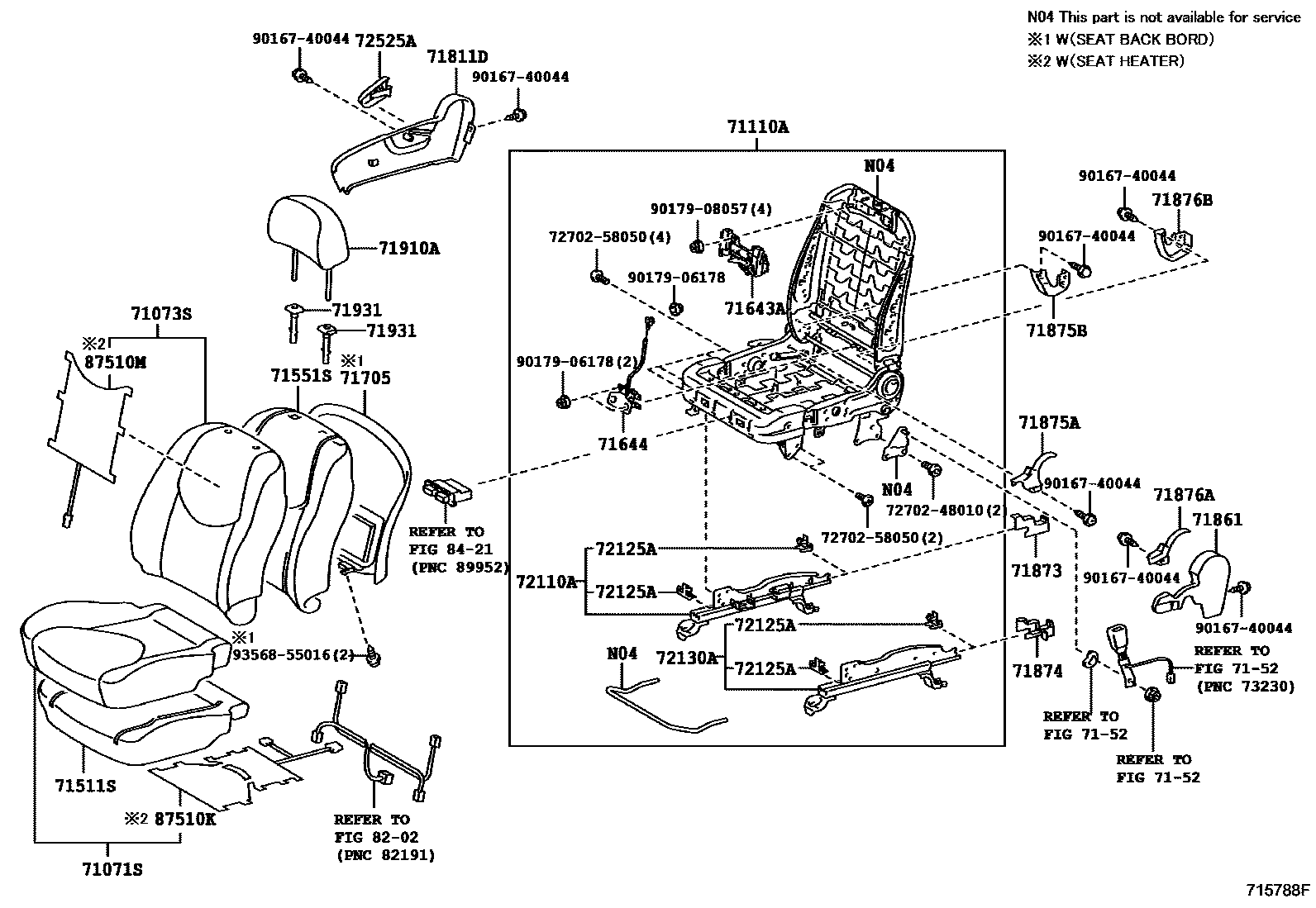

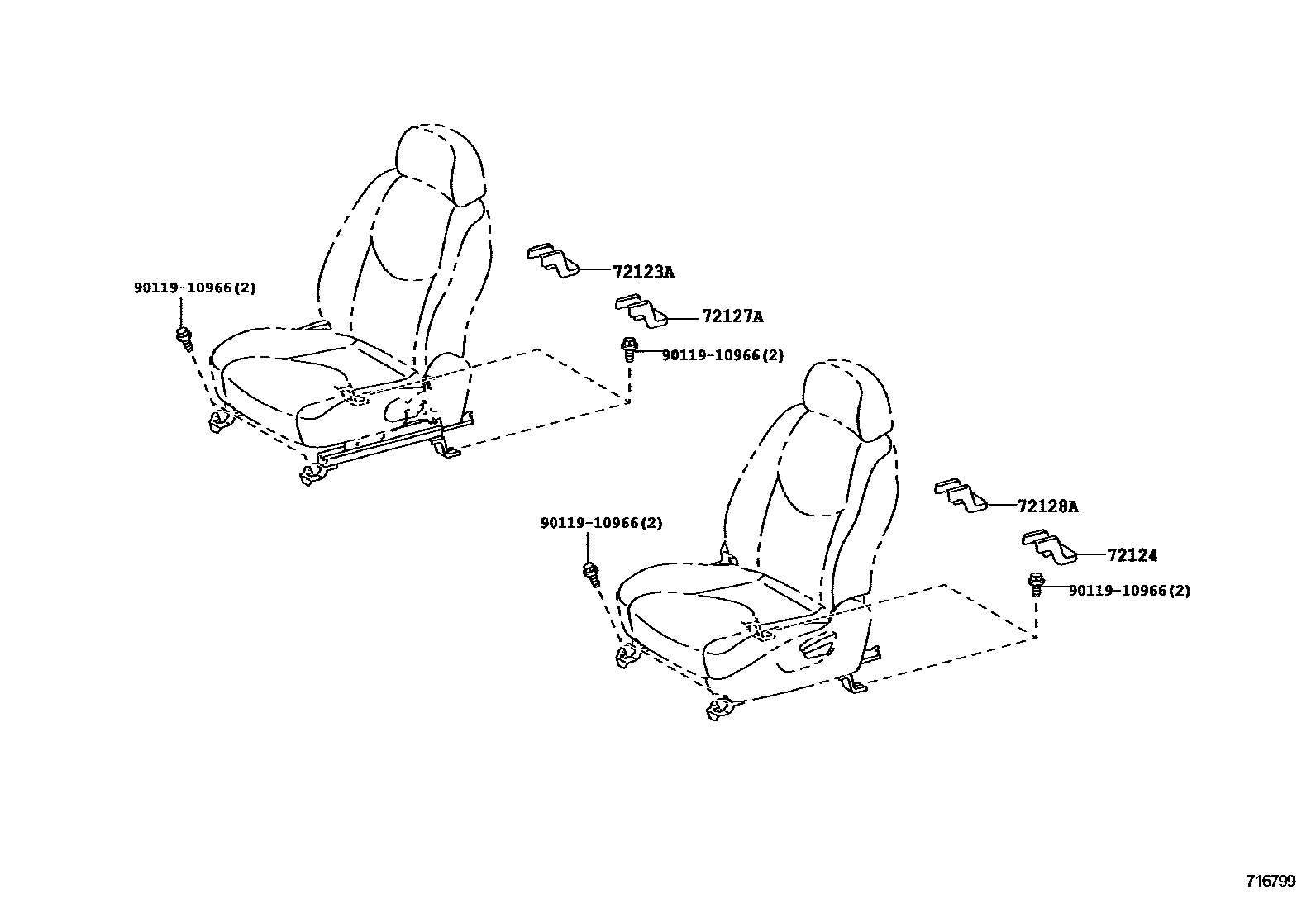

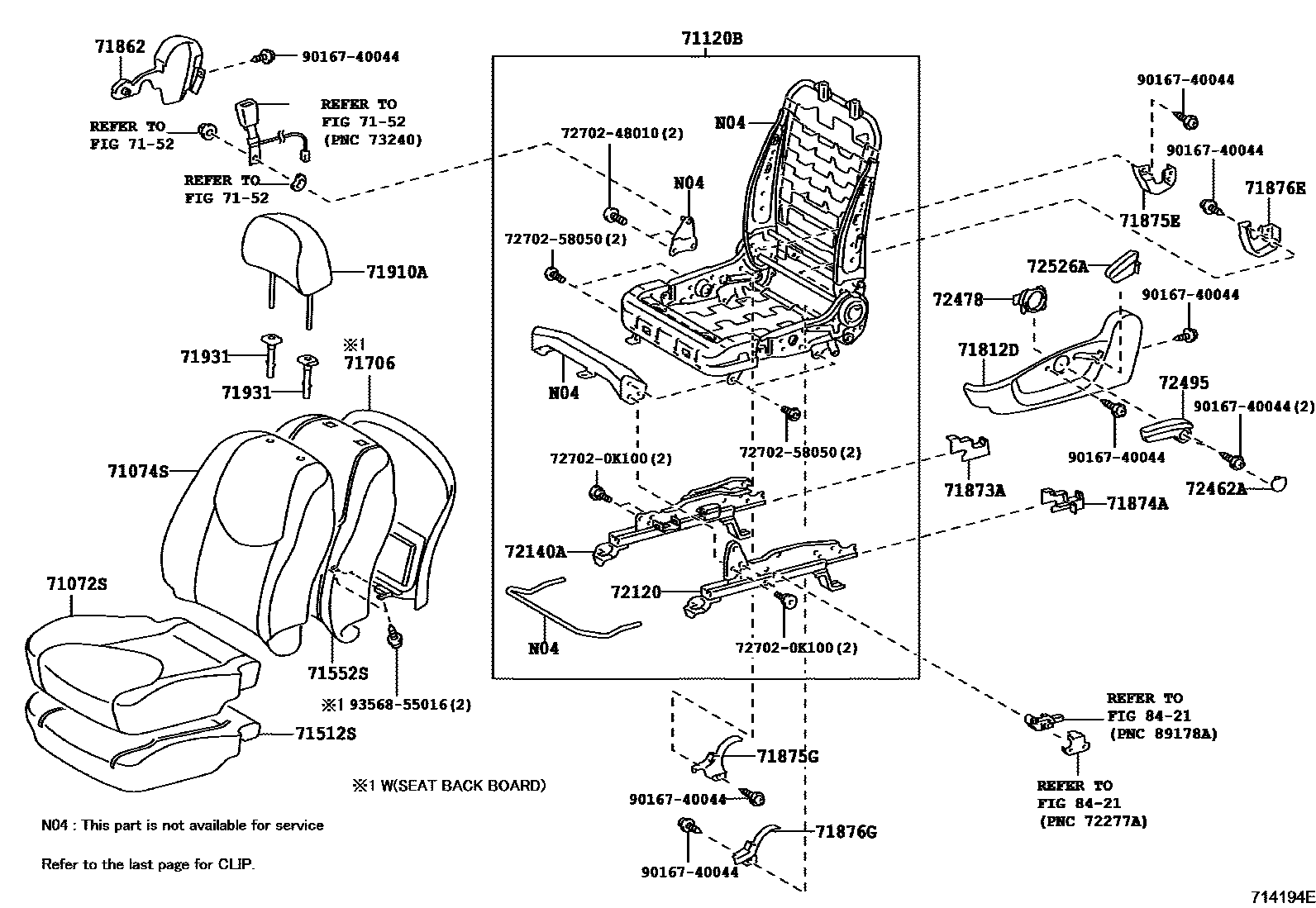

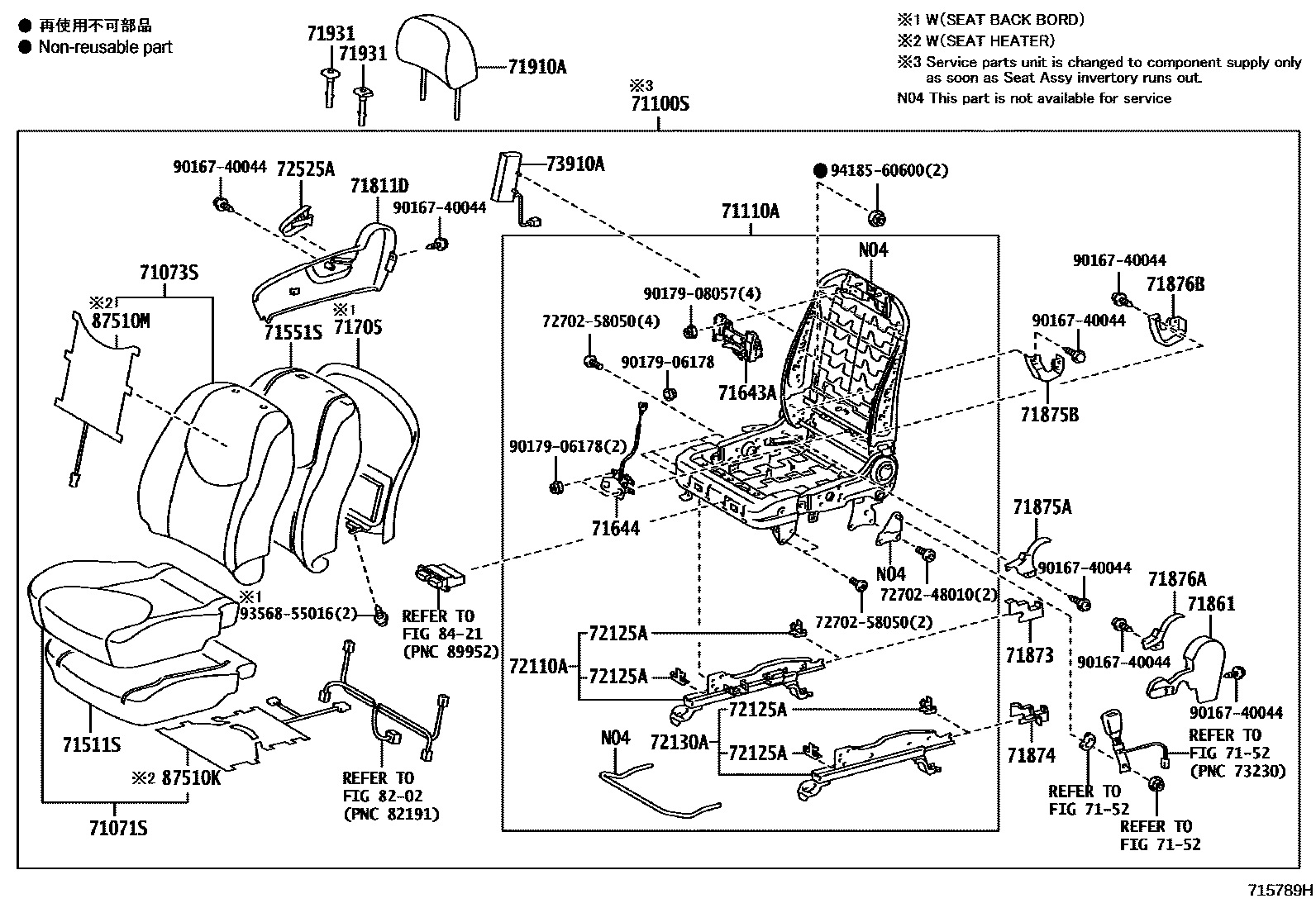

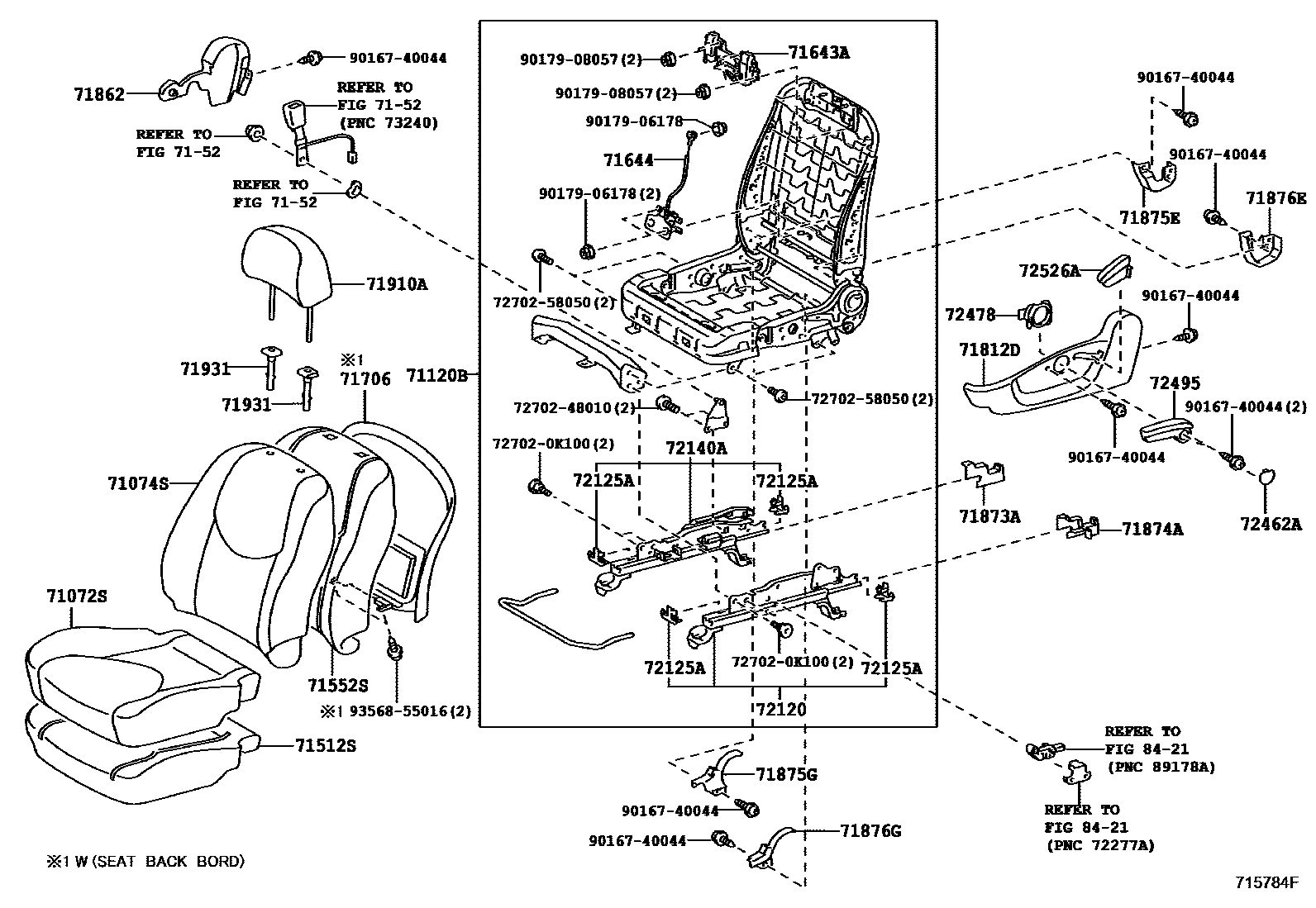

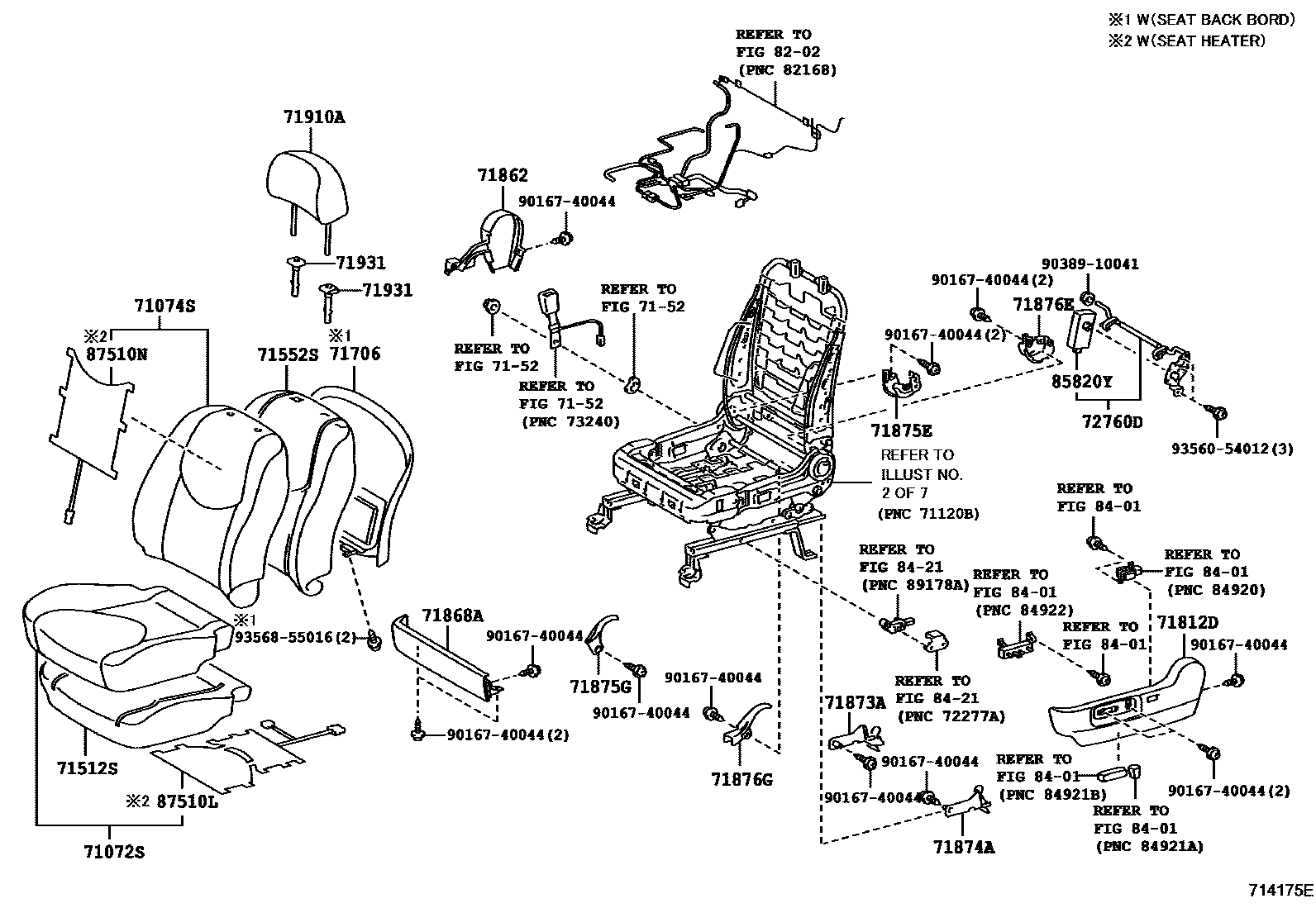

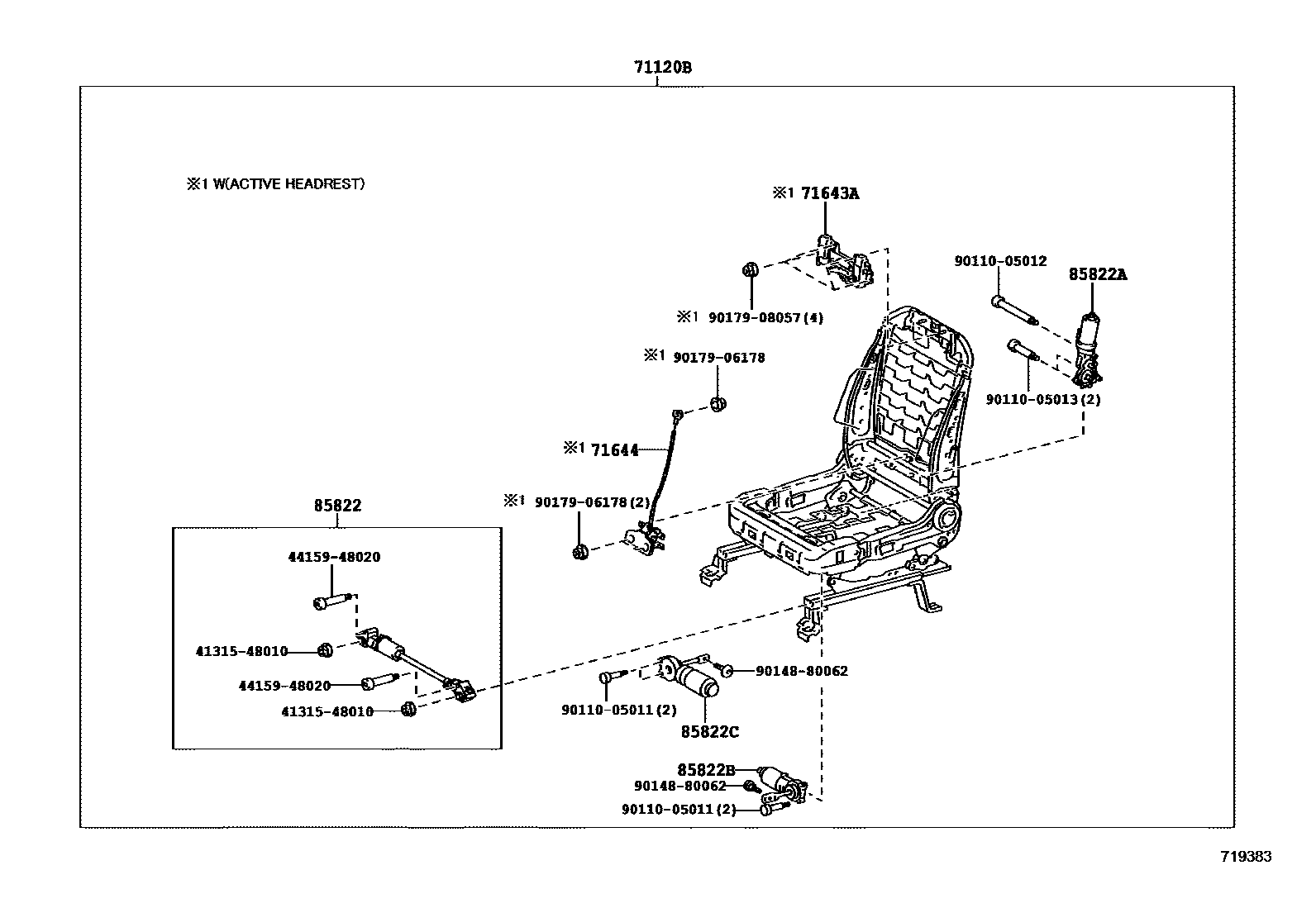

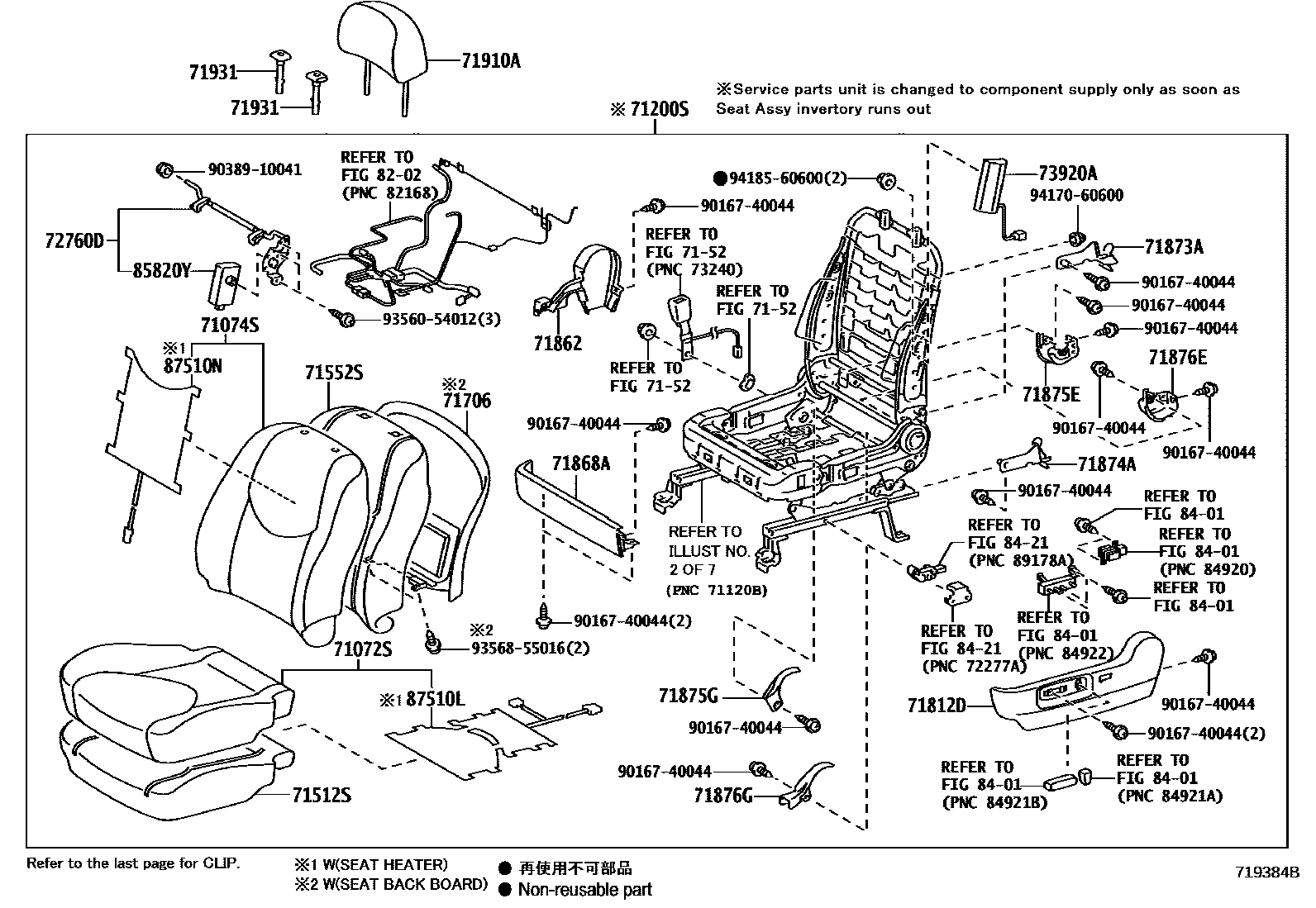

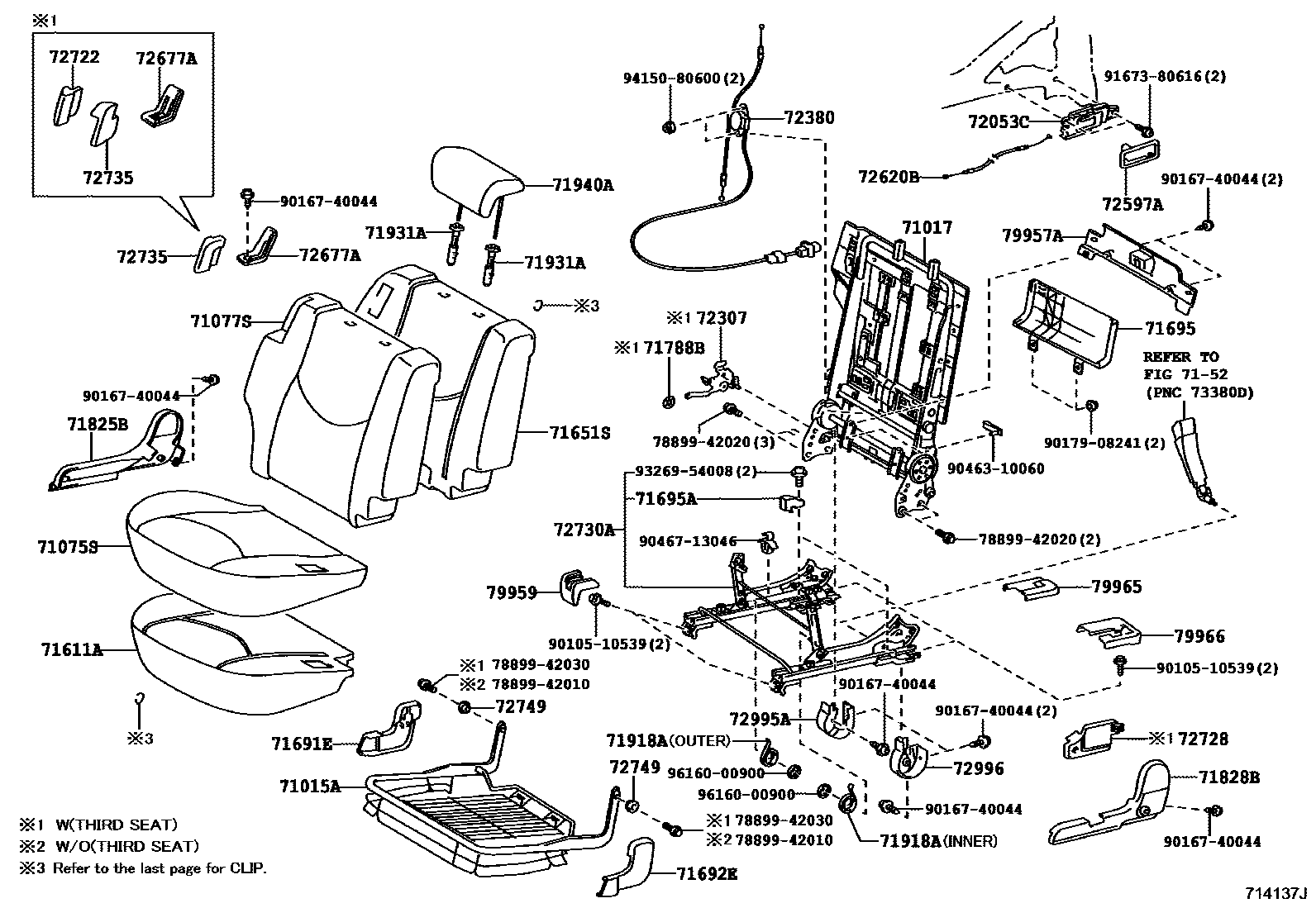

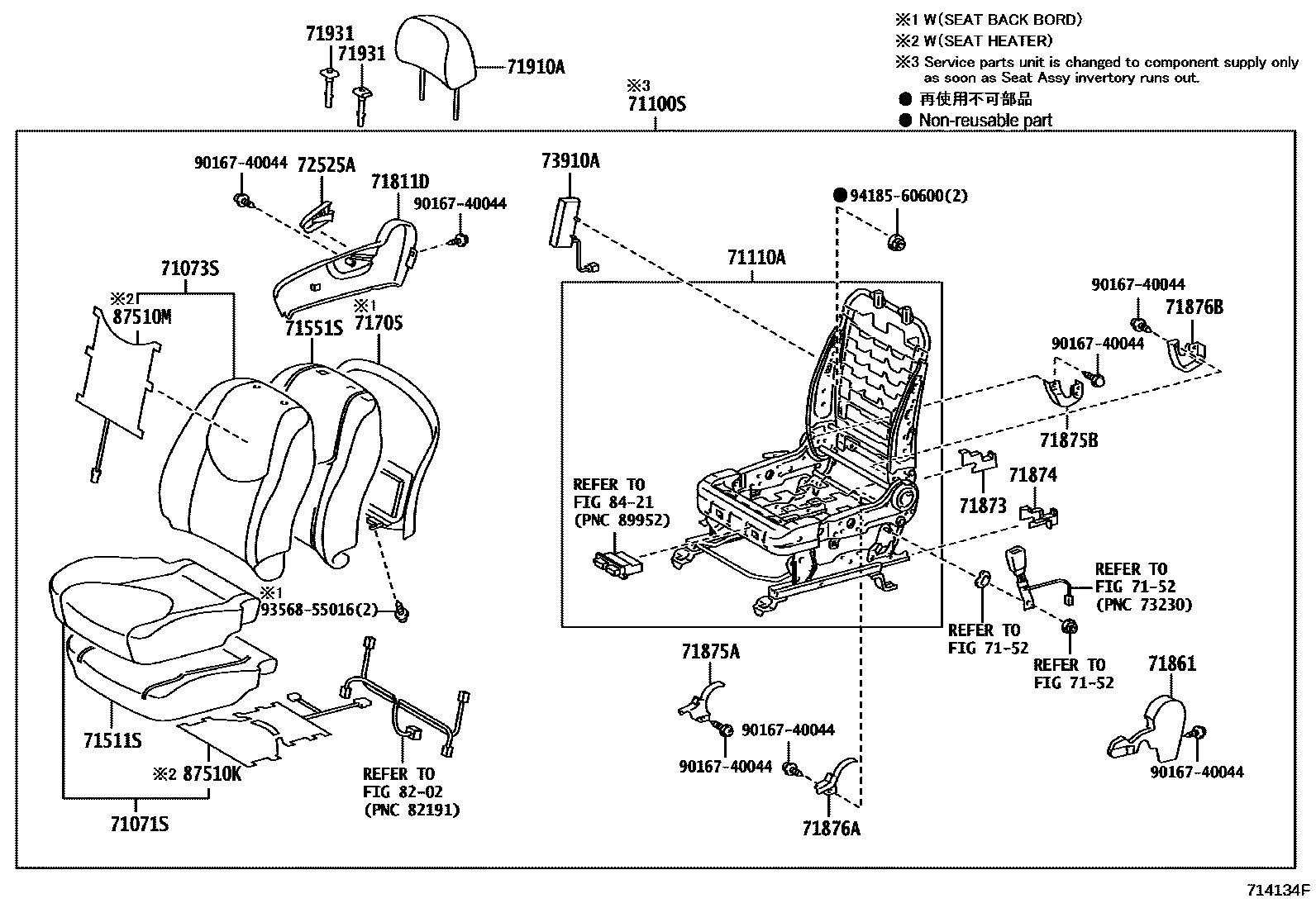

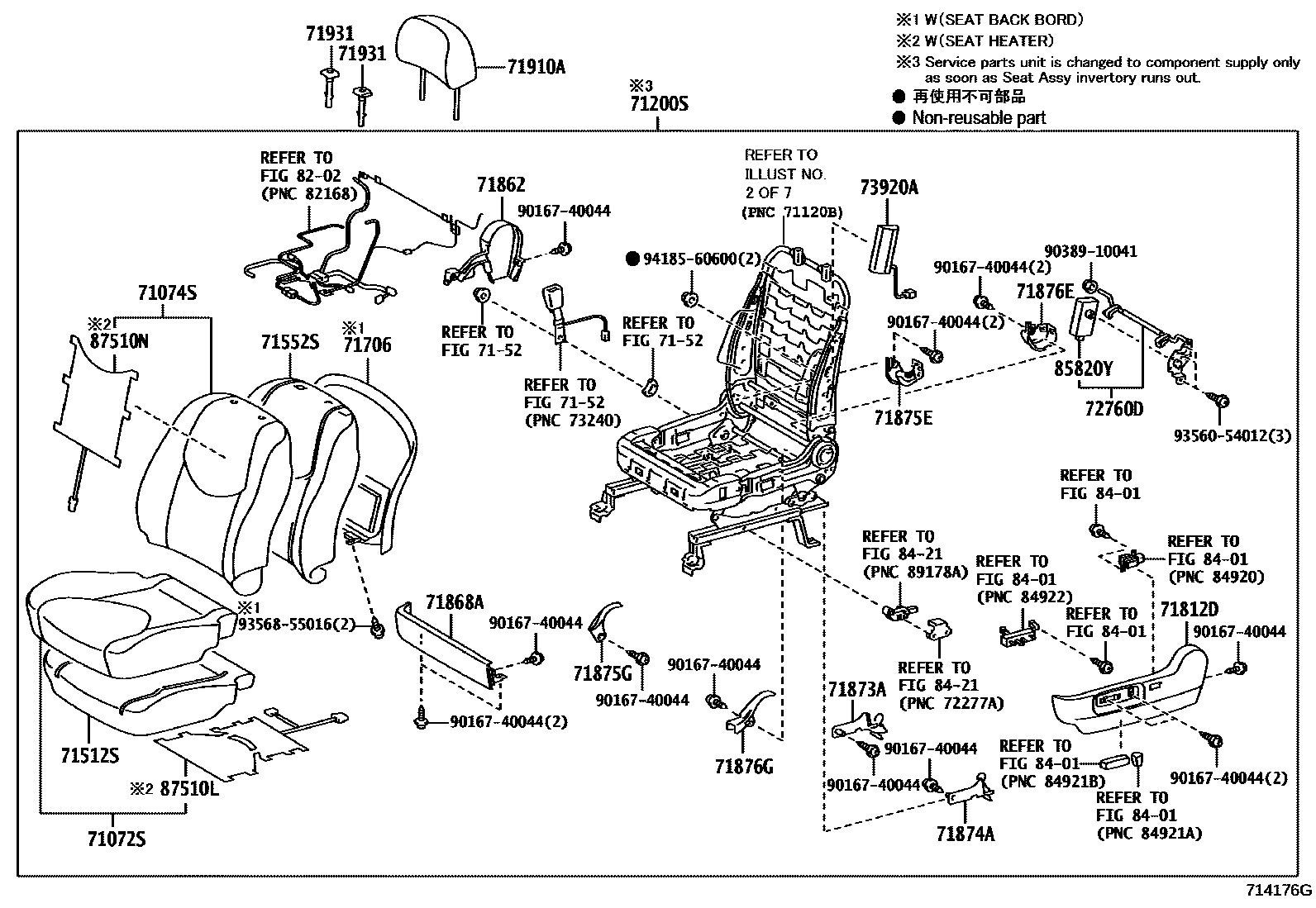

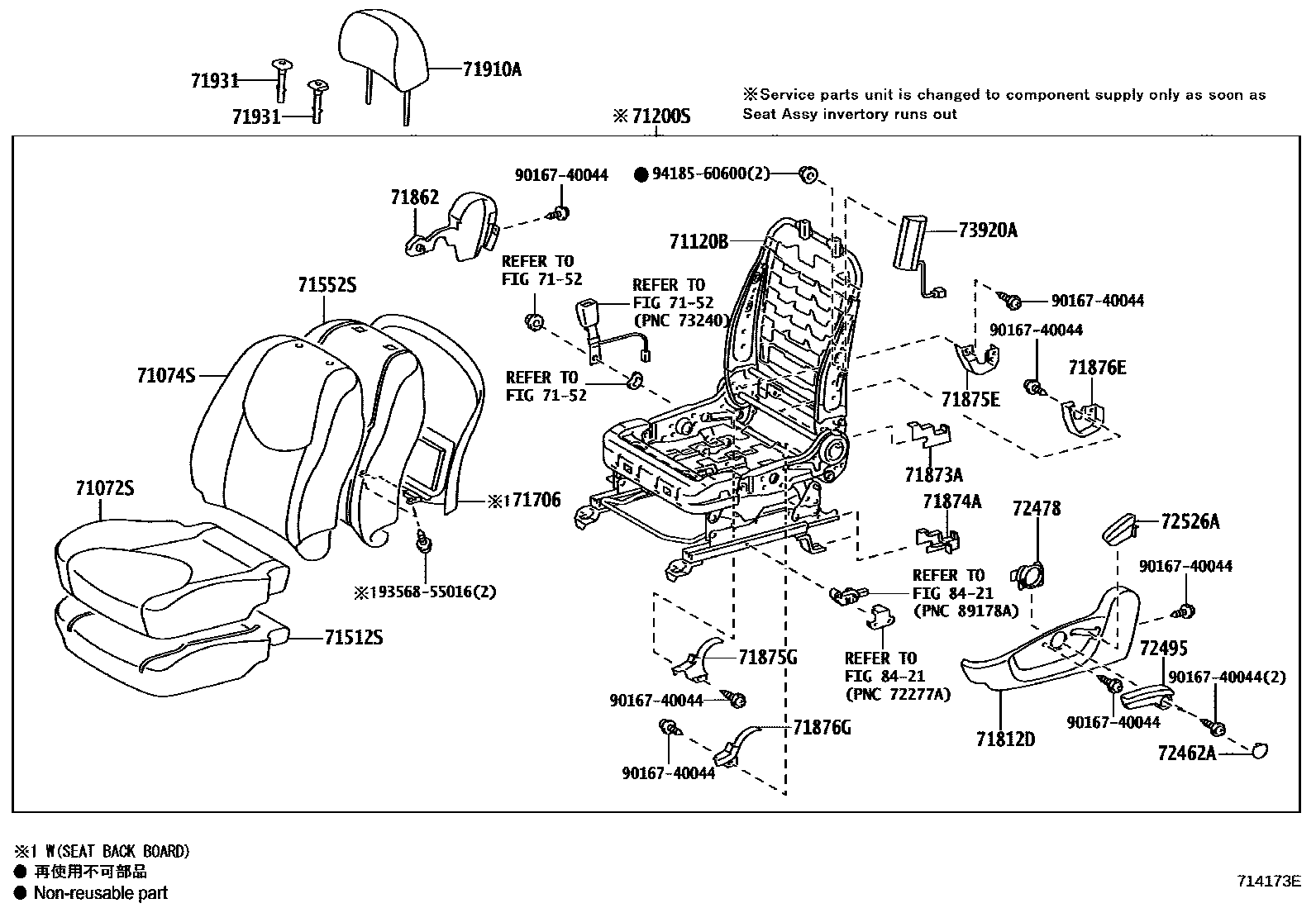

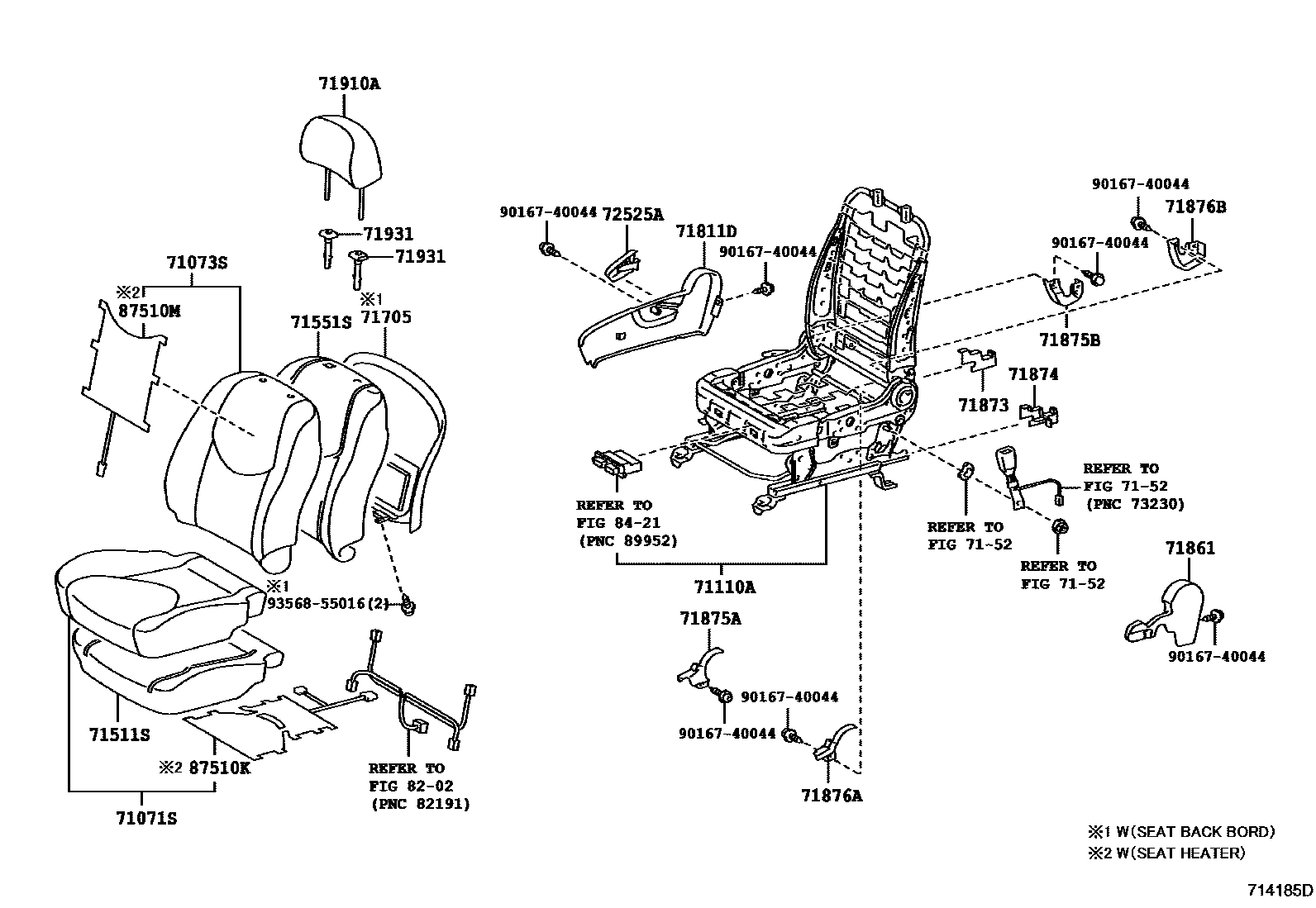

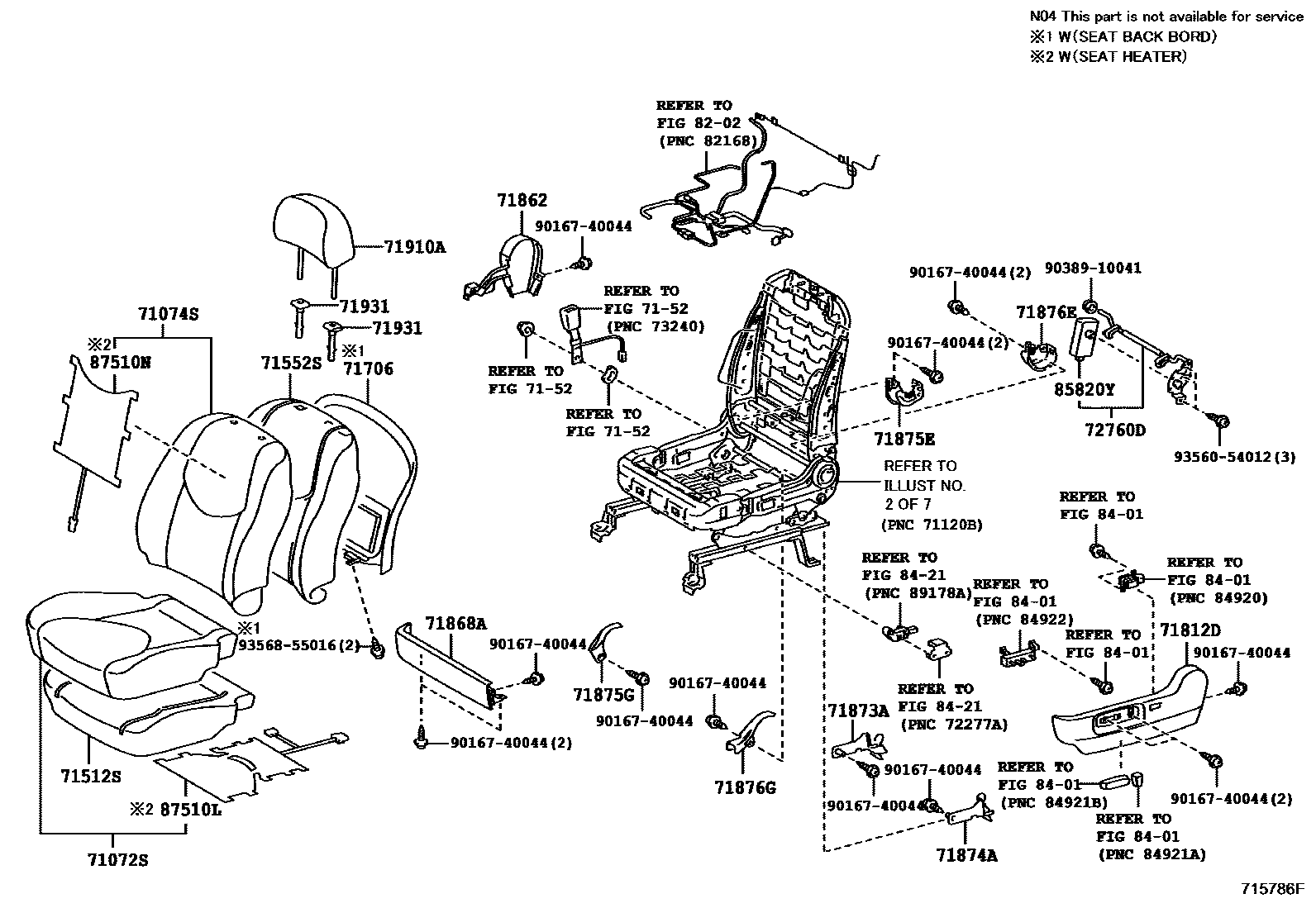

Toyota RAV4 座椅和座椅滑轨 — Figure 7151
Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 18 images and 84 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71650-42010 |
| 71016A | Rear left seat cushion frame sub-assembly | 71660-42010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-42110 · 71017-42111 · 71017-42120 · 71017-42121 |
| 71018 | Rear left seat back frame sub-assembly | 71018-42110 · 71018-42111 |
| 71073S | Front right seat back cover (for split seats) | 71073-42533 |
| 71074S | Front left seat back cover (for split seats) | 71074-42361 |
| 71110A | Front right seat (with adjuster) frame assembly | 71110-42050 · 71110-42060 · 71110-42180 · 71110-42190 · 71110-42260 · 71110-42270 · 71110-42300 · 71110-42310 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-42070 · 71120-42080 · 71120-42100 · 71120-42110 · 71120-42170 · 71120-42190 · 71120-42300 · 71120-42310 · 71120-42320 · 71120-42330 · 71120-42340 · 71120-42350 |
| 71208A | Rear seat cushion wire sub-assembly | 71208-42010 |
| 71499D | Rear seat back shock absorber | 71499-42010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71051-42050 · 71511-42070 · 71511-42090 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-42070 · 71512-42030 · 71512-42040 · 71512-42050 |
| 71551S | Front right seat back cushion (for split seats) | 71551-42060 · 71551-42070 · 71551-42080 · 71551-42100 · 71551-42140 · 71551-42150 · 71551-42160 · 71551-42170 |
| 71552S | Front left seat back cushion (for split seats) | 71551-42060 · 71551-42080 · 71551-42120 · 71551-42140 · 71551-42160 · 71551-42180 · 71552-42020 · 71552-42030 · 71552-42050 · 71552-42060 · 71552-42070 · 71552-42080 |
| 71611A | Rear right seat cushion | 71611-42080 |
| 71612A | Rear left seat cushion | 71612-42080 |
| 71643A | Active head restraint upper unit | 71643-12011 |
| 71644 | Active head restraint lower unit | 71644-12030 |
| 71647 | Rear seat cushion edge protective cover | 71647-42030 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-42080 · 71651-42090 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-42080 |
| 71695 | Rear seat back protection cover | 71695-42030 |
| 71695A | Protective cover for seat No. 1 on the right side of the rear row | 71695-42060 |
| 71695B | Protective cover for seat No. 1 on the left side of the rear row | 71695-42060 |
| 71695C | Rear seat No. 1 protective cover | 71695-42050 |
| 71696 | Protective cover for rear seat No. 2 | 71696-42050 |
| 71788B | Front seat back panel fixing washer | 71788-42010 |
| 71812B | Clip (for rear seat cushion cover) | 90467-05161 |
| 71873 | Front right seat cushion lower guard panel | 71873-42030 |
| 71873A | Front seat cushion lower guard | 71873-30070 · 71873-42030 |
| 71874 | Front left seat cushion lower guard | 71874-42020 |
| 71874A | Front left seat cushion lower guard | 71874-30020 · 71874-42020 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-58060 |
| 71875E | Right backrest tilt adjuster inner cover | 71875-58060 · 71875-60140 |
| 71876B | Left backrest tilt adjuster inner cover | 71876-58060 |
| 71876E | Left backrest tilt adjuster inner cover | 71876-58060 · 71876-60140 |
| 71918A | Center seat cushion buckle spring | 71918-42010 · 71918-42030 |
| 71918B | No. 2 center seat cushion buckle spring | 71918-42010 · 71918-42030 |
| 72053C | Right seat backrest inclination rocker sub-assembly | 72053-42020 |
| 72054A | Left seat backrest tilt remote control lever sub-assembly | 72054-42020 |
| 72110A | Front right seat outer slide rail assembly | 72110-42030 |
| 72120 | Front left seat outer slide rail assembly | 72120-42040 |
| 72125A | Rear seat upper slide rail cover | 72125-13040 |
| 72130A | Front right seat inner slide rail assembly | 72130-42030 |
| 72140A | Front left seat inner slide rail assembly | 72140-42040 |
| 72307 | Right inclination control link sub-assembly | 72307-42010 · 72307-42011 |
| 72380 | No. 2 seat adjuster control cable assembly | 72380-42010 · 72380-42020 · 72380-42030 · 72380-42040 |
| 72478 | height adjuster bushing | 72478-60010 |
| 72597A | Right seat backrest tilt rocker frame | 72597-42010 |
| 72598 | Left seat backrest tilt rocker frame | 72597-42010 |
| 72620B | Rear No. 1 seat lock cable assembly | 72620-42020 |
| 72620C | Rear No. 1 seat lock cable assembly | 72620-42040 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-42080 · 72730-42090 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-42080 · 72740-42090 |
| 72749 | Rear seat backrest tilt cushion | 72749-48010 |
| 72760D | Left lumbar support adjuster assembly | 72760-33060 |
| 72809A | Center armrest lock sub-assembly | 72809-42010 |
| 72905 | Third row seat right side link sub-assembly | 72905-42010 |
| 72906 | Third row seat left link sub-assembly | 72906-42010 |
| 73910A | Front right seat airbag assembly | 73910-42030 · 73910-42031 |
| 73920A | Front left seat airbag assembly | 73920-42030 · 73920-42031 |
| 76519A | Rear seat cushion cover clip | 76519-42010 |
| 78890 | Auxiliary seat lock control cable assembly | 78890-42010 · 78890-42020 · 78890-42030 |
| 78890A | Auxiliary seat lock control cable assembly | 78890-42040 |
| 78890B | Auxiliary seat lock control cable assembly | 78890-42050 |
| 79201B | Right No. 2 seat cushion frame sub-assembly | 79360-42010 |
| 79202 | Left No. 2 seat cushion frame sub-assembly | 79370-42010 |
| 79203A | Right No. 2 seat back frame sub-assembly | 79203-42010 |
| 79204A | Left No. 2 seat back frame sub-assembly | 79204-42010 |
| 79235D | Right seat No. 2 seat cushion cushion | 79335-42010 · 79335-42020 |
| 79245C | Left side seat 2 seat cushion | 79345-42010 · 79345-42020 |
| 79275C | Right seat back cushion 2 | 79375-42010 |
| 79285 | Left side seat back cushion 2 | 79385-42010 |
| 79997 | No. 1 seat leg box protection device | 79997-42030 |
| 79998 | No. 2 seat leg box protection device | 79998-42010 |
| 85820Y | Electric seat motor assembly | 85820-60130 |
| 85822 | Left electric seat sliding motor assembly | 85801-42020 |
| 85822A | Left electric seat tilt adjustment motor assembly | 85801-60020 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-60040 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-60030 |
| 87510K | Front right seat cushion heater assembly | 87510-42160 |
| 87510L | Front left seat cushion heater assembly | 87510-42160 |
| 87510M | Front right seat back heater assembly | 87510-42120 |
| 87510N | Front left seat back heater assembly | 87510-42120 |
