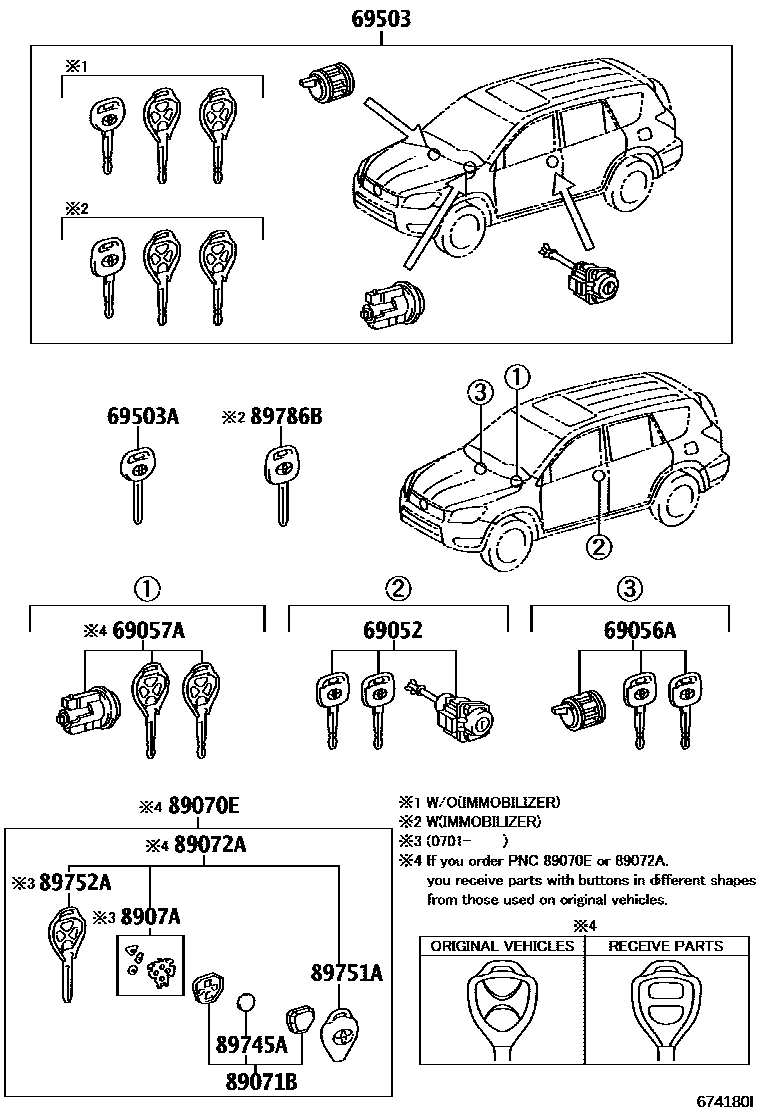

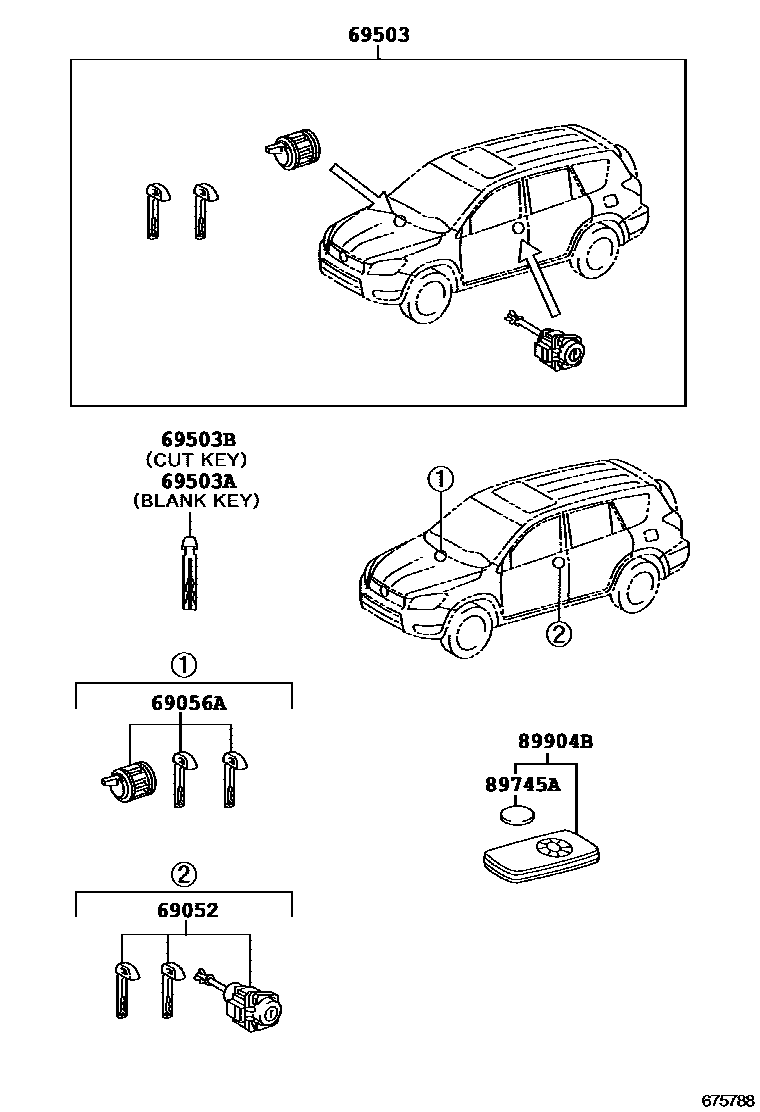

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-42140 · 69052-42160 |
| 69056A | Glove box lock cylinder and key assembly | 69056-33200 · 69056-42100 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-35240 · 69057-42200 · 69057-42201 · 69057-42220 · 69057-42221 |
| 69503 | Door lock cylinder components | 69005-42430 · 69005-42431 · 69005-42440 · 69005-42441 · 69005-42442 · 69005-42550 |
| 69503A | external tooth key | 69515-52120 · 90999-00200 |
| 69503B | internal tooth key | 69515-52110 |
| 89070E | Remote key assembly | 89070-42540 · 89070-42550 · 89070-42660 · 89070-42670 · 89070-42750 · 89070-42770 |
| 89071B | Remote key sub-assembly module assembly | 89071-12110 · 89071-42070 · 89071-42090 |
| 89072A | Remote key shell assembly | 89072-35060 · 89072-42240 · 89072-42250 · 89072-42290 |
| 8907A | Transmitter switch assembly | 8907A-12010 |
| 89745A | Transmitter battery | 89745-48030 · 89745-52020 · 89745-52030 |
| 89751A | Transmitter housing cover | 89751-33070 · 89751-33180 · 89751-35060 · 89751-42020 |
| 89752A | transmitter housing | 89752-68060 · 89752-71070 · 89752-71071 · 89752-71080 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-42100 · 89904-42101 · 89904-42140 · 89904-48100 |
