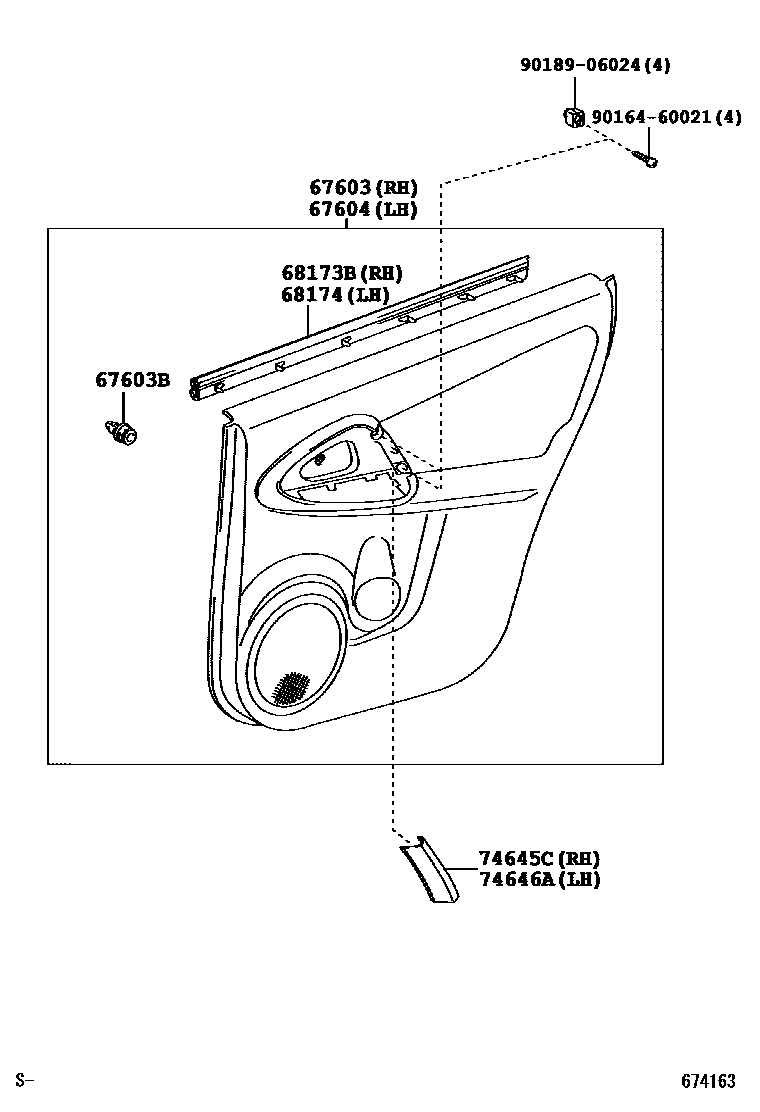

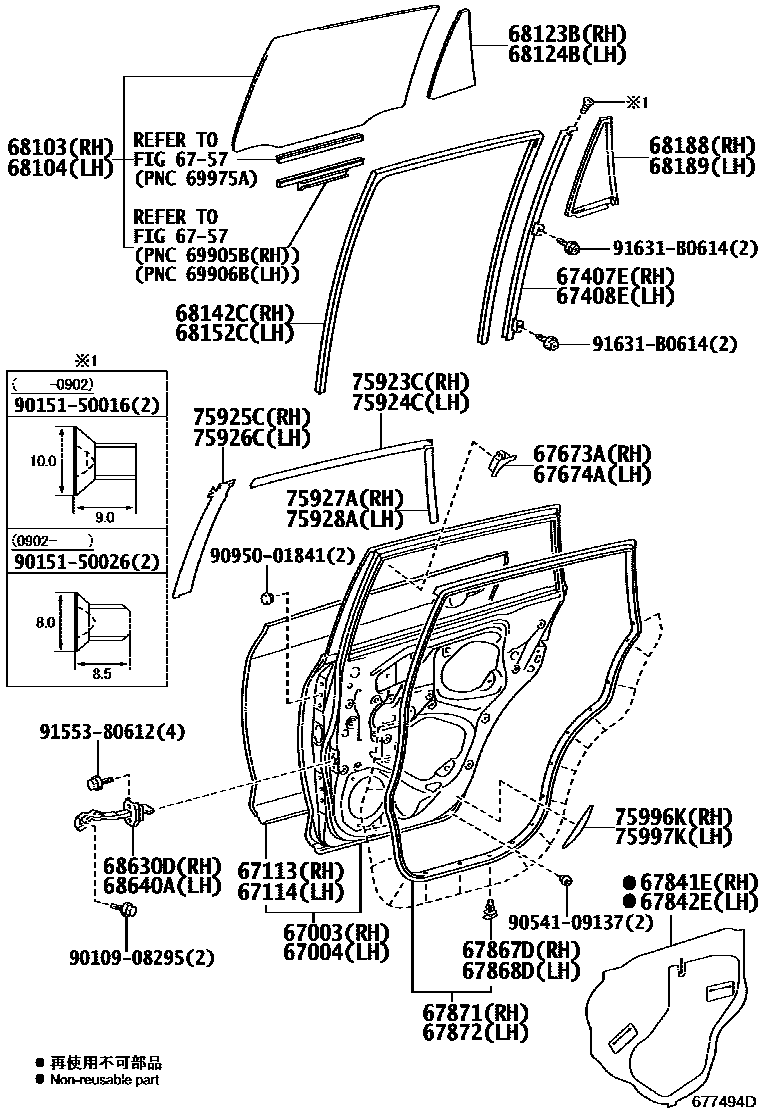

Toyota RAV4 后门板和后门玻璃 — Figure 6755
Toyota RAV4 EPC diagram 6755, 后门板和后门玻璃, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-42080 · 67003-42081 · 67003-42090 · 67003-42091 · 67003-42100 · 67003-42101 · 67003-42110 · 67003-42111 |
| 67004 | Left rear door panel sub-assembly | 67004-42080 · 67004-42081 · 67004-42090 · 67004-42091 · 67004-42100 · 67004-42101 · 67004-42110 · 67004-42111 |
| 67113 | Right rear door outer panel | 67113-42050 · 67113-42060 |
| 67114 | Left rear door outer panel | 67114-42050 · 67114-42060 |
| 67407E | Right rear door window divider sub-assembly | 67407-42030 |
| 67408E | Left rear door window divider sub-assembly | 67408-42030 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 · 90467-09238 |
| 67673A | Right rear door frame decorative strip | 67673-48010 |
| 67674A | Left rear door frame decorative strip | 67674-48010 |
| 67841E | Right rear door access hole cover | 67841-42040 |
| 67842E | Left rear door access hole cover | 67842-42020 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-42030 · 67871-42050 |
| 67872 | Left rear door sealing strip | 67872-42030 · 67872-42050 |
| 68103 | Right rear door glass sub-assembly | 68103-42100 · 68103-42110 |
| 68104 | Left rear door glass sub-assembly | 68104-42100 · 68104-42110 |
| 68123B | Right rear door corner window glass | 68123-42090 · 68123-42100 |
| 68124B | Left rear door corner window glass | 68124-42100 · 68124-42110 |
| 68142C | Right rear door glass lift slot | 68142-42030 |
| 68152C | Left rear door glass lift slot | 68152-42030 |
| 68173B | Right rear door glass inner sealing strip | 68173-42030 |
| 68174 | Left rear door glass inner sealing strip | 68174-42020 |
| 68188 | Right rear door corner window seal | 68188-42030 |
| 68189 | Left rear door corner window seal | 68189-42030 |
| 68630D | Right rear door opening limiter assembly | 68630-42030 |
| 68640A | Left rear door opening limiter assembly | 68640-42030 |
| 75923C | No. 2 right side light-shielding film | 75987-42020 |
| 75924C | No. 2 left shading film | 75988-42020 |
| 75925C | No. 3 right side light-blocking film | 75925-42020 |
| 75926C | No. 3 left shading film | 75926-42020 |
| 75927A | No. 4 right side light-blocking film | 75977-42020 |
| 75928A | Blackout film on left side | 75978-42020 |
| 75996K | Right rear body trim | 75996-42090 |
| 75997K | Left rear body trim | 75997-42090 |
