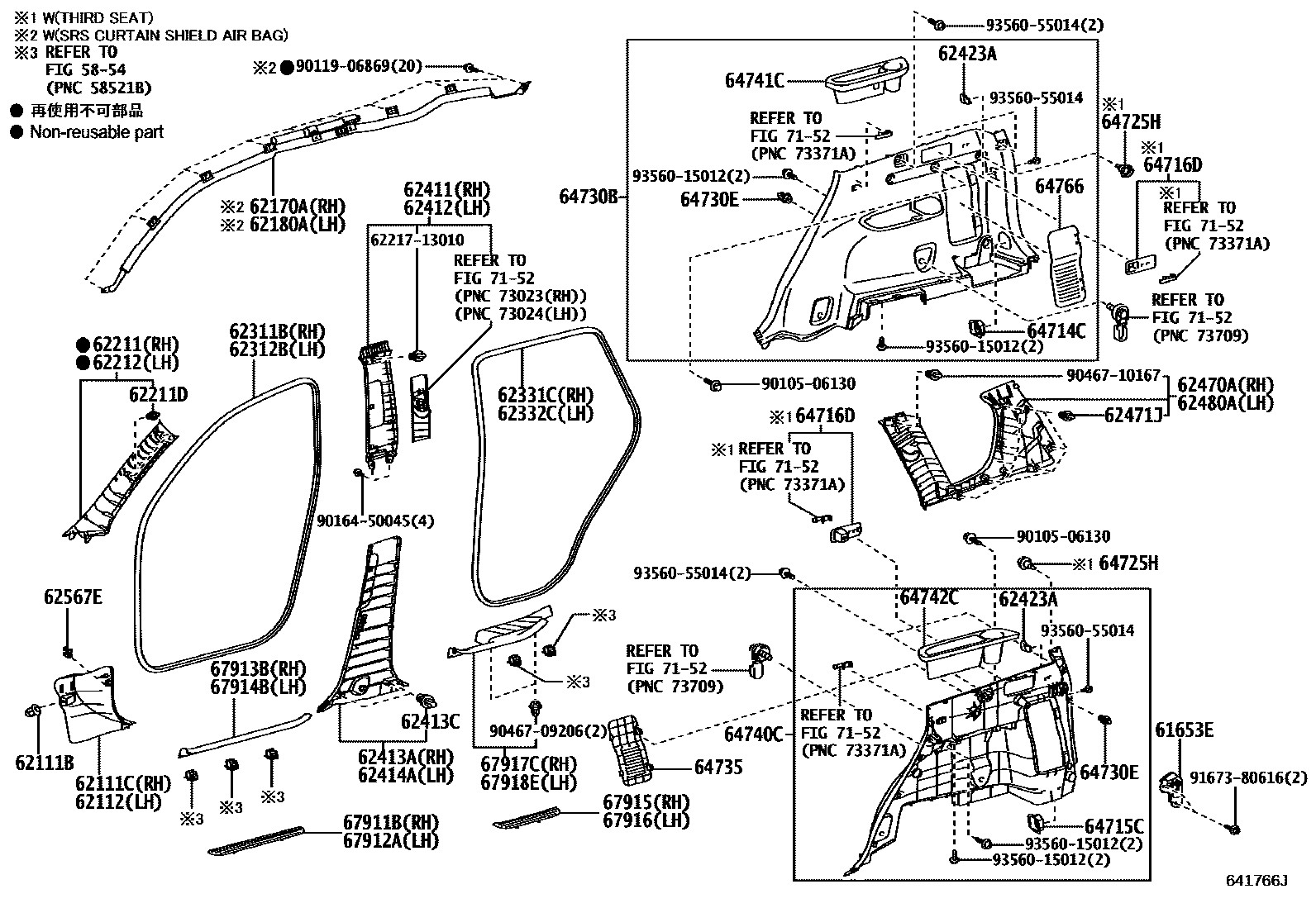

Toyota RAV4 车内装饰板 — Figure 6451
Toyota RAV4 EPC diagram 6451, 车内装饰板, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61653E | Bottom panel side trim bracket | 61653-42040 |
| 62111B | Clip (for cowl side trim panel) | 90467-06155 |
| 62170A | Right curtain air bag assembly | 62170-42050 |
| 62180A | Left curtain air bag assembly | 62180-42040 |
| 62211D | Clip (for body front pillar decorative panel) | 62217-20010 · 62217-42030 · 90467-10161 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62423A | Side window decorative hook | 62423-42010 |
| 62471J | Clips (for roof side trim panels) | 90467-10161 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-21010 |
| 64730E | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64741C | Decorative box on the right side of the floor | 64741-42010 |
| 64742C | Decorative box on the left side of the floor | 64742-42010 |
