Toyota RAV4 天窗板和背板 — Figure 6153
Toyota RAV4 EPC diagram 6153, 天窗板和背板, with 3 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-42901 · 63102-42902 |
| 63105A | Back door opening frame sub-assembly | 63105-42030 · 63105-42031 |

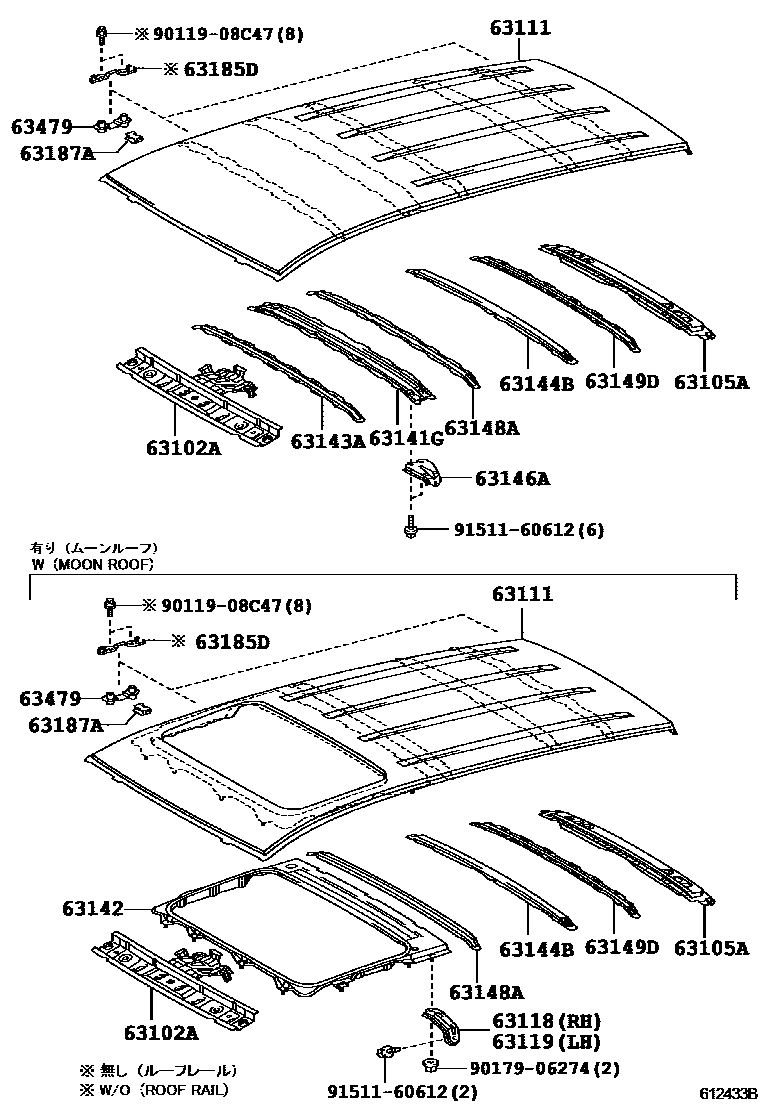

| 63111 | roof panel | 63111-42150 · 63111-42160 · 63111-42170 · 63111-42180 |
| 63118 | Right roof panel bracket | 63118-42060 |
| 63119 | Left roof panel bracket | 63118-42060 |
| 63141G | No. 1 roof panel reinforcement | 63141-42080 |
| 63142 | No. 2 roof panel reinforcement | 63142-42901 |
| 63143A | Roof panel reinforcement | 63143-42050 |
| 63144B | No. 4 roof panel reinforcement | 63144-42030 |
| 63146A | No. 1 roof panel reinforcement bracket | 63146-42010 |
| 63148A | No. 7 roof panel reinforcement | 63148-42030 · 63148-42040 |
| 63149D | No. 8 roof panel reinforcement | 63149-42060 |
| 63185D | Front roof rack bracket | 63185-42020 |
| 63187A | Rear roof rack bracket | 63187-42010 |

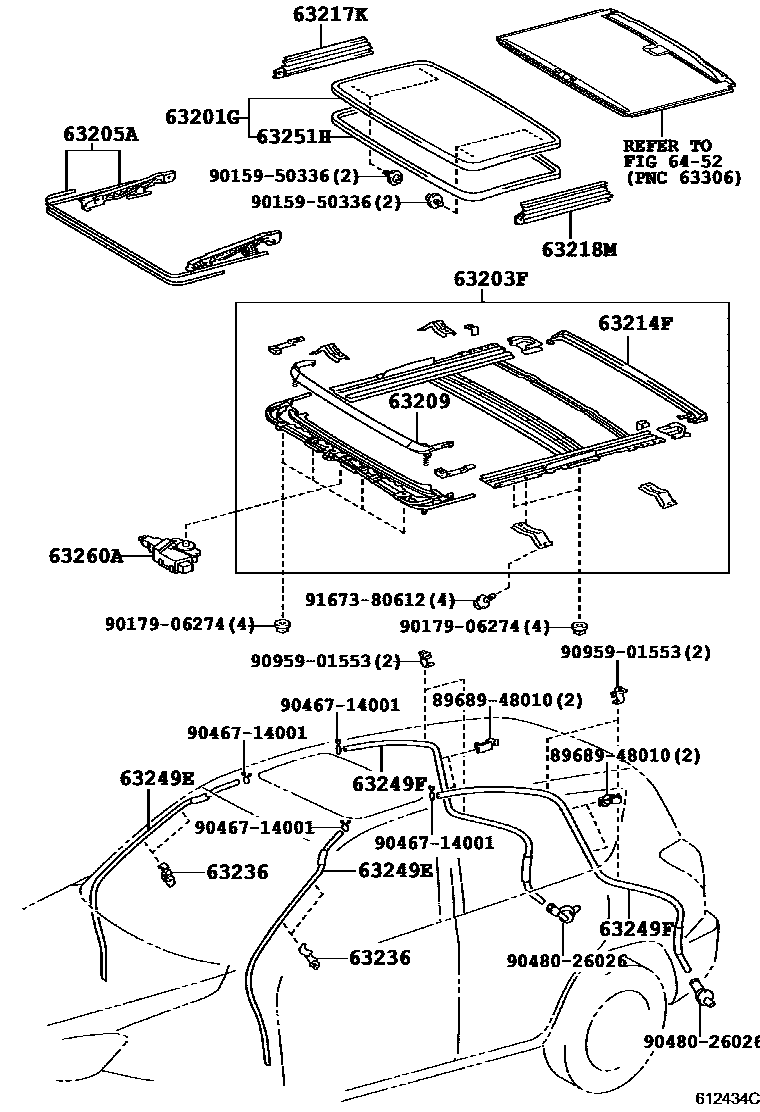

| 63201G | Sliding sunroof glass sub-assembly | 63201-42090 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-42060 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-48010 |
| 63209 | Roof deflector sub-assembly | 63209-42060 |
| 63214F | Roof rear drain channel | 63214-42030 · 63214-48010 |
| 63217K | Right sliding sunroof trim | 63217-48030 |
| 63218M | Sliding sunroof trim, left | 63218-48030 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-30010 |
| 63249E | Sliding skylight drain hose | 63249-42120 |
| 63249F | Sliding skylight drain hose | 63249-42140 |
| 63251H | Sliding skylight seal | 63251-48050 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-42090 |
| 63409A | Center roof rack bracket sub-assembly | 63409-42020 |
| 63437A | Roof rack No. 2 seal | 63437-42010 |

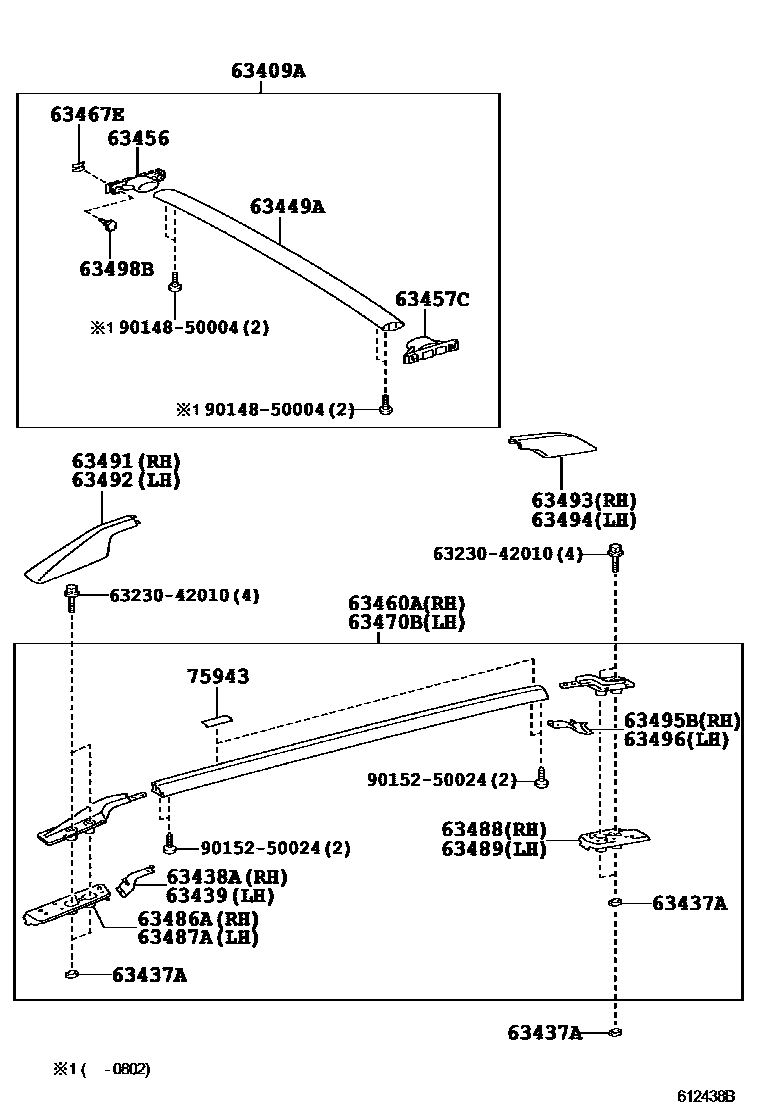

| 63449A | Front roof rack stays | 63449-42020 |
| 63456 | Roof rack brace connector | 63456-42011 |
| 63457C | No. 2 roof rack stay joint | 63457-42011 |
| 63467E | Rear roof rack panel | 63467-42011 |
| 63479 | Roof rack fixings | 63479-42010 |
| 63486A | Right front roof rack support foot cushion | 63486-42030 |
| 63487A | Left front roof rack support foot cushion | 63487-42030 |
| 63488 | Right rear roof rack foot cushion pad | 63488-42020 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-42020 |
| 63496 | Left center roof rack foot cover | 63496-42010 |
| 63498B | roof rack cover | 63498-42030 |
| 75943 | roof molding | 75943-35020 |
