Toyota RAV4 侧梁 — Figure 6151

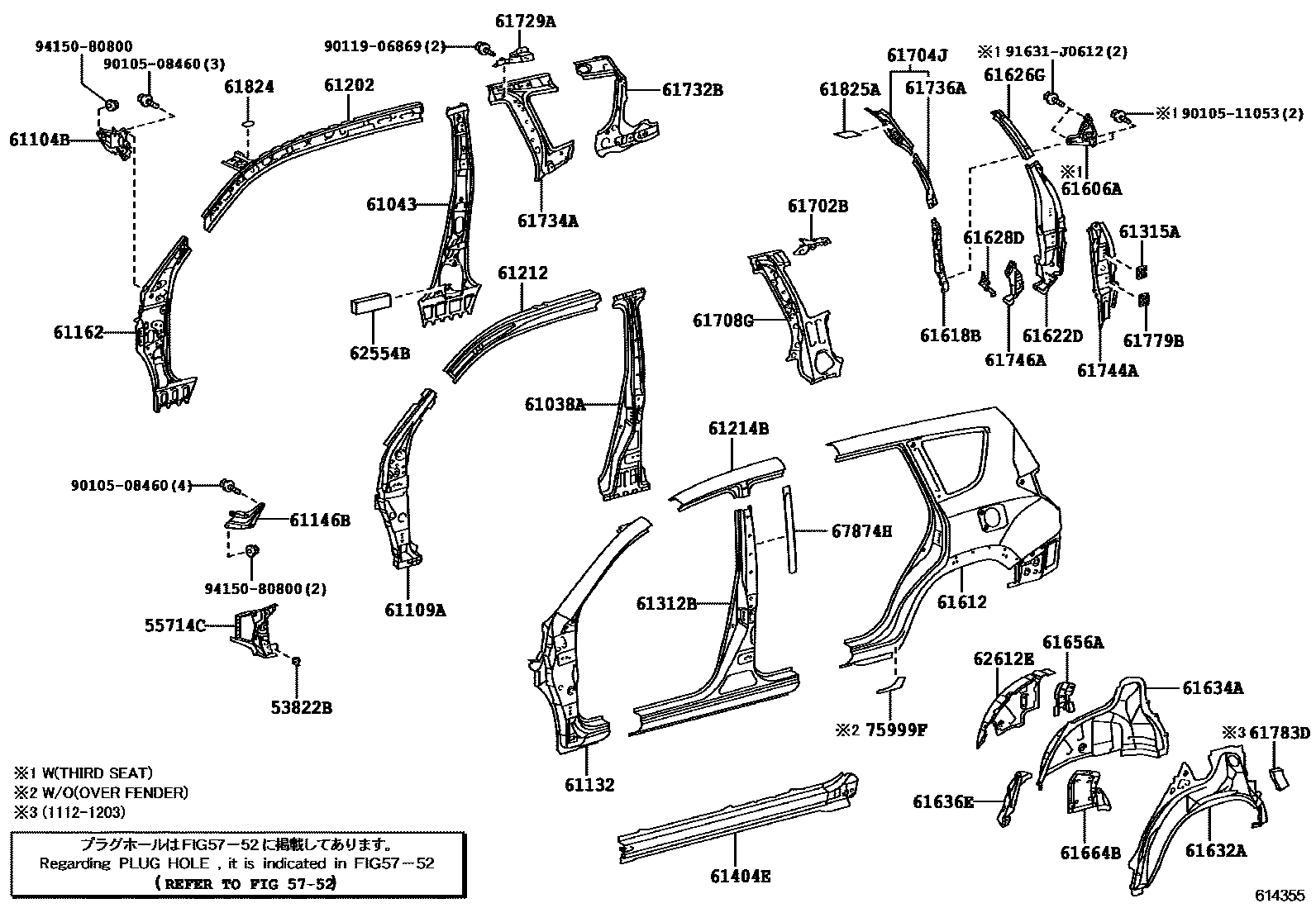

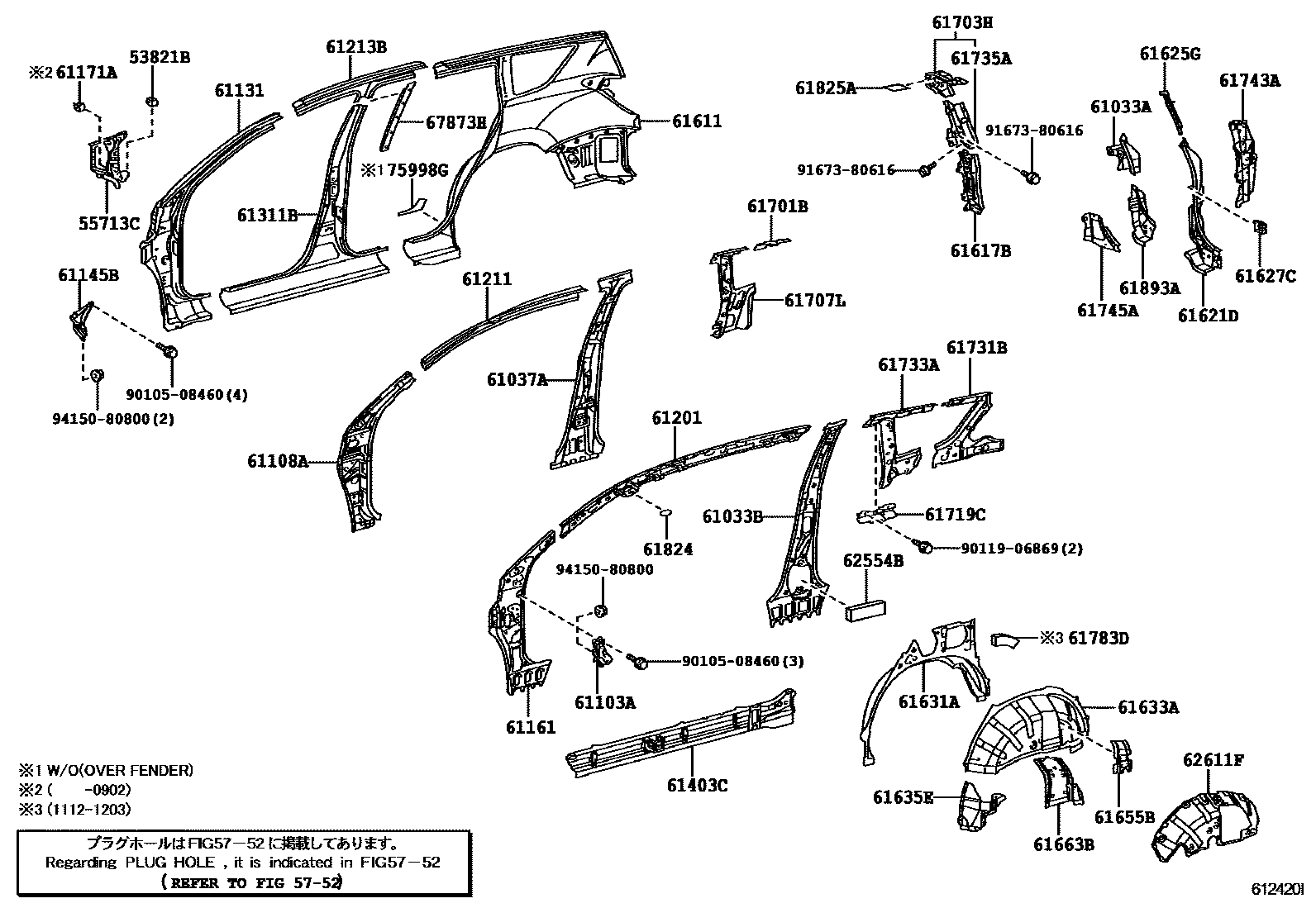

Toyota RAV4 EPC diagram 6151, 侧梁, with 2 images and 82 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-16010 |
| 53822B | Left front fender rear support | 53821-16010 |
| 55713C | Right front wall upper side panel | 55713-42050 |
| 55714C | Left front wall upper side panel | 55714-42040 |
| 61033A | Rear door opening side reinforcement sub-assembly | 61033-42020 · 61033-42021 |
| 61033B | No. 2 right inner column sub-assembly | 61033-42010 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-42901 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-33901 |
| 61043 | No. 2 left inner column sub-assembly | 61043-42010 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-42020 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-42020 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-42903 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-42903 |
| 61131 | Right body outer front upper pillar | 61131-42200 · 61131-42201 |
| 61132 | Left body outer front upper pillar | 61132-42170 · 61132-42171 |
| 61145B | Right body front pillar lower corner panel | 61145-42020 |
| 61146B | Left body front pillar lower corner panel | 61146-42020 |
| 61161 | Right upper body inner front pillar | 61023-42110 · 61023-42111 · 61023-42112 |
| 61162 | Left side inner front upper pillar | 61024-42110 · 61024-42111 |
| 61171A | Antenna mounting bracket | 61171-42020 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-42030 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-42030 |
| 61211 | Roof right outer longitudinal beam | 61211-42060 |
| 61212 | Roof left outer longitudinal beam | 61212-42060 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-42010 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-42010 |
| 61311B | Right body outer center pillar | 61311-42020 |
| 61312B | Left body outer center pillar | 61312-42020 |
| 61315A | door latch fixing parts | 61315-48010 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-42030 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-42031 |
| 61606A | Left side enclosure reinforcement sub-assembly | 61606-42120 |
| 61611 | Right side hoarding | 61601-42020 · 61601-42030 · 61601-42040 · 61601-42070 |
| 61612 | left side panel | 61602-42020 · 61602-42030 · 61602-42040 · 61602-42070 |
| 61617B | Inner lower panel of right side enclosure | 61617-42020 |
| 61618B | Inner lower panel of left side enclosure | 61618-42030 |
| 61621D | Back door right opening slot | 61621-42040 · 61621-42041 |
| 61622D | Rear door left opening slot | 61622-42040 |
| 61625G | Right rear side panel extension | 61625-42040 |
| 61626G | Left rear side panel extension | 61626-42040 |
| 61627C | Right side enclosure inner panel reinforcement | 61627-42040 |
| 61628D | Left rear side panel lower extension | 61628-42050 |
| 61631A | Right wheel cover outer panel | 61631-42060 |
| 61632A | Left side wheel cover outer panel | 61632-42070 |
| 61633A | Right wheel housing lining panel | 61633-42060 · 61633-42061 |
| 61634A | Left side wheel housing lining panel | 61634-42060 · 61634-42061 |
| 61635E | Right wheel housing extension | 61065-42010 · 61065-42011 |
| 61636E | Left side wheel housing extension | 61066-42010 |
| 61655B | Right side wheel cover inner corner panel | 61655-42030 |
| 61656A | Left side wheel housing inner corner panel | 61656-42010 · 61656-42020 |
| 61663B | Center reinforcement on the inner side of the right wheel cover | 61067-42010 |
| 61664B | Center reinforcement on the inner side of the left wheel housing | 61068-42010 · 61068-42021 |
| 61701B | Roof right inner upper panel sub-assembly | 61701-42010 |
| 61702B | Roof left inner upper panel sub-assembly | 61702-42010 |
| 61703H | Roof inner right reinforcement sub-assembly | 61703-42050 · 61703-42051 |
| 61704J | Roof inner left reinforcement sub-assembly | 61704-42050 · 61704-42051 |
| 61707L | Right front roof inner panel sub-assembly | 61707-42040 |
| 61708G | Left front roof inner panel sub-assembly | 61708-42060 |
| 61719C | Roof right side rail bracket | 61719-42020 |
| 61729A | Roof left side rail bracket | 61729-42030 |
| 61731B | Roof right inner panel | 61731-42110 |
| 61732B | Roof left inner panel | 61732-42110 |
| 61733A | Right front roof inner panel | 61733-42020 |
| 61734A | Left front roof inner panel | 61734-42020 |
| 61735A | Right rear roof inner panel | 61735-42060 |
| 61736A | Left rear roof inner panel | 61736-42050 |
| 61743A | Rear door opening right reinforcement | 61743-42020 |
| 61744A | Rear door opening left reinforcement | 61744-42020 |
| 61745A | Back door opening lower right reinforcement | 61745-42020 |
| 61746A | Rear door opening lower left reinforcement | 61746-42020 |
| 61779B | Rear door opening lower left panel | 61779-46010 |
| 61783D | No. 1 rear fender outer panel pad | 61783-42170 |
| 61824 | Noise Control Panel No. 1 | 61824-12050 |
| 61825A | Noise Control Panel No. 2 | 61825-42020 |
| 61893A | Back door lower hinge right fixing piece | 61893-42010 |
| 62554B | No. 4 column pad | 62554-42030 · 62554-52010 |
| 62611F | Right wheel cover vibration isolation pad | 62505-42020 |
| 62612E | Left side wheel cover vibration isolation pad | 62506-42020 |
| 67873H | Center door No. 1 upper seal | 67873-42010 |
| 67874H | Center door No. 2 upper seal | 67874-42010 |
| 75998G | Lower side panel on right side | 75998-42040 · 75998-42041 |
| 75999F | Lower side panel on left side | 75999-42040 · 75999-42041 |
