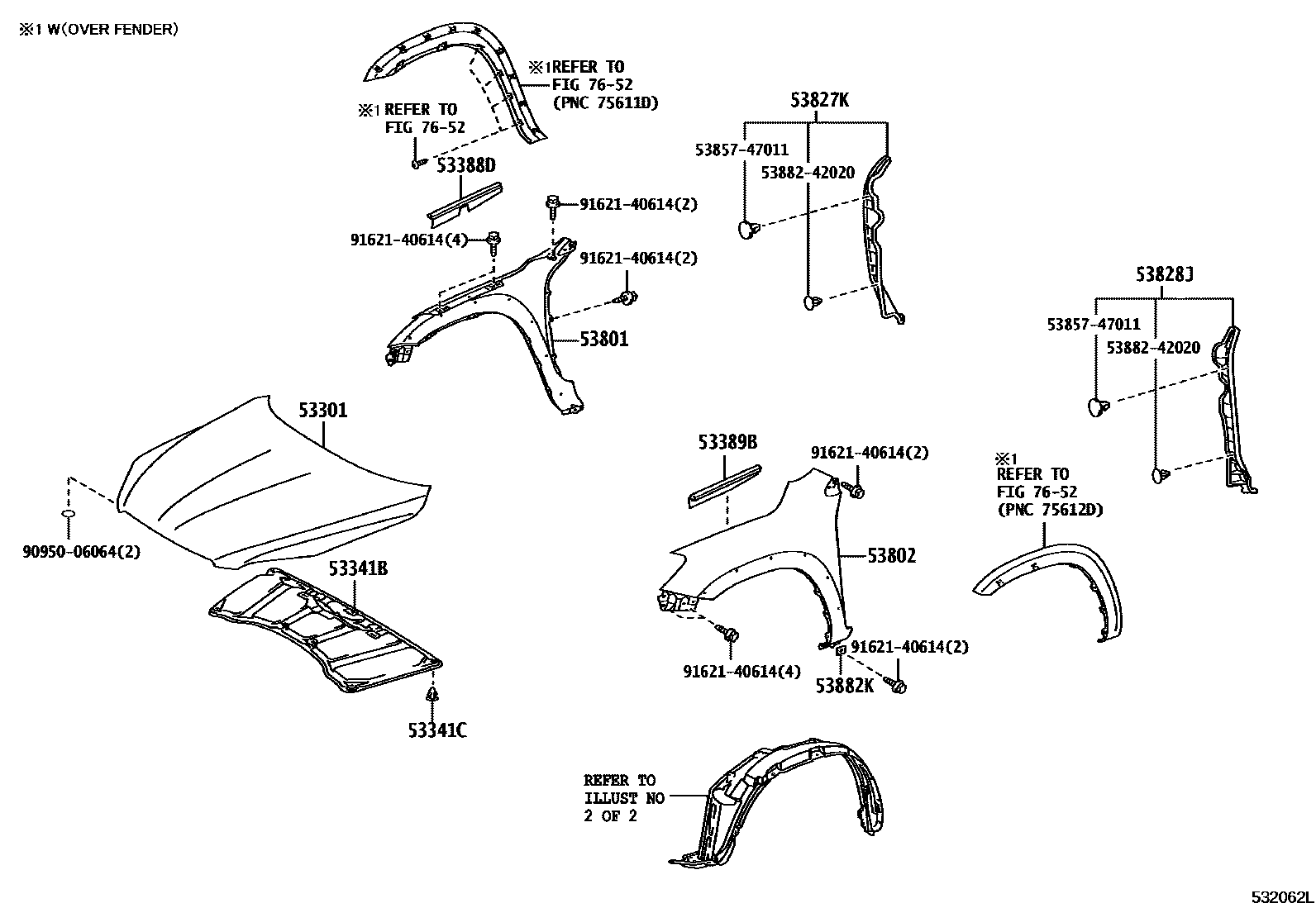

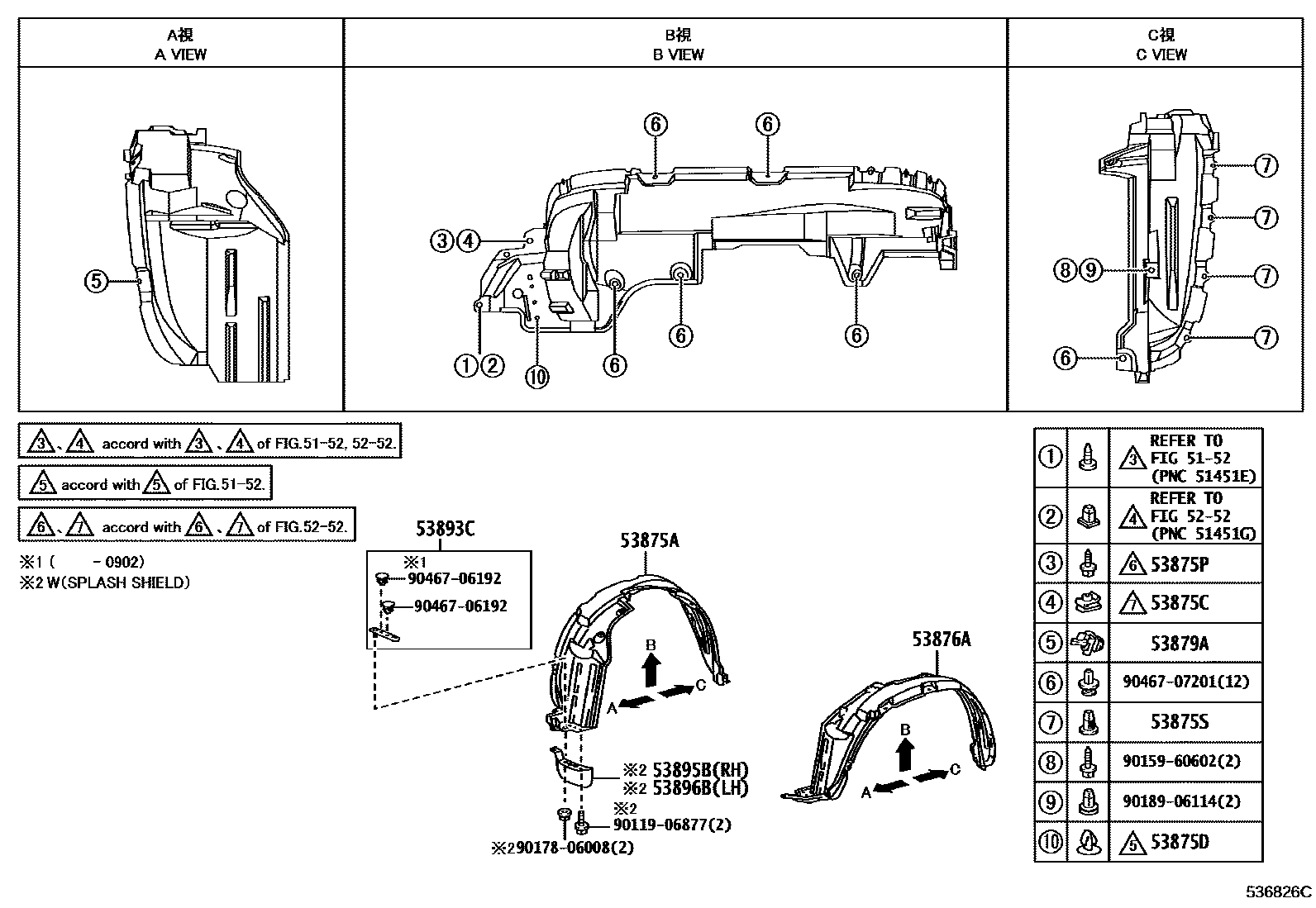

Toyota RAV4 发动机盖和前翼子板 — Figure 5353
Toyota RAV4 EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-42070 · 53301-42080 |
| 53341B | engine cover gasket | 53341-42070 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53388D | Engine cover to right front fender seal | 53388-42010 |
| 53389B | Engine cover to left front fender seal | 53389-42030 |
| 53801 | Right front fender sub-assembly | 53801-42130 · 53801-42140 · 53801-42150 · 53801-42160 · 53811-42290 · 53811-42300 |
| 53802 | Left front fender sub-assembly | 53802-42180 · 53802-42190 · 53812-42280 · 53812-42290 |
| 53827K | Right front fender side panel protector | 53827-42040 · 53827-42041 · 53827-42042 |
| 53828J | Left front fender side panel protector | 53828-42060 · 53828-42061 · 53828-42062 |
| 53875A | Right front fender lining | 53875-42060 · 53875-42061 · 53875-42062 · 53875-42063 · 53875-42064 · 53875-42070 · 53875-42071 · 53875-42072 · 53875-42073 · 53875-42074 |
| 53875C | Front fender lining clip | 90467-05114 |
| 53875P | VIS, NO.1 | 90159-60215 |
| 53875S | OEILLET, NO.1 | 90189-06065 |
| 53876A | Left front fender lining | 53876-42060 · 53876-42061 · 53876-42062 · 53876-42063 · 53876-42064 · 53876-42070 · 53876-42071 · 53876-42073 · 53876-42074 · 53876-42075 |
| 53879A | Front fender lining fixing parts | 53879-28010 |
| 53882K | front fender seal | 53882-16030 |
| 53893C | Front fender splash guard front fixings | 53893-42020 · 53893-42021 |
| 53895B | Right front fender front splash guard | 53895-42020 · 53895-42030 |
| 53896B | Left front fender front splash guard | 53896-42010 · 53896-42020 |
