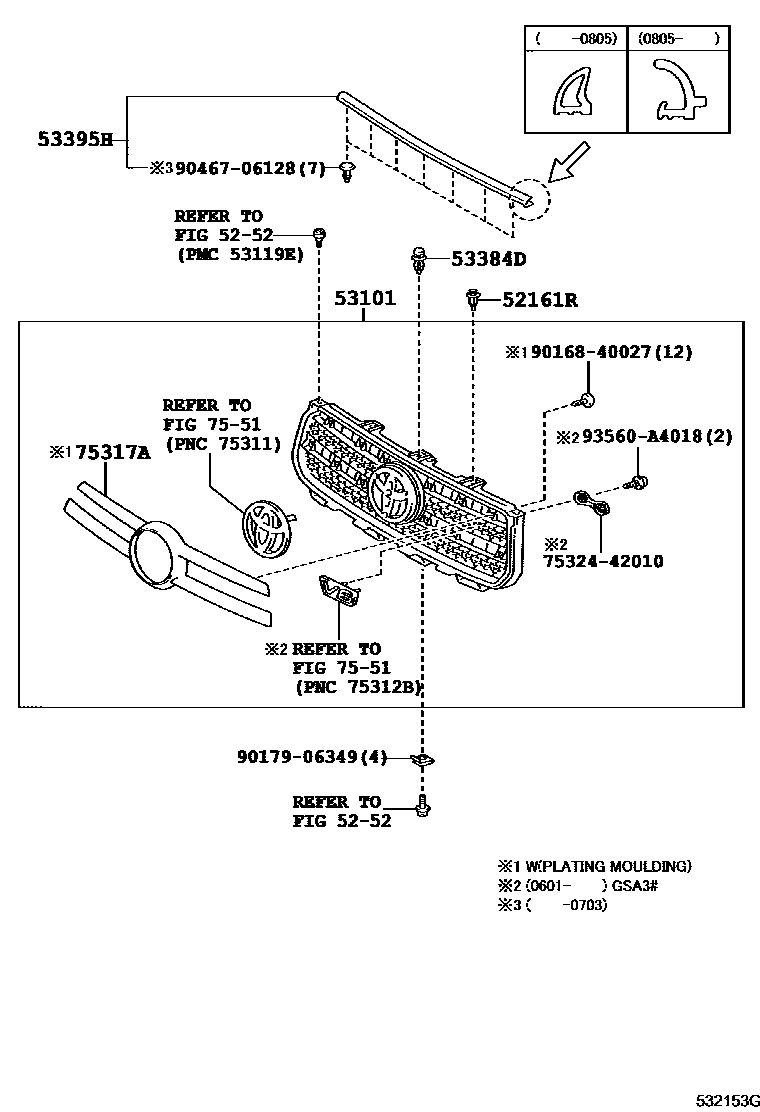

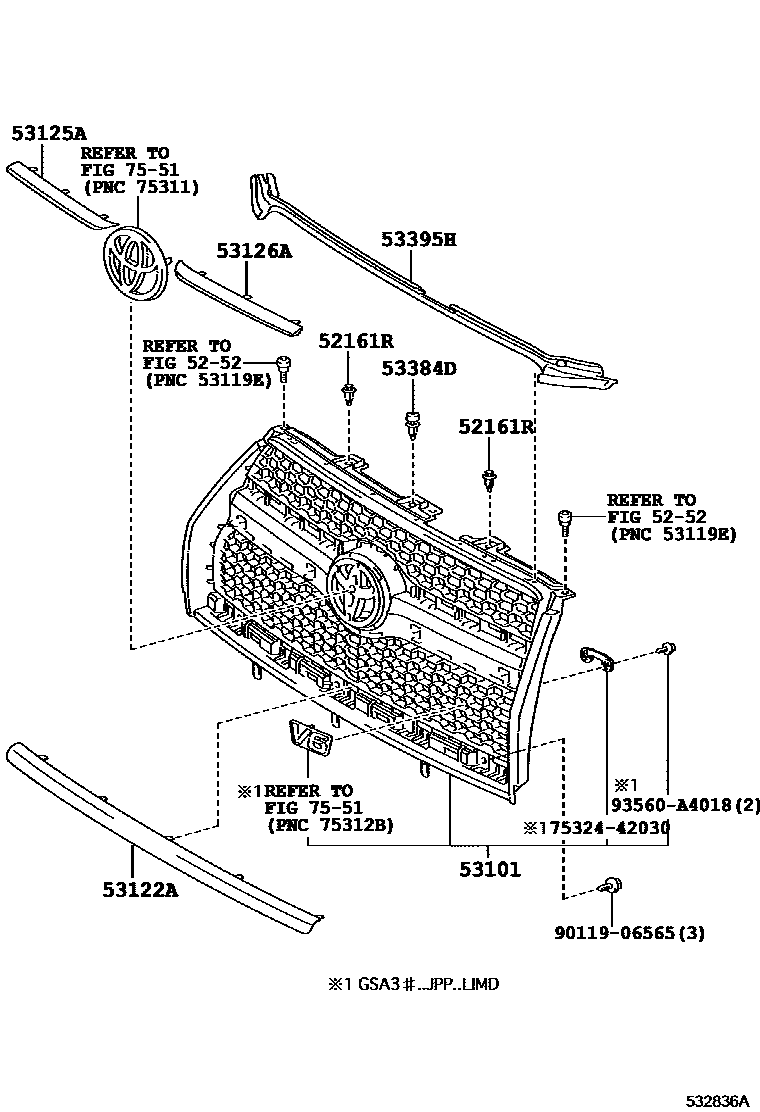

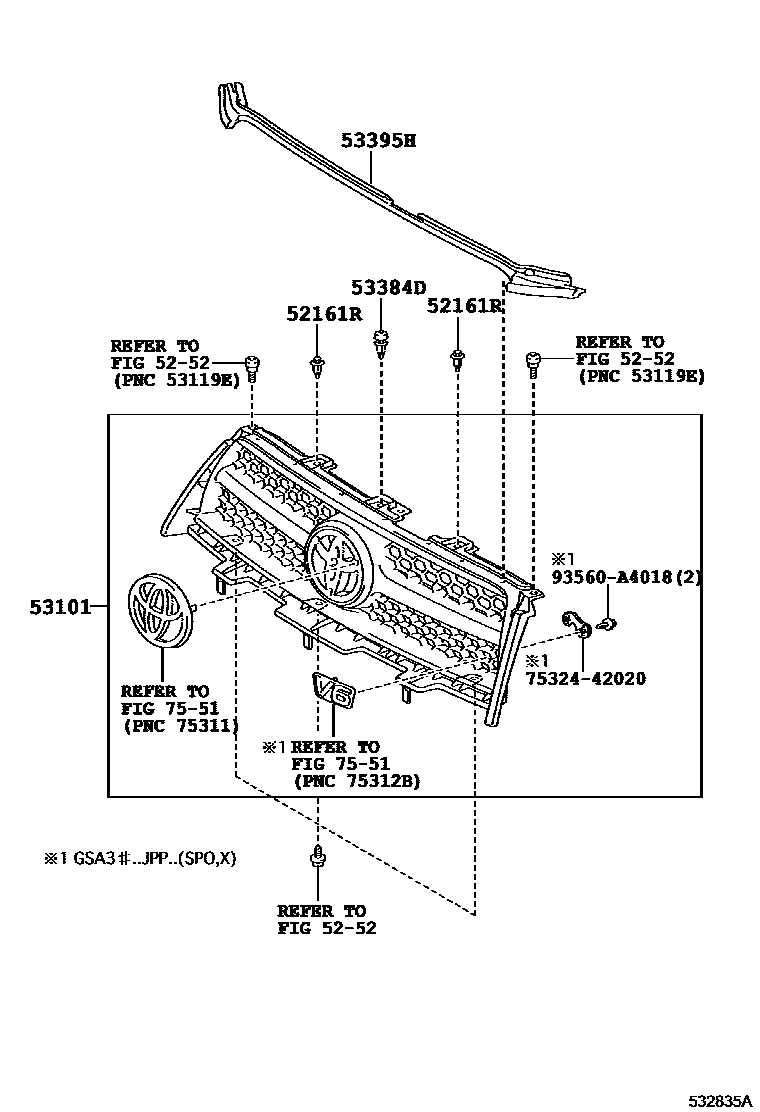

Toyota RAV4 radiator grille — Figure 5351
Toyota RAV4 EPC diagram 5351, radiator grille, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-16010 |
| 53101 | Radiator grille sub-assembly | 53101-42150 · 53101-42160 · 53101-42180 · 53101-42190 · 53101-42220 · 53101-42230 · 53101-42270 · 53101-42280 · 53101-42350 |
| 53122A | Radiator grille lower protective strip | 53122-42030 |
| 53125A | Radiator grille right center protective strip | 53125-42040 |
| 53126A | Radiator grille left middle protective strip | 53126-42030 |
| 53384D | Engine cover center cushion | 53384-68010 |
| 53395H | Engine cover to radiator grille seal | 53395-42030 · 53395-42031 · 53395-42032 · 53395-42050 · 53395-42051 |
| 75317A | Radiator grille decorative panel | 75317-42010 |
