Toyota RAV4 前保险杠及附件 — Figure 5252

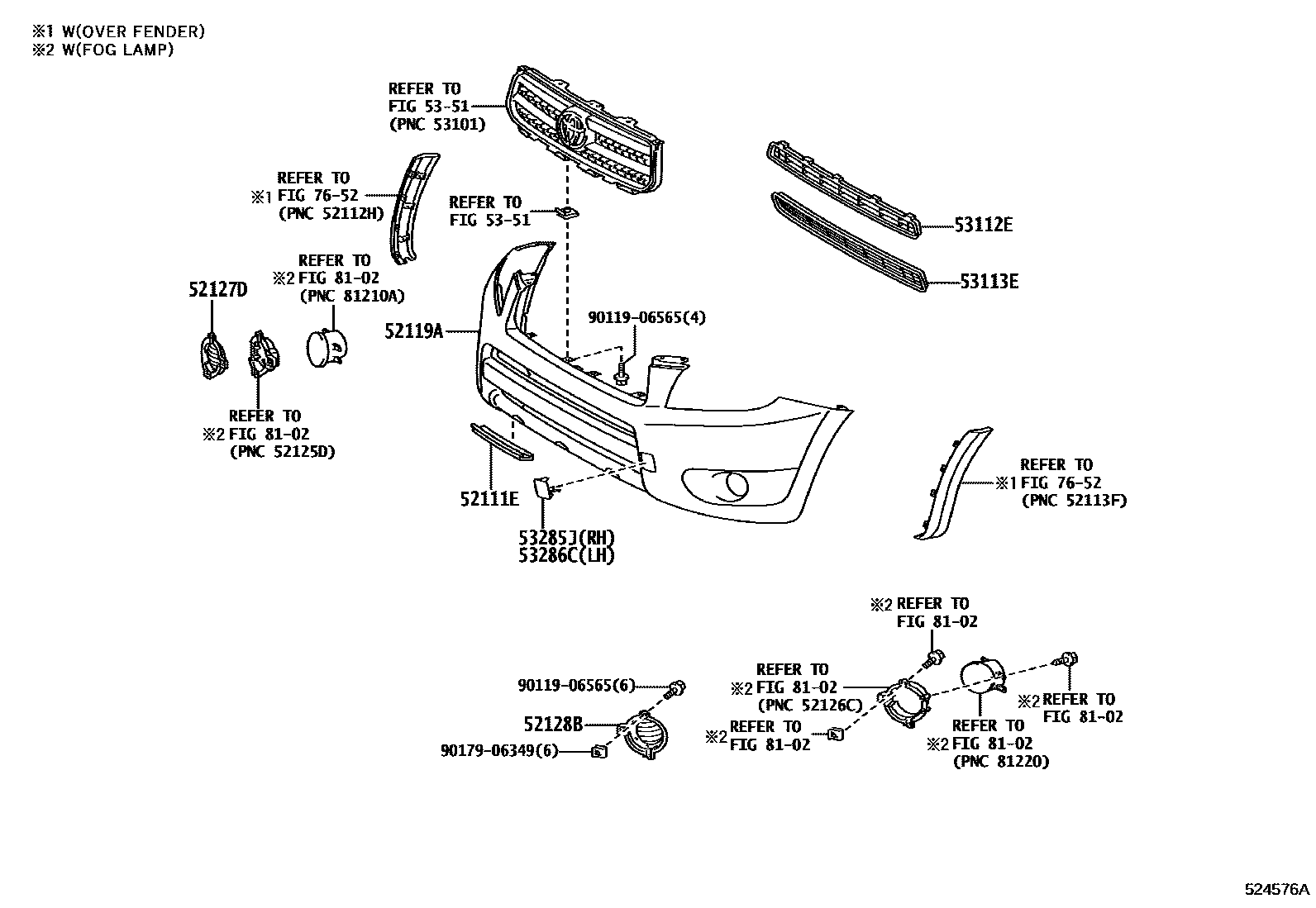

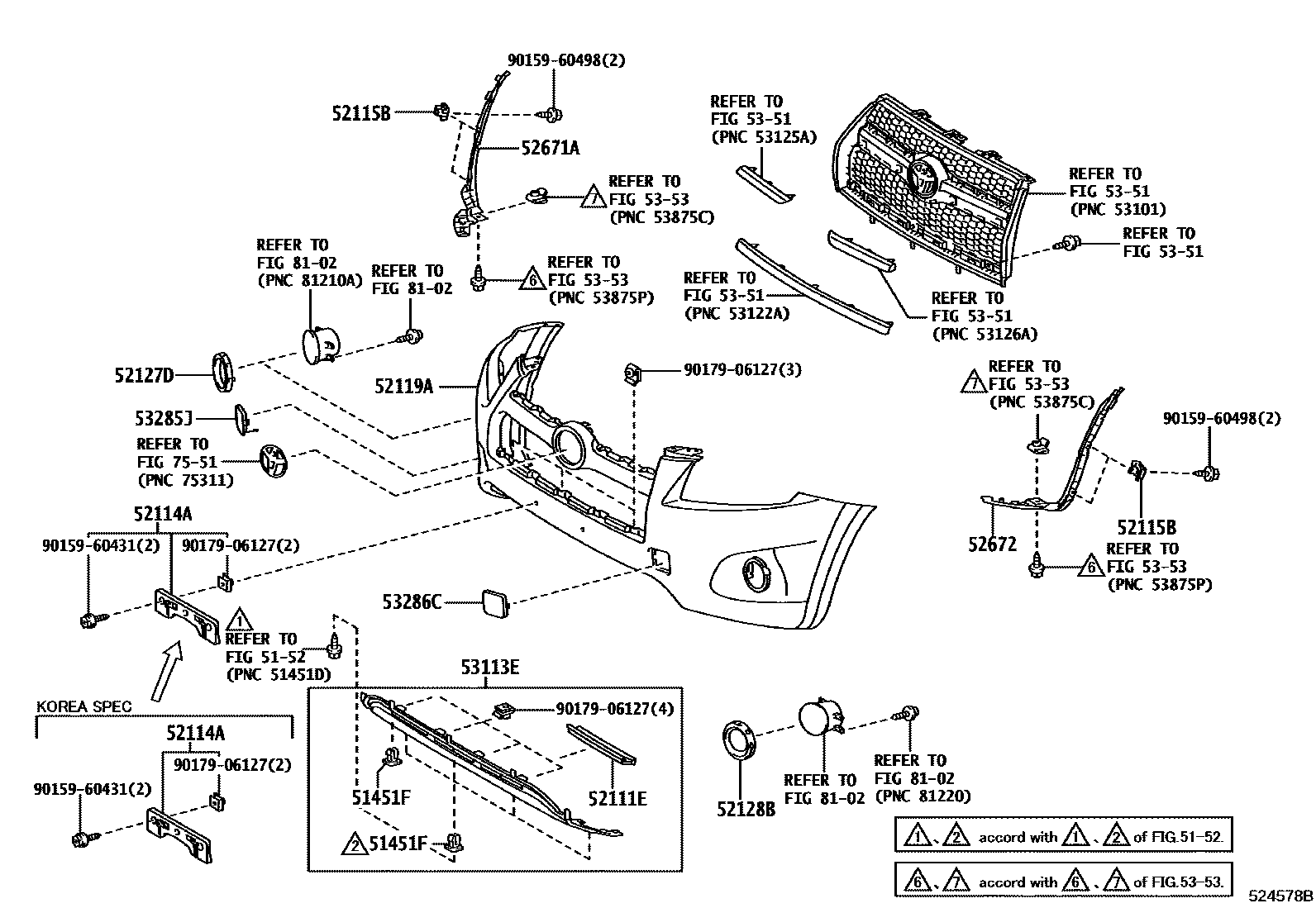

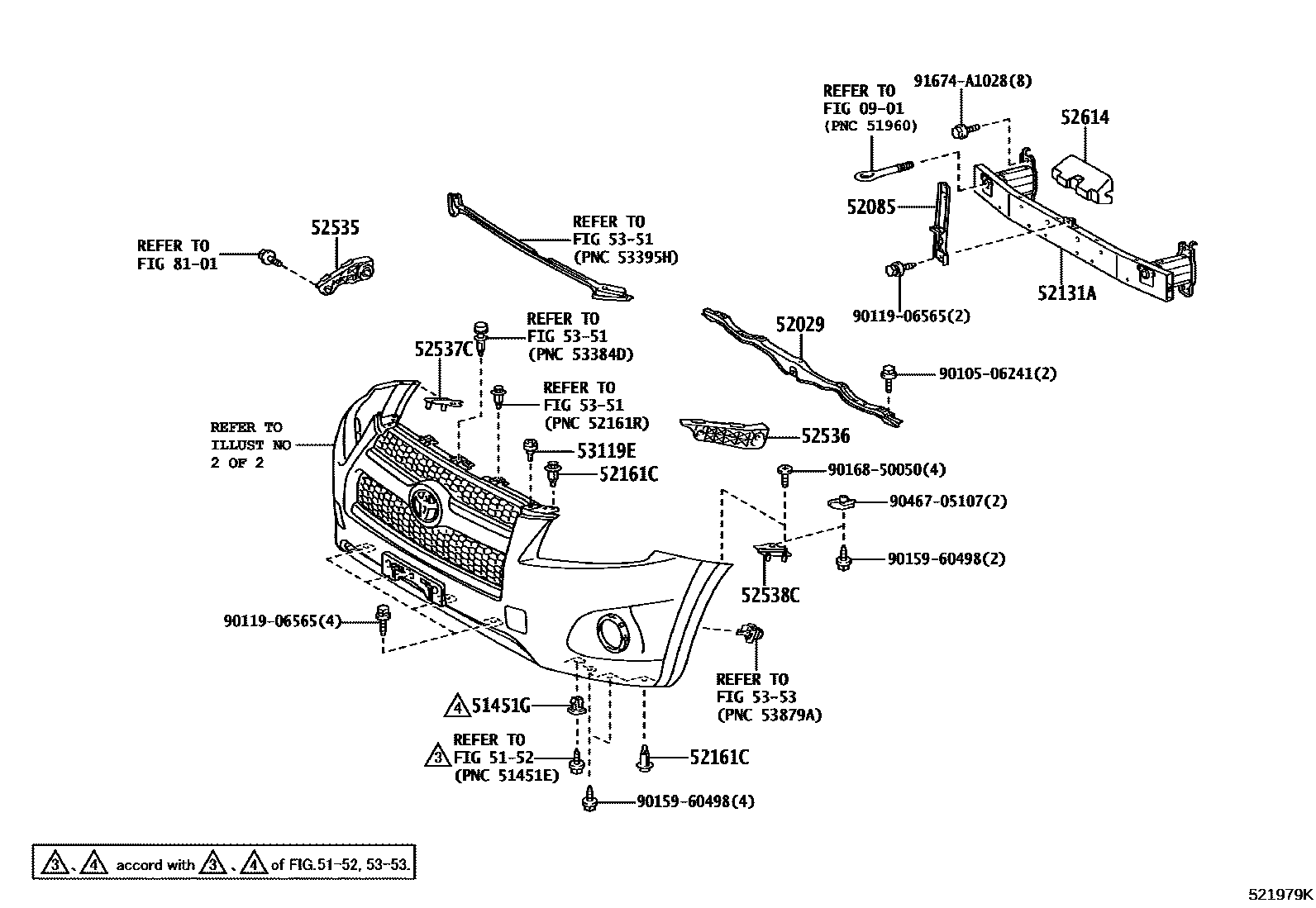

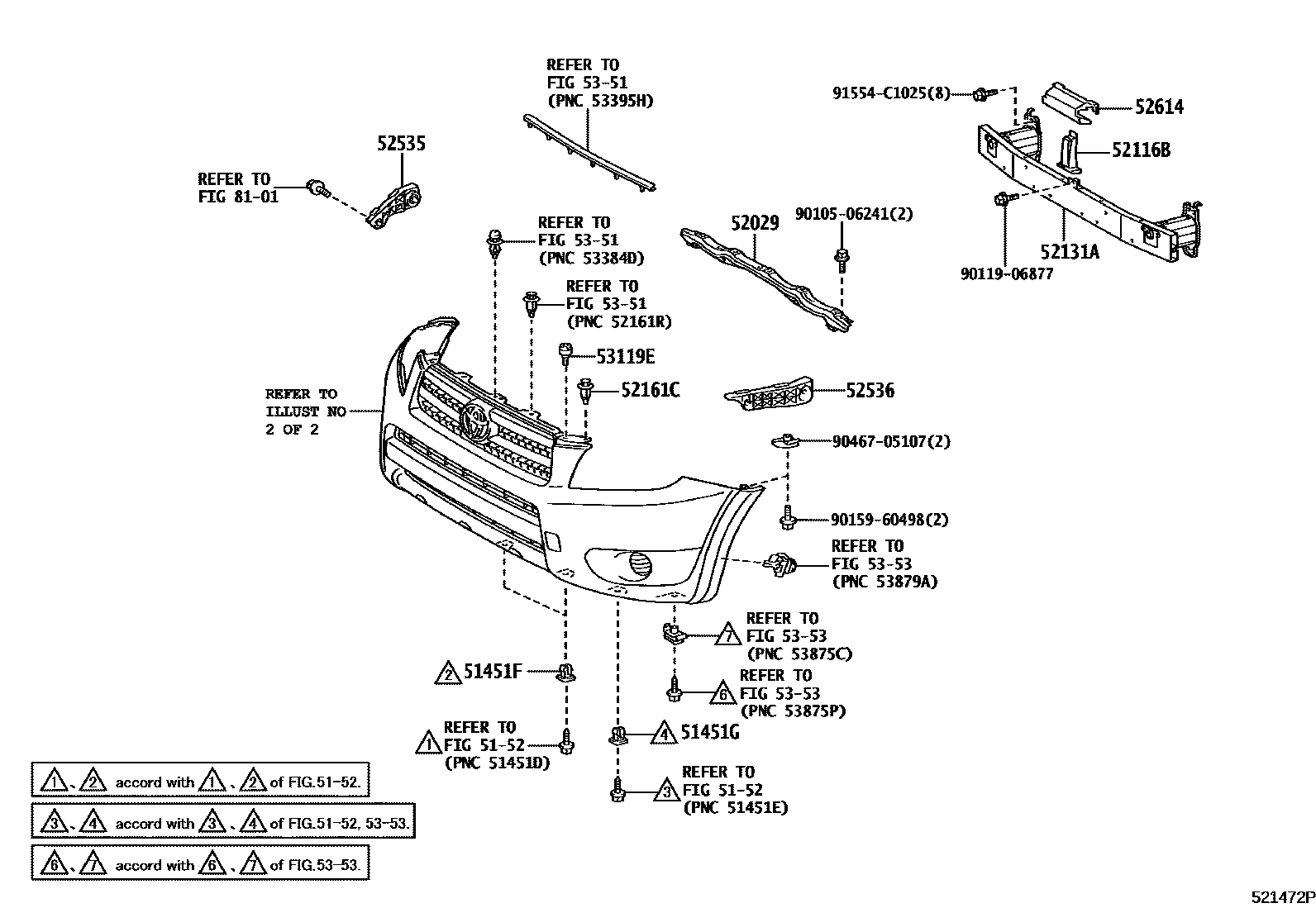

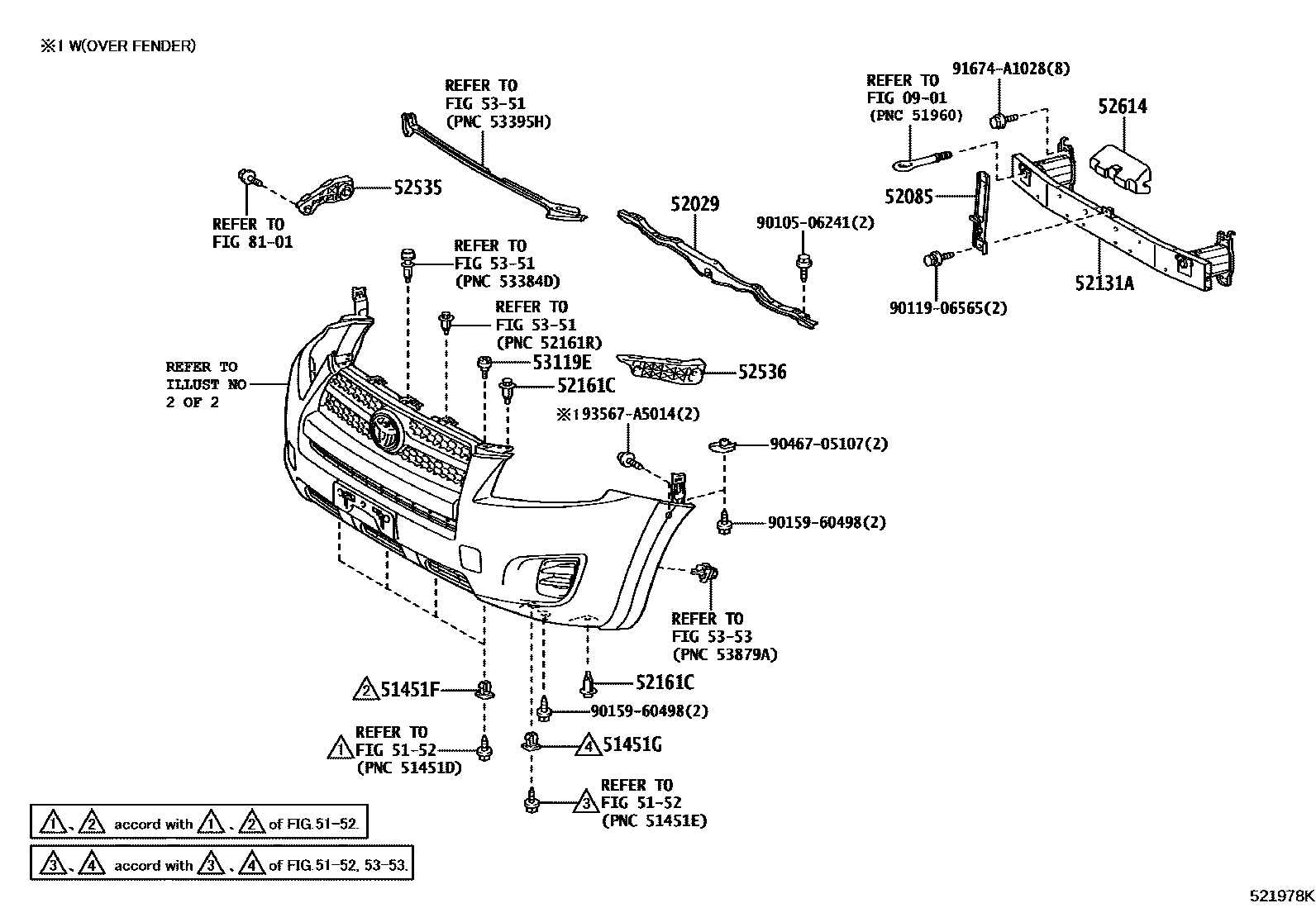

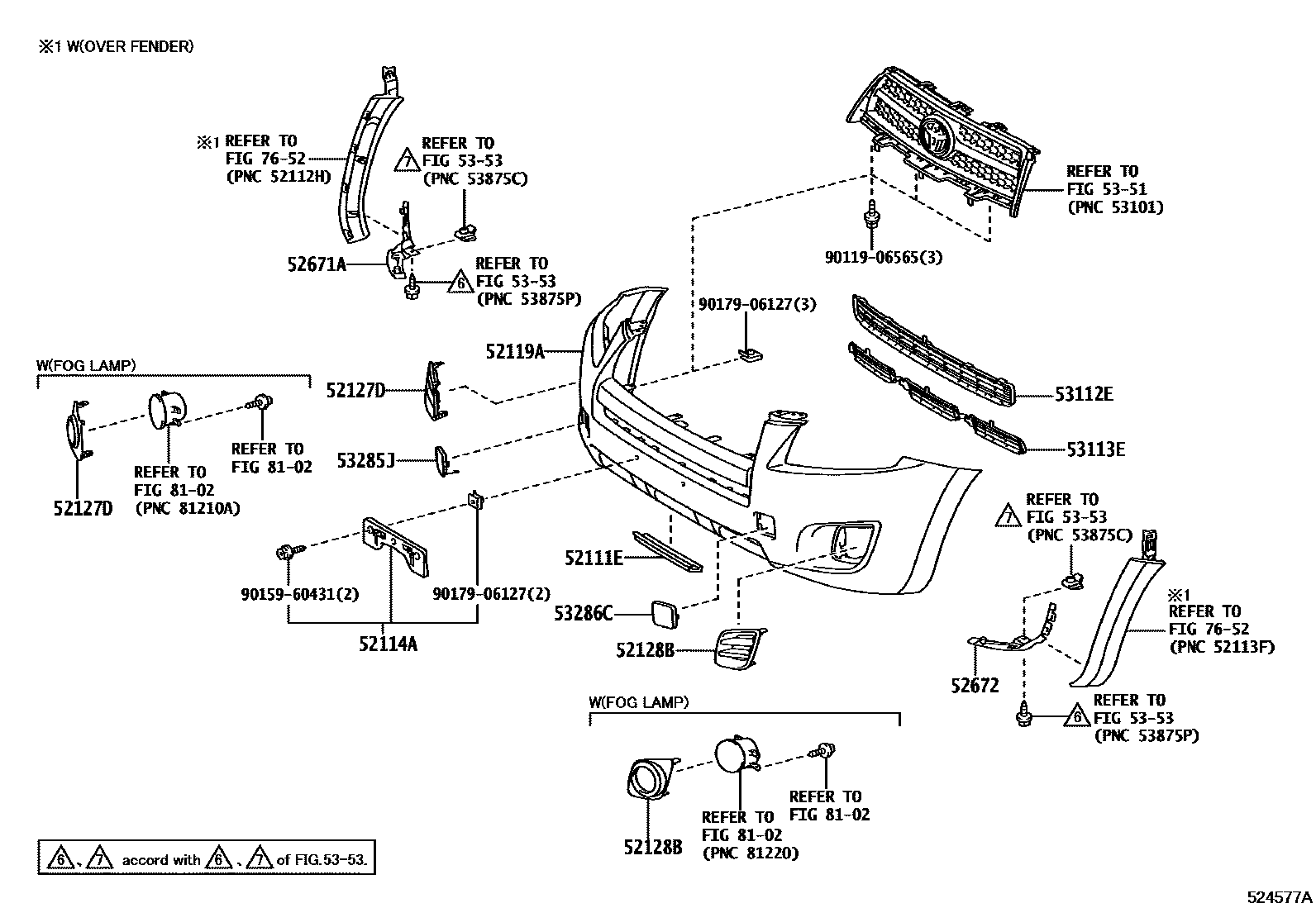

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | OEILLET, NO.1 | 90189-06193 |
| 51451G | OEILLET, NO.2 | 90189-06193 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-42070 · 52029-42090 |
| 52085 | Front bumper center stay sub-assembly | 52085-42030 |
| 52111E | front bumper stay | 52111-42010 · 52111-42020 |
| 52114A | Front bumper extension mounting bracket | 52114-42030 · 52114-42040 · 52114-42060 |
| 52115B | Front bumper extension section No. 1 fixing piece | 52115-30120 |
| 52116B | front bumper fixings | 52116-42020 |
| 52119A | front bumper cover | 52119-42925 · 52119-42926 · 52119-42955 · 52119-42959 · 52119-42970 · 52119-42971 · 52119-42972 · 52119-42982 |
| 52127D | Front bumper right hole cover | 52127-42040 · 52127-42060 · 52127-42070 · 52127-42080 |
| 52128B | Front bumper left hole cover | 52128-42040 · 52128-42060 · 52128-42070 · 52128-42080 |
| 52131A | Front bumper reinforcement | 52021-42060 · 52021-42061 · 52021-42062 · 52021-42080 · 52021-42081 · 52021-42082 |
| 52161C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-42020 · 52535-42021 |
| 52536 | Front bumper left fixed bracket | 52536-42020 · 52536-42021 |
| 52537C | Front bumper No. 2 right side fixing bracket | 52537-42010 |
| 52538C | Front bumper No. 2 left side fixing bracket | 52538-42010 |
| 52614 | No. 2 energy absorber for front bumper | 52614-42020 · 52614-42050 |
| 52671A | Front bumper arm right extension section | 52671-42010 · 52671-42020 |
| 52672 | Front bumper arm left extension | 52672-42010 · 52672-42020 |
| 53112E | No. 1 radiator lower grille | 53112-42050 · 53112-42070 |
| 53113E | No. 2 radiator lower grille | 53113-42040 · 53113-42050 · 53113-42060 |
| 53119E | Radiator grille protector | 53119-20120 · 53119-42020 |
| 53285J | Front bumper arm right hole cover | 53285-42901 · 53285-42927 · 53285-42928 |
| 53286C | Front bumper arm left hole cover | 53286-42901 · 53286-42928 · 53286-42929 |
