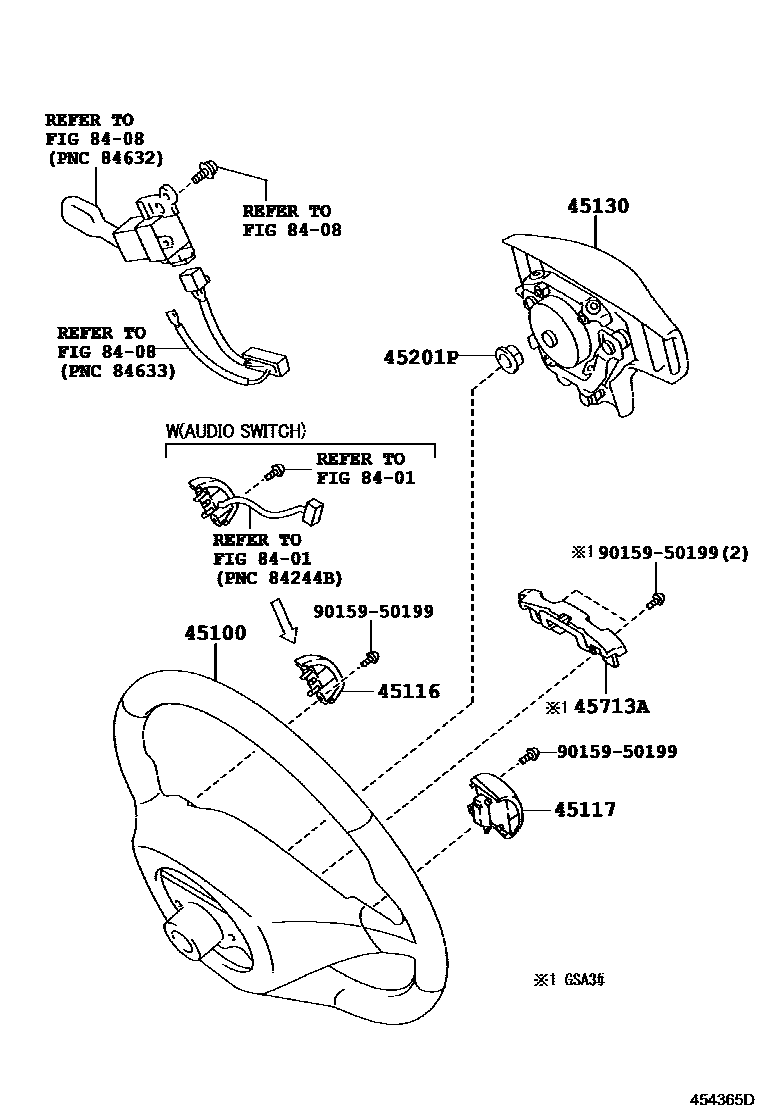

Toyota RAV4 Steering Wheel — Figure 4504
Toyota RAV4 EPC diagram 4504, Steering Wheel, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45116 | No. 1 steering wheel decorative parts | 45116-42010 |
| 45201P | Steering wheel fixing nut | 90179-12071 |
| 45713A | steering damper | 45713-33190 |
