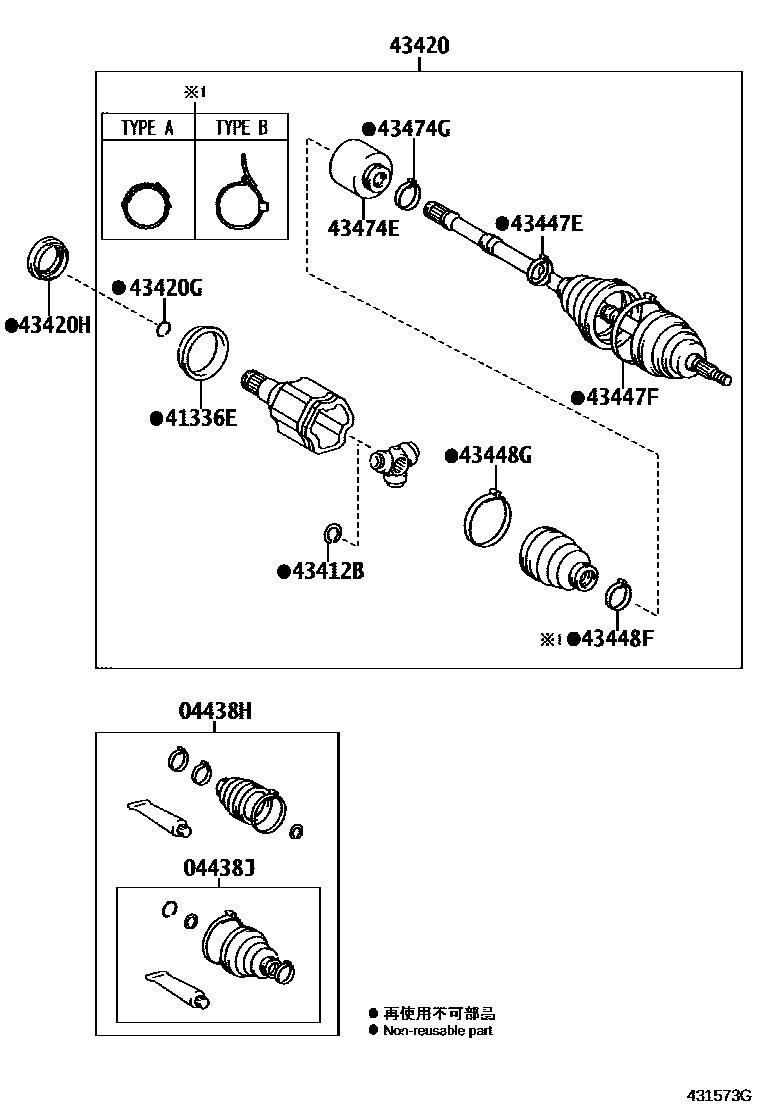

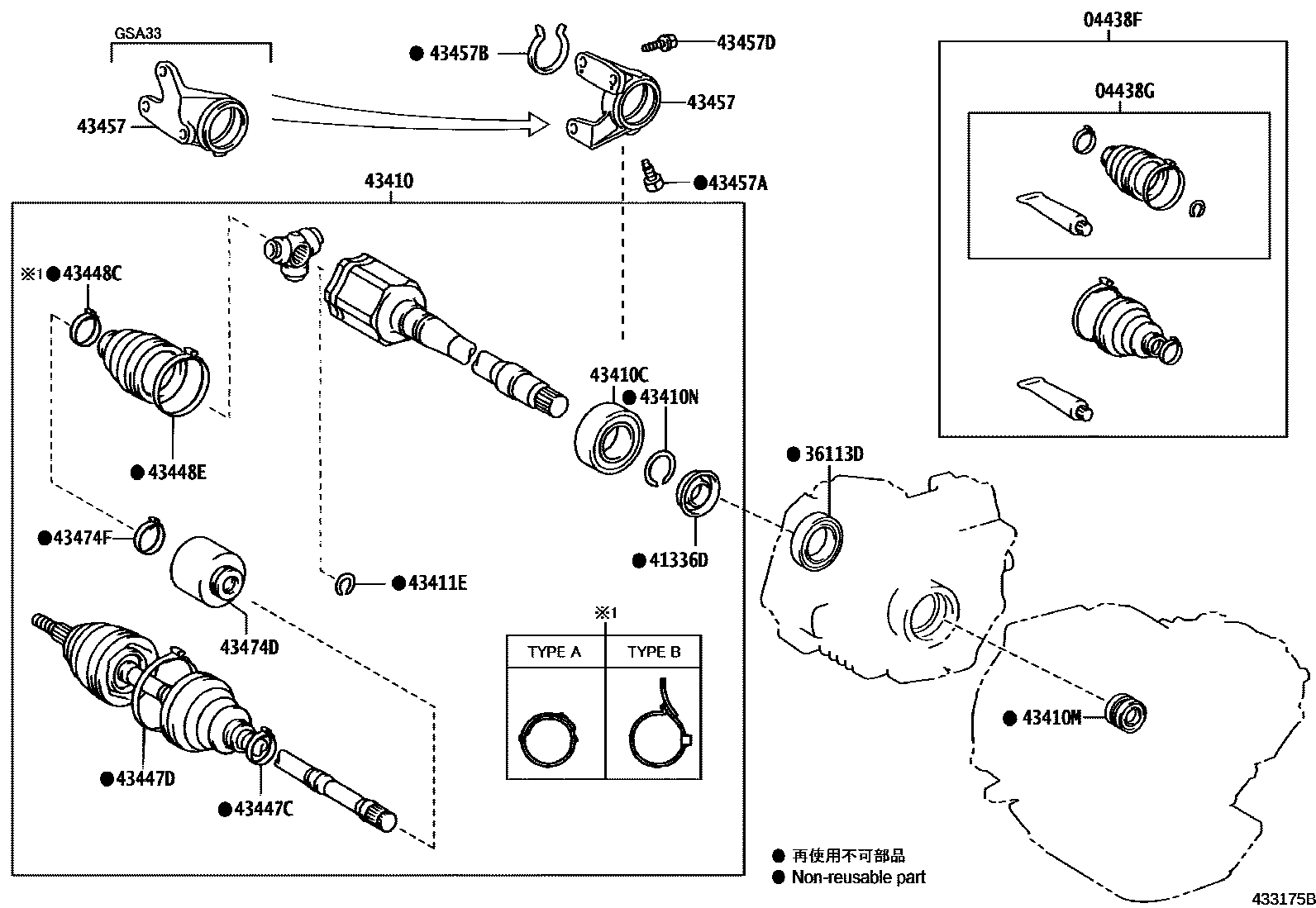

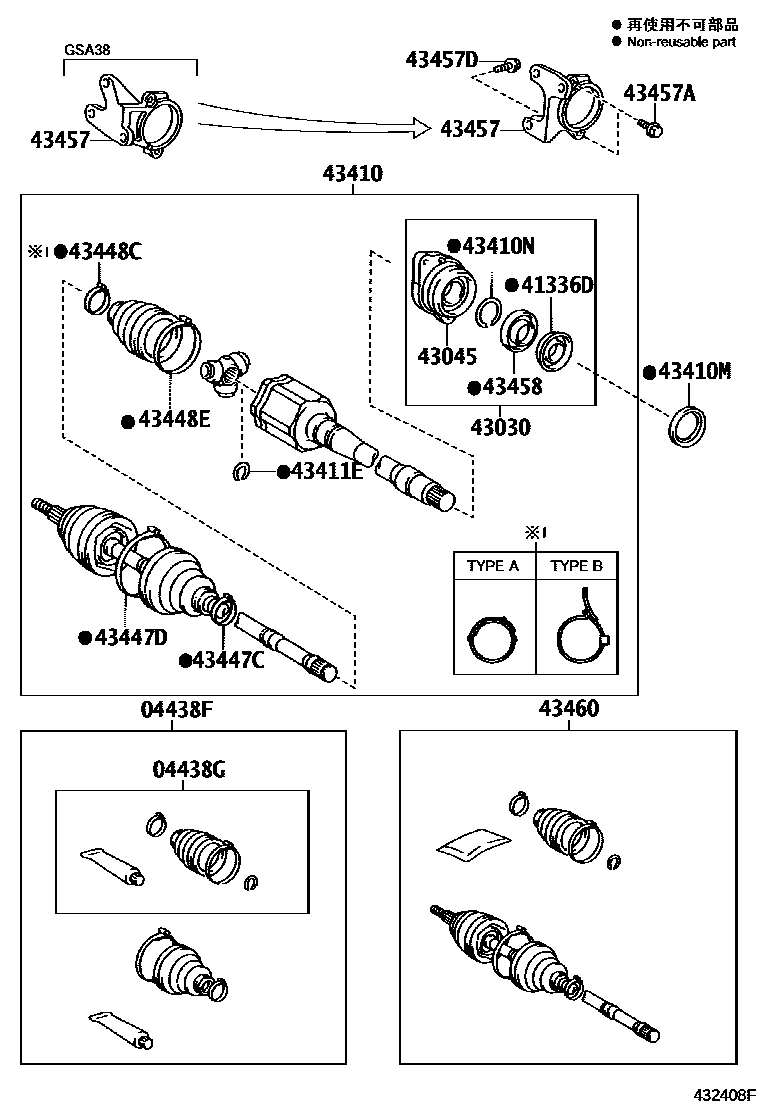

Toyota RAV4 Front Drive Shaft — Figure 4302
Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-42010 · 04427-44040 · 04427-44050 · 04428-42120 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-42180 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-42110 · 04428-42120 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-42180 |
| 36113D | JOINT, D'HUILE (POUR BOITE DE TRANSFERT MD) | 90311-35056 |
| 41336D | Right front driveshaft dust cover | 41336-12020 · 41336-52020 |
| 41336E | Left front driveshaft dust cover | 41336-28020 · 41336-28030 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-42040 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-64020 |
| 43410 | Right front driveshaft assembly | 43410-42140 · 43410-42160 · 43410-42170 · 43410-42200 |
| 43410C | Bearings (for front driveshaft) | 90363-36006 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-40029 · 90311-40031 · 90316-34001 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-33008 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 |
| 43420 | Left front drive shaft assembly | 43420-42160 · 43420-42170 · 43420-42190 · 43420-42210 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-33002 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-50036 · 90311-50037 · 90311-50044 · 90311-50048 · 90311-50052 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-42100 · 42345-42120 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-42090 · 42345-42110 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-42100 · 42345-42120 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-42090 · 42345-42110 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-42010 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12160 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-42010 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12160 |
| 43457 | drive shaft bearing bracket | 43457-42030 · 43457-42060 · 43457-42070 · 43457-42090 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 · 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-49655 · 43470-49665 |
| 43474D | Right front driveshaft shock absorber | 43474-48030 |
| 43474E | Left front driveshaft shock absorber | 43474-42010 · 43474-42020 · 43474-42030 · 43474-42040 · 43474-42050 · 43474-48030 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-14010 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-14010 |
