Toyota RAV4 车轮和车轮盖 — Figure 4103
Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

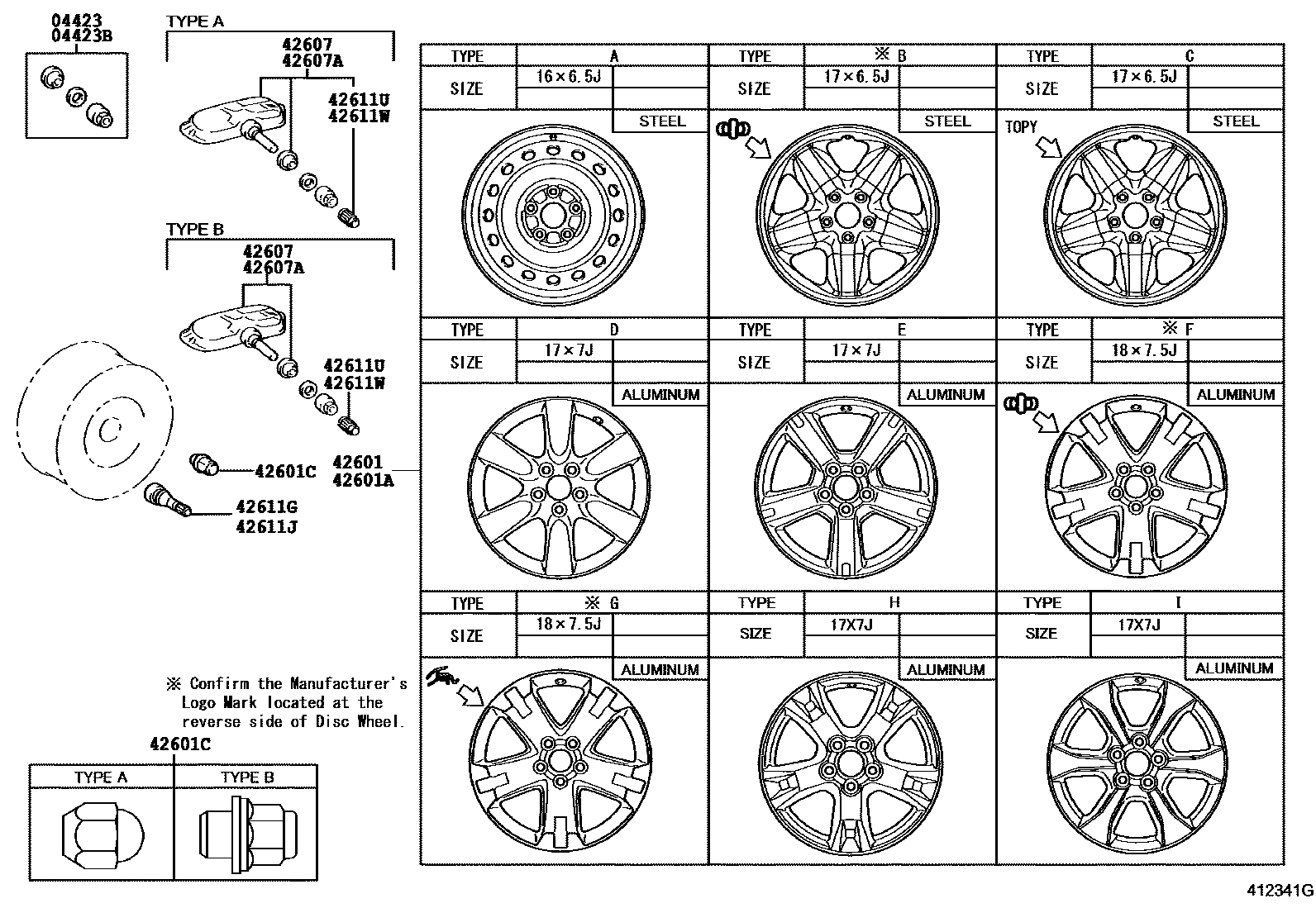

| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33030 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33030 |
| 42601 | spoke wheel | 42611-42170 · 42611-42190 · 42611-42200 · 42611-42210 · 42611-42220 · 42611-42230 · 42611-42240 · 42611-42300 · 42611-42320 · 42611-42330 · 42611-42340 · 42611-42370 |
| 42601A | Spoke wheel (for spare tire) | 42611-42170 · 42611-42190 · 42611-42200 · 42611-42230 · 42611-42240 · 42611-42300 · 42611-42330 · 42611-42370 |
| 42601C | Hub nut (for axle) | 90942-01021 · 90942-01033 |

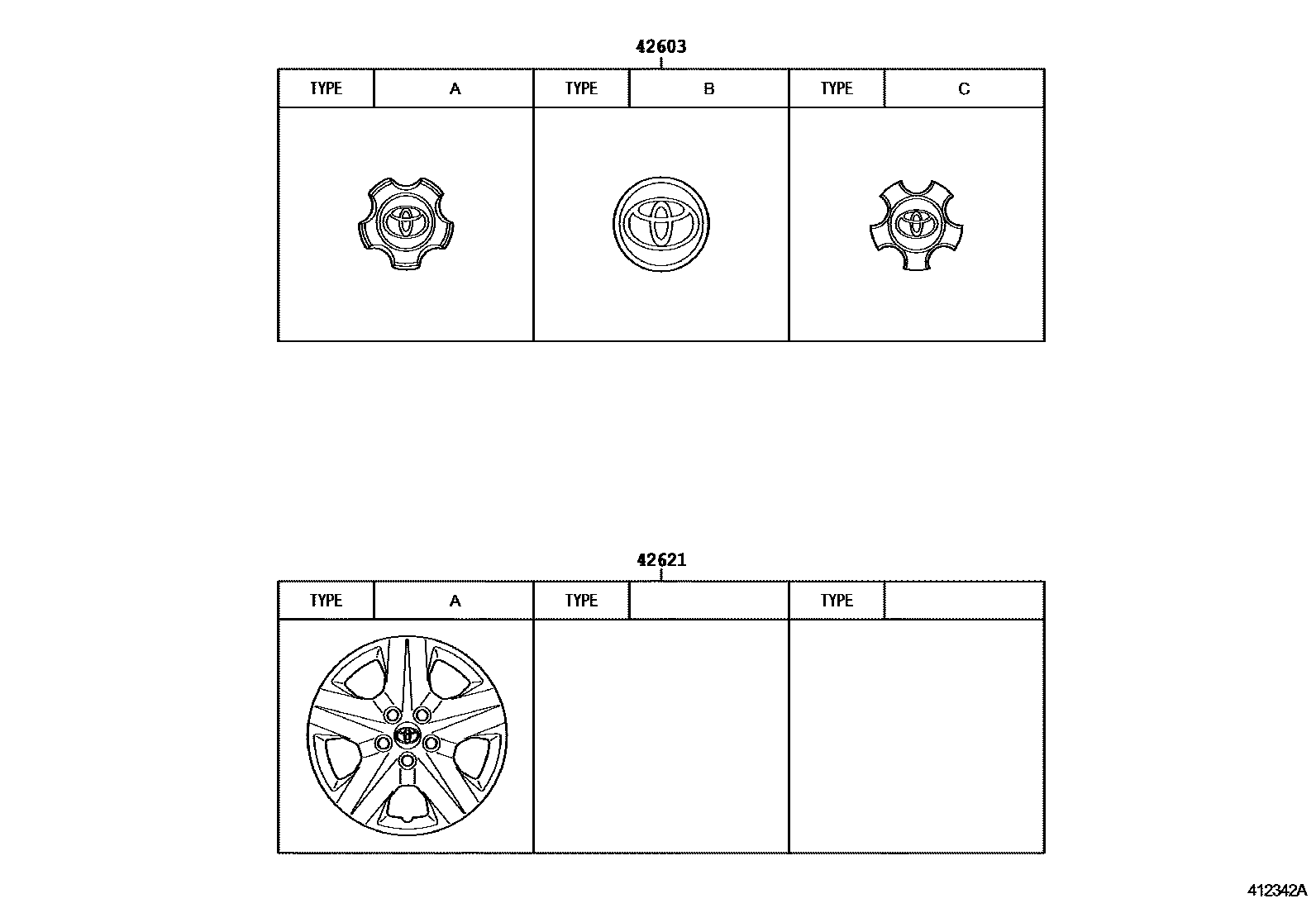

| 42603 | Wheel hub decorative parts sub-assembly | 42603-42100 · 42603-42110 · 42603-42120 · 4260B-42010 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-33010 · 42607-33011 · 42607-33021 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-33010 · 42607-33011 · 42607-33021 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42621 | wheel cover | 42602-42010 |
