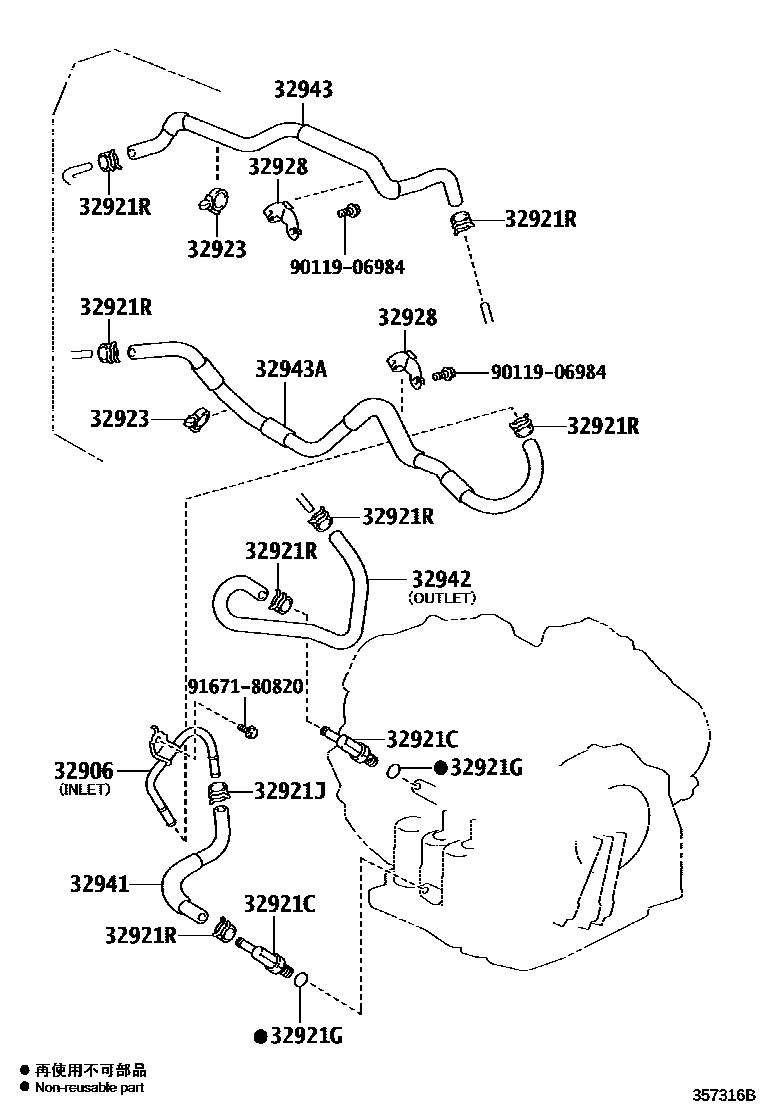

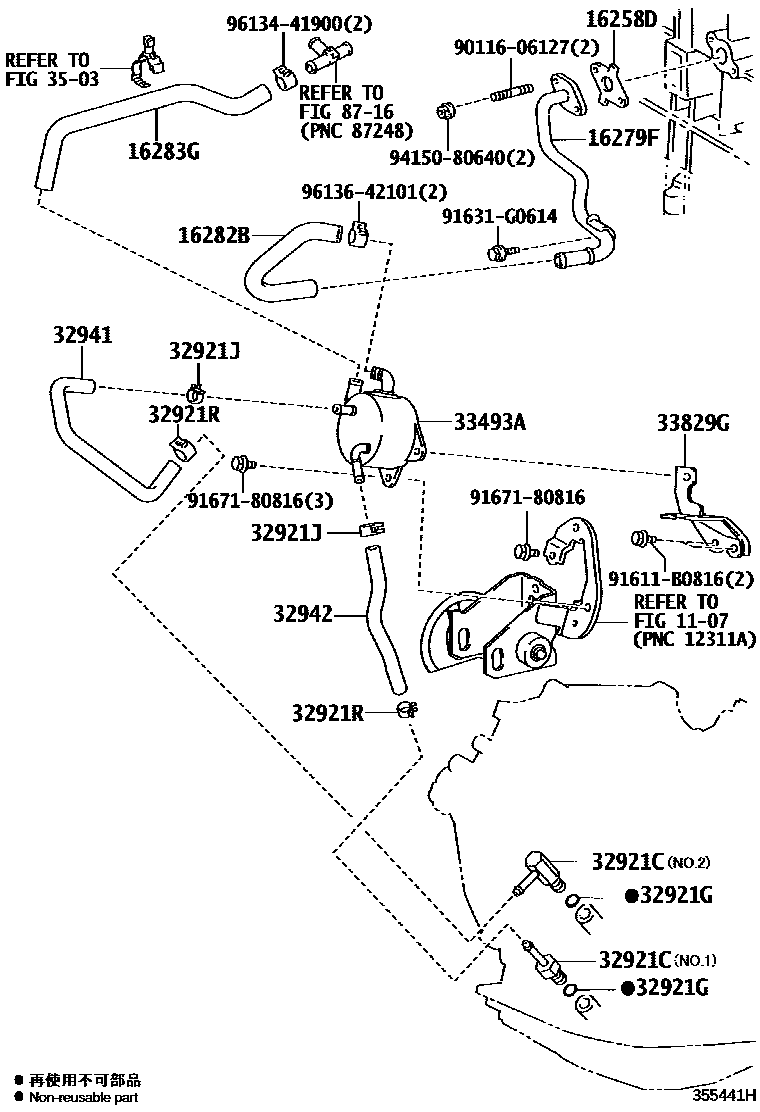

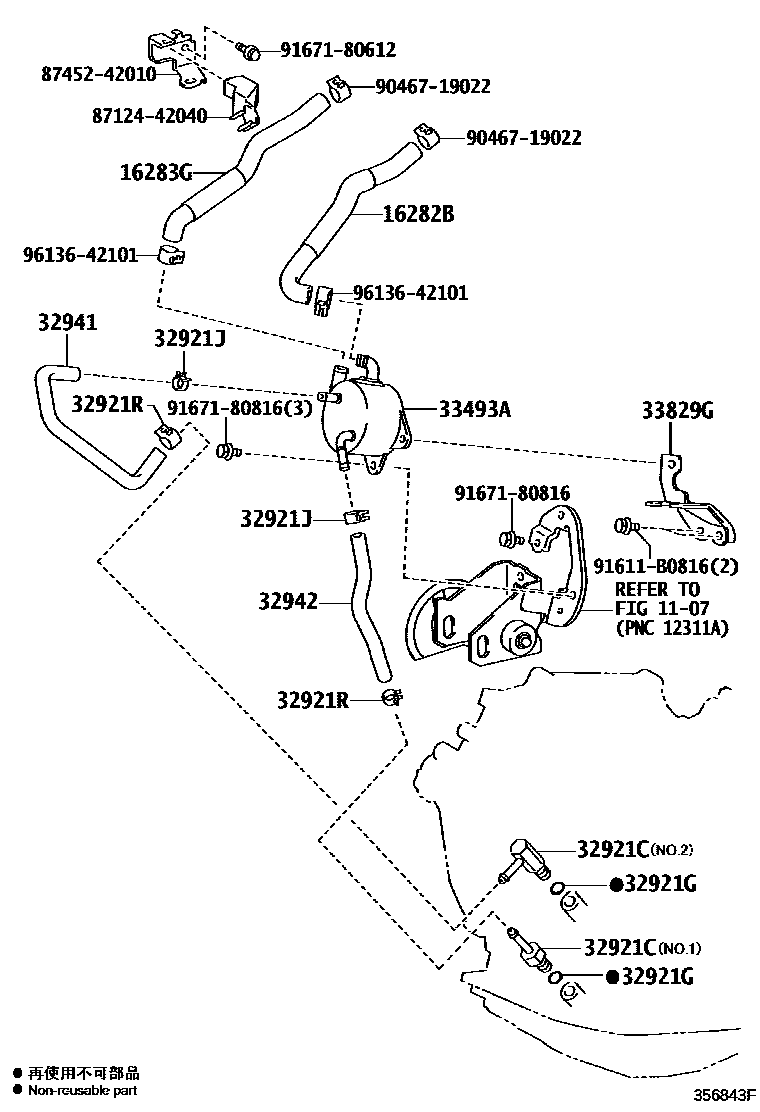

Toyota RAV4 变速器油冷却器和配管(ATM) — Figure 3514
Toyota RAV4 EPC diagram 3514, 变速器油冷却器和配管(ATM), with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258D | Gasket (for water bypass pipe) | 16258-28040 |
| 16279F | No. 3 water bypass pipe | 16279-28060 |
| 16282B | HOSE, WATER BY-PASS, NO.5 | 16282-28110 · 16282-36010 · 16282-36011 |
| 16283G | HOSE, WATER BY-PASS, NO.6 | 16283-28110 · 16283-36010 · 16283-36011 |
| 32906 | Transmission oil cooler pipe sub-assembly | 32907-42030 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13004 · 90407-13009 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 90466-16004 · 90467-16022 |
| 32921R | Clamp No. 2 (for transmission oil cooler hose) | 90467-16022 |
| 32923 | Automatic transmission oil cooler pipe clamp | 82711-51020 |
| 32928 | No. 1 Flexible Hose Clamp | 32928-42010 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-42040 · 32942-42020 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32941-42030 · 32942-42030 |
| 32943 | No. 1 transmission oil cooler hose | 32943-42030 |
| 32943A | No. 2 transmission oil cooler hose | 32943-42020 |
| 33493A | Transmission oil cooler | 33493-42030 · 33493-42060 |
| 33829G | Transmission control cable bracket | 33829-42060 |
