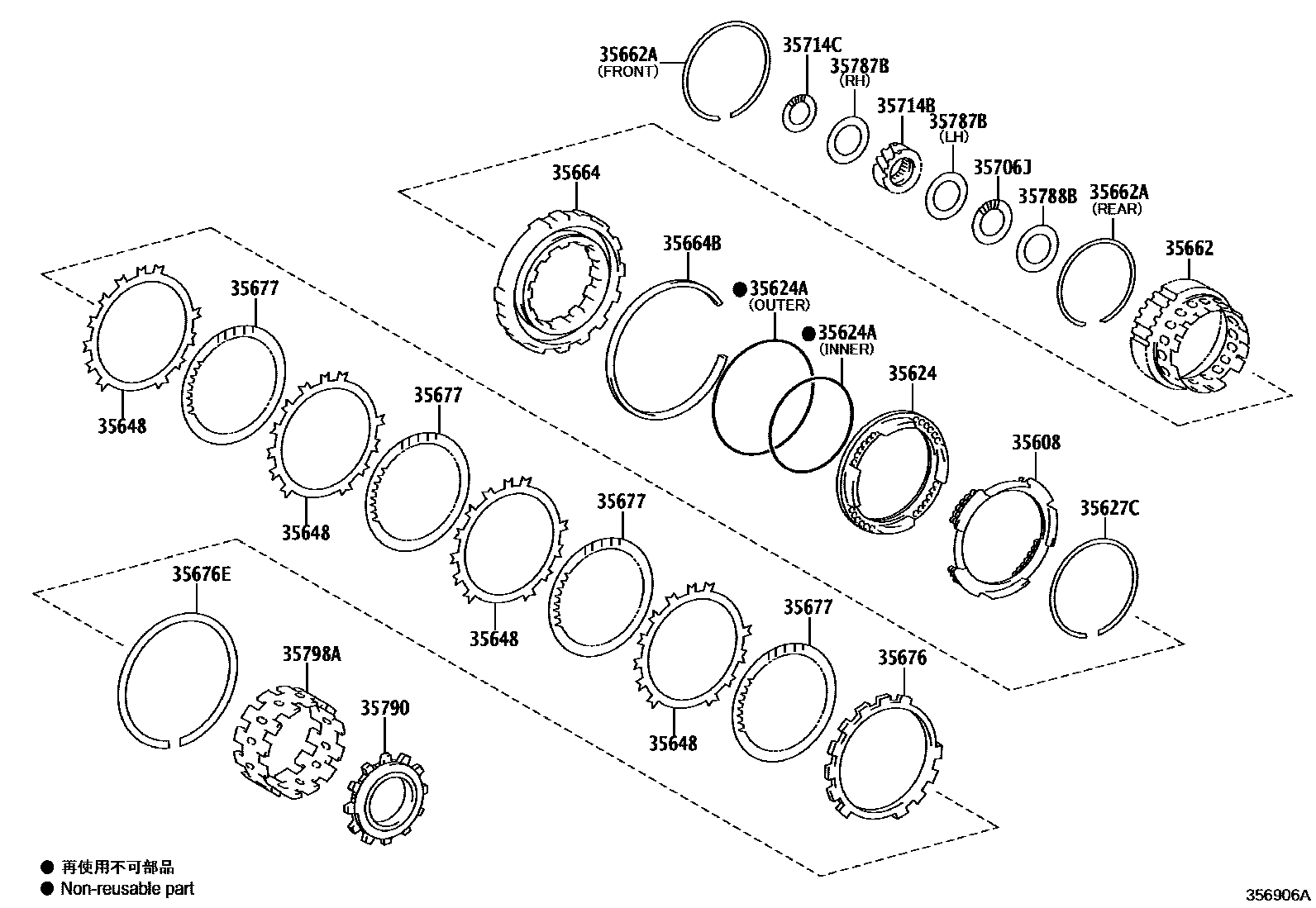

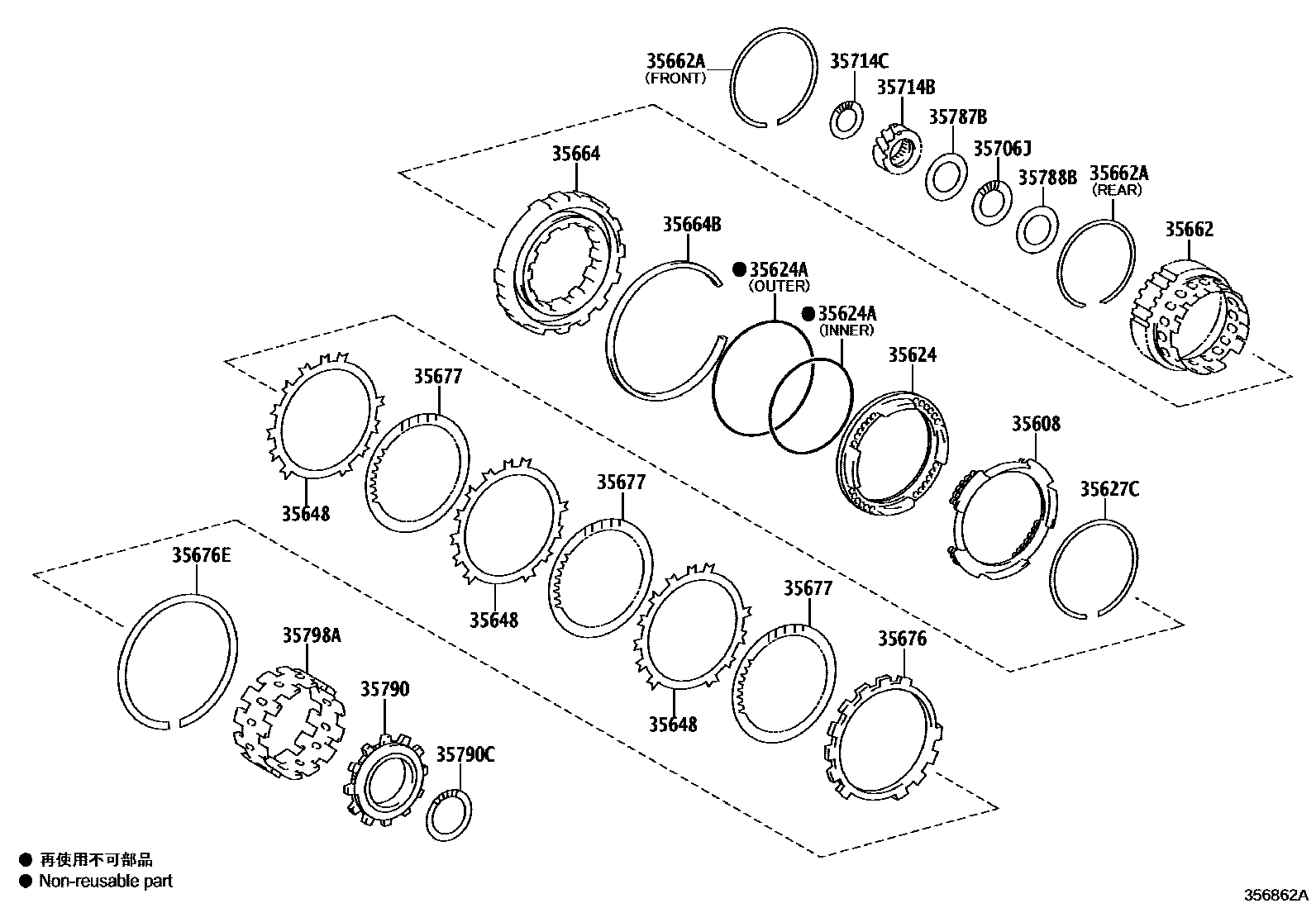

Toyota RAV4 中央支架和行星太阳齿轮(ATM) — Figure 3508
Toyota RAV4 EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35608 | Second gear brake piston return spring sub-assembly | 35608-21010 |
| 35624 | Second gear brake piston | 35624-28020 · 35624-33020 |
| 35624A | O-ring (for second gear brake piston) | 90301-99093 · 90301-99095 |
| 35627C | Shaft snap ring (for second gear brake piston return spring seat) | 90520-99036 |
| 35648 | Clutch disc (for second gear brake) | 35691-28010 |
| 35662 | brake hub | 35662-06010 · 35662-28010 |
| 35662A | Snap ring (for brake hub) | 90520-99024 · 90520-99033 |
| 35664 | Second gear brake cylinder | 35664-33010 |
| 35664B | Hole snap ring (for second gear brake cylinder) | 90520-99027 |
| 35676 | Brake flange (for second gear brake) | 35676-21070 · 35676-21080 · 35676-21090 · 35676-21100 · 35676-21110 · 35676-21120 · 35676-21130 |
| 35676E | Hole snap ring (for second gear brake) | 90520-99026 |
| 35677 | Clutch disc (for second gear brake) | 35681-28010 · 35681-33010 |
| 35706J | Thrust needle roller bearing (for planetary gear train sun gear) | 90374-38002 · 90374-40004 |
| 35714B | Input shaft sun gear | 35714-28010 · 35714-33010 |
| 35714C | Thrust needle roller bearing (for input shaft sun gear) | 90374-32011 · 90374-34006 |
| 35787B | No. 2 thrust bearing race | 34739-33010 · 35787-21010 |
| 35788B | No. 3 thrust bearing race | 35788-20010 · 35788-20011 · 35788-21010 |
| 35790 | One-way clutch assembly | 35790-28020 · 35790-28030 |
| 35790C | Thrust needle roller bearing | 90374-53001 · 90374-53006 |
| 35798A | One-way clutch outer sleeve | 35798-28010 |
