Toyota RAV4 起动机 — Figure 1904

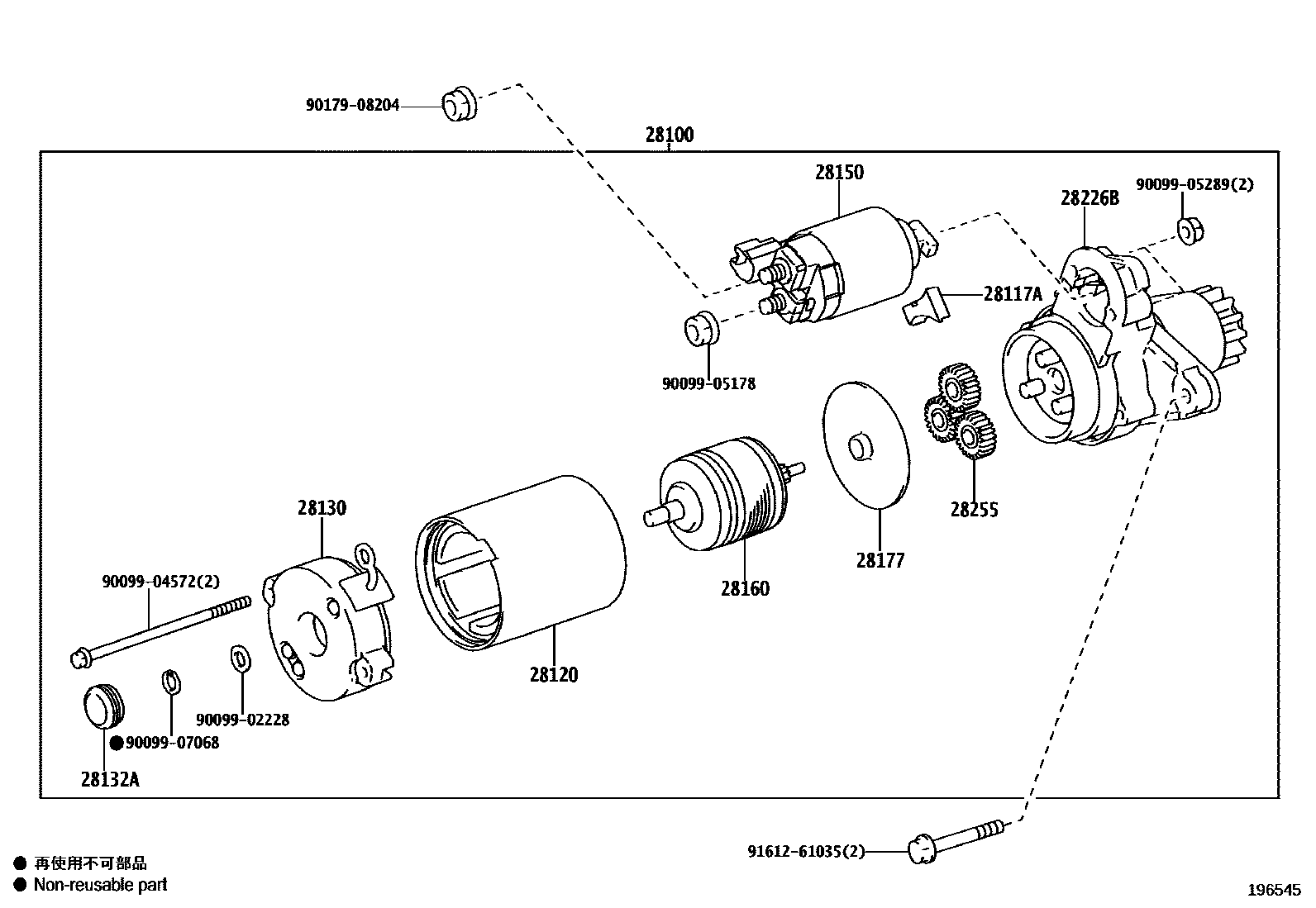

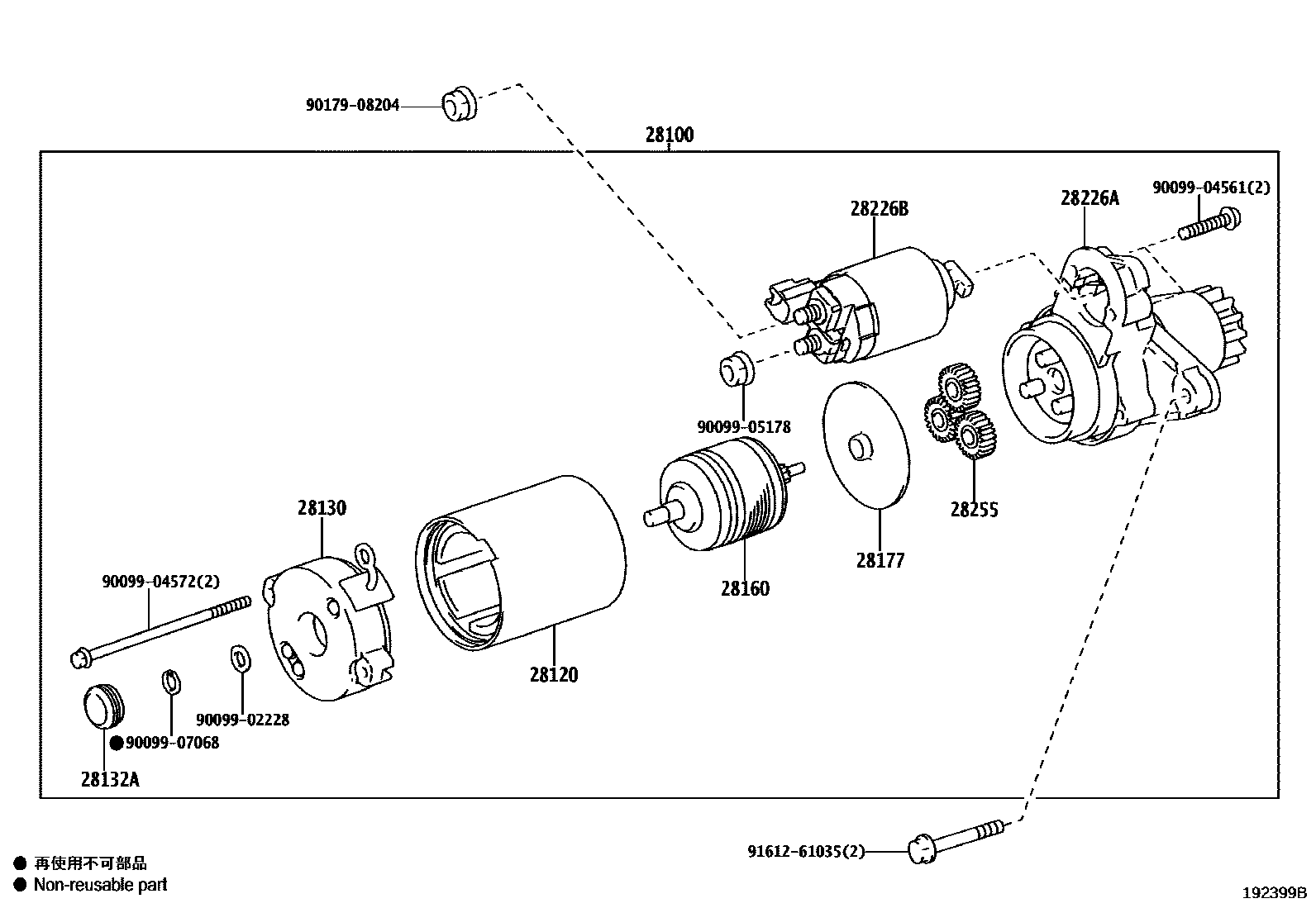

Toyota RAV4 EPC diagram 1904, 起动机, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28100 | Starter assembly | 28100-20020 · 28100-20021 · 28100-28070 · 28100-28071 · 28100-28072 |
| 28117A | Rubber seal | 28117-28060 |
| 28120 | Starter yoke assembly | 28120-28040 · 28120-28060 |
| 28130 | Starter commutator end frame assembly | 28130-20020 |
| 28132A | Starter commutator end frame cover | 28132-28040 |
| 28150 | Starter electromagnetic switch assembly | 28150-28060 · 28150-40090 |
| 28160 | Starter armature assembly | 28160-28040 |
| 28177 | Plate (for starter armature) | 28177-28040 |
| 28226A | Motor terminal starter assembly | 28226-28041 |
| 28226B | starter magnetic switch | 28226-28051 · 28226-28060 |
| 28255 | Planetary gear | 28255-20020 |
