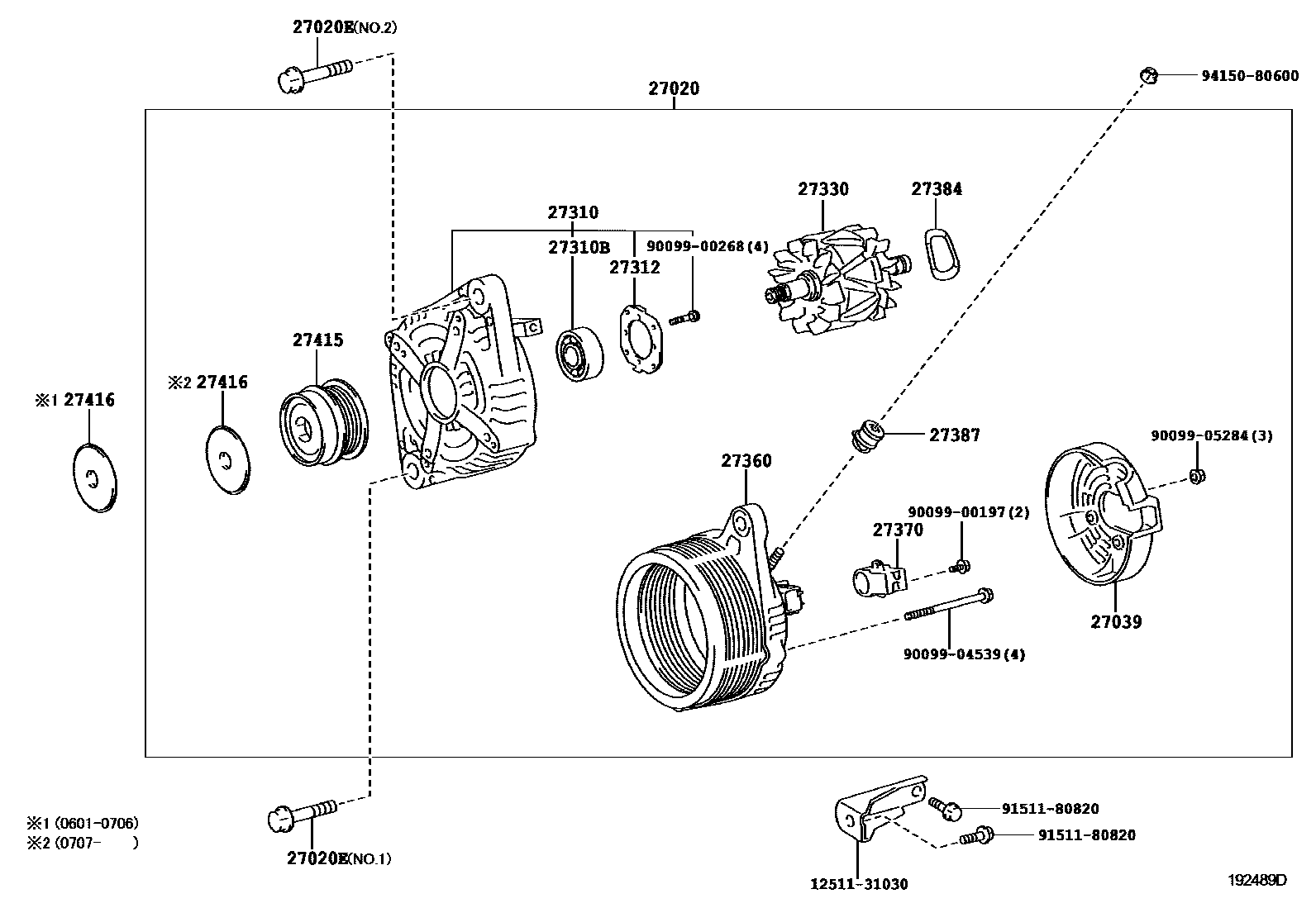

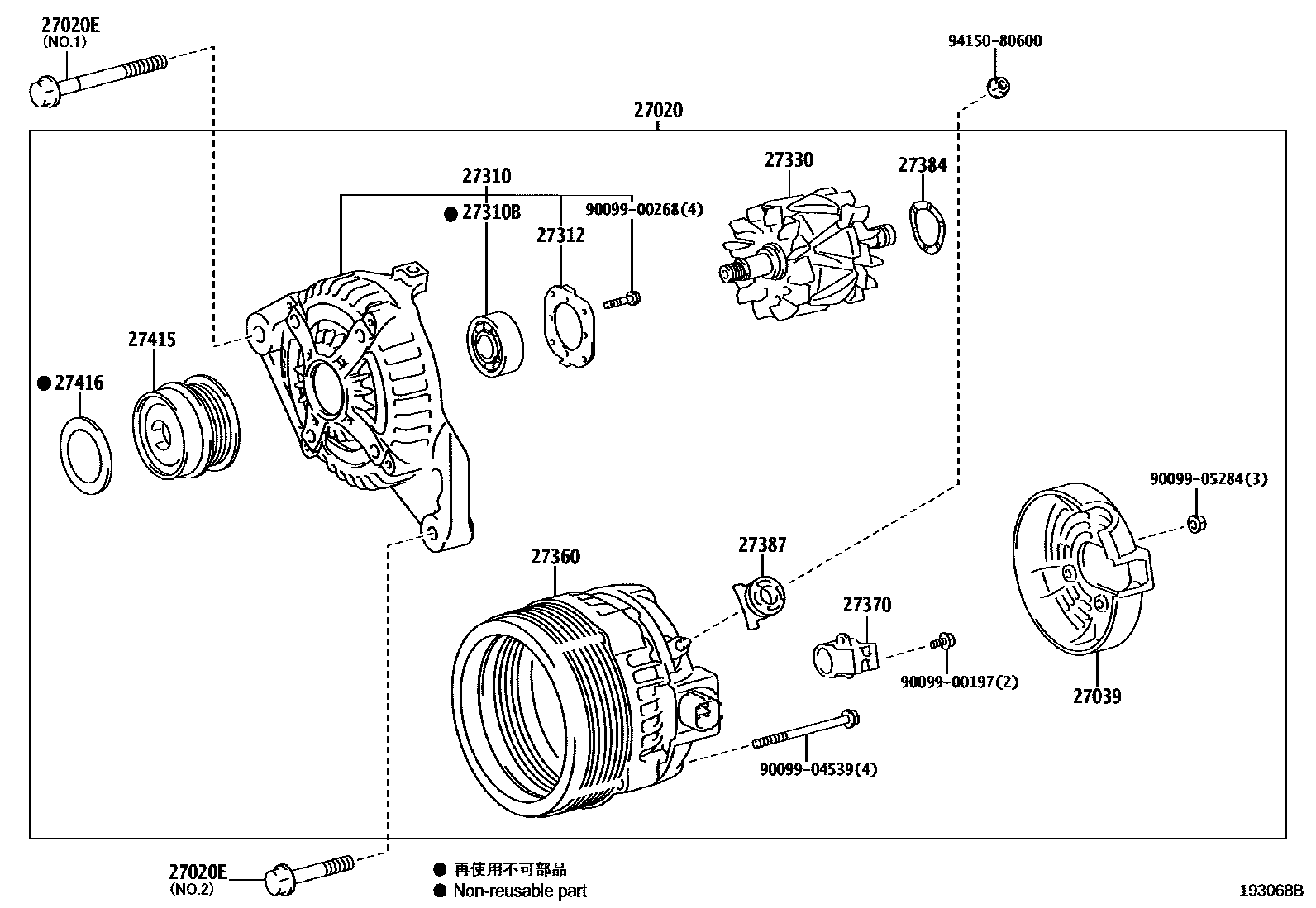

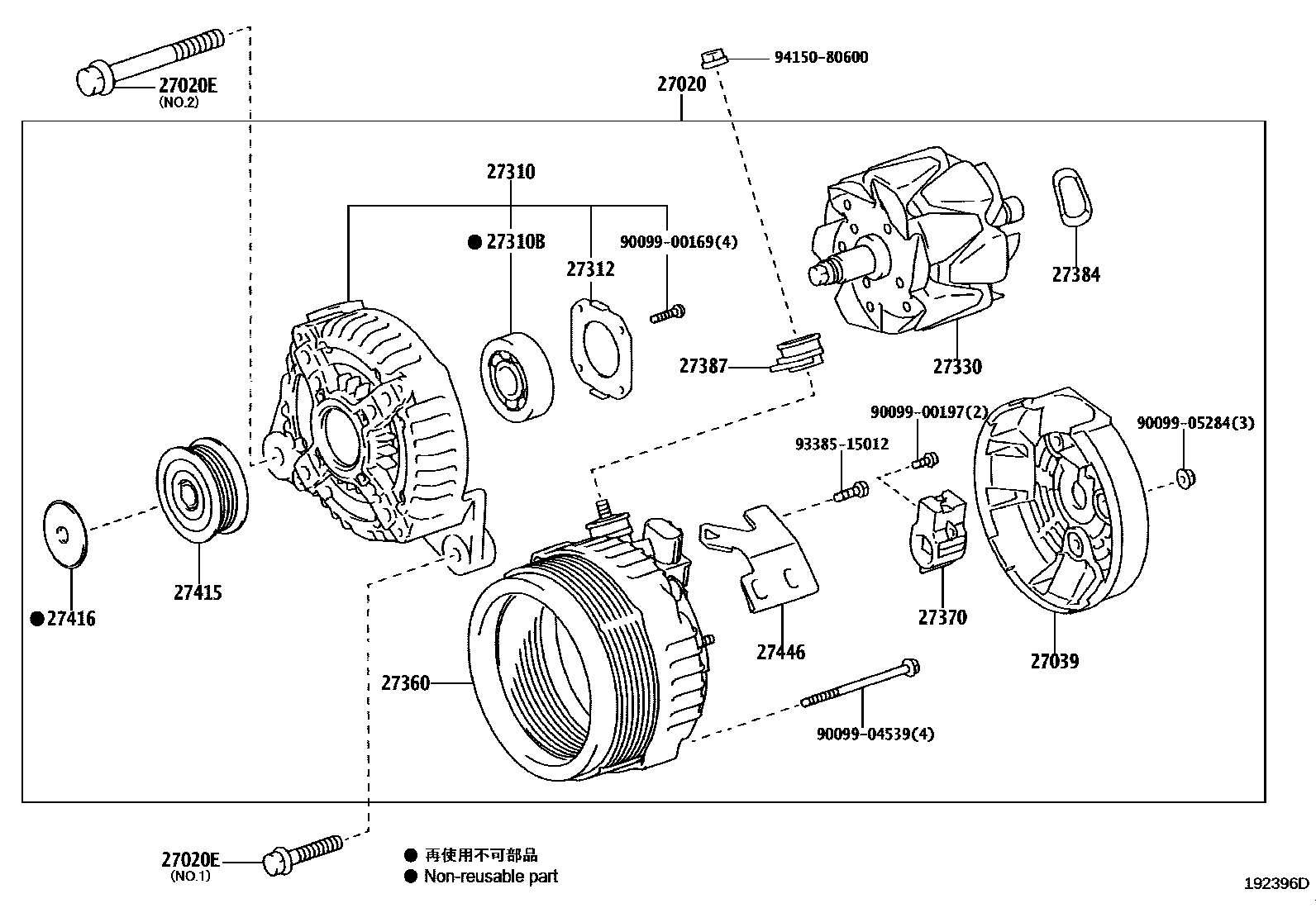

Toyota RAV4 Alternator — Figure 1903
Toyota RAV4 EPC diagram 1903, Alternator, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-28300 · 27060-31081 · 27060-31082 · 27060-31090 · 27060-31091 · 27060-31100 · 27060-31101 · 27060-31161 · 27060-31162 · 27060-36010 · 27060-36011 |
| 27020E | Bolts (for generator) | 90105-10562 · 91512-81085 · 91551-80840 · 91552-81040 · 91552-81045 · 91552-81070 |
| 27039 | Alternator Rear End Cover | 27039-26170 · 27039-27060 · 27039-31390 |
| 27310 | Alternator Drive End Frame Assembly | 27310-28120 · 27310-31290 · 27310-36090 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10142 · 90099-10223 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-30070 · 27330-58460 |
| 27360 | Alternator Stator Coil Assembly | 27360-28170 · 27360-31290 · 27360-31300 · 27360-31330 · 27360-31370 · 27360-36090 · 27360-36091 |
| 27370 | Alternator Brush Holder Assembly | 27370-31220 · 27370-58460 |
| 27384 | Washer | 27384-50030 |
| 27387 | Terminal Insulator | 27387-20130 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W010 · 27415-0W020 · 27415-0W040 · 27415-0W130 |
| 27416 | Generator pulley cover | 27416-0W010 · 27416-0W020 · 27416-0W050 |
| 27446 | Generator clamp | 27446-28120 |
