Toyota RAV4 点火线圈和火花塞 — Figure 1901

Toyota RAV4 EPC diagram 1901, 点火线圈和火花塞, with 3 images and 2 PNC and OE references.

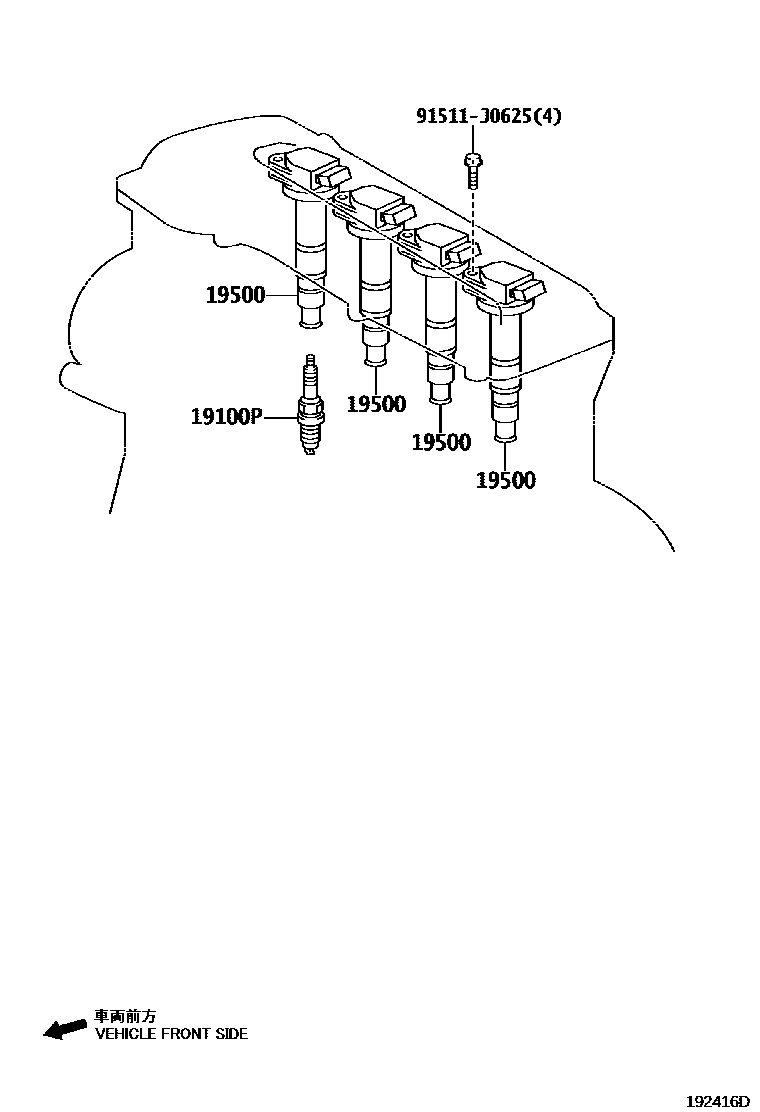

Toyota RAV4 点火线圈和火花塞 EPC diagram — 192416D — 点火线圈和火花塞 — 192416D (200511 – 200808)

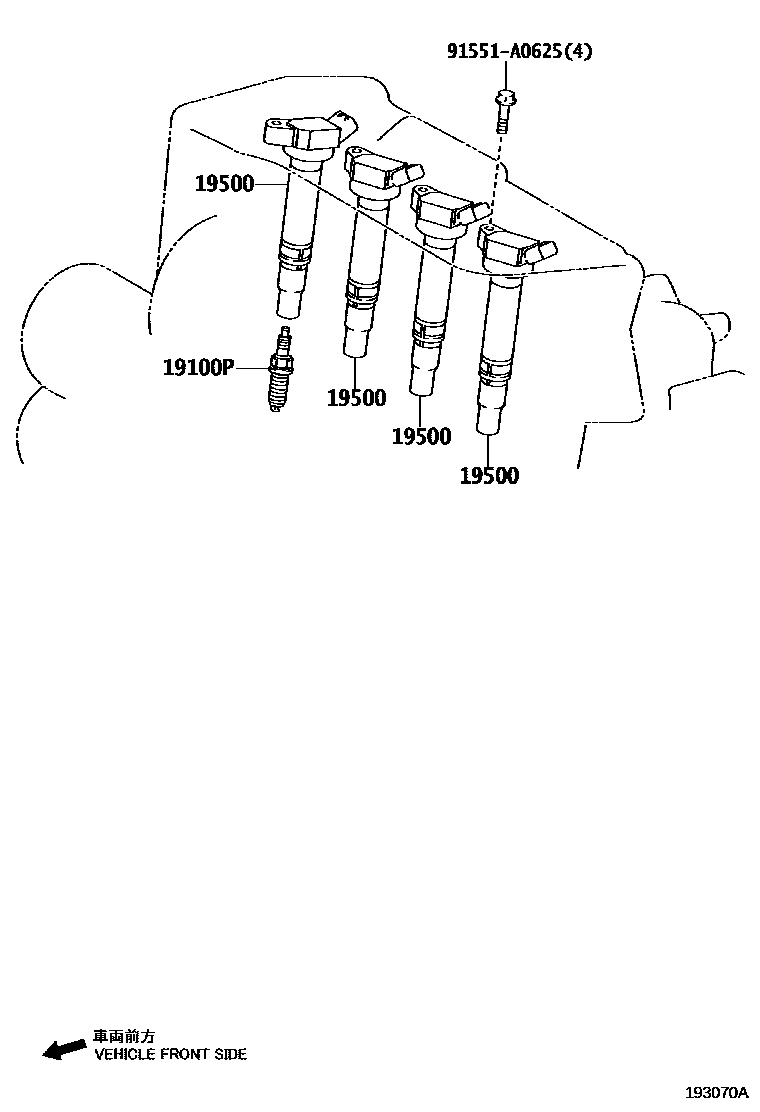

Toyota RAV4 点火线圈和火花塞 EPC diagram — 193070A — 点火线圈和火花塞 — 193070A (200808 – 999999)

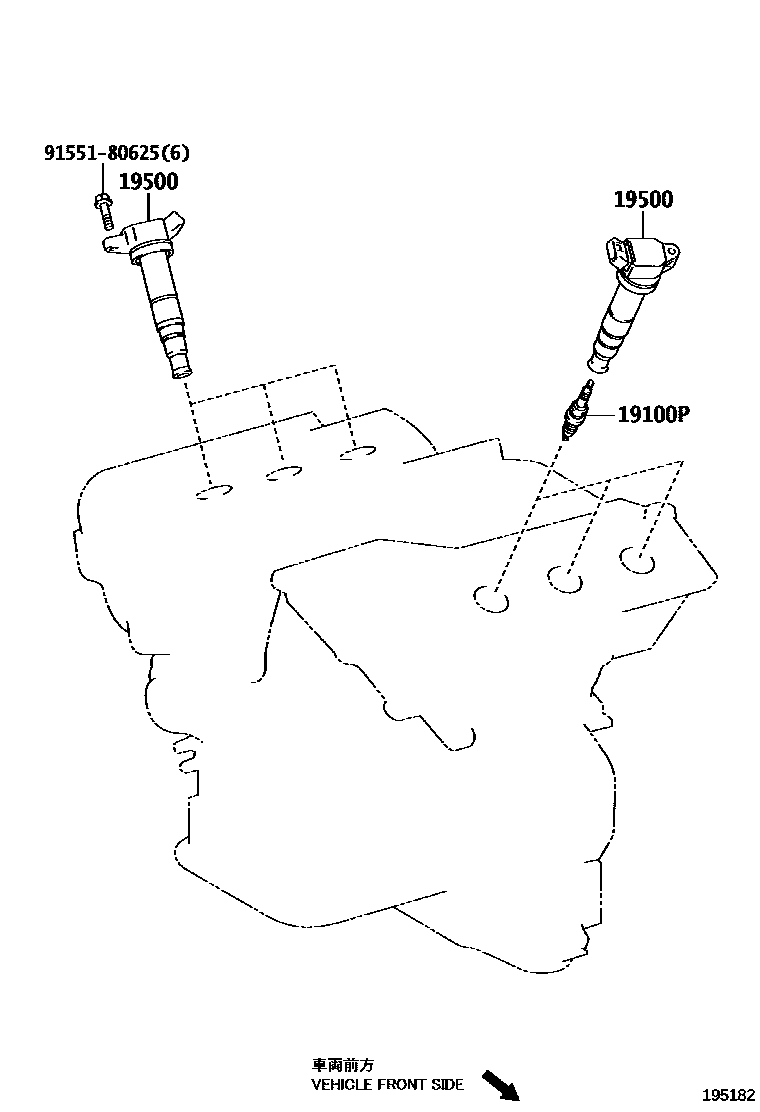

Toyota RAV4 点火线圈和火花塞 EPC diagram — 195182 — 点火线圈和火花塞 — 195182 (200601 – 999999)

PNC and OE references

PNC	Part name	OE numbers
19100P	spark plug	90919-01233 · 90919-01237 · 90919-01247
19500	Ignition coil assembly	90919-02244 · 90919-02251 · 90919-02255 · 90919-02256
