Toyota RAV4 vacuum tube — Figure 1708

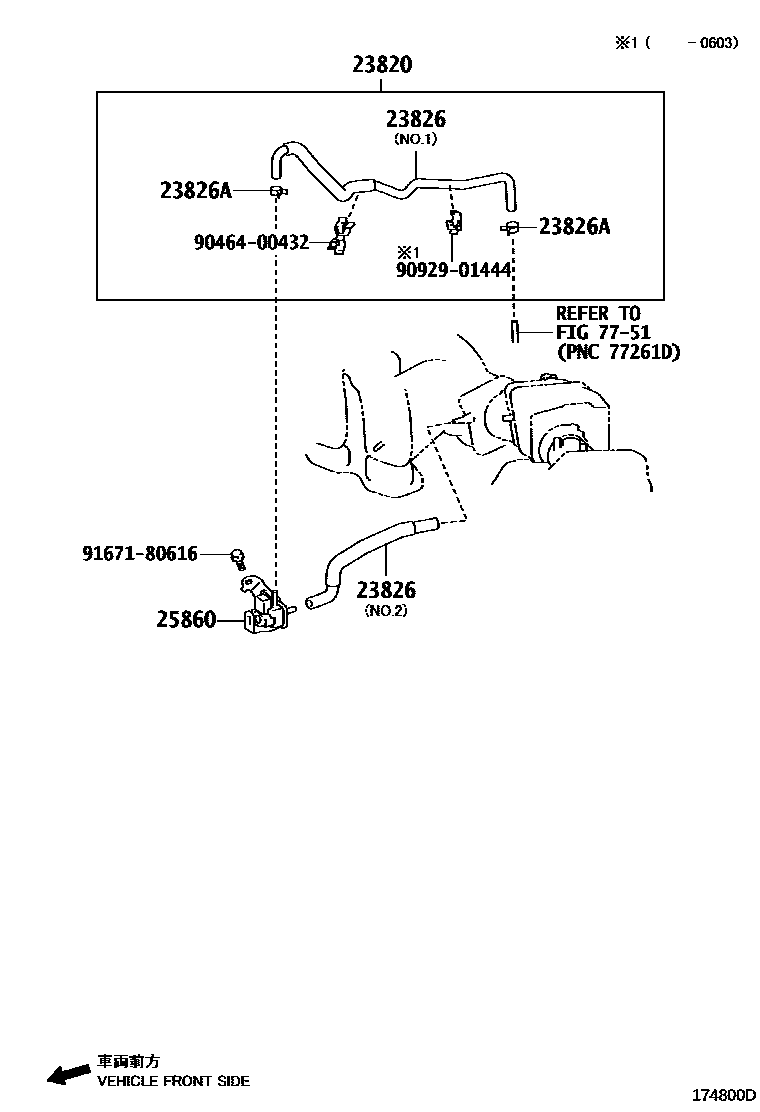

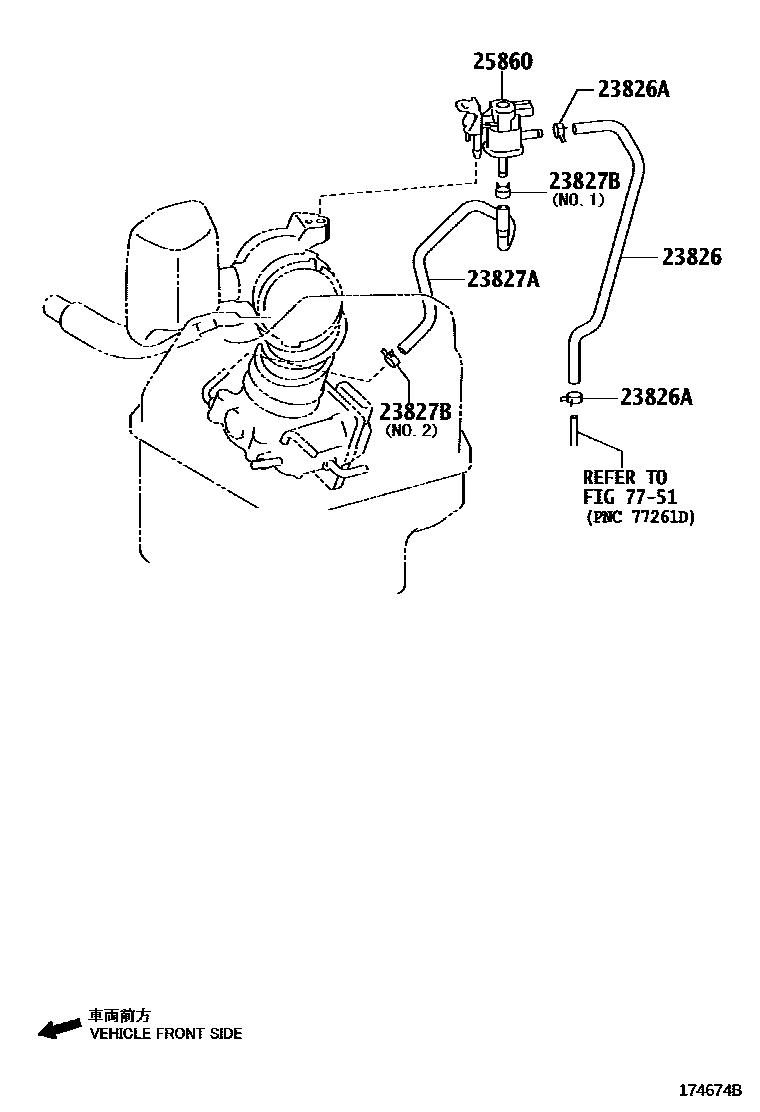

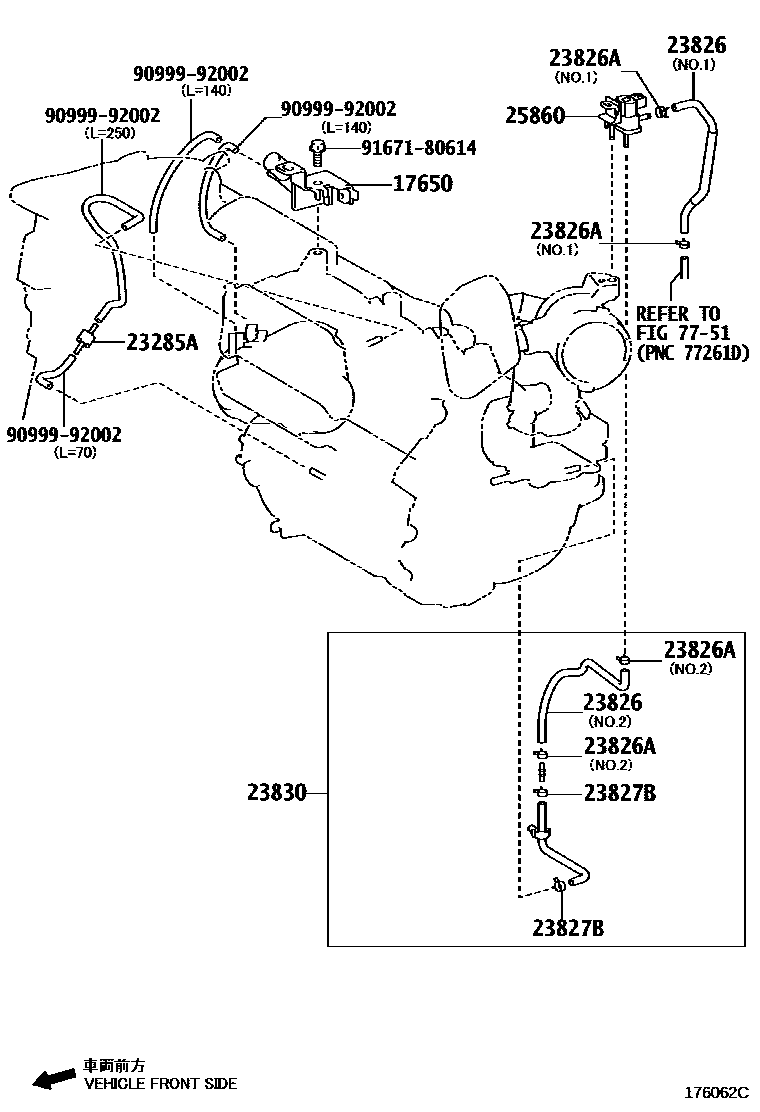

Toyota RAV4 EPC diagram 1708, vacuum tube, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650 | Vacuum switch valve assembly | 25860-36010 |
| 23285A | No. 1 one-way valve | 90917-10065 |
| 23820 | Fuel vapor supply hose assembly | 23820-31060 · 23820-31061 |
| 23826 | No. 1 fuel vapor supply hose | 23826-28340 · 23826-31090 · 23826-31091 · 23826-31110 · 23826-36010 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 96132-51300 |
| 23827A | No. 2 fuel vapor supply hose | 23827-28280 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-11003 · 96132-41000 · 96132-51300 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23830-36010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-28140 · 25860-31070 |
