Toyota RAV4 Exhaust Pipe — Figure 1702

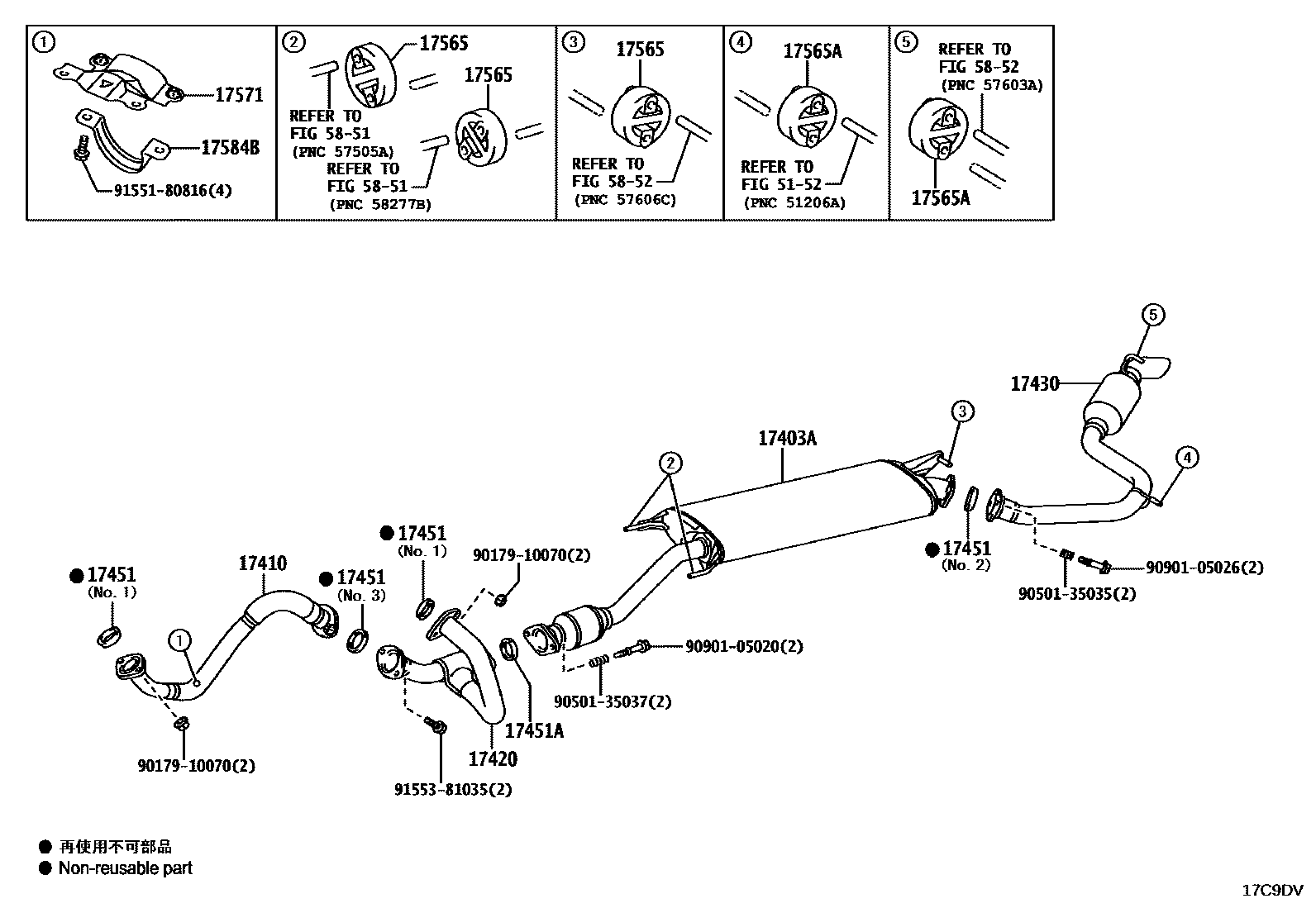

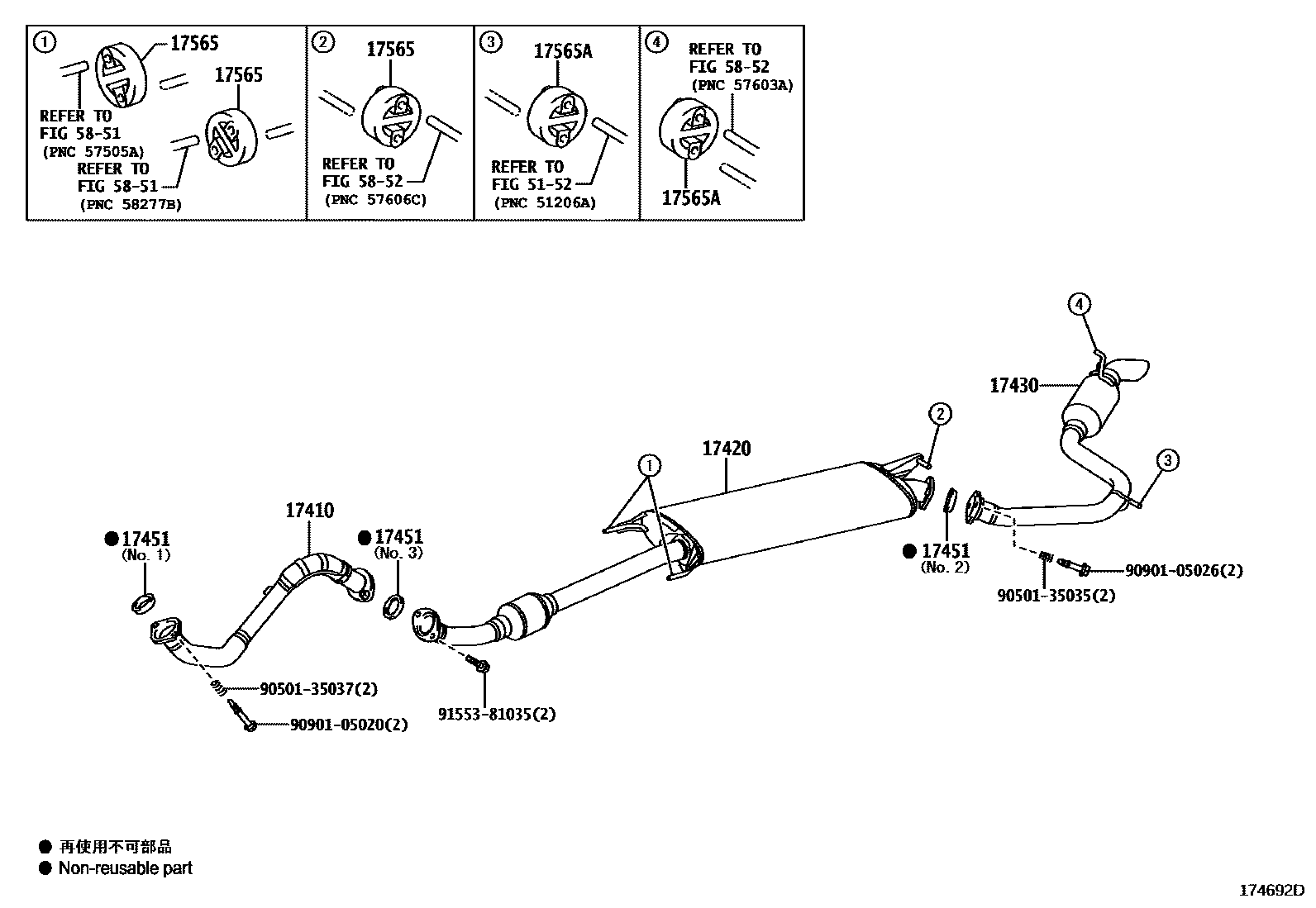

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17403A | No. 2 central exhaust pipe sub-assembly | 17404-31020 · 17404-31021 · 17404-31022 |
| 17410 | Front exhaust pipe assembly | 17410-28580 · 17410-28581 · 17410-31610 · 17410-31611 · 17410-36120 · 17410-36121 · 17410-36122 |
| 17420 | Central exhaust pipe assembly | 17403-31050 · 17403-31051 · 17420-28620 · 17420-28710 · 17420-36030 · 17420-36031 · 17420-36032 · 17420-36060 · 17420-36061 · 17420-36062 |
| 17430 | Exhaust tailpipe assembly | 17430-28770 · 17430-28771 · 17430-31510 · 17430-31511 · 17430-31513 · 17430-31514 · 17430-36070 · 17430-36071 · 17430-36072 |
| 17451 | Exhaust pipe gasket | 17451-28050 · 17451-28070 · 17451-31010 · 17451-31011 · 17451-31012 · 90917-06078 · 90917-06089 |
| 17451A | No. 2 exhaust pipe gasket | 17451-28040 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-22040 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-22030 |
| 17571 | No. 1 exhaust pipe bracket | 17571-31190 |
| 17584B | No. 1 exhaust pipe bracket | 17584-31040 |
