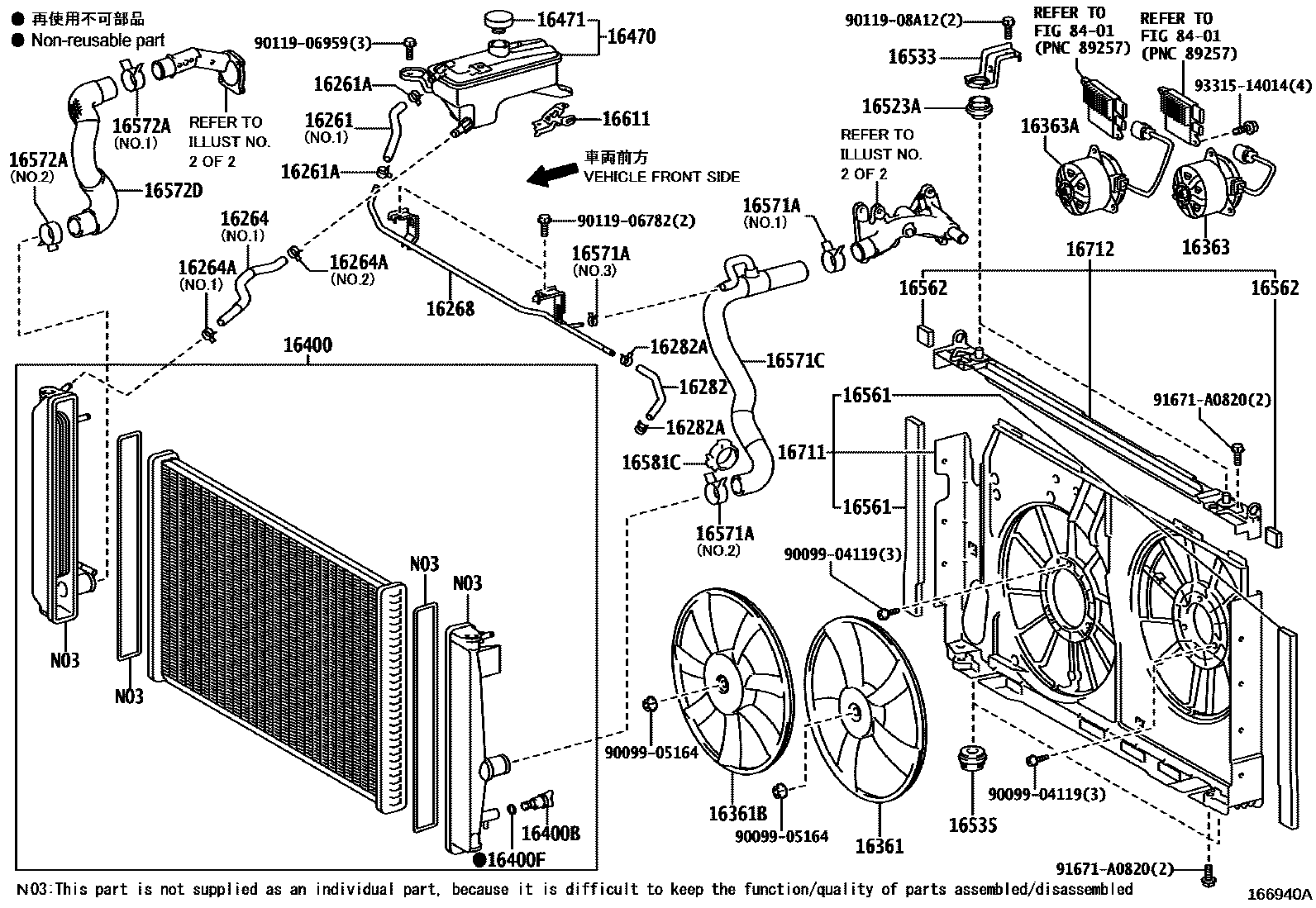

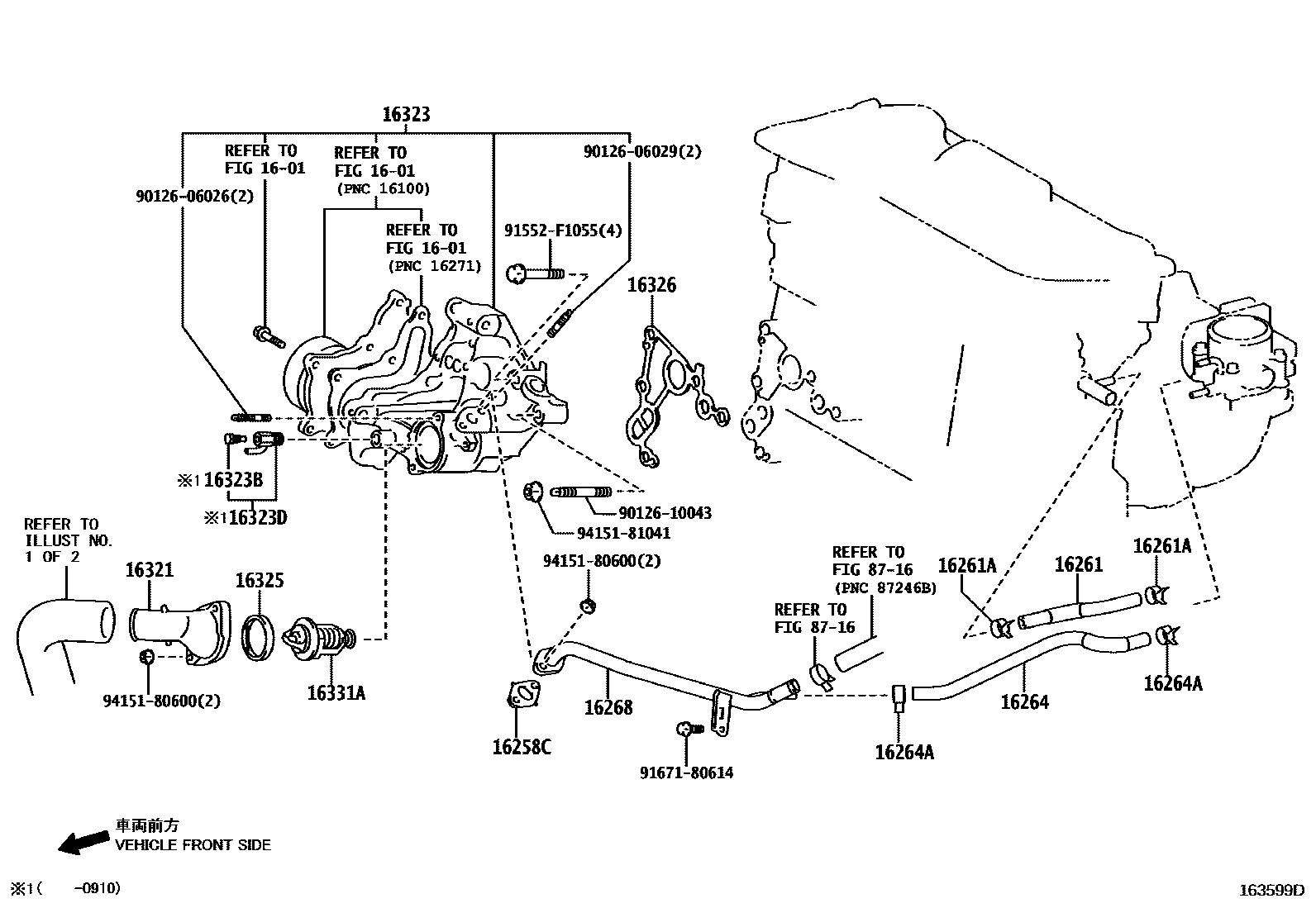

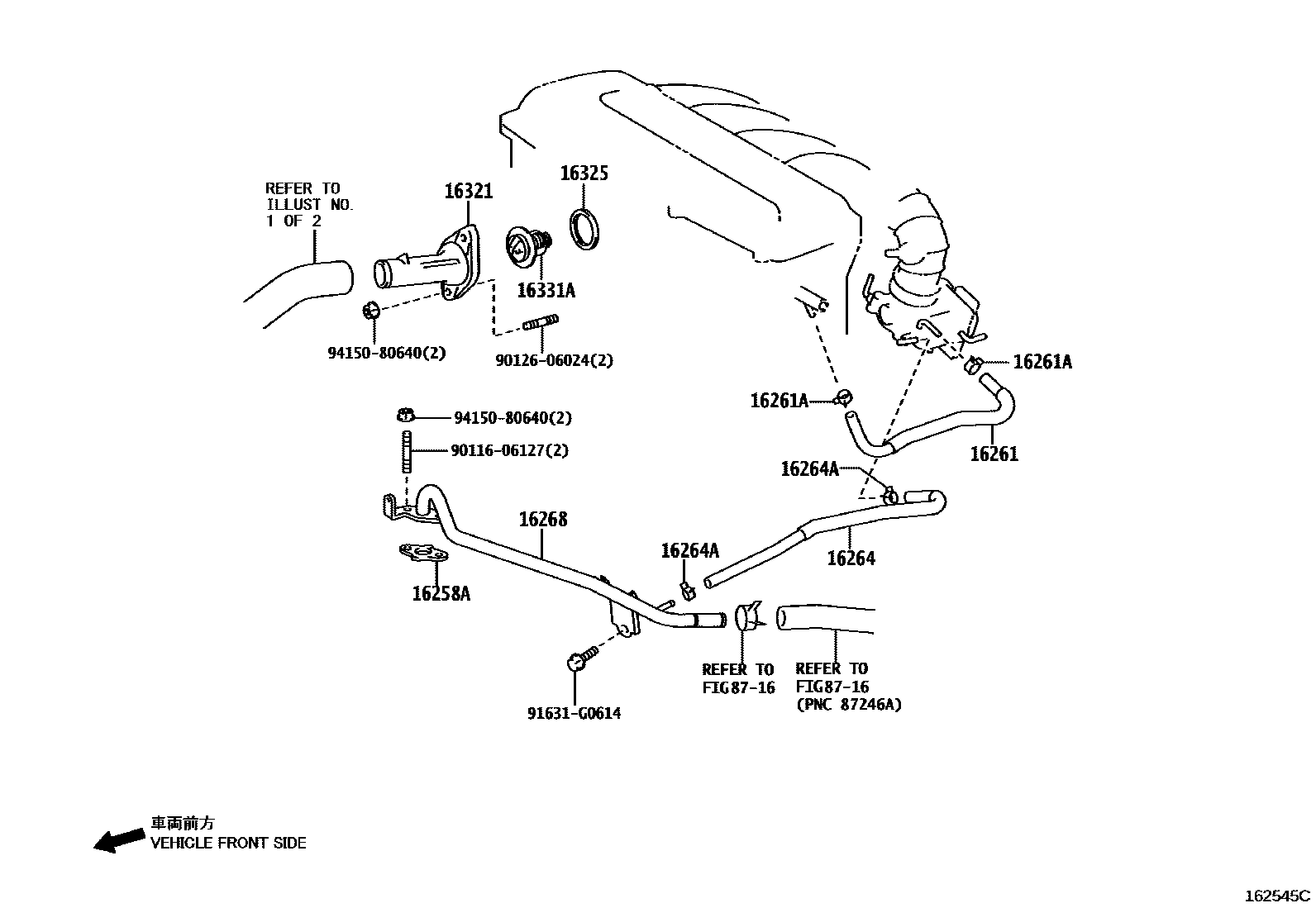

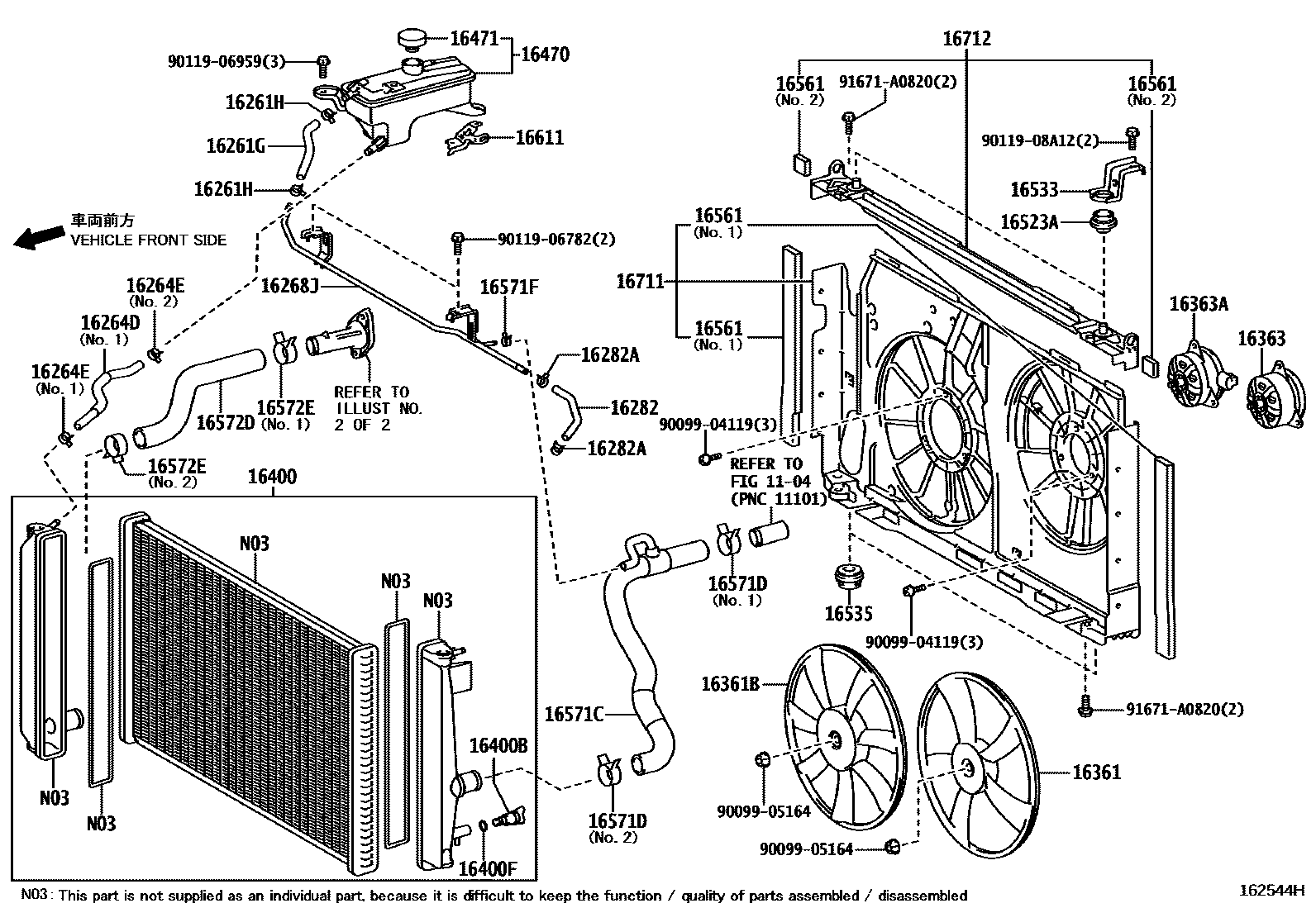

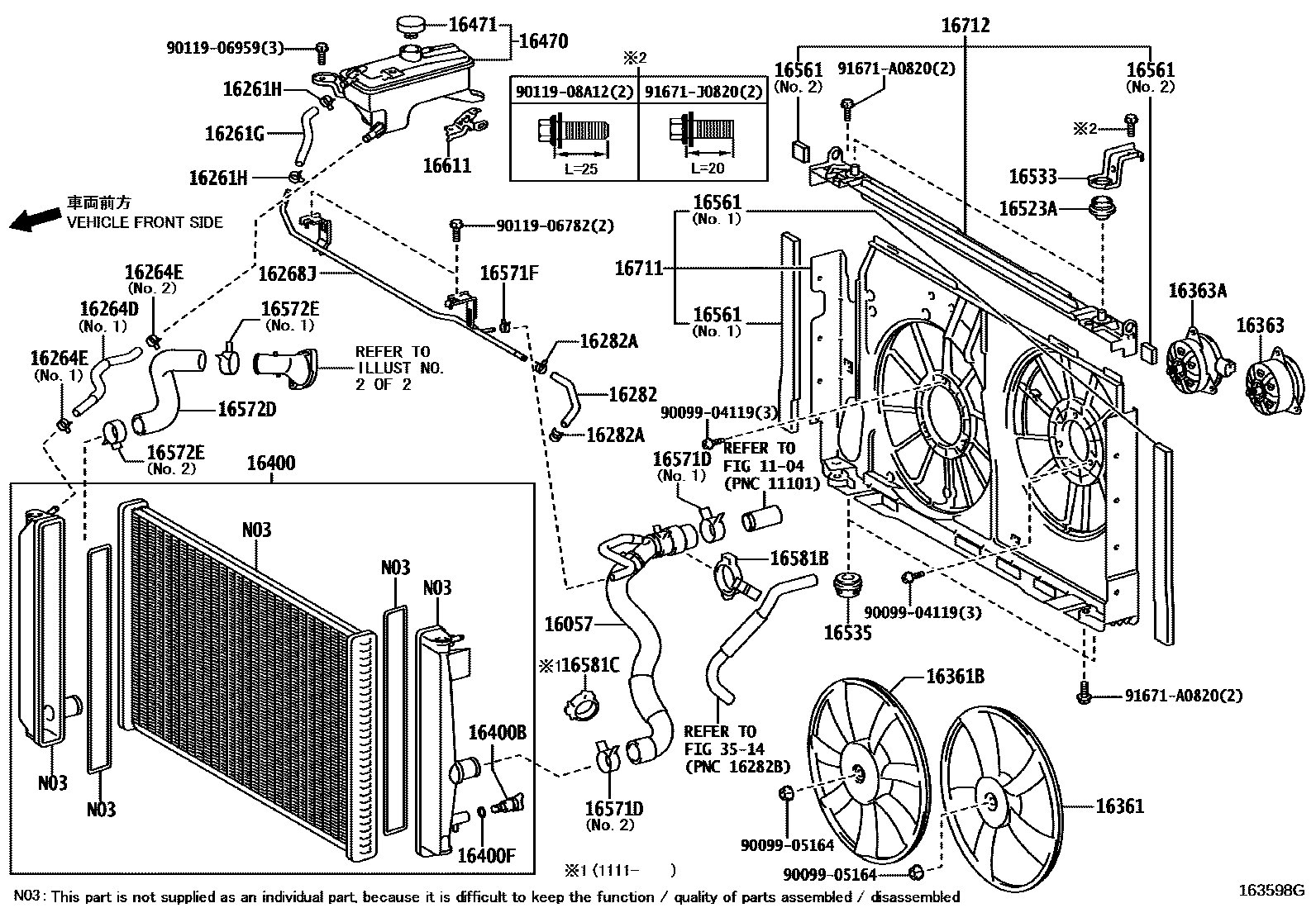

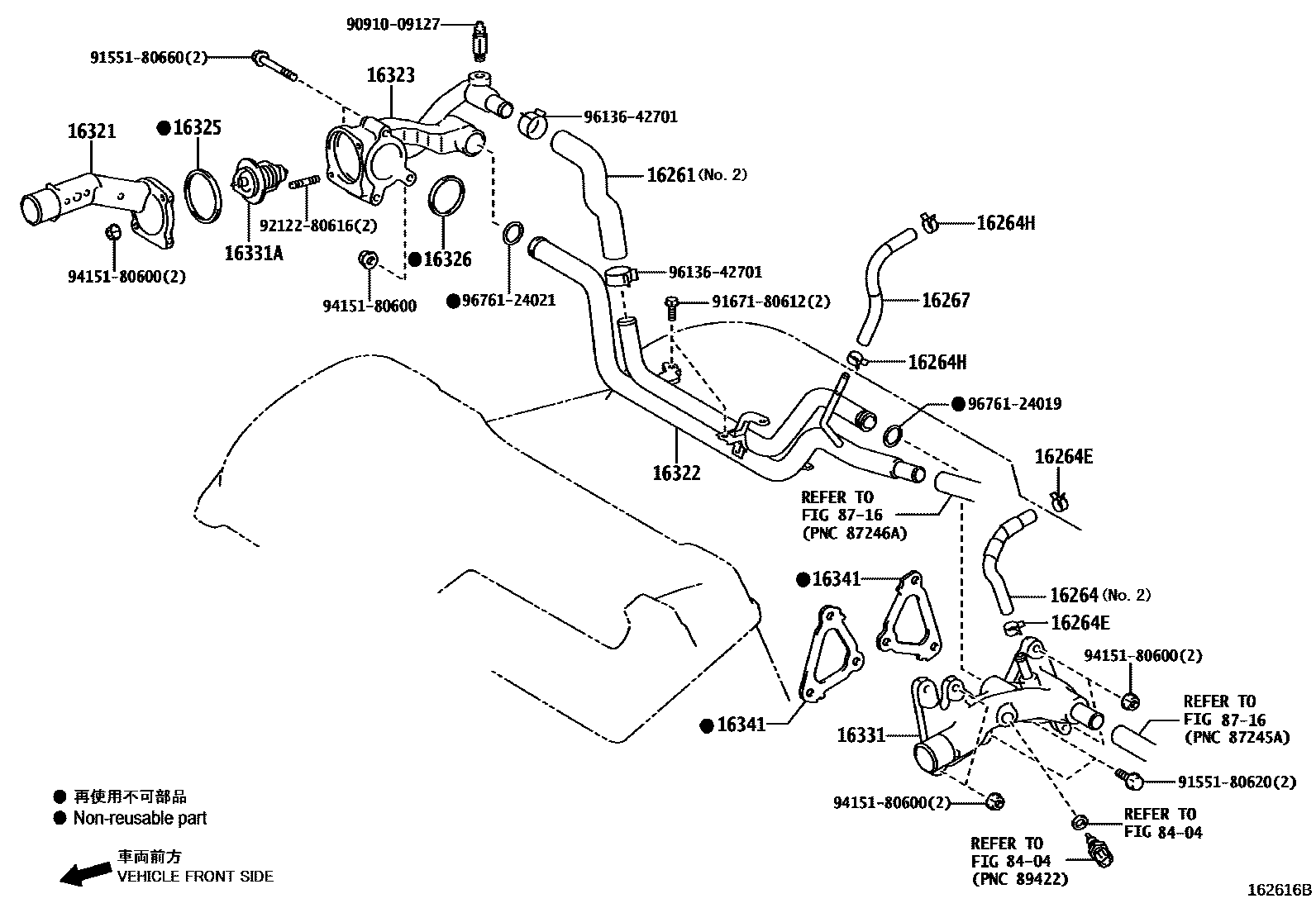

Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603
Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 7 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16057 | Radiator hose sub-assembly | 16057-36010 |
| 16258A | Pad (for heater return) | 16258-28030 |
| 16258C | Gasket (for water bypass pipe) | 16258-36010 |
| 16261 | HOSE, WATER BY-PASS | 16261-28070 · 16261-28100 · 16261-31050 · 16261-36010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-15022 · 96135-51300 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-28070 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90467-15022 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-28090 · 16264-28120 · 16264-31081 · 16264-36010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96134-51700 · 96135-51300 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-28090 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96134-51700 · 96137-41501 |
| 16264H | Clamp (for No. 3 water bypass hose) | 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-31040 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-28010 · 16268-31021 · 16268-36010 |
| 16268J | No. 5 water bypass pipe | 16268-31011 · 16268-31020 · 16268-31021 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-28120 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-15022 |
| 16321 | water inlet | 16321-28020 · 16321-31011 · 16321-31030 · 16321-36010 |
| 16322 | PIPE, WATER INLET | 16322-31010 · 16322-31020 |
| 16323 | HOUSING, WATER INLET | 16032-36010 · 16032-36011 · 16323-0W011 · 16323-31040 |
| 16323B | Screw plug (for water inlet housing) | 90910-09087 |
| 16323D | Water discharge switch assembly (for water inlet shell) | 90910-09129 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-31010 · 16326-36010 |
| 16331 | Water outlet | 16331-31140 |
| 16331A | thermostat | 90916-03129 · 90916-03133 · 90916-03136 · 90916-03140 |
| 16341 | GASKET, WATER OUTLET | 16341-31010 |
| 16361 | Fan | 16361-28220 · 16361-31160 |
| 16361B | Fan No. 2 | 16361-28240 · 16361-31170 |
| 16363 | cooling fan motor | 16363-28170 · 16363-31100 · 16363-31120 |
| 16363A | Cooling fan motor No. 2 | 16363-28290 · 16363-31110 · 16363-31130 |
| 16400 | Radiator assembly | 16400-28570 · 16400-31420 · 16400-31430 |
| 16400B | Radiator drain switch screw plug | 16417-30170 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 |
| 16470 | Radiator reservoir assembly | 16470-28110 · 16470-28111 |
| 16471 | Liquid storage tank cover sub-assembly | 16401-75120 · 16475-28120 · 16475-37010 · 16475-51010 |
| 16523A | Radiator bracket cushion | 16523-28030 |
| 16533 | Radiator upper bracket | 16533-28030 · 16533-31010 |
| 16535 | Radiator lower support | 16535-20030 · 16535-28060 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-28080 · 16561-28090 |
| 16562 | Seal No. 2 (radiator to bracket) | 16561-28090 · 16561-31070 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-35001 · 90466-41005 · 90467-13073 · 90467-13128 · 96136-44301 · 96136-44801 · 96136-54301 · 96136-54801 |
| 16571C | Radiator hose No. 1 | 16571-28250 · 16571-31190 · 16571-31191 |
| 16571D | No. 1 radiator hose clip | 90466-35001 · 90466-41005 · 96136-44301 · 96136-44801 · 96136-54301 · 96136-54801 |
| 16571F | Clamps or clips (for water hoses) | 90467-13073 · 90467-13128 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-35001 · 90466-41005 · 96136-44301 · 96136-44801 · 96136-54301 · 96136-54801 |
| 16572D | Radiator hose No. 2 | 16572-28210 · 16572-31210 · 16572-36040 |
| 16572E | No. 2 radiator hose clip | 90466-35001 · 90466-41005 · 96136-44301 · 96136-44801 · 96136-54301 · 96136-54801 |
| 16581B | Hose clamp (for radiator hose) | 16581-36010 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-26040 |
| 16611 | Radiator reservoir bracket | 16611-28030 |
| 16711 | fan cover | 16711-28320 · 16711-28321 · 16711-31260 · 16711-31261 · 16711-31270 · 16711-31271 |
| 16712 | No. 2 fan cover | 16712-28050 · 16712-31070 · 16712-31071 |
