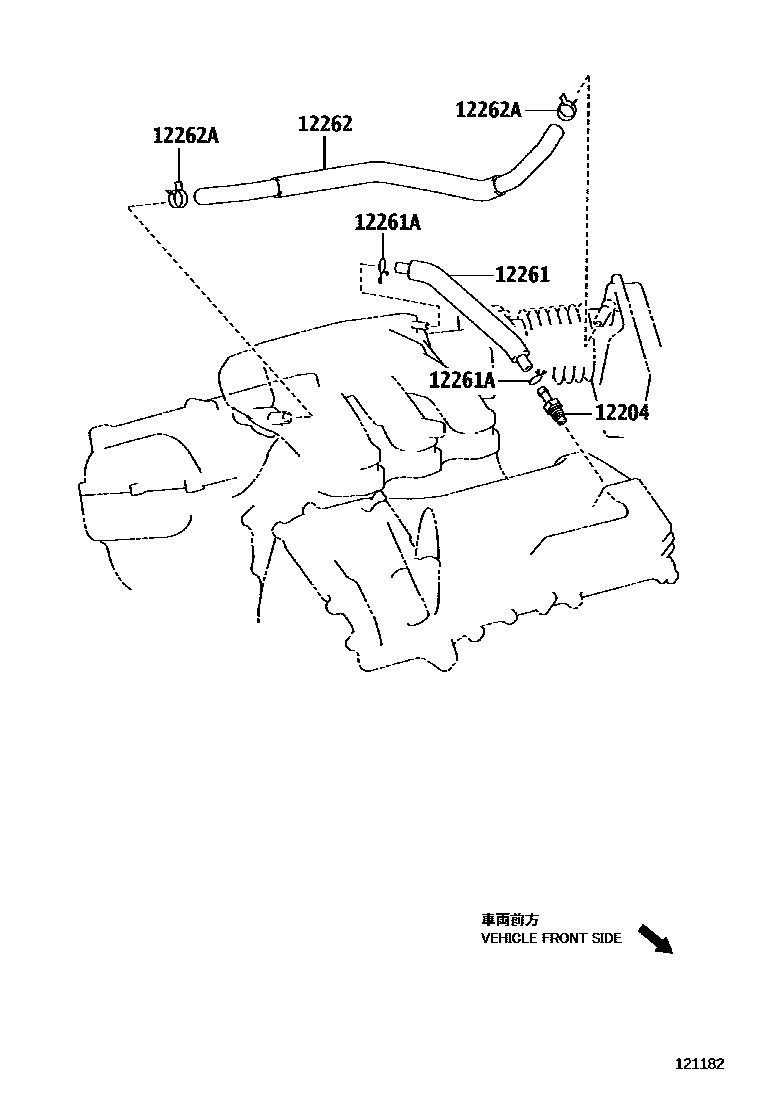

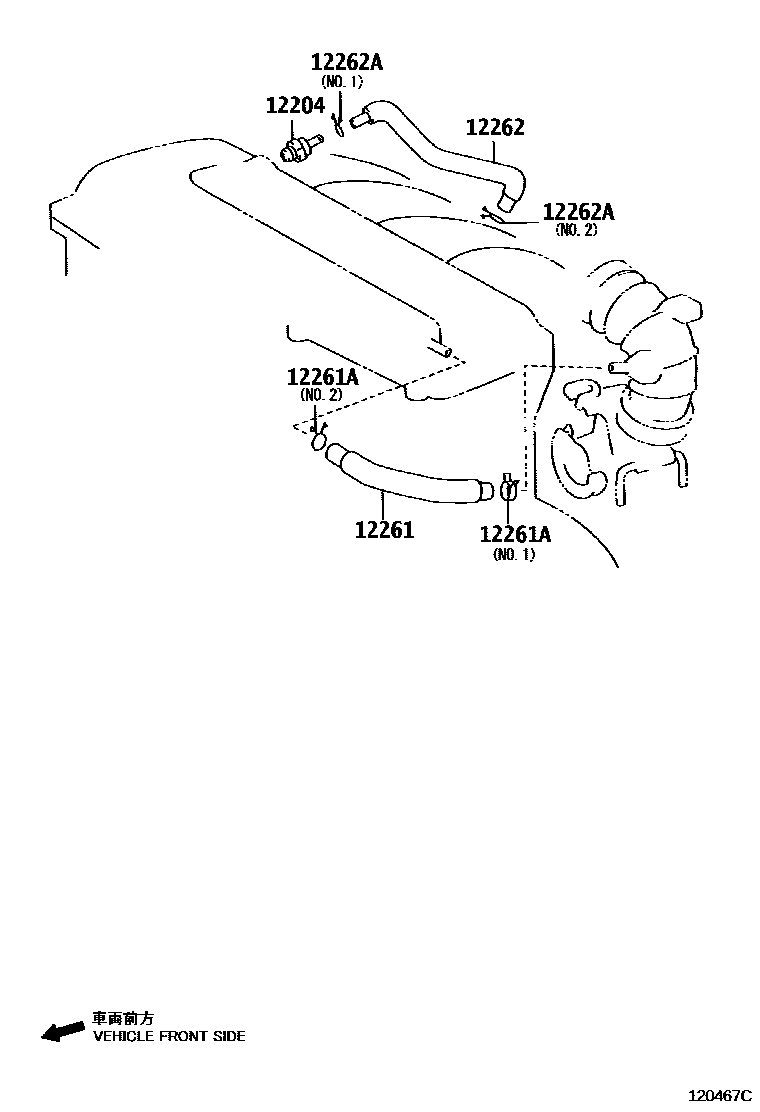

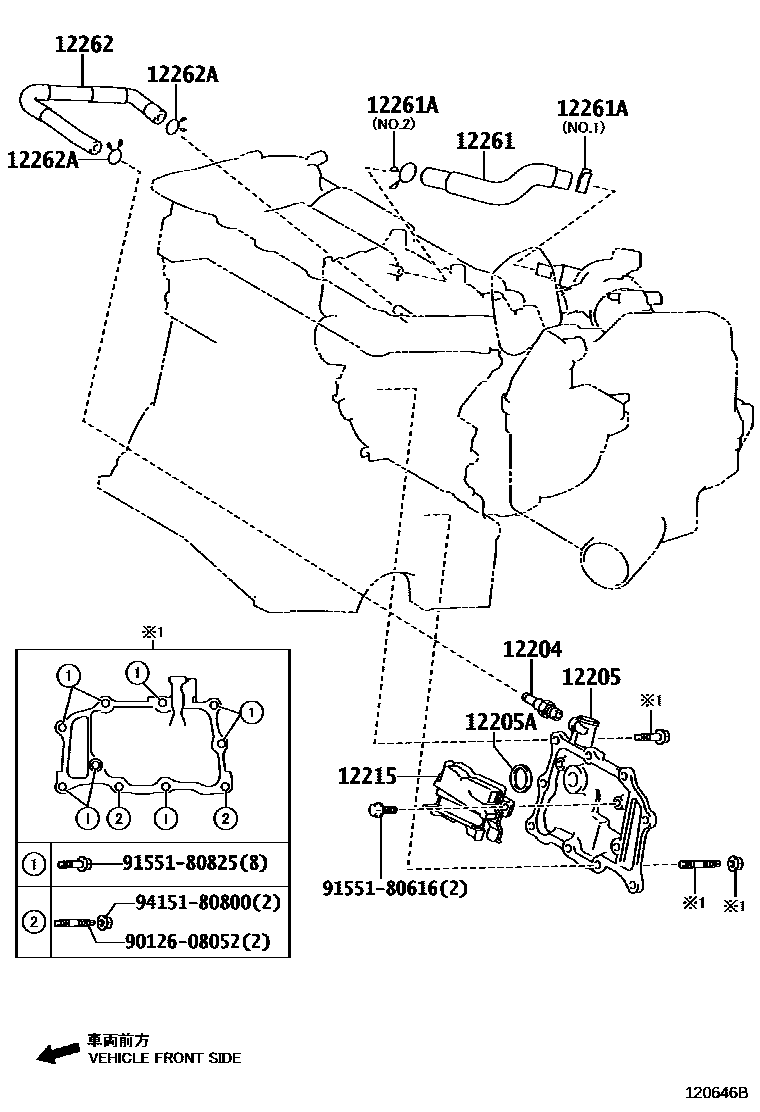

Toyota RAV4 Ventilation Hose — Figure 1201
Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-28030 · 12204-31040 · 12204-31120 · 12204-36020 |
| 12205 | Ventilation box sub-assembly | 12205-36010 |
| 12205A | O-ring (for ventilation box) | 12273-36010 |
| 12215 | Ventilation box isolation device | 12215-36010 |
| 12261 | Ventilation Hose | 12261-28160 · 12261-31050 · 12261-36020 |
| 12261A | Clip or clip (for vent hose) | 90467-14017 · 90467-19003 · 90467-21004 · 96134-41900 |
| 12262 | Ventilation hose No. 2 | 12262-28021 · 12262-31090 · 12262-36020 · 12262-36040 |
| 12262A | Clamp (for vent hose No. 2) | 90467-13103 · 90467-16035 · 90467-21004 |
