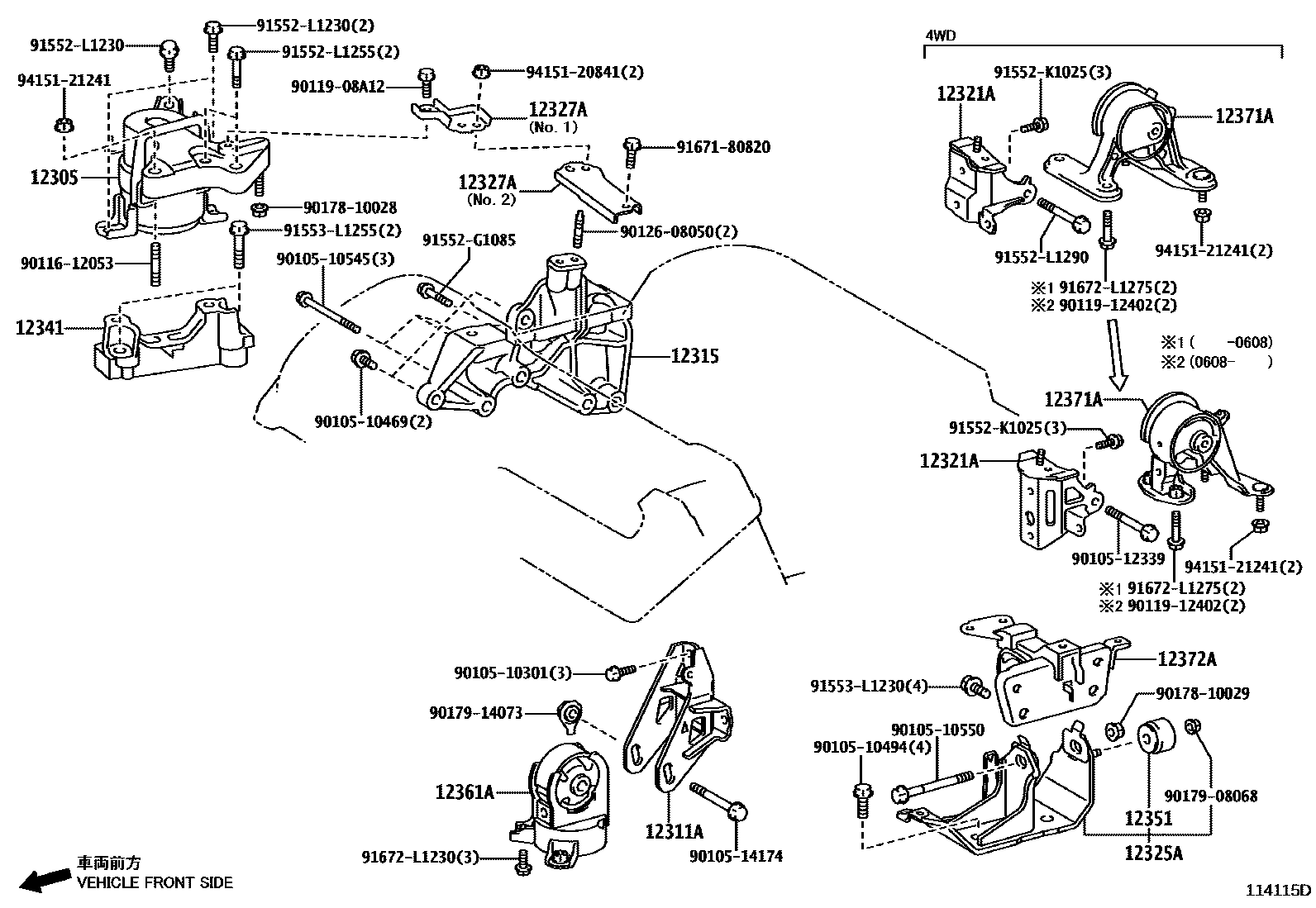

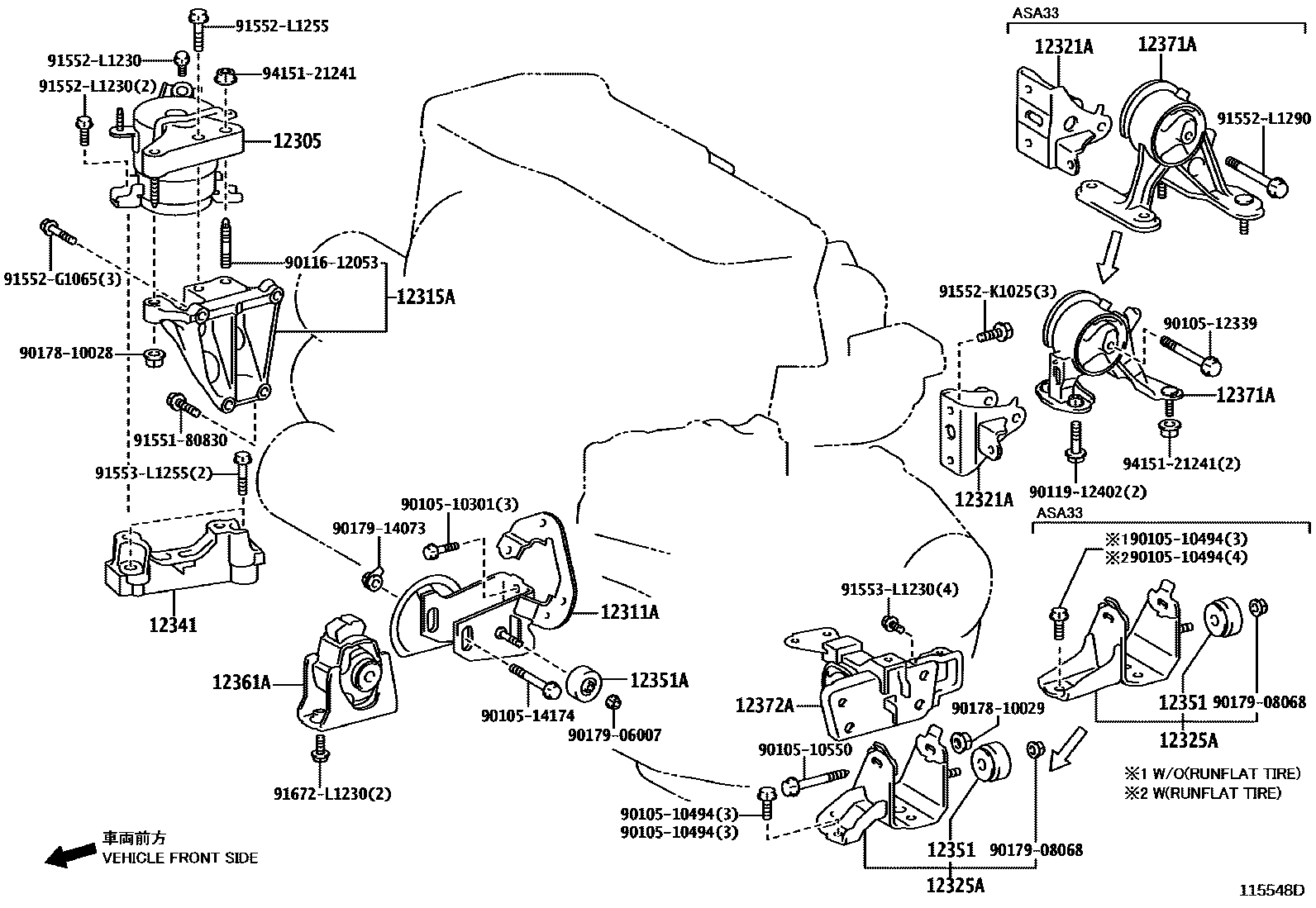

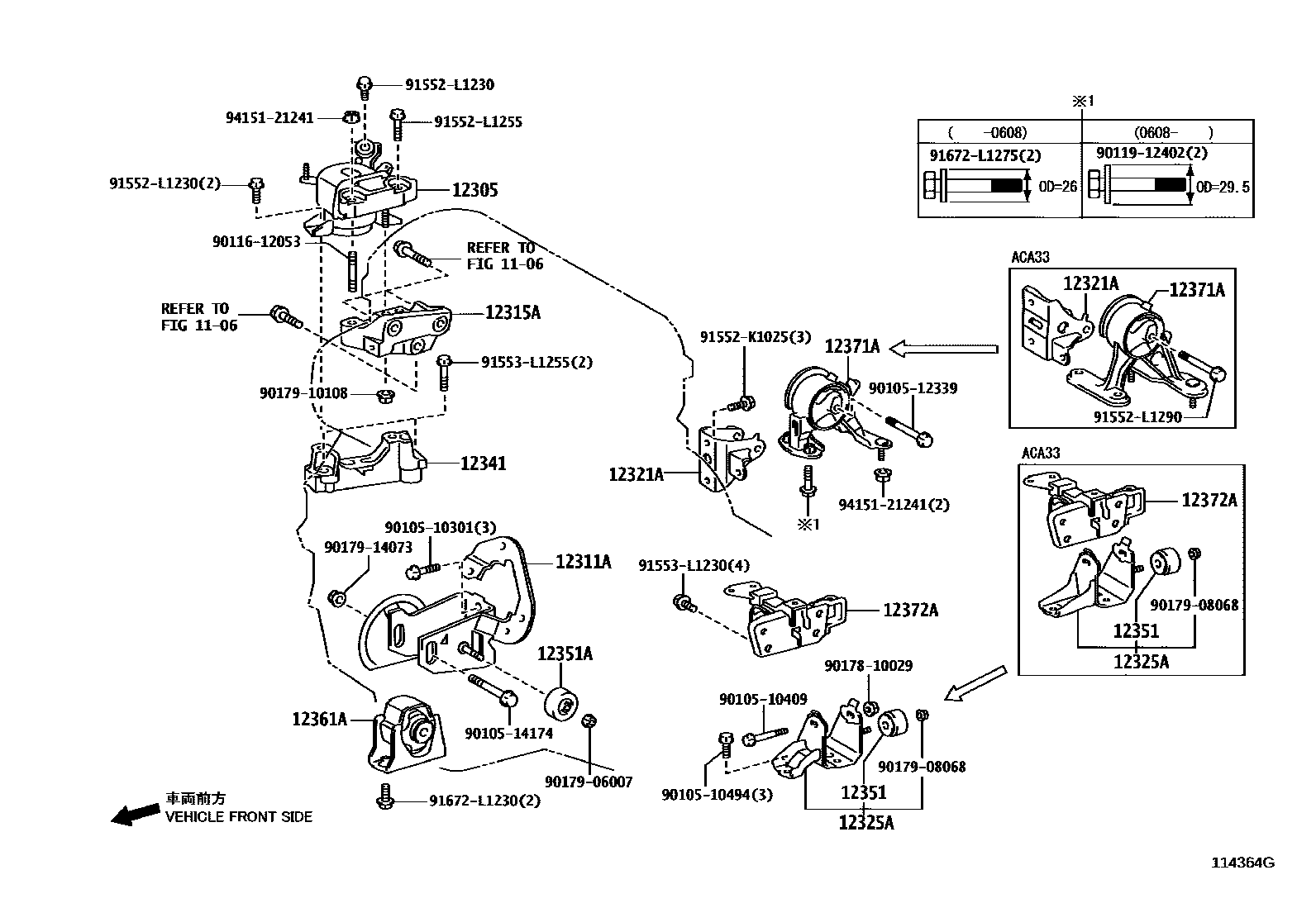

Toyota RAV4 Engine Mounting — Figure 1107
Toyota RAV4 EPC diagram 1107, Engine Mounting, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-28230 · 12305-28240 · 12305-31020 · 12305-36010 · 12305-36020 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-28260 · 12311-28270 · 12311-31070 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-31110 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-28090 · 12315-36010 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-28190 · 12321-28210 · 12321-31050 · 12321-31060 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12304-28150 · 12304-28160 · 12304-31010 · 12304-31030 · 12304-36020 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-31010 · 12327-31040 |
| 12341 | engine mounting spacer | 12341-26010 · 12341-26011 |
| 12351 | engine mount shock absorber | 12351-11072 · 12351-22100 · 12351-23010 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-28110 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-28250 · 12361-31160 · 12361-31270 · 12361-36040 · 12361-36070 |
| 12371A | Engine rear mount vibration isolation pad | 12371-28190 · 12371-28210 · 12371-31100 · 12371-31101 · 12371-31110 · 12371-31111 · 12371-36020 · 12371-36030 · 12371-36060 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-28220 · 12372-31020 · 12372-31021 · 12372-31070 · 12372-36010 |
