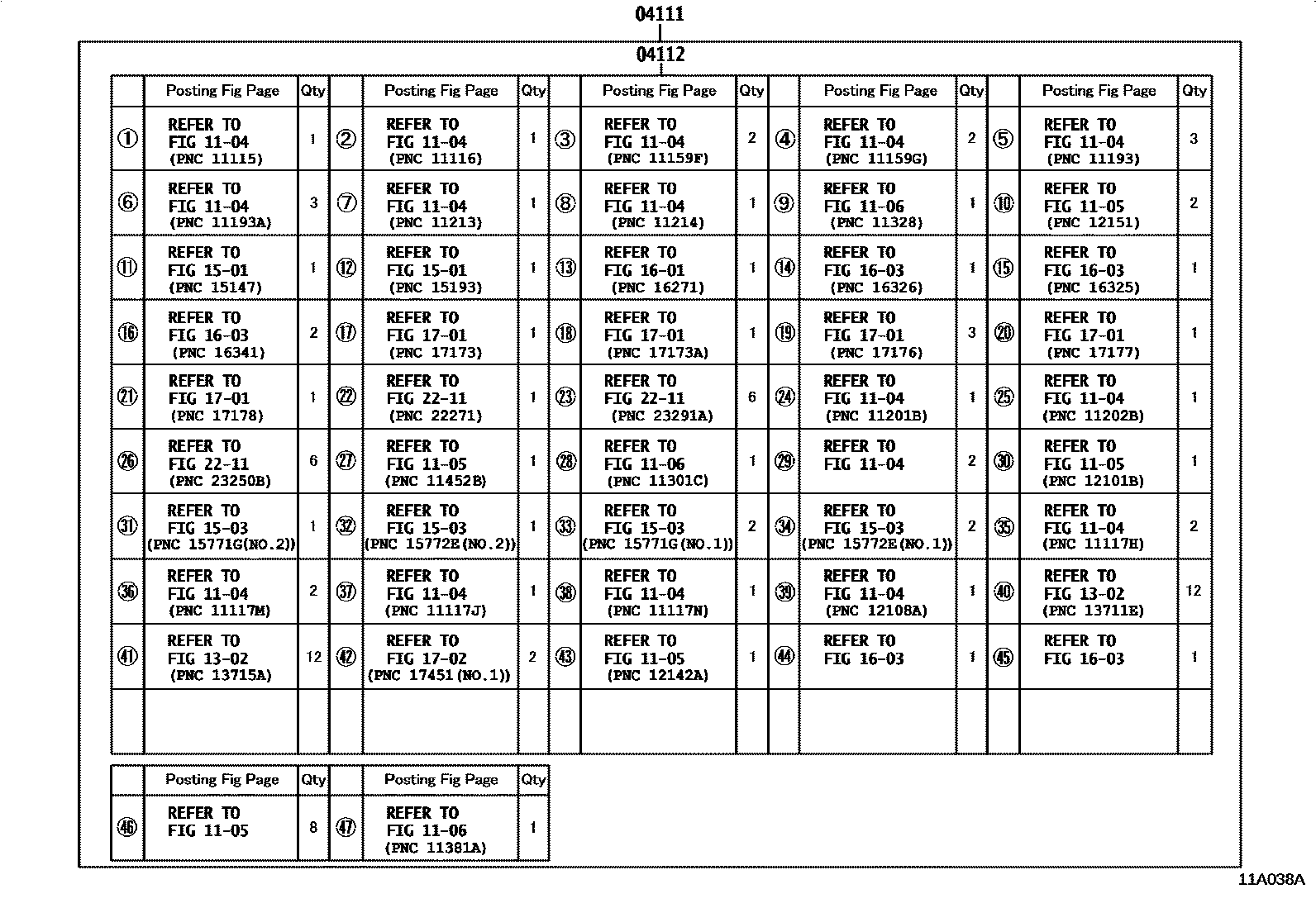

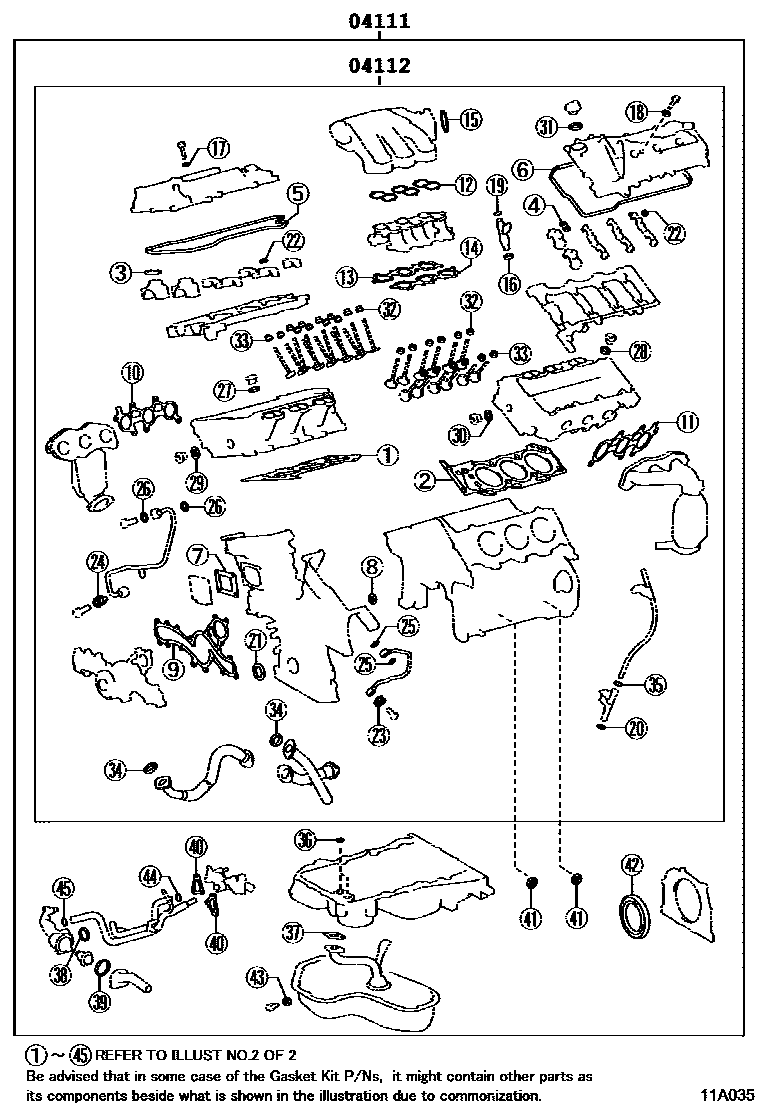

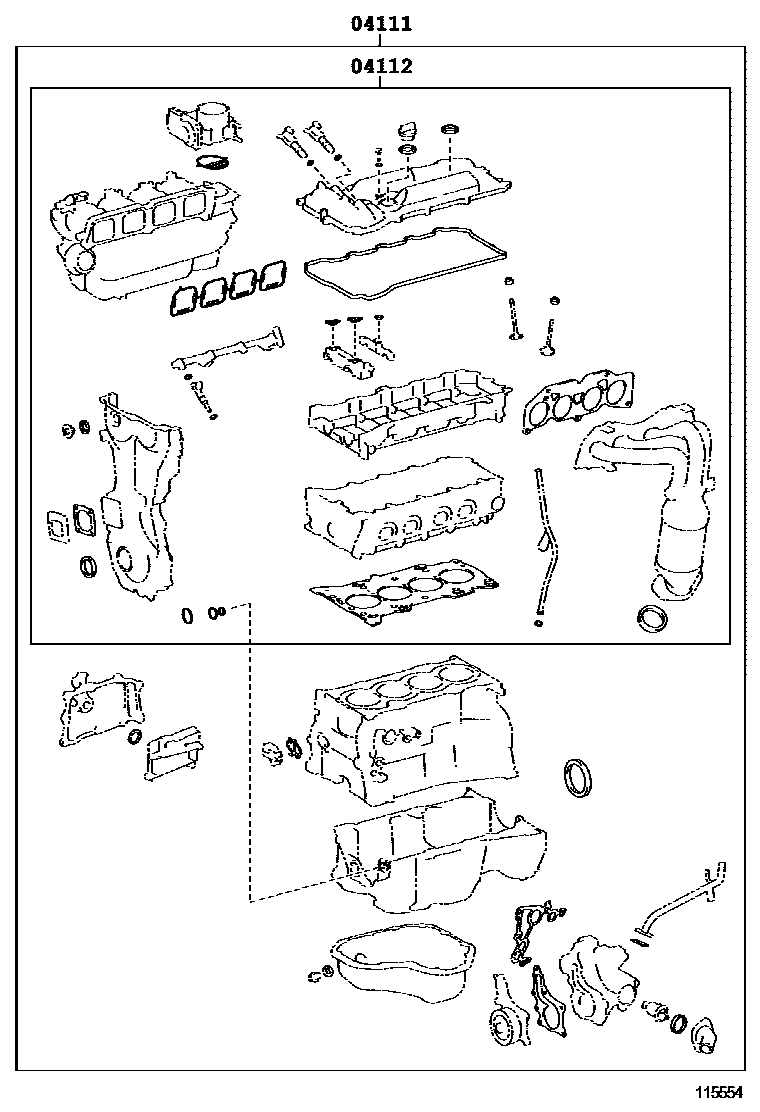

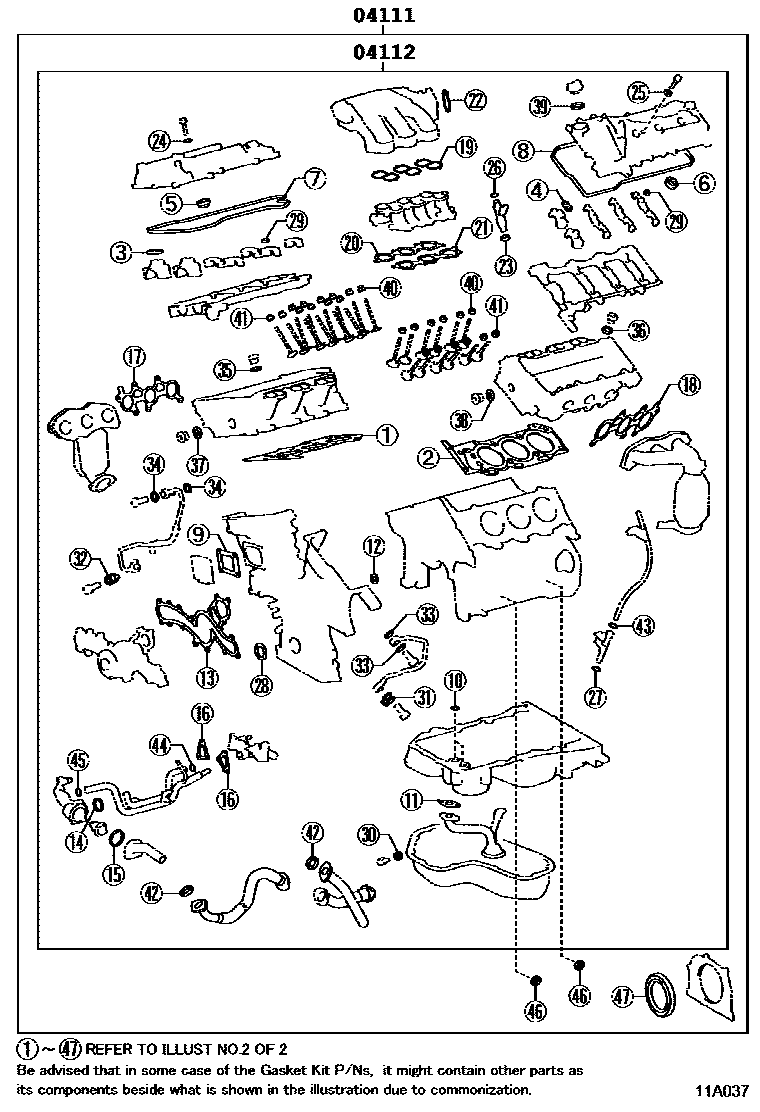

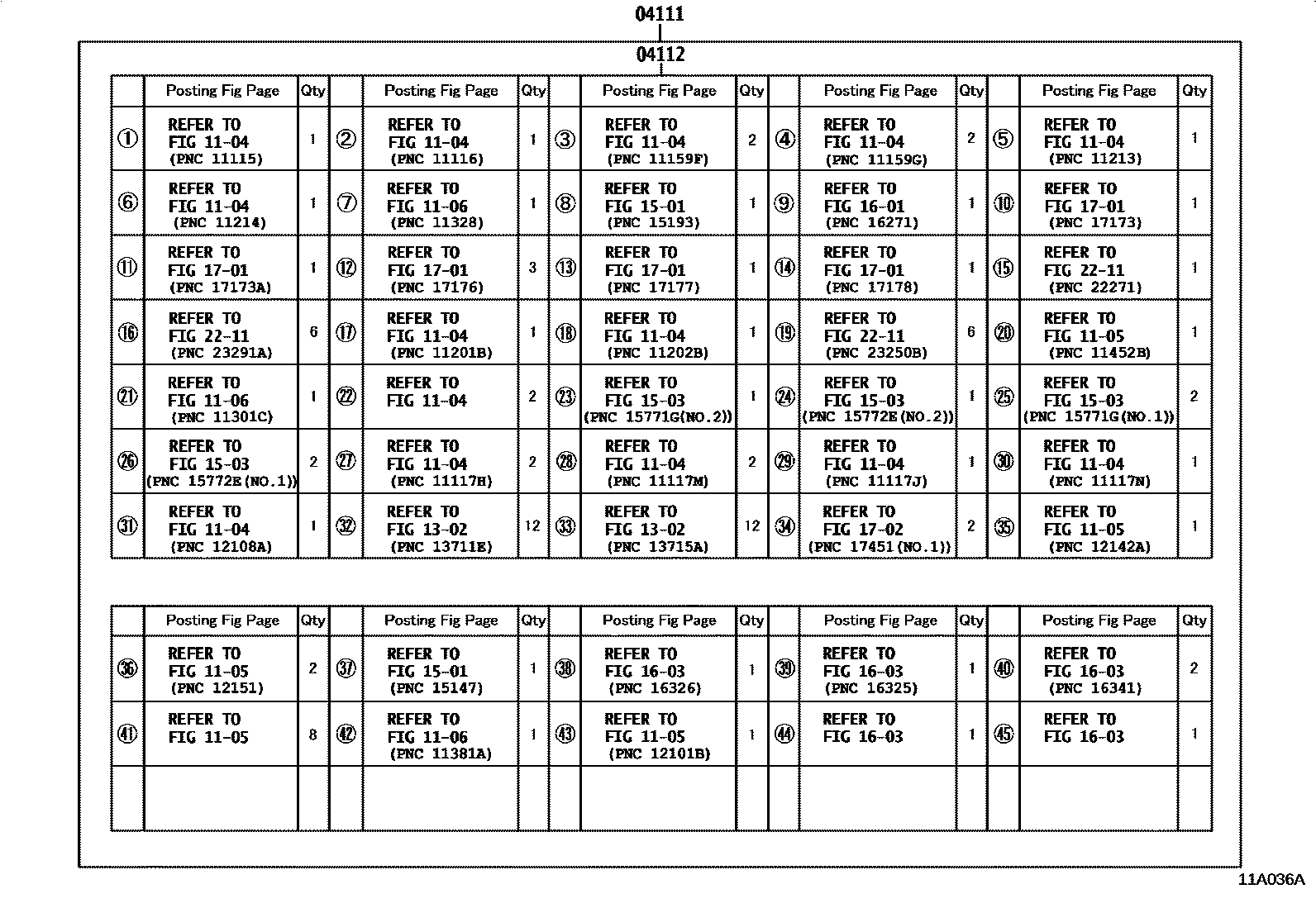

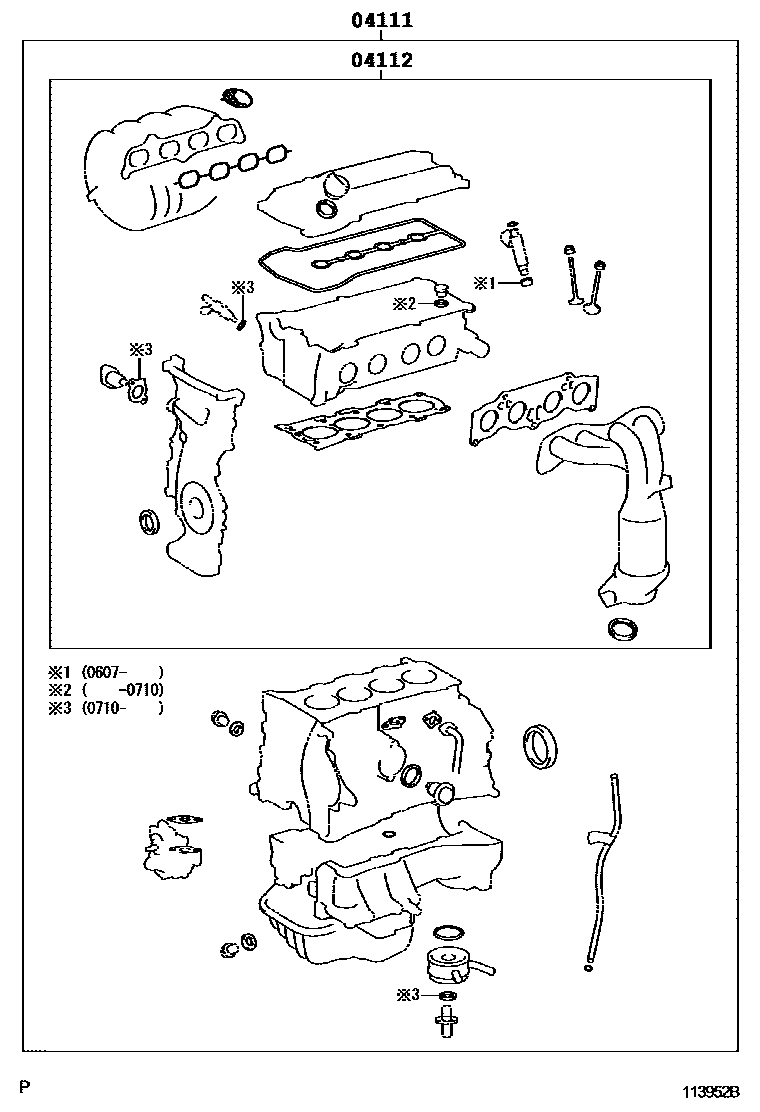

Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103
Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-28720 · 04111-28721 · 04111-28980 · 04111-31440 · 04111-31441 · 04111-31442 · 04111-31443 · 04111-31444 · 04111-36062 · 04111-36070 · 04111-36071 · 04111-36072 |
| 04112 | Engine valve grinding pad assembly | 04112-28590 · 04112-28591 · 04112-28592 · 04112-31270 · 04112-31271 · 04112-31272 · 04112-31273 · 04112-31274 · 04112-36051 · 04112-36060 · 04112-36061 |
