Toyota RAV4 Short Block Assembly — Figure 1102

Toyota RAV4 EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

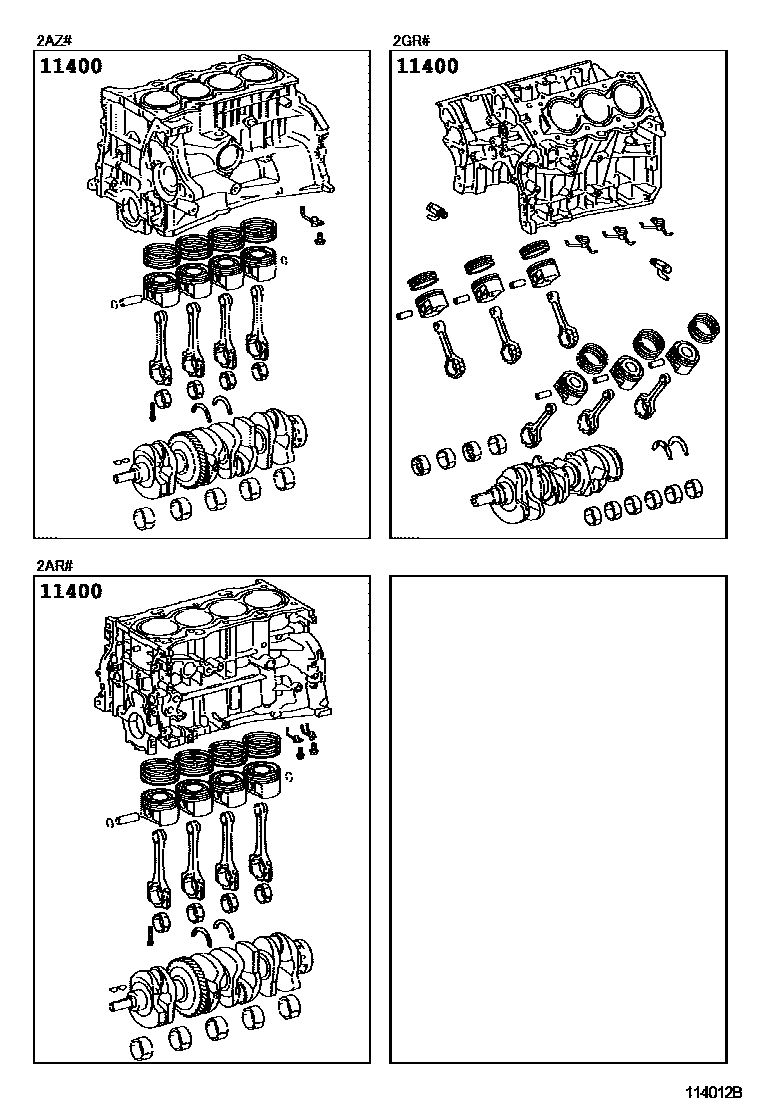

Toyota RAV4 Short Block Assembly EPC diagram — 114012B
Short Block Assembly — 114012B (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-28400 · 11400-28490 · 11400-31160 · 11400-31161 · 11400-31163 · 11400-31360 · 11400-36060
