Toyota RAV4 Standard Tools — Figure 0901

Toyota RAV4 EPC diagram 0901, Standard Tools, with 2 images and 6 PNC and OE references.

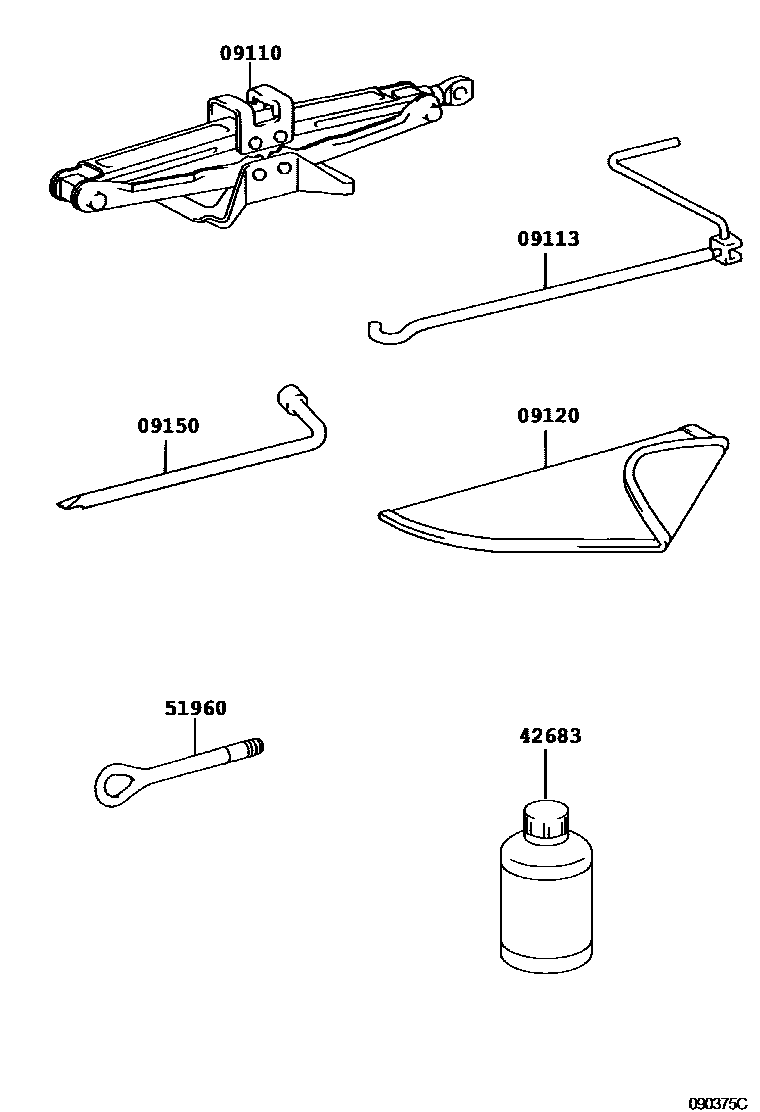

Toyota RAV4 Standard Tools EPC diagram — 090375C
Standard Tools — 090375C (200511 – 201203)

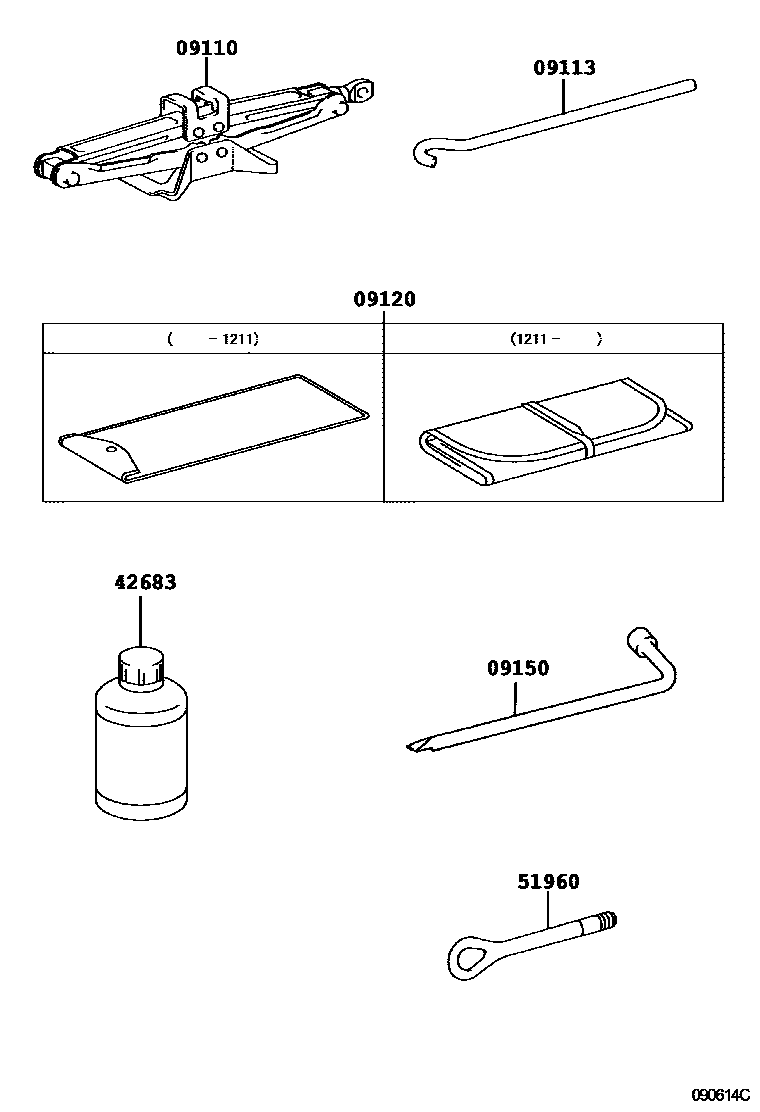

Toyota RAV4 Standard Tools EPC diagram — 090614C
Standard Tools — 090614C (201203 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09111-0W110 · 09111-0W111 · 09111-0W140
09113Jack Handle09113-42010 · 09113-42030
09120Tool Bag09120-10040 · 09120-30050 · 09120-37030
09150Wheel Nut Wrench09150-40010 · 09150-42010
42683Tire Repair Sealant42683-42020
51960Front Towing Hook Assembly51961-42050
