Toyota RAV4 后视镜 — Figure 8701

Toyota RAV4 EPC diagram 8701, 后视镜, with 2 images and 8 PNC and OE references.

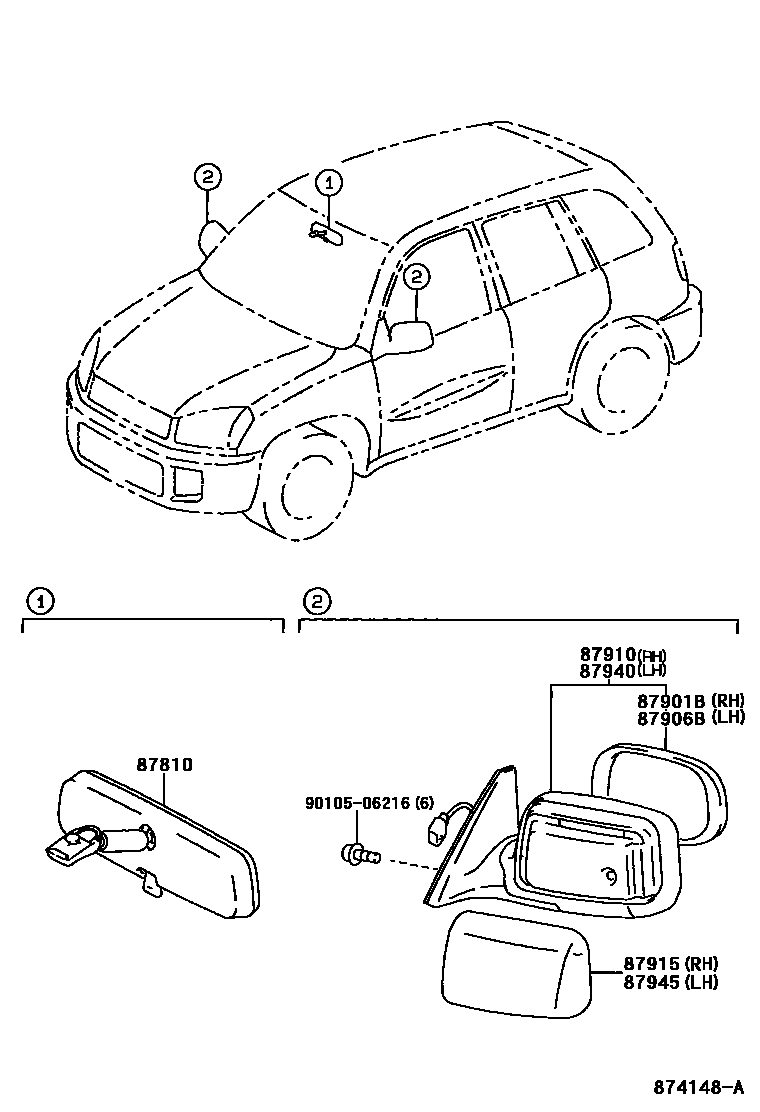

Toyota RAV4 后视镜 EPC diagram — 874148A
后视镜 — 874148A (200008 – 200307)

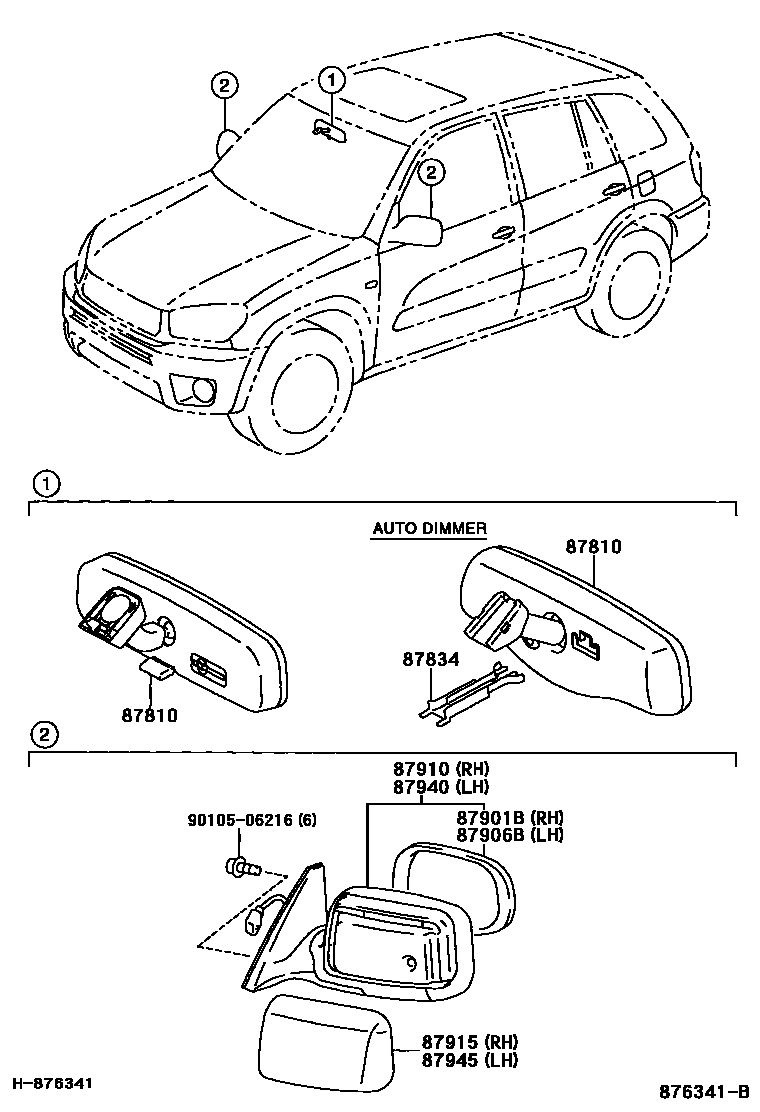

Toyota RAV4 后视镜 EPC diagram — 876341B
后视镜 — 876341B (200307 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-05040 · 87810-52040 · 87810-AA010
87834Interior rearview mirror stay fixing cover87818-AC010
87901BRight exterior rearview mirror sub-assembly87931-42670 · 87931-42690 · 87931-42790 · 87931-42800
87906BLeft exterior rearview mirror sub-assembly87961-42620 · 87961-42640 · 87961-42730 · 87961-42740
87910Right exterior rearview mirror assembly87910-42670 · 87910-42680 · 87910-42690 · 87910-42790 · 87910-42800
87915Right exterior rearview mirror cover87915-42010 · 87915-44010 · 87915-46010
87940Left exterior rearview mirror assembly87940-42620 · 87940-42630 · 87940-42640 · 87940-42730 · 87940-42740
87945Left exterior rearview mirror cap87945-42010 · 87945-44010 · 87945-46010
