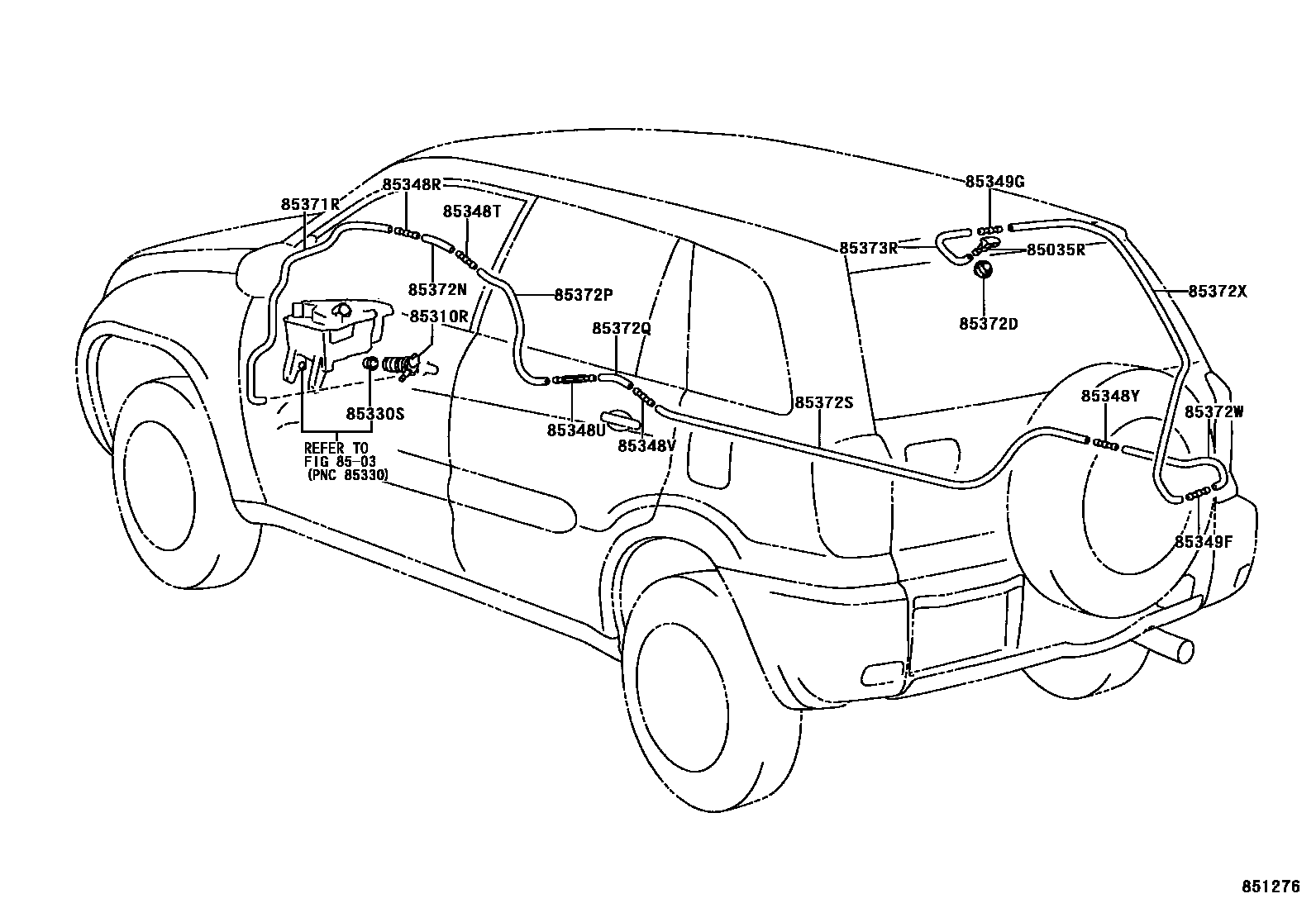

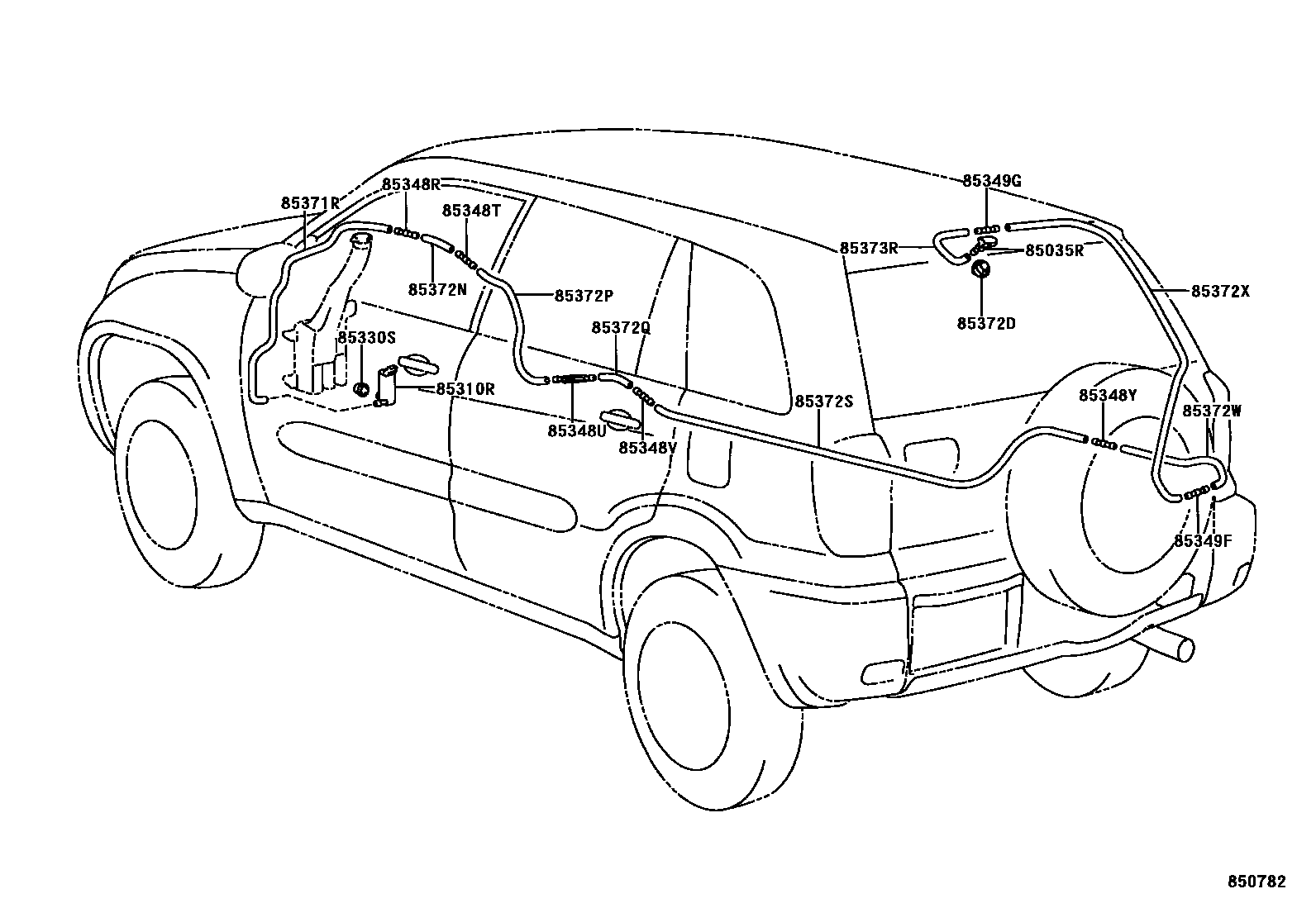

Toyota RAV4 后清洗器 — Figure 8504
Toyota RAV4 EPC diagram 8504, 后清洗器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85385-42020 · 85395-42020 |
| 85310R | Rear washer motor assembly | 85330-60140 · 85330-60180 |
| 85330S | Rear washer fluid tank bushing | 85336-60300 · 90099-32089 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85348U | No. 3 rear washer hose connector | 85349-32150 |
| 85348V | No. 4 rear washer hose connector | 85349-89122 |
| 85348Y | No. 5 rear washer hose connector | 85349-89122 |
| 85349F | No. 1 rear washer hose connector | 85349-89122 |
| 85349G | No. 2 rear washer hose connector | 85349-89122 |
| 85372D | Rear washer hose seal | 85372-20020 |
