Toyota RAV4 挡风玻璃刮水器 — Figure 8501

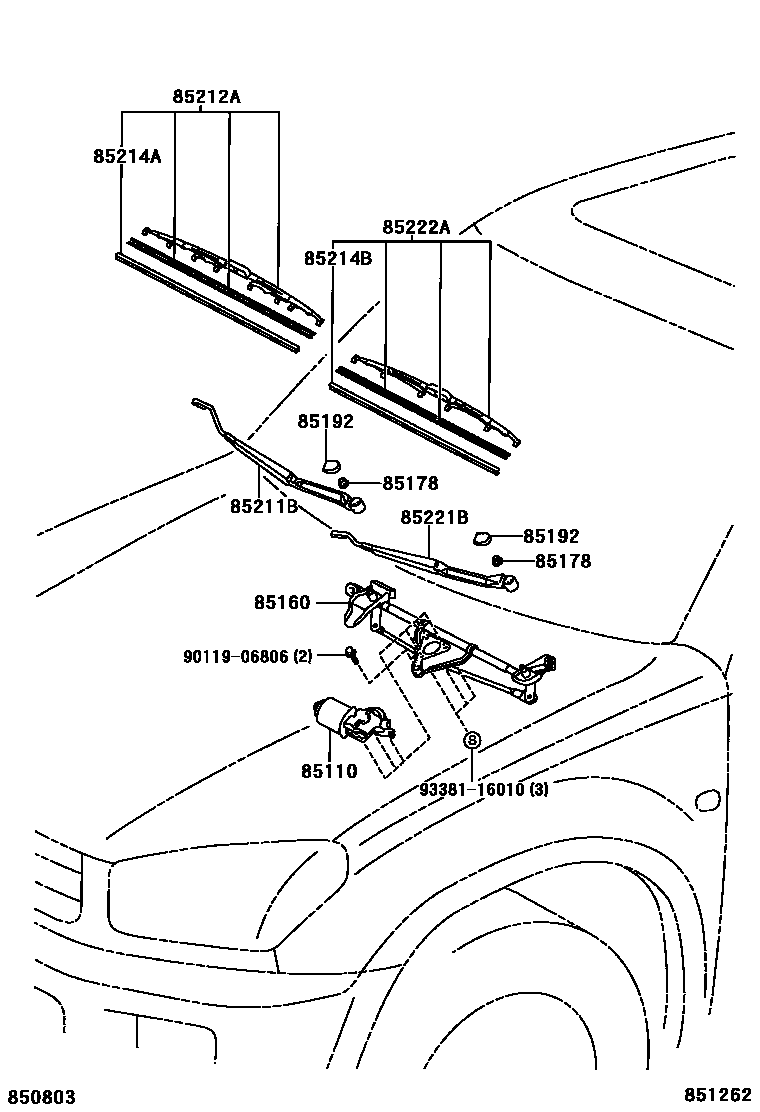

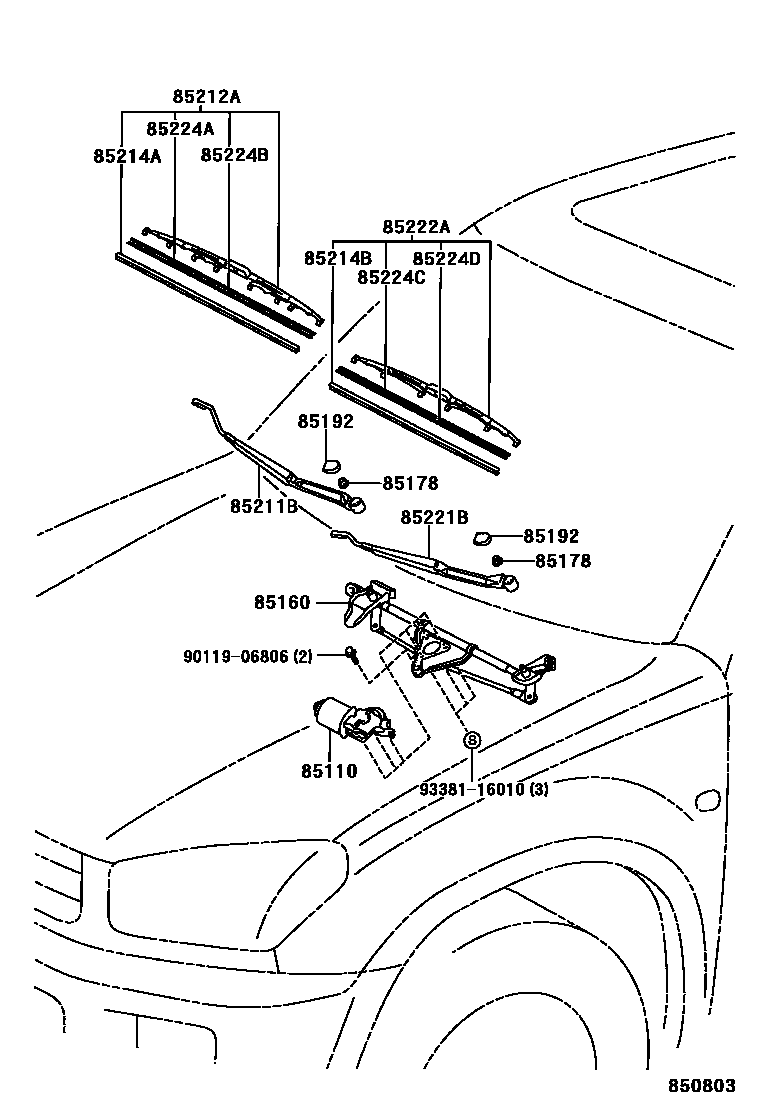

Toyota RAV4 EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-42120 · 85110-42130 |
| 85160 | Windshield wiper connecting rod assembly | 85150-42080 · 85150-42090 |
| 85178 | Nut (for securing front wiper arm) | 90179-10223 |
| 85192 | windshield wiper arm cover | 85292-13010 |
| 85211B | Right front wiper arm | 85211-42090 |
| 85212A | Right front wiper blade | 85212-53030 · 85212-53050 |
| 85214A | Right wiper rubber strip | 85214-33080 · 85214-53040 |
| 85214B | Left wiper rubber strip | 85214-30320 · 85214-48010 · 85214-50100 · 85214-53010 |
| 85221B | Left front wiper arm | 85221-42080 · 85221-42100 |
| 85222A | Left front wiper blade | 85222-24080 · 85222-42060 · 85222-42080 · 85222-48040 · 85222-60211 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-35040 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-35040 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-33040 · 85224-44040 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-33040 · 85224-44040 |
