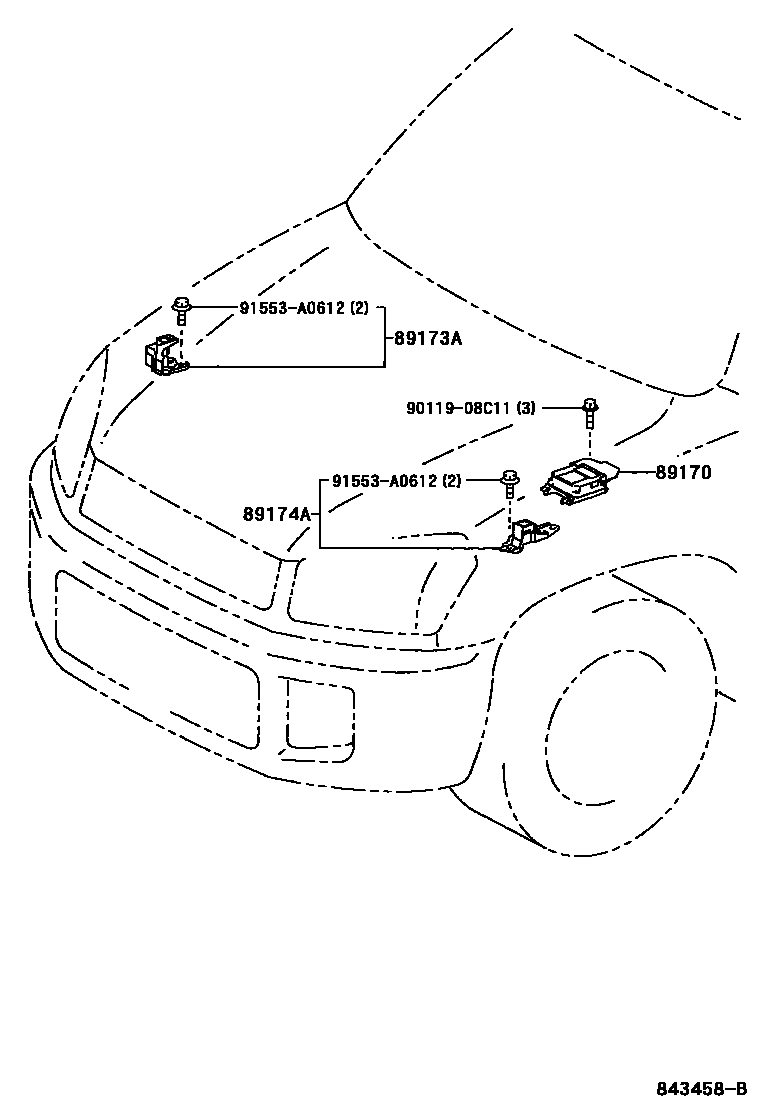

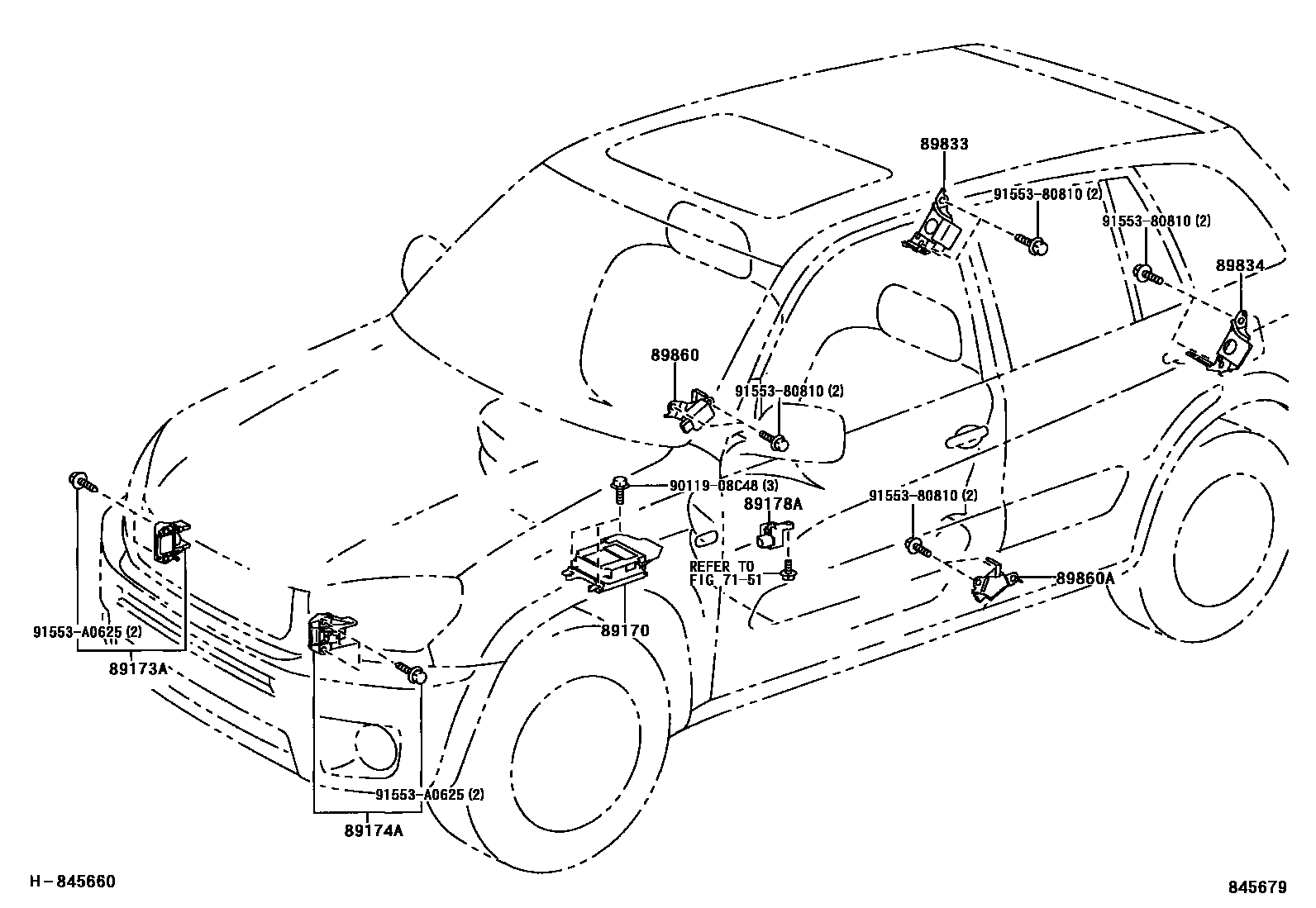

Toyota RAV4 空气囊 — Figure 8421
Toyota RAV4 EPC diagram 8421, 空气囊, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-42080 · 89170-42090 · 89170-42140 · 89170-42160 |
| 89173A | Right front air bag sensor | 89173-49245 · 89173-49295 |
| 89174A | Left front air bag sensor | 89173-49295 · 89174-49095 |
| 89178A | Seat position air bag sensor | 89178-06020 |
| 89833 | Right rear air bag sensor | 89833-42020 |
| 89834 | Left rear air bag sensor | 89834-42020 |
| 89860 | Right side airbag sensor assembly | 89860-42020 |
| 89860A | Left side air bag sensor assembly | 89830-42020 |
