Toyota RAV4 ABS 和 VSC — Figure 8414

Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 2 images and 14 PNC and OE references.

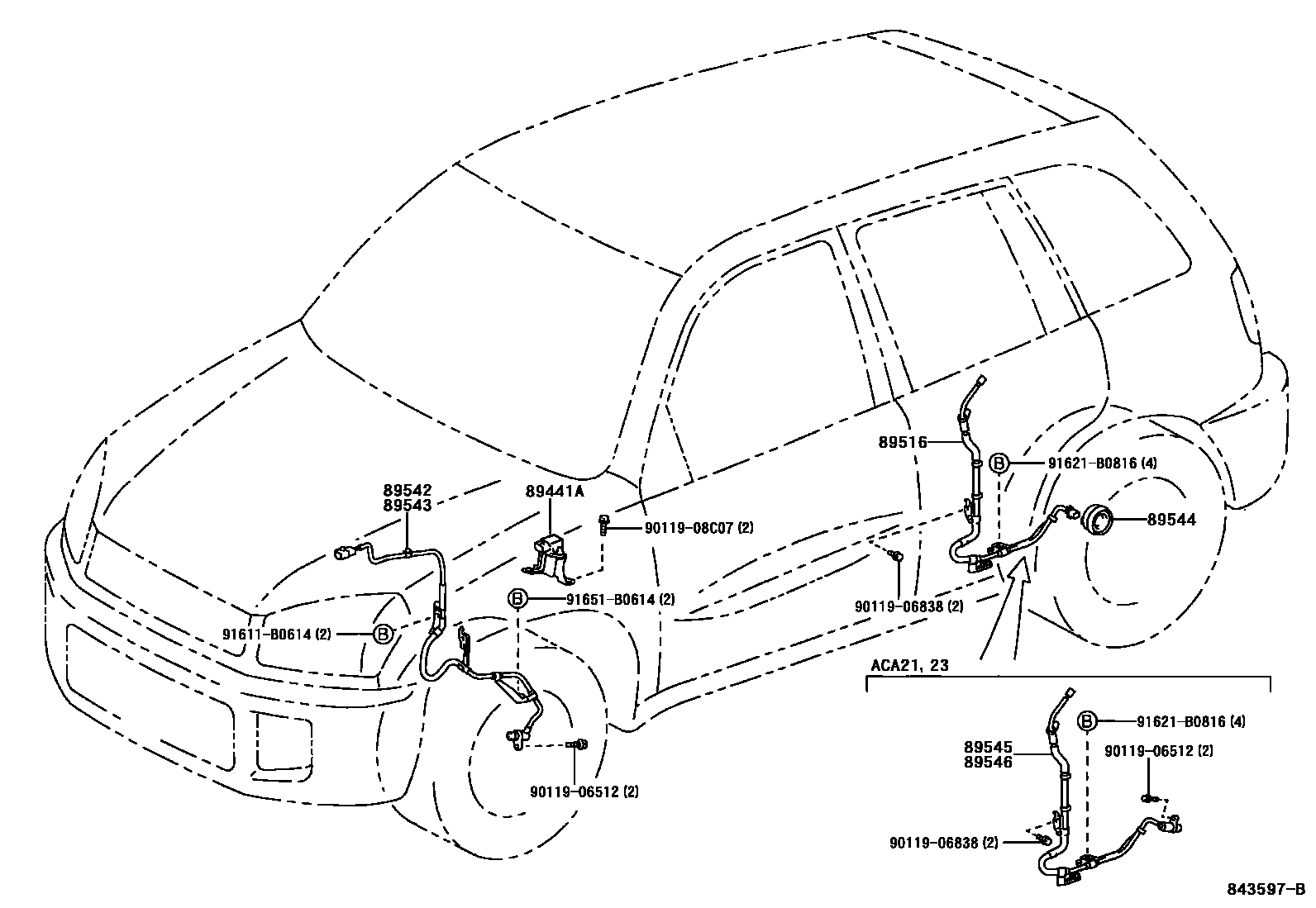

Toyota RAV4 ABS 和 VSC EPC diagram — 843597B
ABS 和 VSC — 843597B (200008 – 999999)

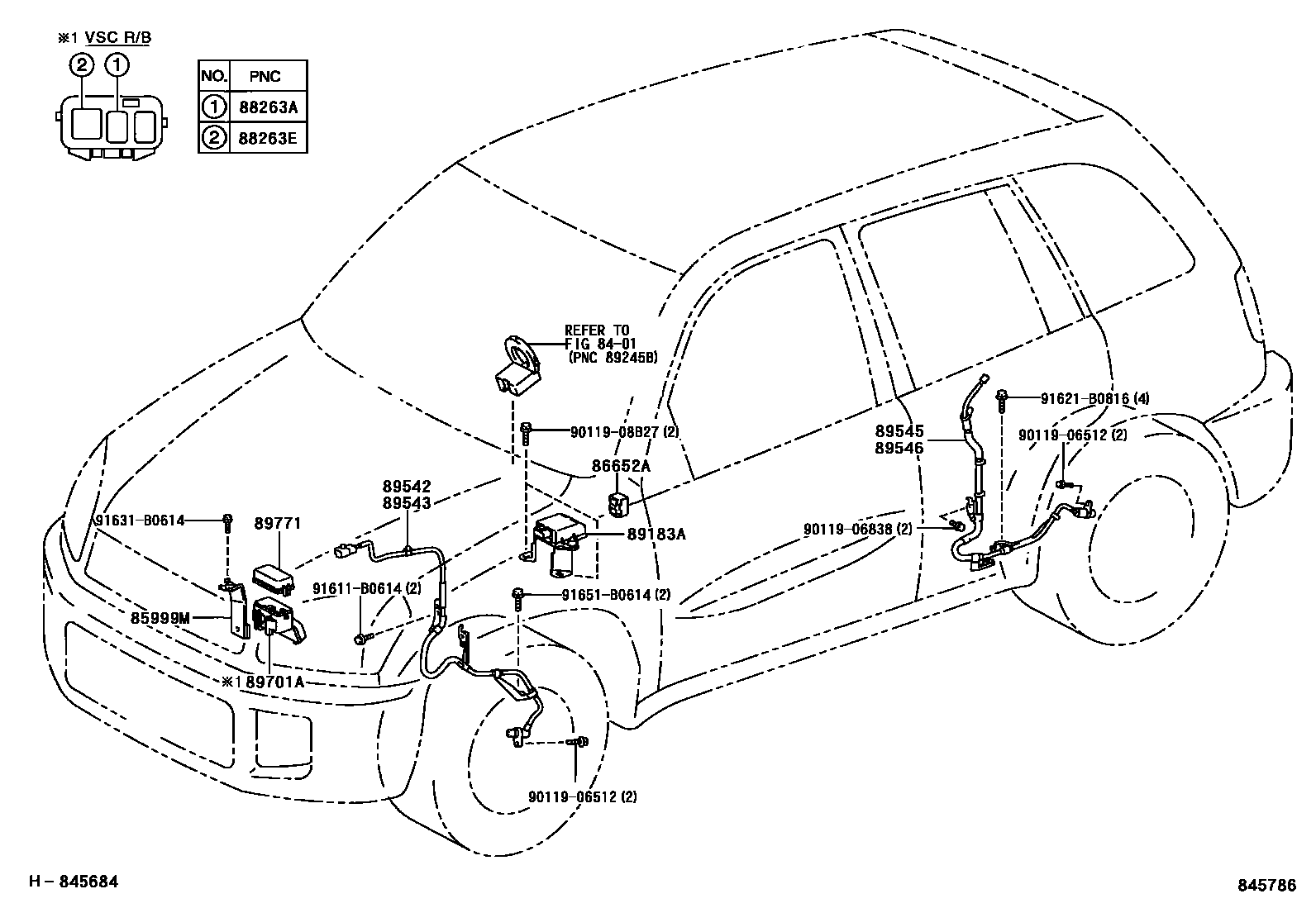

Toyota RAV4 ABS 和 VSC EPC diagram — 845786
ABS 和 VSC — 845786 (200307 – 999999)

PNC and OE references

PNCPart nameOE numbers
85999MRelay bracket85999-42050
86652AAnti-skid control buzzer assembly86652-48010
88263AAnti-skid control relay88263-32070
88263ENo. 2 anti-skid control relay88263-21010
89183AYaw rate sensor89180-42010
89441Adeceleration sensor89440-42030 · 89440-42040
89516Anti-skid control sensor wiring harness89516-42030 · 89516-42040
89542Right front wheel speed sensor89542-42040
89543Left front wheel speed sensor89543-42040
89544Anti-skid control sensor89544-32010 · 89544-32040
89545Right rear wheel speed sensor89545-42030
89546Left rear wheel speed sensor89546-42030
89701AABS relay box sub-assembly89701-21020
89771ABS relay box upper cover89771-21020
