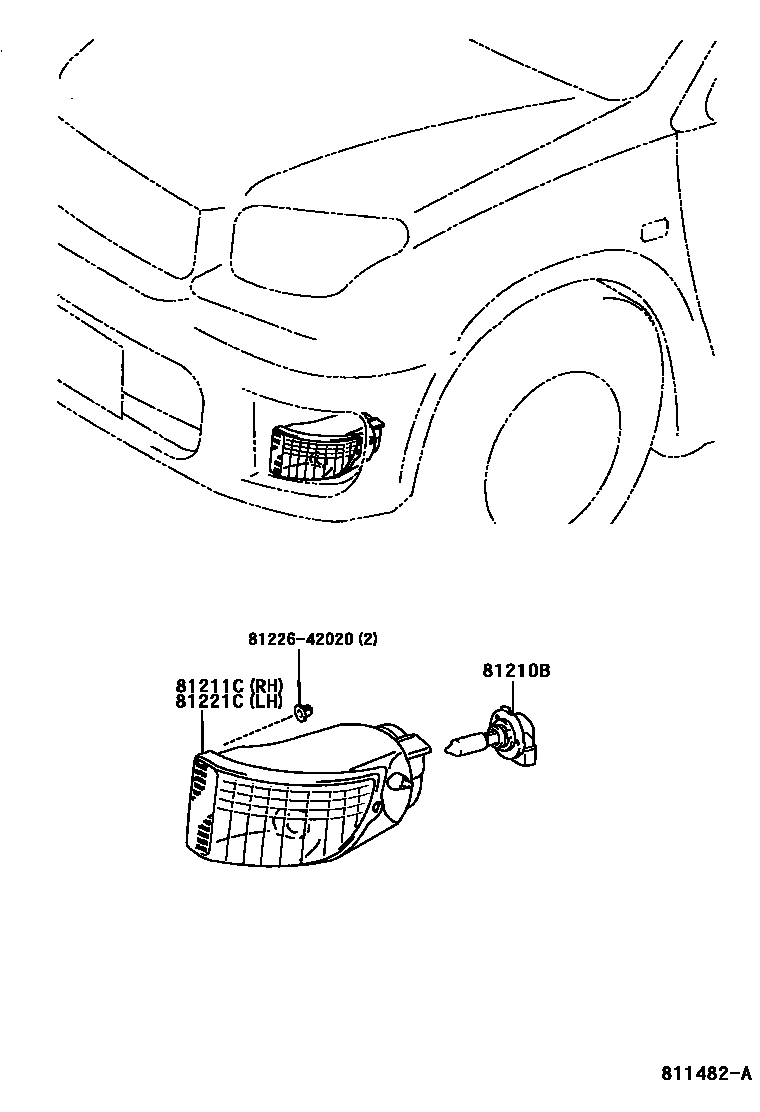

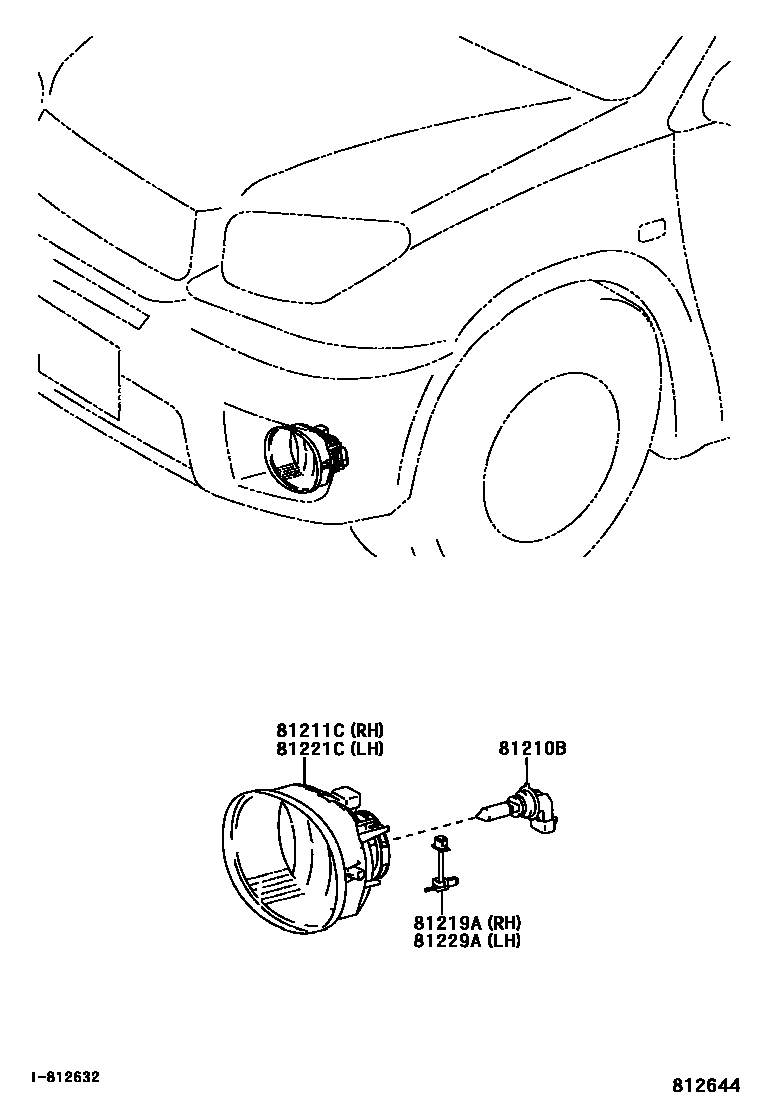

Toyota RAV4 Fog Lamp — Figure 8102
Toyota RAV4 EPC diagram 8102, Fog Lamp, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210B | fog light bulb | 90080-81040 · 90981-13047 |
| 81211C | Right fog light assembly | 81211-42020 · 81211-42060 · 81211-42061 |
| 81219A | Right fog light bracket | 81218-42050 |
| 81221C | Left fog light assembly | 81221-42020 · 81221-42060 · 81221-42061 |
| 81229A | Left fog light bracket | 81228-42050 |
